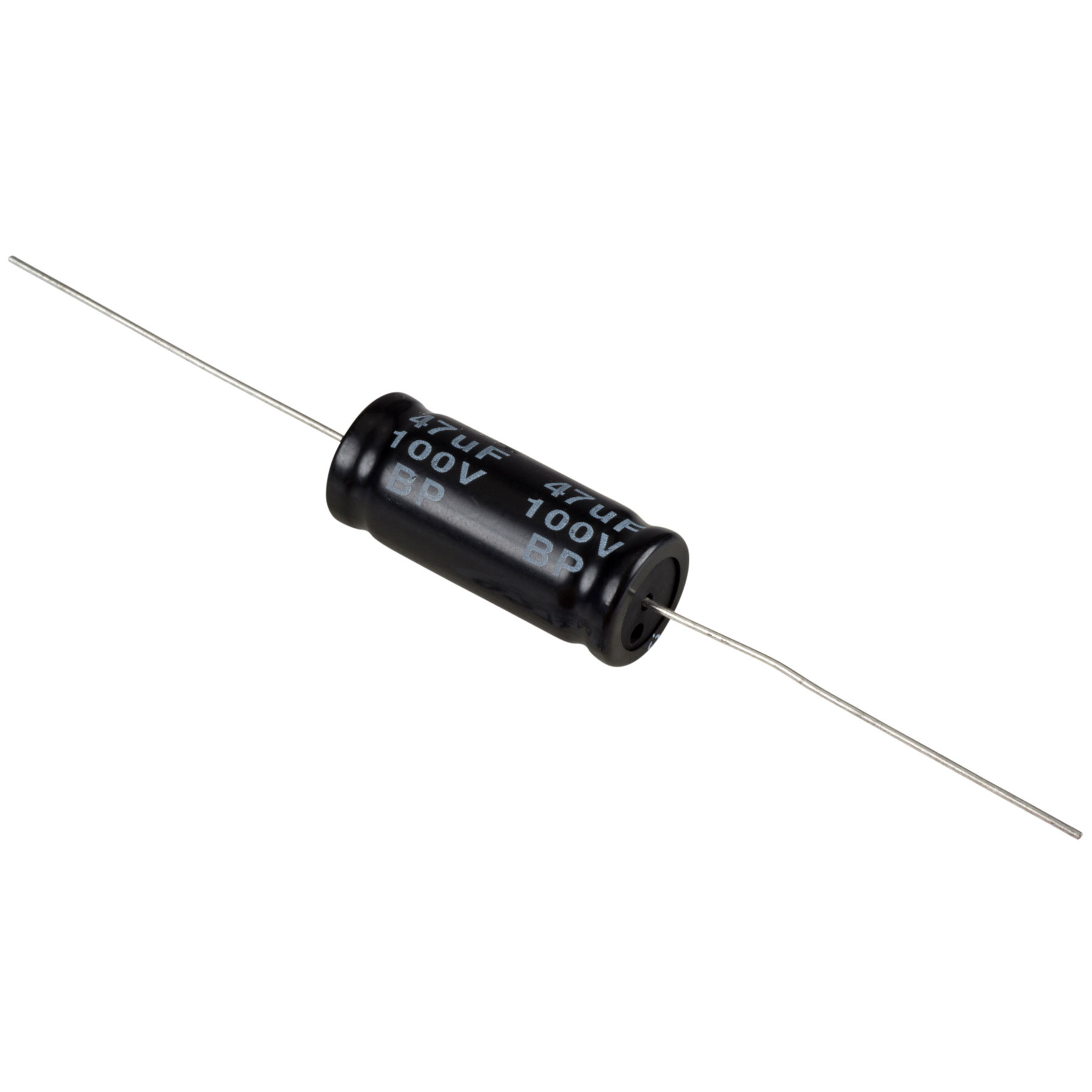

Electrolytic Non-Polarized Cap | 47 µF | 10% | 100V

In stock

  • Article code: 027-352
  • Stock: >10 In stock

These high quality bi-polar (non-polarized) electrolytic capacitors are perfect for your next crossover design. They feature a 5% dissipation factor and are rated at 100V which are effective to approximately 200 watts.

€ 2,65 Incl. 21% VAT

  • Buy 4 for €2,52 each and save 5% Sale 5%
  • Buy 10 for €2,39 each and save 10% Sale 10%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Electrolytic Non-Polarized Cap | 47 µF | 10% | 100V

Highlights

  • 0 microfarad value
  • 13 mm diameter x 32 mm long
  • 5% dissipation factor and 100 VDC working voltage
  • ±10% tolerance



Product details

Electrolytic Non-Polarized Cap | 47 µF | 10% | 100V



Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.



Specifications: Value: 47.0 µF • Rated: 100 VDC • Tolerance: ±10% • Dissipation Factor: Max 0.5 (5%) @ 1 KHz • Dimensions: 13 mm Dia. x 32 mm L.

Specifications

Specifications for: Electrolytic Non-Polarized Cap | 47 µF | 10% | 100V

  • Capacitance (µF) The capacitance of the capacitor measured in farad (F) 47 µF
  • Voltage Rating Maximum amount of voltage (in AC or DC) that a capacitor can safely be exposed to and can store. 100V
  • Tolerance Indicates how close the printed value meets reality in percentage. 10%
  • Dimensions: Ø * L (mm) Dimensions in diameter x Length, in millimeters 13 x 32
  • Termination Style Construction type, could be 'Axial' (horizontal cylinder) or 'Radial' (vertical cylinder) leads. Radial type, both the leads come out the bottom of the cylinder. Axial type, one lead end along the axis of the cylinder. Axial

Reviews

User reviews 5 / 5 Reviews: (1)

  • HG By Hans G. on 28-05-2020 22:57

    5 / 5

    Mooie compacte condensator.ok heb bij een translator impact 4d e middentoner vervangen door een visatone dsm50ffl. H et filter moest uiteraard aangepast. alles met mundorf condensatoren en 1 spoeltje gedaan.Het klinkt waanzinnig mooi.het ligt zeker niet alleen aan deze condensator.,
    Maar het ondersteund zeker op de juiste wijze. Mooi campact gebouwd.Handig als er weinig plaats is.

    Hans
