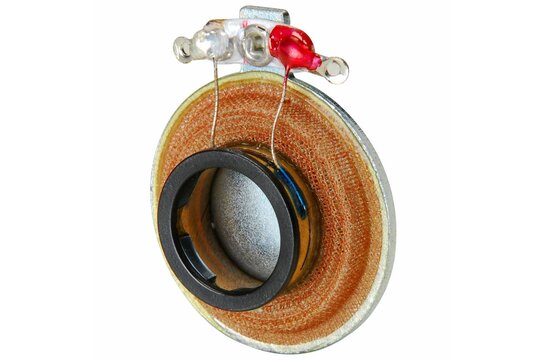

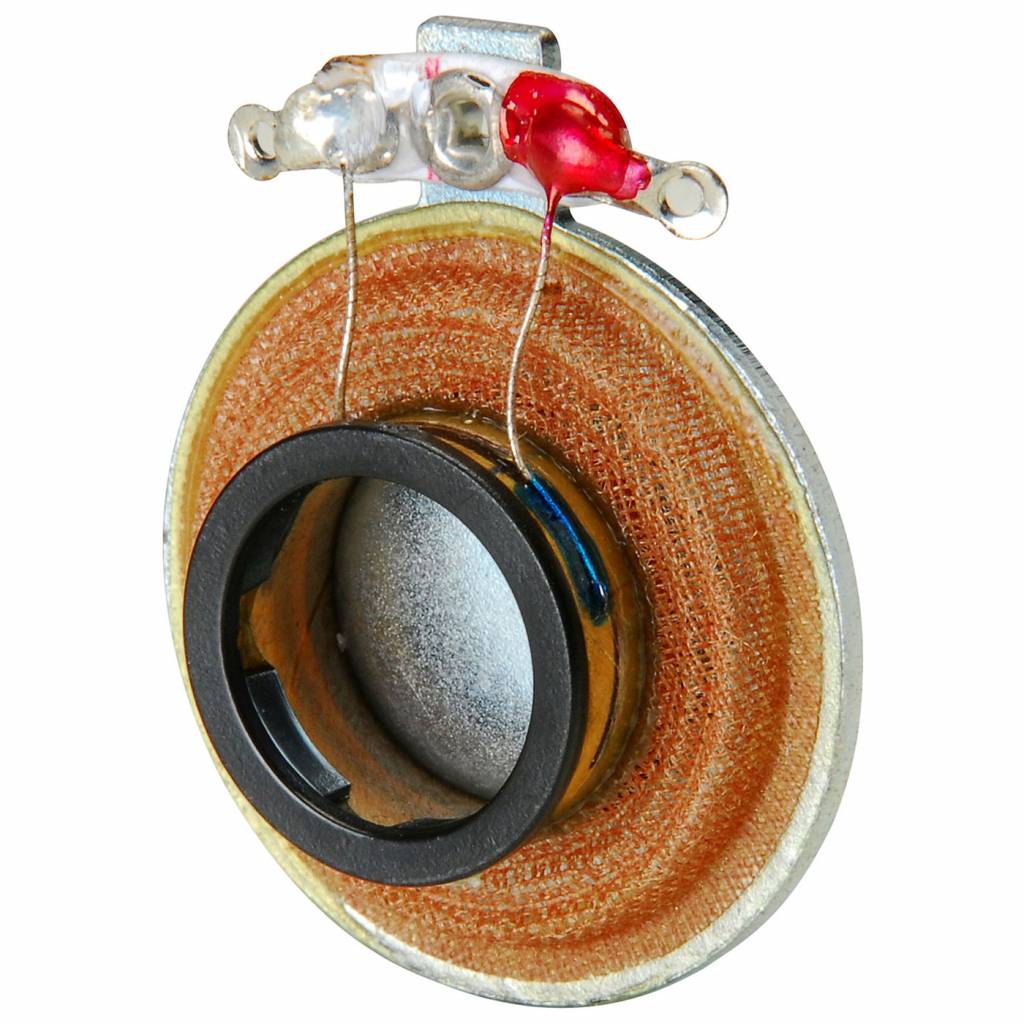

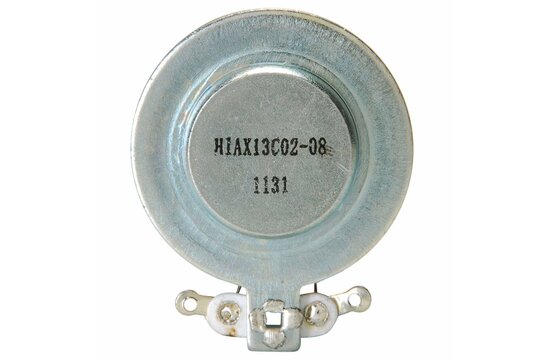

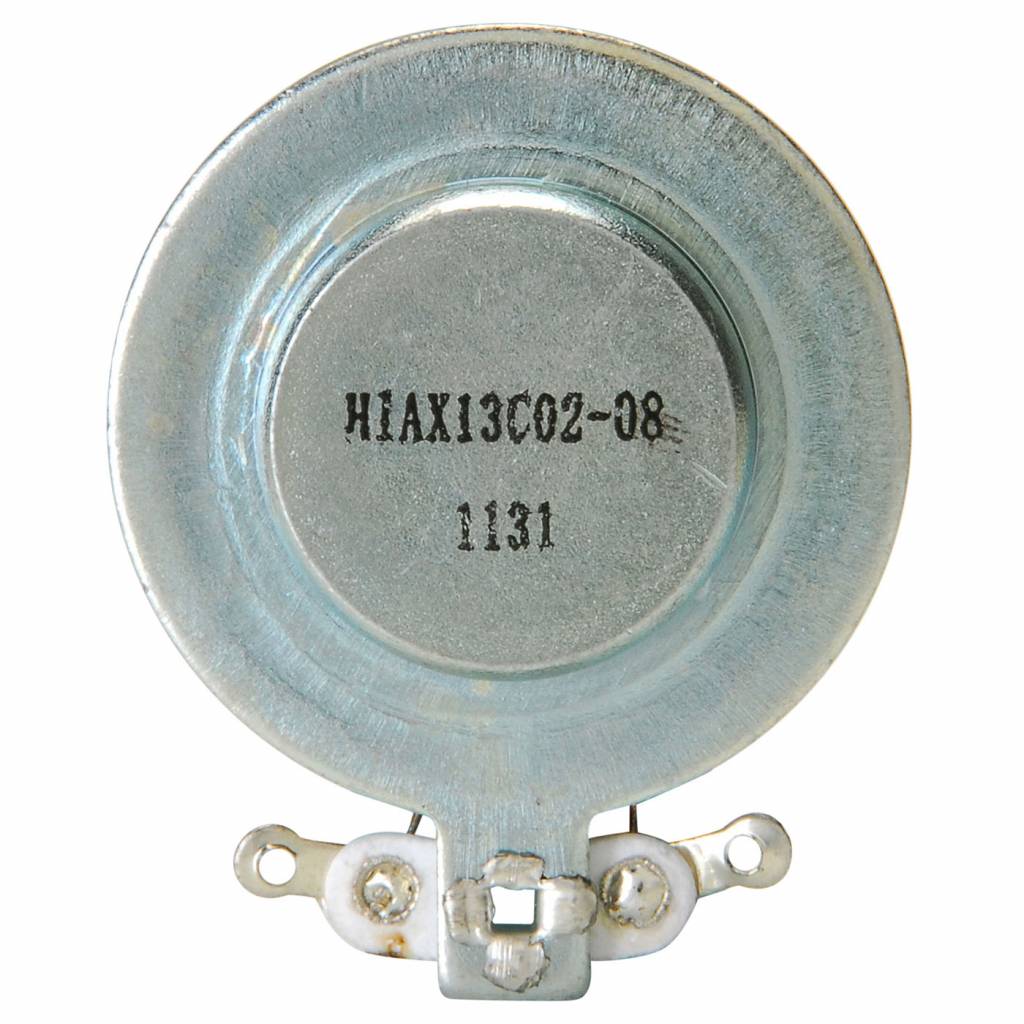

        TEAX13C02-8/RH sound exciter

        Tectonic Elements TEAX13C02-8/RH sound exciter

        €9,95

        Out of stock

        Add to cart

        Tectonic Elements TEAX13C02-8/RH sound exciter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Tectonic Elements
        Show all Exciters
        TEAX13C02-8/RH sound exciter
        TEAX13C02-8/RH sound exciter
        TEAX13C02-8/RH sound exciter
        TEAX13C02-8/RH sound exciter
        € 8,22€ 9,95 Out of stock
        • -5% Purchase 4 for only € 9,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        TEAX13C02-8/RH sound exciter
        TEAX13C02-8/RH sound exciter
        TEAX13C02-8/RH sound exciter
        TEAX13C02-8/RH sound exciter

        Product description Tectonic Elements TEAX13C02-8/RH Exciter

        The Tectonic Elements TEAX13C02-8/RH 13 mm exciter provides a small, inexpensive means of turning flat panels of most compositions into an audio loudspeaker.



        Highlights

        • Turn virtually any surface into a hi-fi speaker
        • The exciter's high efficiency reduces power requirements
        • Diminutive 1-1/4" diameter and 3/8" height for use in extremely tight spaces



        Product details

        Tectonic Elements TEAX13C02-8/RH 13mm Exciter 8 Ohms



        The Tectonic Elements 13 mm TEAX13C02-8/RH turns virtually any surface into a high fidelity loudspeaker. This exciter’s extremely small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors… even windows!



        The TEAX13C02-8/RH exciter employs a neodymium magnet for maximum magnetic flux around the voice coil and increased sensitivity. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.



        To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, two-part epoxy is recommended. Two terminals extend from the exciter for wire soldering purposes.



        A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.



        Note: An exciter’s frequency response and sensitivity are completely dependent on the exciter’s designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



        PRODUCT SPECIFICATIONS

        Application

        Full-Range Exciter

        Impedance

        8 ohms

        Power Handling (RMS)

        2 Watts



        Show more

        Specifications

        Article number
        TEAX13C02-8/RH
        EAN
        0844632093777
        Resonant Frequency (Fs)
        560 Hz

        Show more

        Reviews

        0 reviews
        Review this product

        There are no reviews written yet about this product..
