      Sure Electronics AA-AB32971 2x100W Class D Audio Amplifier Board T-Amp

      € 37,15€ 44,95 8 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €42,70 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      This Class-D audio amplifier board gives you 2 x 100 watts using T-AMP technology. Using PBTL (Parallel Bridge-Tied Load) topology you get 50 watts RMS per channel with only 0.01% THD at 4 ohms.



      Highlights

      • Uses PBTL topology for cleaner sound
      • On board heat sink and fan eliminates the need for external fans
      • Small footprint for space limited applications
      • Thermal and short circuit protection
      • Delivers up to 100W RMS per channel
      • Startup and power down pop elimination
      • 15 to 30 VDC power supply required



      Product details

      Sure Electronics AA-AB32971 2x100W Class D Audio Amplifier Board T-Amp

      Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



      Enjoy cleaner sound with this new Class-D 2 x 100W amplifier board. T-Amp technology delivers the best sound possible from a Class-D board for your new project. It's a great amp board for dual voice coil subwoofers or making your own gaming speakers. The AA-AB32971 can be installed in a small box that fits on a desk or small computer table.

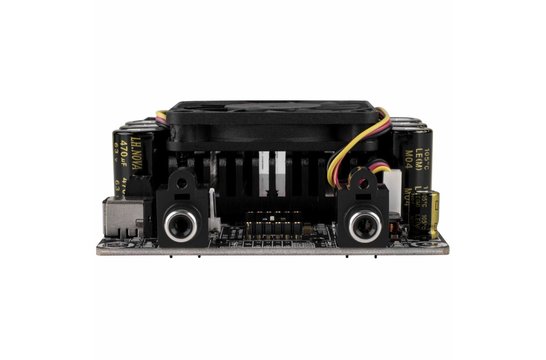

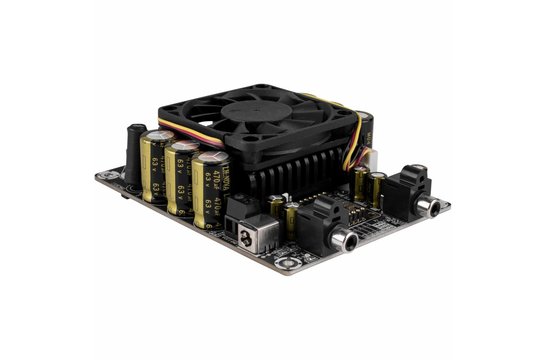

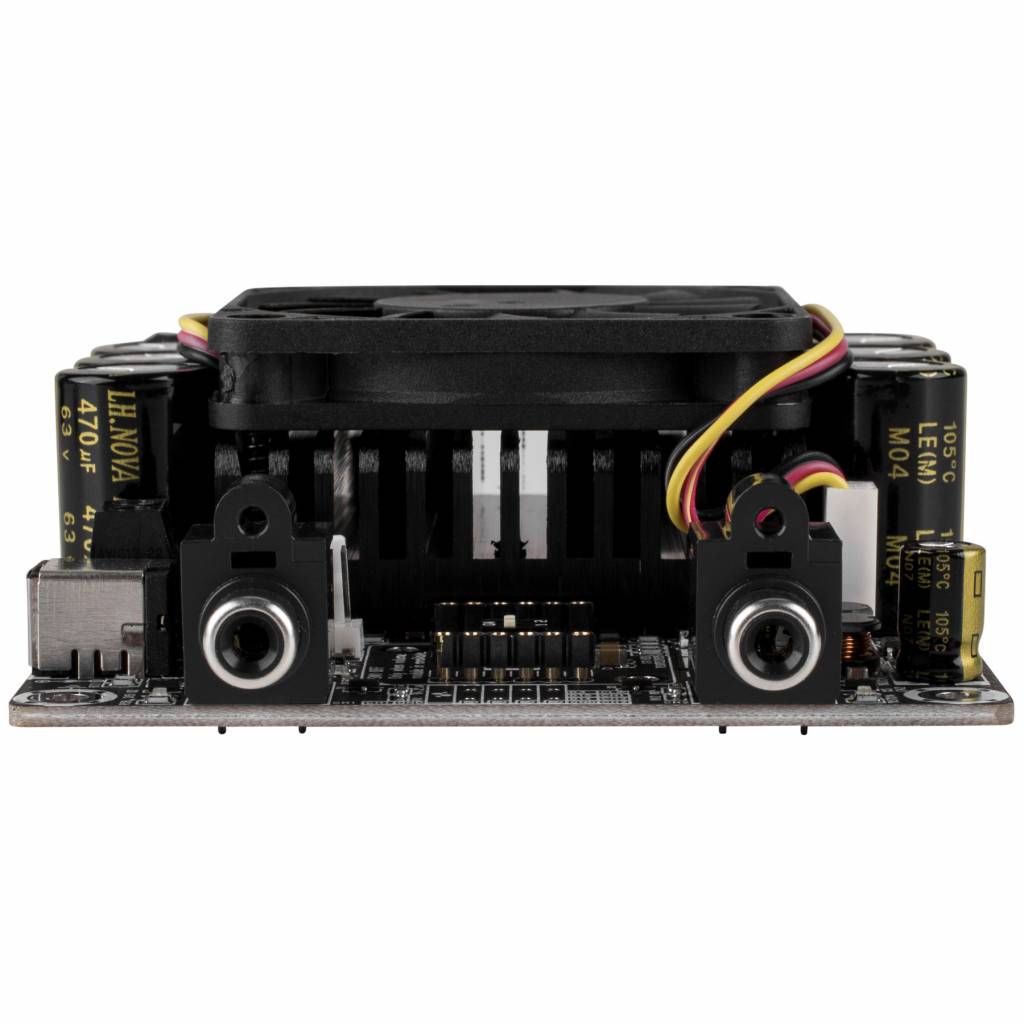

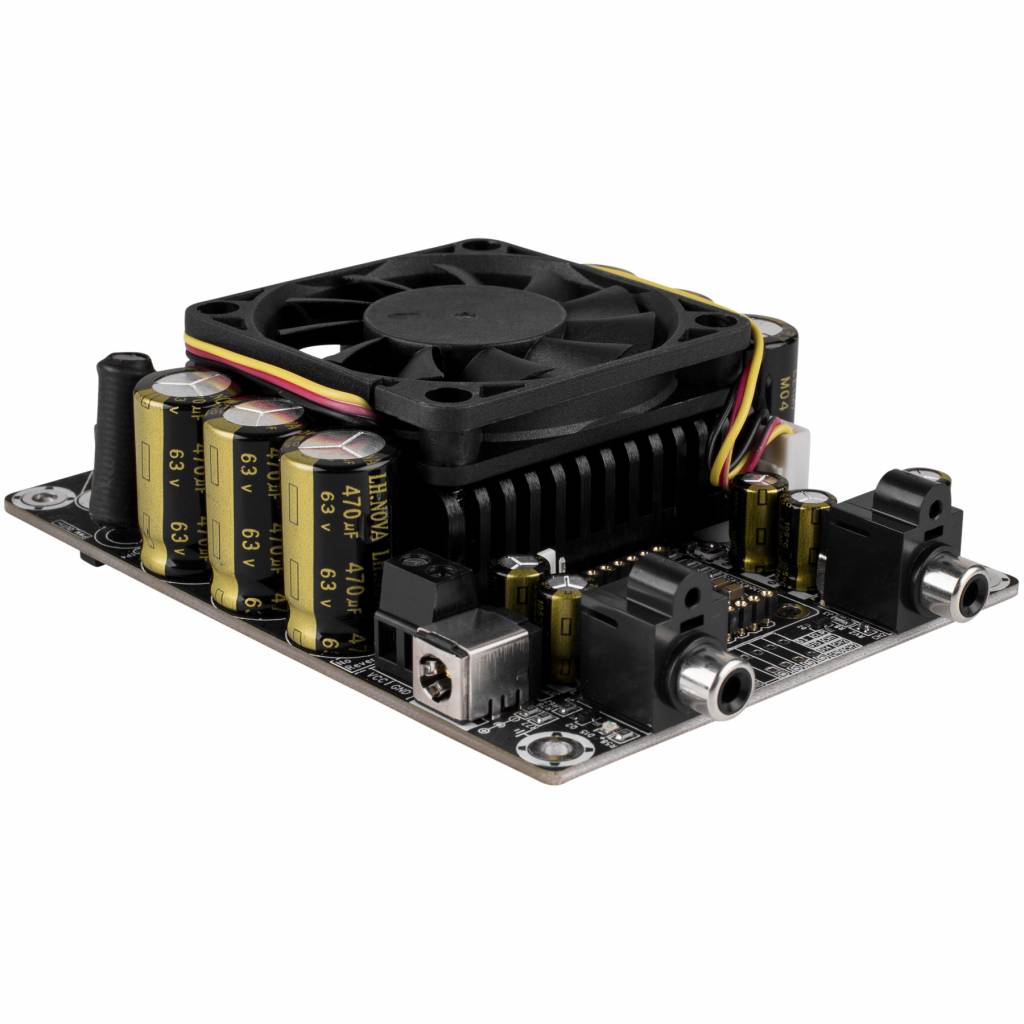

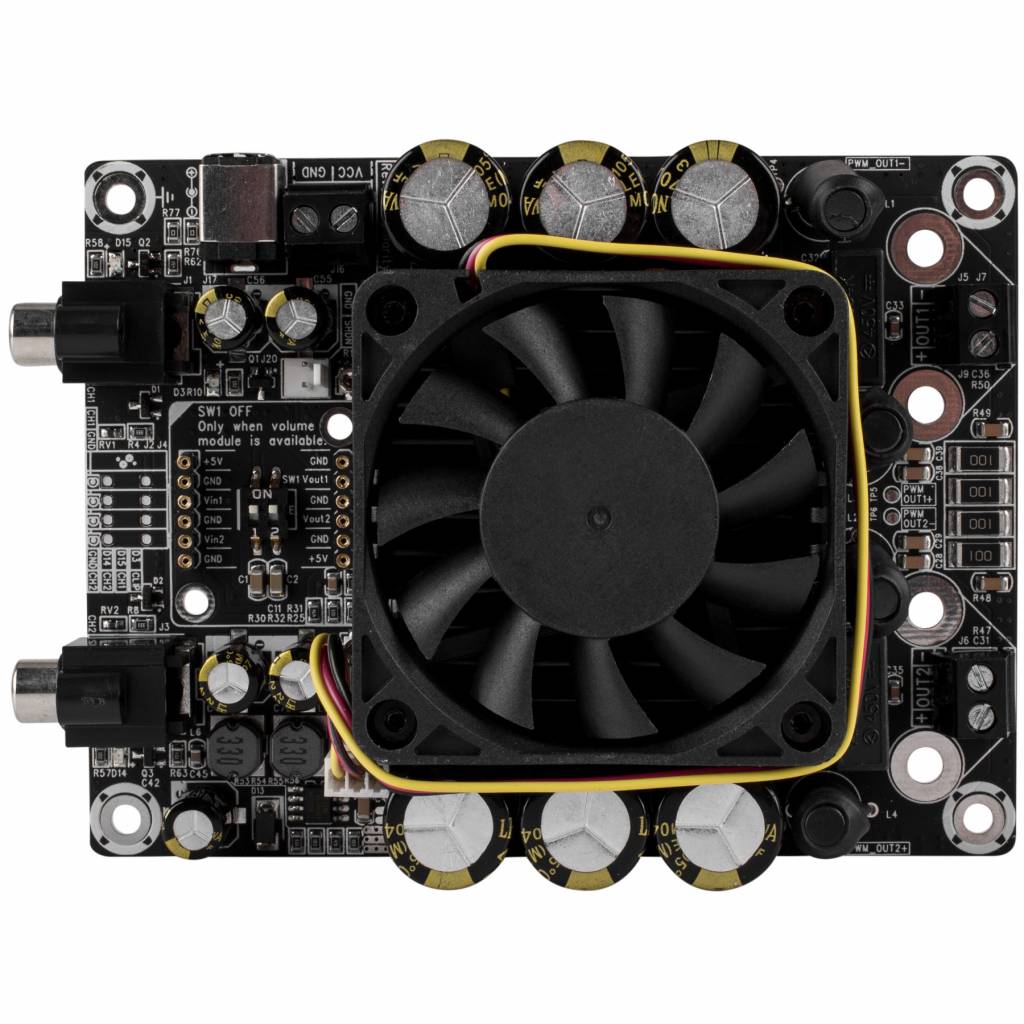

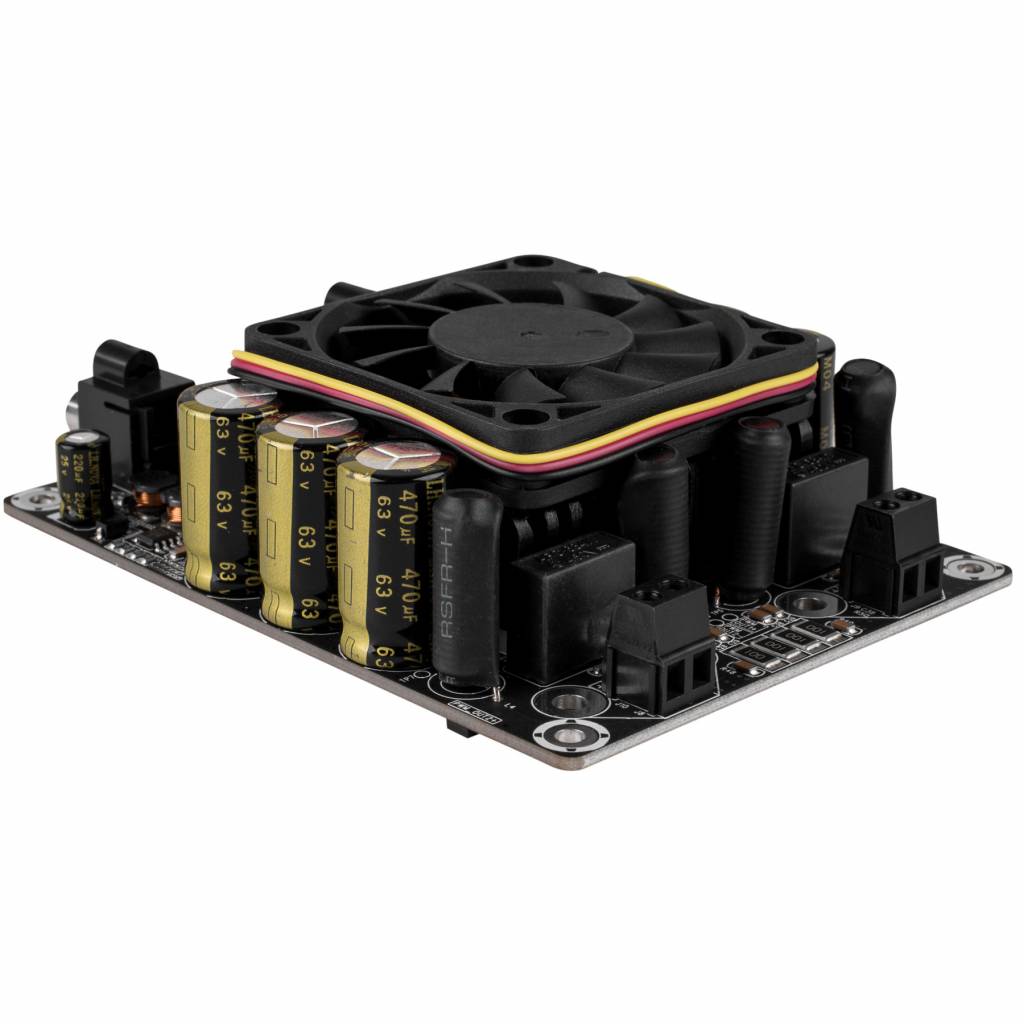

      A low noise, temperature controlled, cooling fan is mounted atop the robust heatsink to maximize heat dissipation. Thermal, over/under voltage, and current protection circuits are also included to extend the longevity of the amplifier board. Mounting holes are provided as is a 2.5 mm x 5.5 mm power jack for quick connection. Screw-down phoenix-type terminals are included for quick speaker wire connection. RCA line-level inputs are pre-attached to make this board ready to rock.



      Connections:





      Typical Performance Graphs:

      Frequency response:

      Noise Floor:

      THD+N VS Frequency:

      Thermal Image:

      Specifications

      Article number
      AA-AB32971
      Rated power output
      2 x 100 watts at 4 ohms
      Minimum load
      3 ohms
      Efficiency
      93 %
      Signal-to-noise ratio (SNR)
      85 dB
      Distortion

      0.003 % at 4 ohms, 1 watt, 1 kHz
      0.005 % at 4 ohms, 10 watts, 1 kHz

      Frequency response
      20 - 20.000 Hz
      Gain
      30 dB
      Input sensitivity
      610 mV
      Input impedance
      10k ohms
      Amplifier Classification
      Class D
      Circuit Topology
      Sure Electronics T-AMP
      Speaker output channels
      2
      Input connection type
      RCA
      Speaker output connection type
      Screw terminals
      DSP function
      -
      Bluetooth
      -
      EQ Adjustment
      -
      Power Requirements
      15 - 30 VDC
      Power inlet connector
      Screw terminals
      Current limit
      8.0 A
      Under/over voltage protection
      Dimensions (L x W x H)
      121.92 x 91.44 x 38.86 mm
      Mounting hole spacing
      -
      Mounting hole diameter
      3.60 mm

      Show more

      Reviews

      5 from 5Based on 3 reviews
      Review this product
      5 of 5
      No description was given
      By GIANLUCA V. on 21 August 2020
      5 of 5
      Solid performer, the fan is very quiet indeed, and the frequency response extends downward to 0.5Hz that I have measured, (with some expected attenuation, approx. 6dB), but still there and available at full rated RMS power.
      By Douglas H. on 6 August 2020
