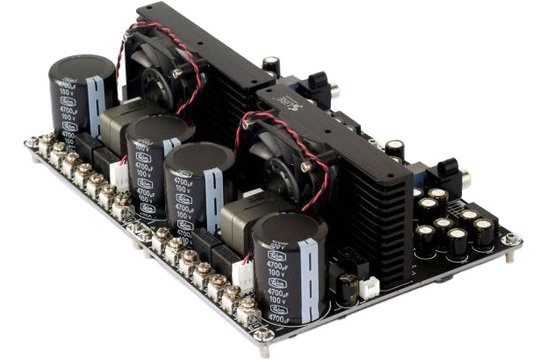

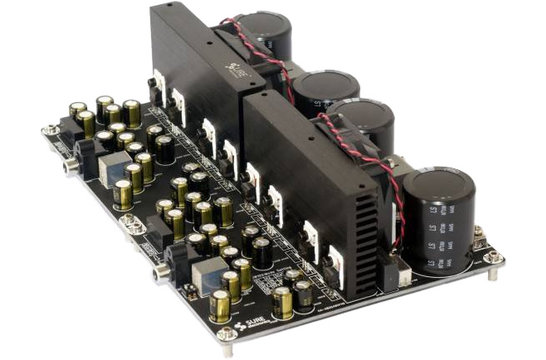

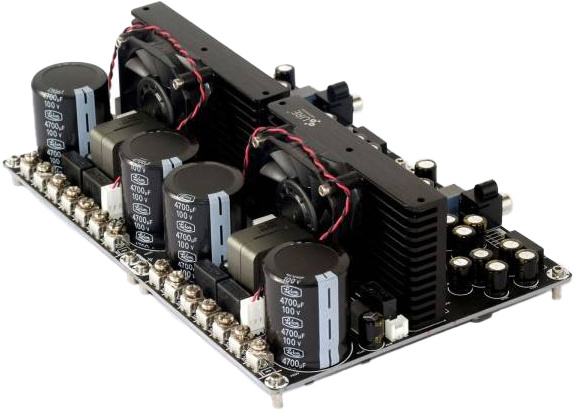

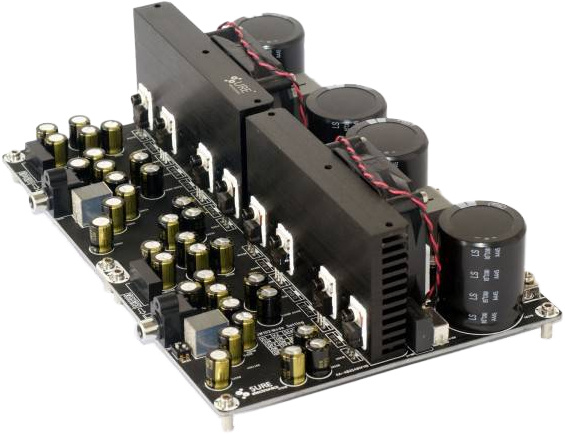

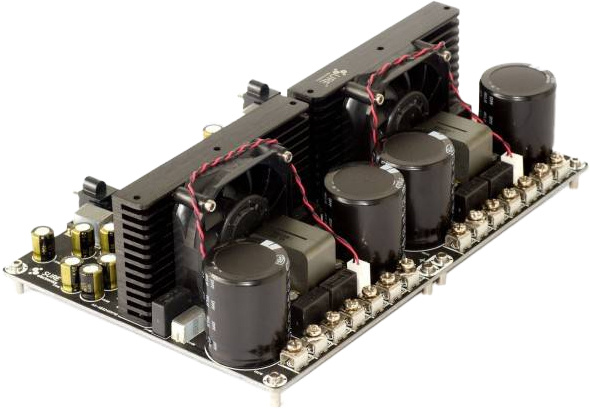

    Sure Electronics AA-AB32511 2x500W IRS2092 4 Ohm Class D Audio Amplifier Board

    € 146,65€ 177,45 5 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €168,58 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    If you absolutely have to have 500 clean watts of stereo power, look no further than this amplifier board. It employs IR's High Voltage, high performance class D audio amplifier driver IRS2092SPBF and 200V Single N-Channel HEXFET Power MOSFET IRFB4227. Two 55 to 65 VDC power supplies are required for operation. This amplifier board supports mono amplification by using one channel half bridge topology.



    Highlights

    • Self-oscillating half-bridge topology
    • Capable of 2x500W RMS output @ 4 Ohm
    • Requires 55 to 65 VDC power supply



    Product details

    Sure Electronics AA-AB32511 2x500W IRS2092 4 Ohm Class D Audio Amplifier Board



    If you absolutely have to have 500 clean watts of stereo power, look no further than this amplifier board. It employs IR's High Voltage, high performance class D audio amplifier driver IRS2092SPBF

    and 200V Single N-Channel HEXFET Power MOSFET IRFB4227. Two 55 to 65 VDC power supplies are required for operation. This amplifier board supports mono amplification by using one channel half bridge topology.



    Two 55 to 65 VDC high-voltage power supplies are required for operation; each power supply dedicates its full output potential to a single rail for maximum output. This results in increased high-fidelity output, high dynamic range, low distortion, and a wide 20 to 22,000 Hz frequency response. Hear your music like never before with 500 Watts per channel of audiophile-grade Tripath Class-T technology. Amp includes a quiet running fan to keep things cool.



    Connection:





    Typical Performance Graphs:

    Frequency response:





    Noise Floor:





    THD+N VS Frequency:





    Thermal Image:





    All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.

    Specifications

    Article number
    AA-AB32511
    Rated power output
    2 x 500 watts at 4 ohms
    Minimum load
    4 ohms
    Efficiency
    90 - 95 %
    Signal-to-noise ratio (SNR)
    97 dB
    Distortion

    0.029 % at 4 ohms, 1 watts, 1 kHz
    0.036% at 4 ohms, 10 watts, 1 kHz

    Frequency response
    20 - 20,000 Hz
    Gain
    30 dB
    Input sensitivity
    1.44 V
    Input impedance
    3.3k ohms
    Amplifier Classification
    Class D
    Circuit Topology
    Infineon Technologies IRS2092
    Speaker output channels
    2
    Input connection type
    RCA
    Speaker output connection type
    Screw terminals
    DSP function
    -
    Bluetooth
    -
    EQ Adjustment
    -
    Power Requirements
    2 x 55 - 65 VDC
    Power inlet connector
    Screw terminals
    Current limit
    18 A
    Under/over voltage protection
    check
    Dimensions (L x W x H)
    -
    Mounting hole spacing
    -
    Mounting hole diameter
    -
