    Scan-Speak Illuminator D3004/604000 1" Beryllium Dome Tweeter

    € 260,29€ 314,95 Out of stock: please contact us for accurate delivery times

    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €299,20 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description


    • 1" Beryllium Diaphragm (99% pure Be)
    • High Efficiency (90.9dB) and Low Resonance (750Hz)
    • Patented Symmetrical Drive (SD-2) motor
    • Shallow Non Resonant Alu Rear Chamber
    • Neodymium Magnet
    • Aluminum Face Plate and Chamber

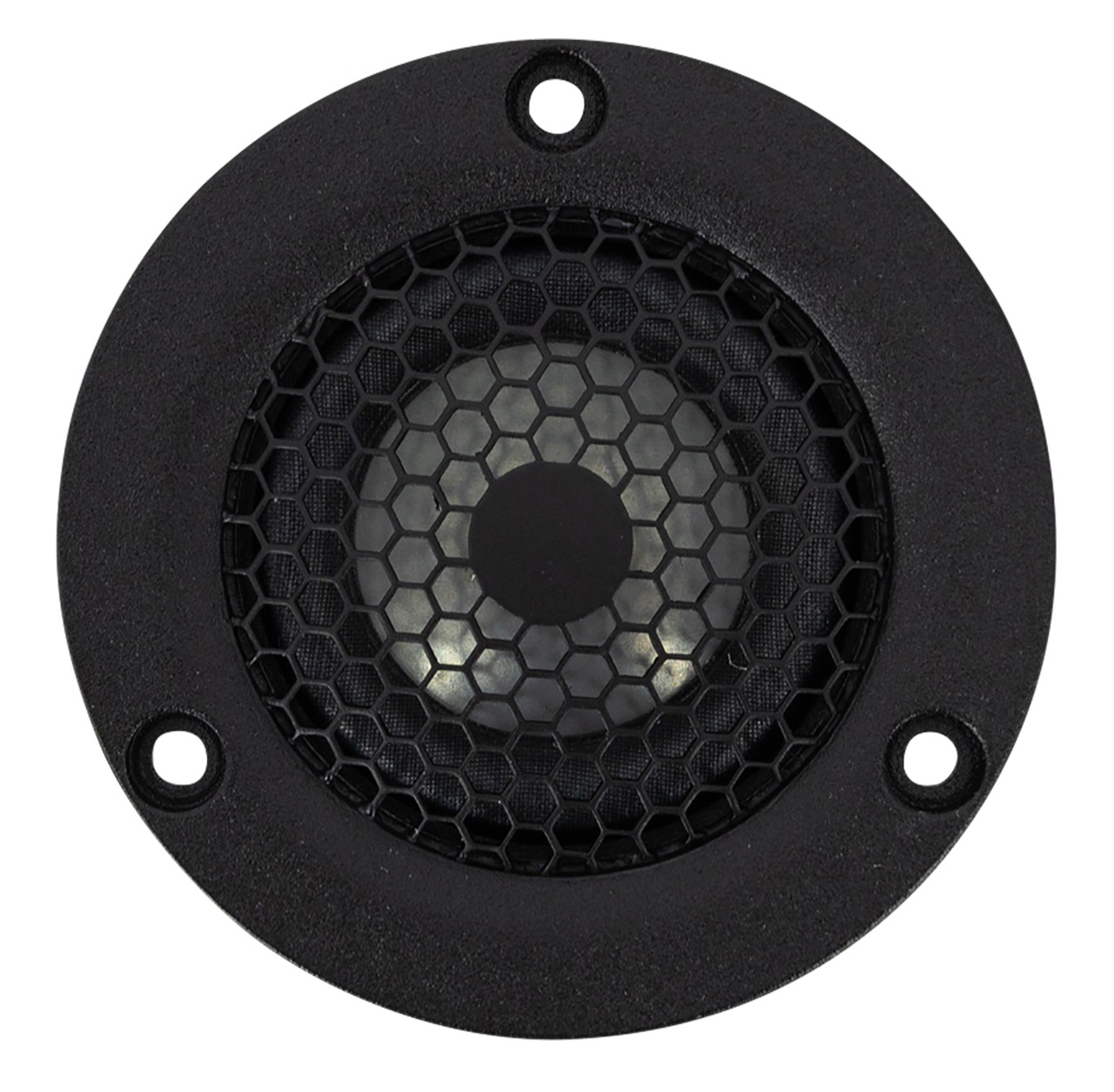

    • Sound Transparent Protective Grill
    • 61.9mm (2.44") diameter flange with 21.5mm (.85") depth
    • Excellent choice for both home hi-fi and autosound applications


    Product details

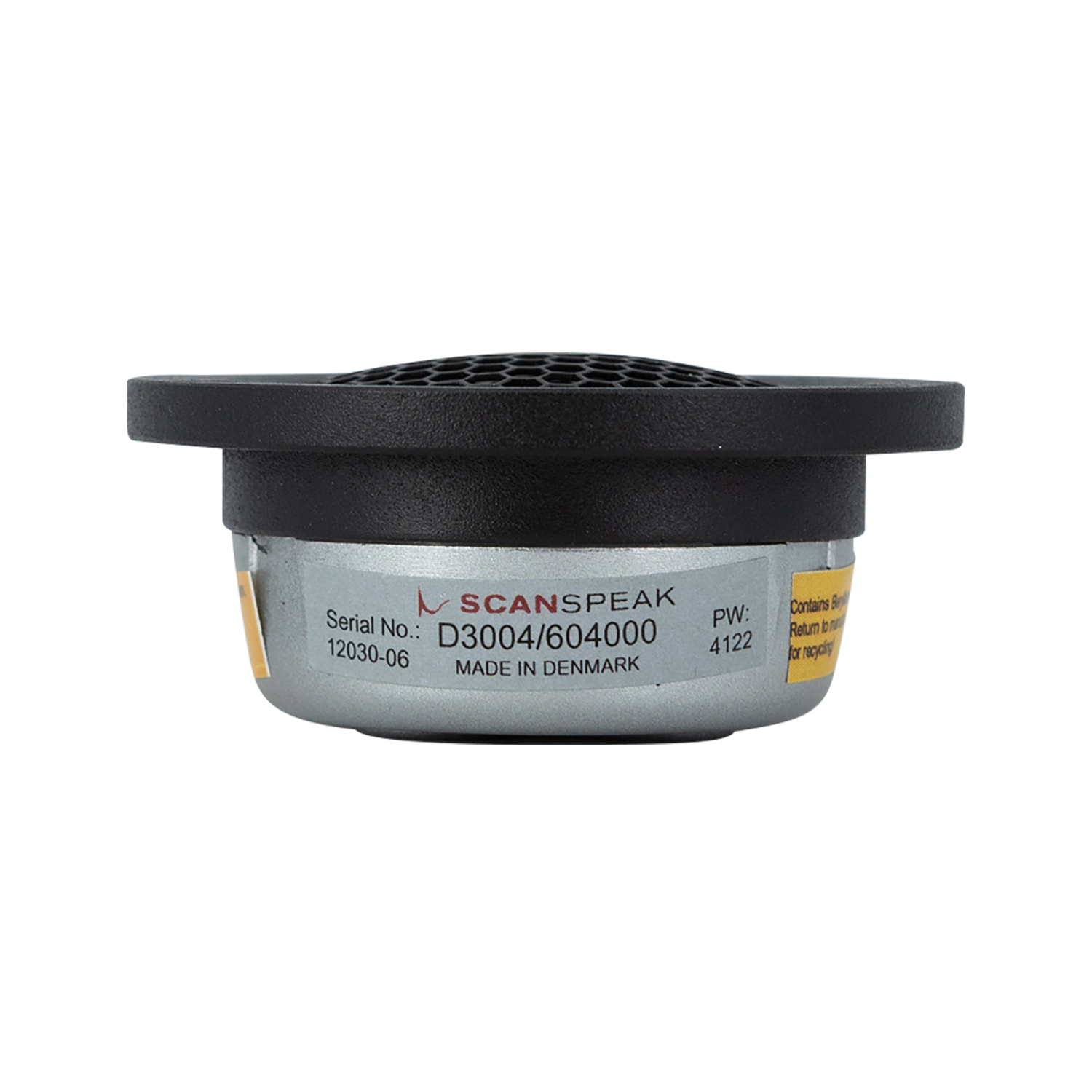

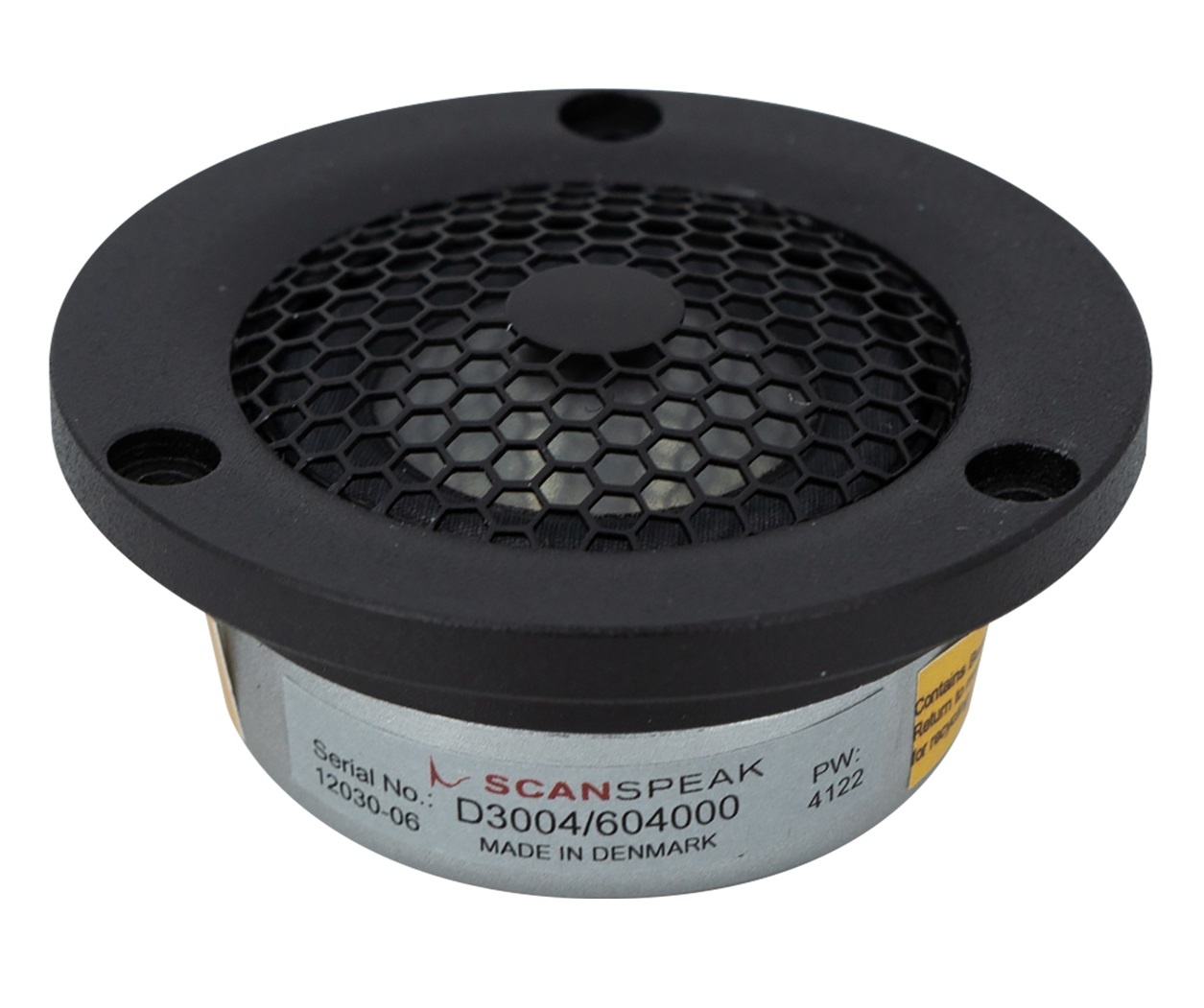

    Scan-Speak Illuminator D3004/604000 1" Beryllium Dome Tweeter


    This 1” compact Illuminator beryllium tweeter is an example of a big sound in a small body. As beryllium is a material characterized by great stiffness, light weight and high damping, the beryllium diaphragm offers all the properties required to reproduce excellent sound.


    Indeed, the D3004/604000 sounds fantastic. It has very low distortion and a distinct clarity that brings out the best in all types of music. Some have described the sound as holographic. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.

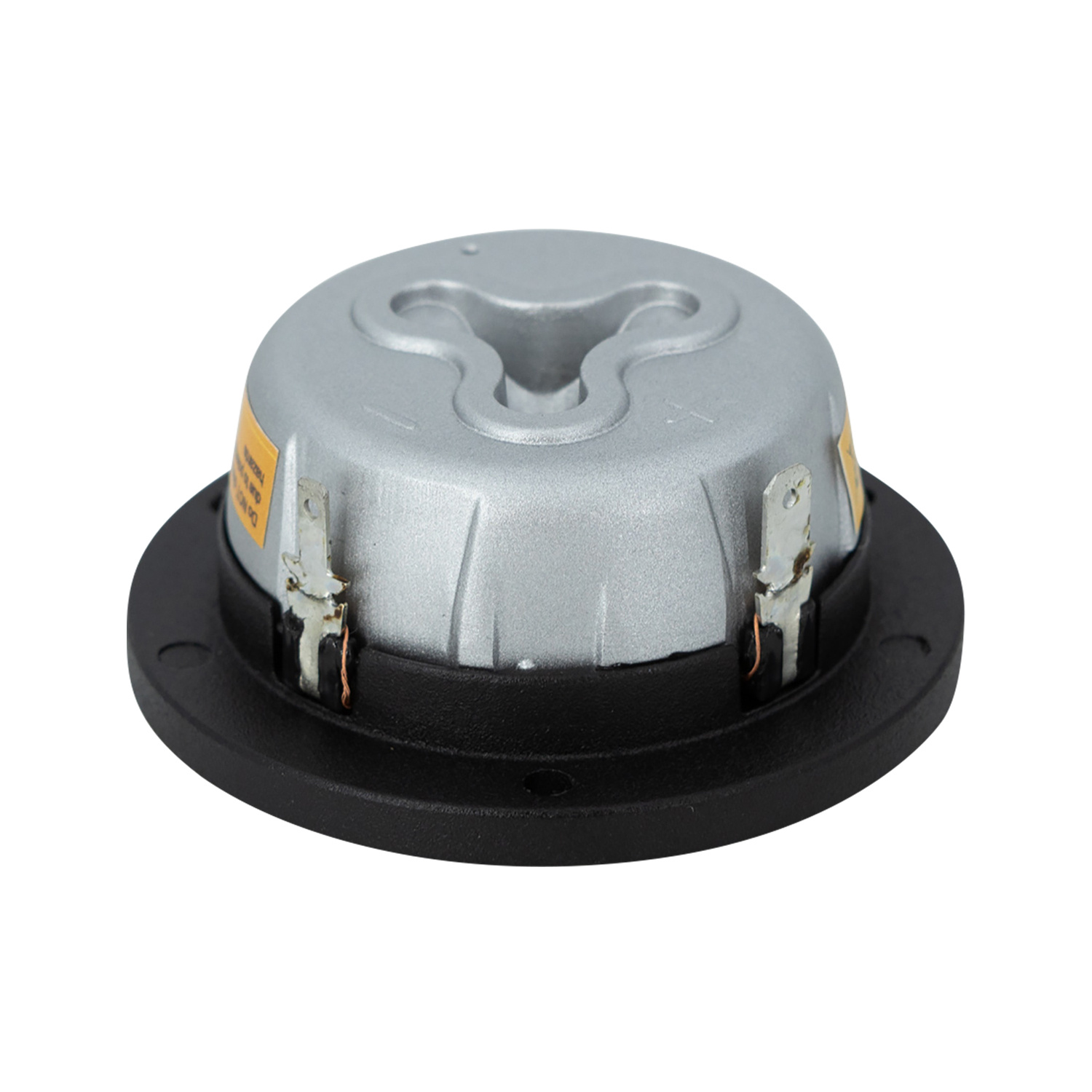

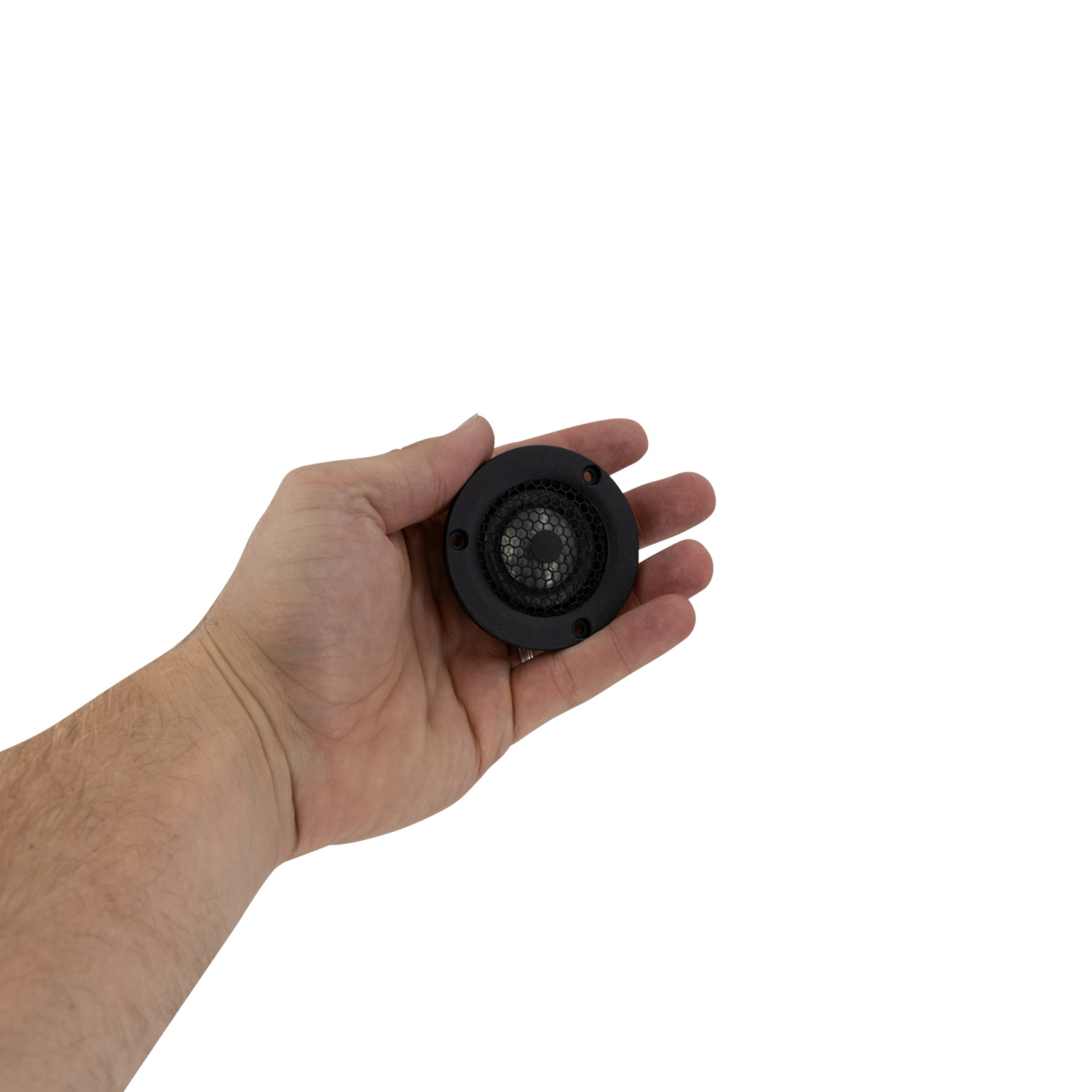

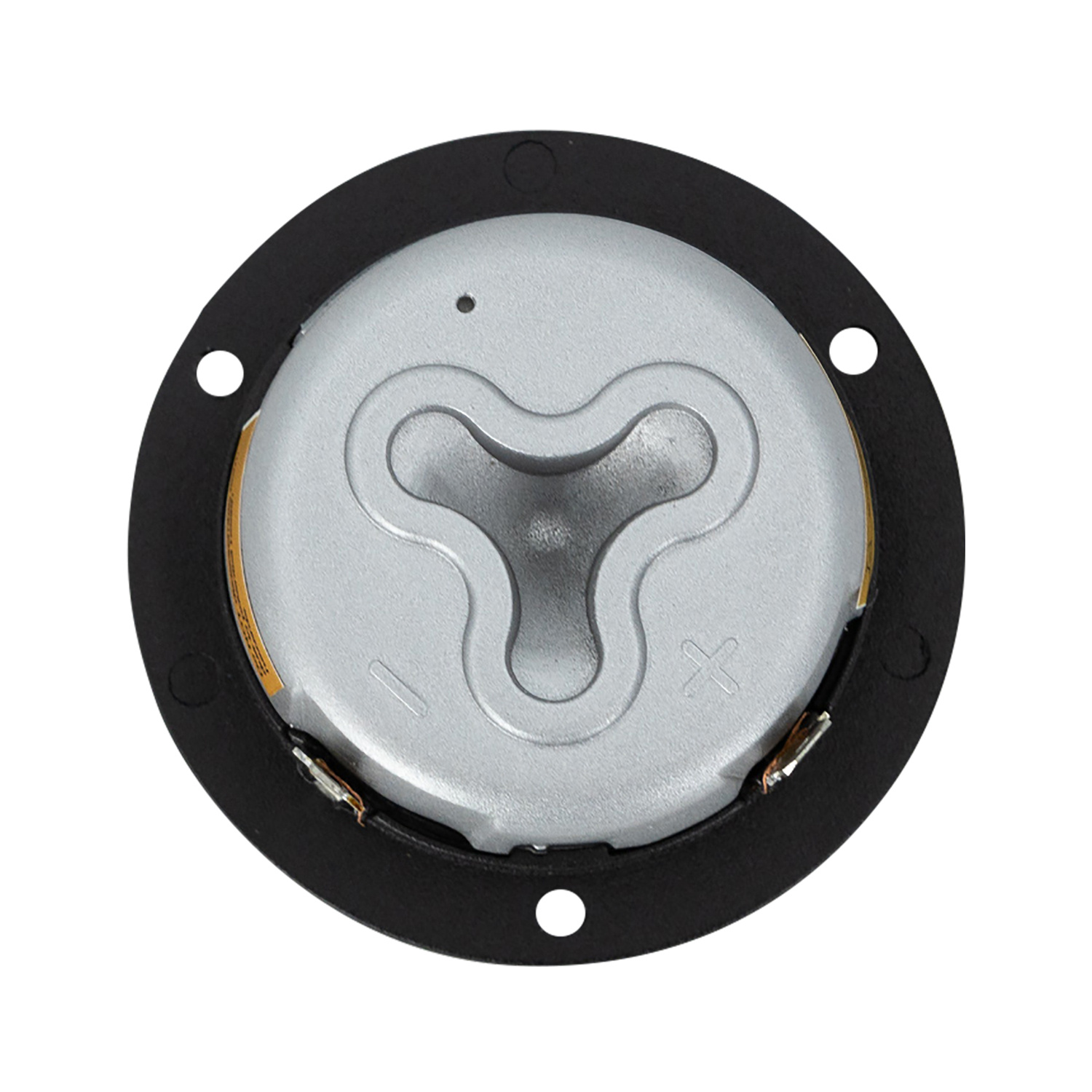

    The D3004-604000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.


    Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 1.20 Tm • Mechanical Compliance of Suspension (Cms): 0.19 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.24 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm2


    Article number
    Tweeter Type
    Tweeter Series
    Illuminator Series
    Cone / Dome Diameter
    Power Handling (RMS)
    50 Watts
    Power Handling (max)
    250 Watts
    Impedance (Z)
    4 ohms
    90.9 dB 2.83V/1m
    Frequency Response
    2,000 - 20,000 Hz
    Resonant Frequency (Fs)
    750 Hz
    DC Resistance (Re)
    2.85 ohms
    Voice Coil Inductance (Le)
    0.03 mH
    Mechanical Q (Qms)
    Electromagnetic Q (Qes)
    Total Q (Qts)
