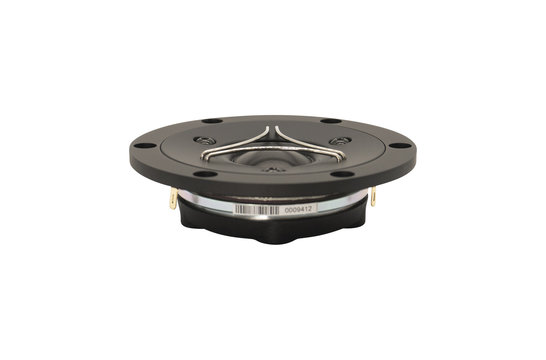

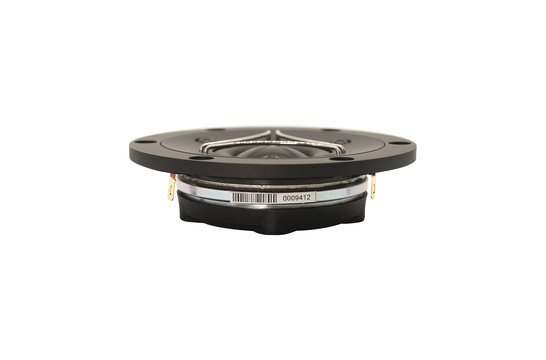

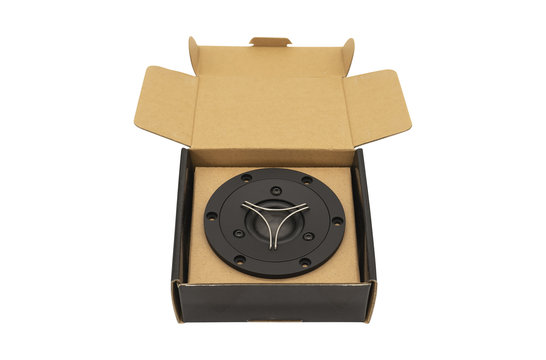

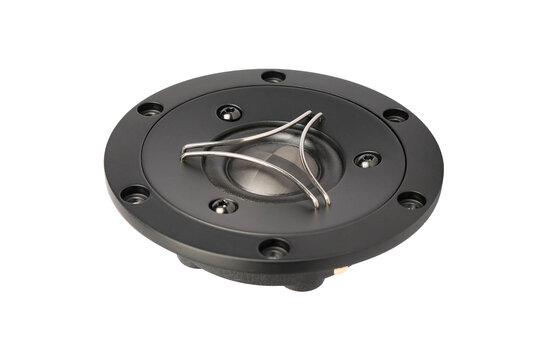

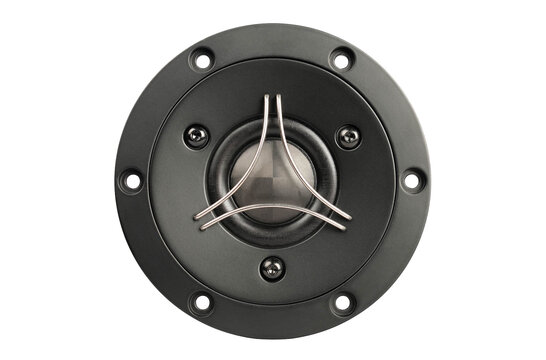

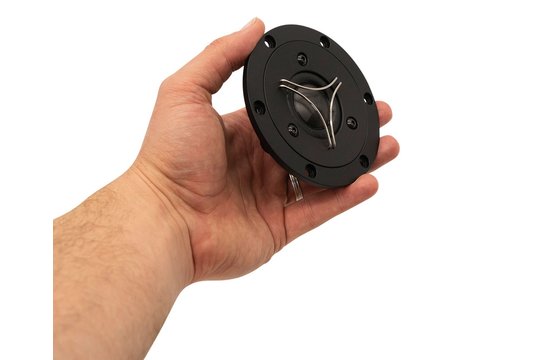

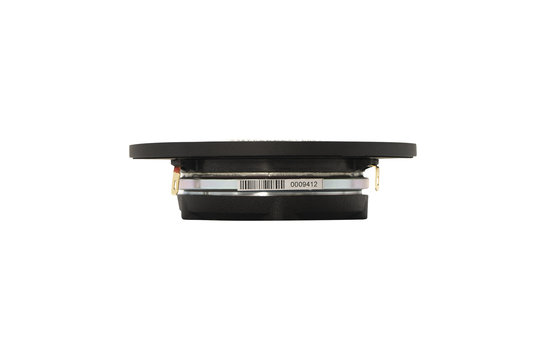

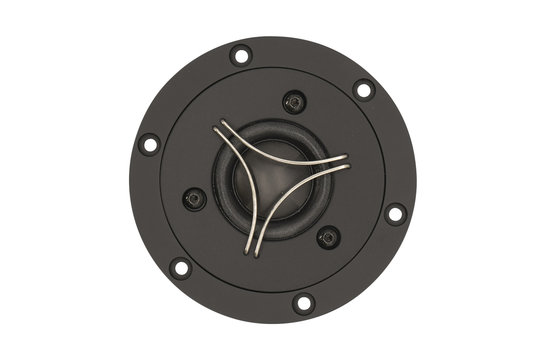

    SB Acoustics SATORI TW29TXN-B TeXtreme DomeTweeter

    € 198,31€ 239,95 4 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €227,95 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Highlights

    • Advanced TeXtreme dome
    • Two part alumimium faceplate with integrated mechanical decoupling
    • Dual balanced compression chambers for improved dynamics
    • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
    • High saturation neodymium motor system with T-shaped pole piece for lower distortion
    • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
    • Shallow flow optimized magnet structure for optimum coupling tot rear chamber
    • CCAW voice coil for low moving mass
    • Long life silver lead wires
    • Low resonance frequency for extended range



    Product details

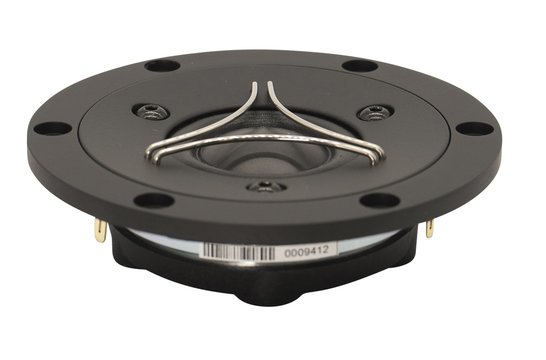

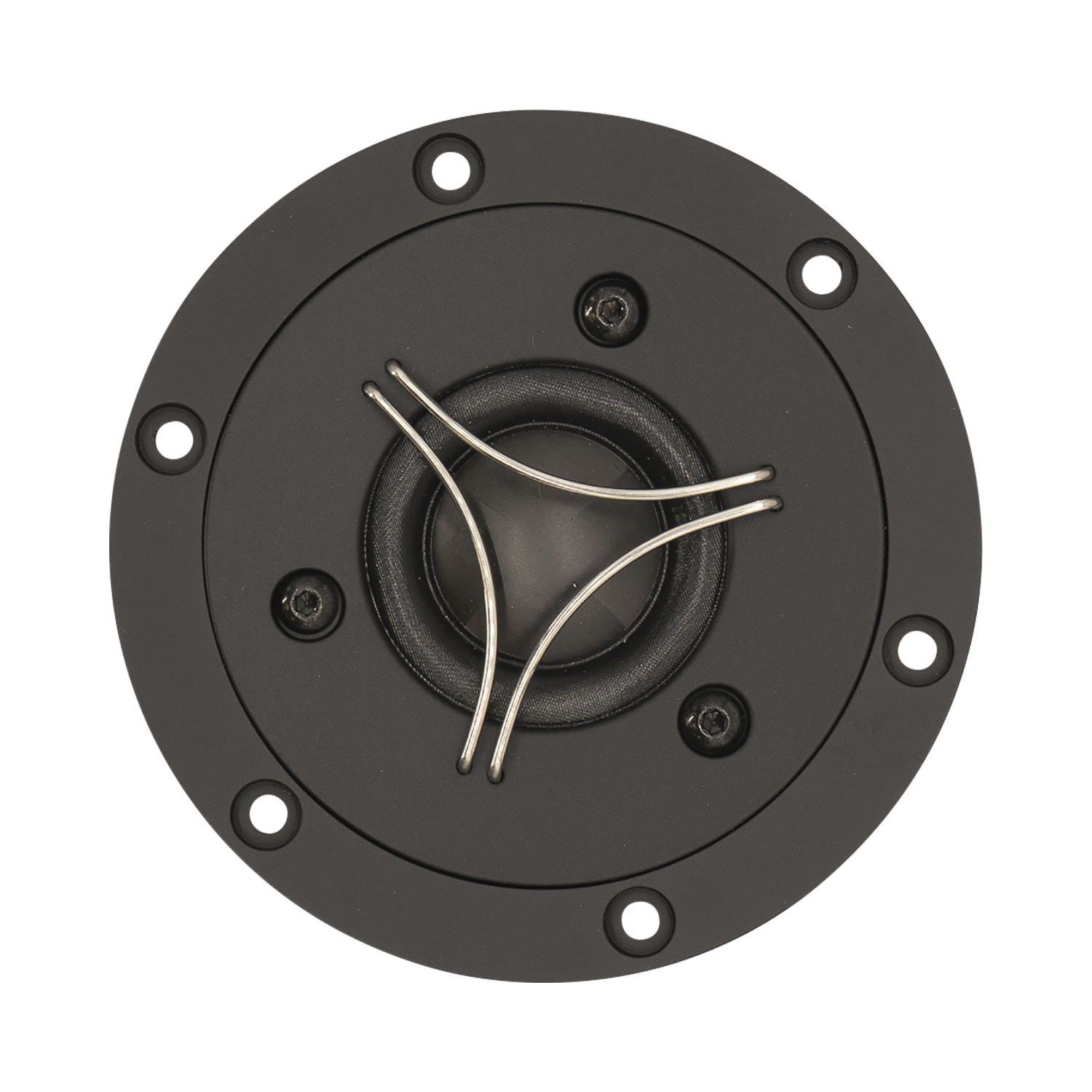

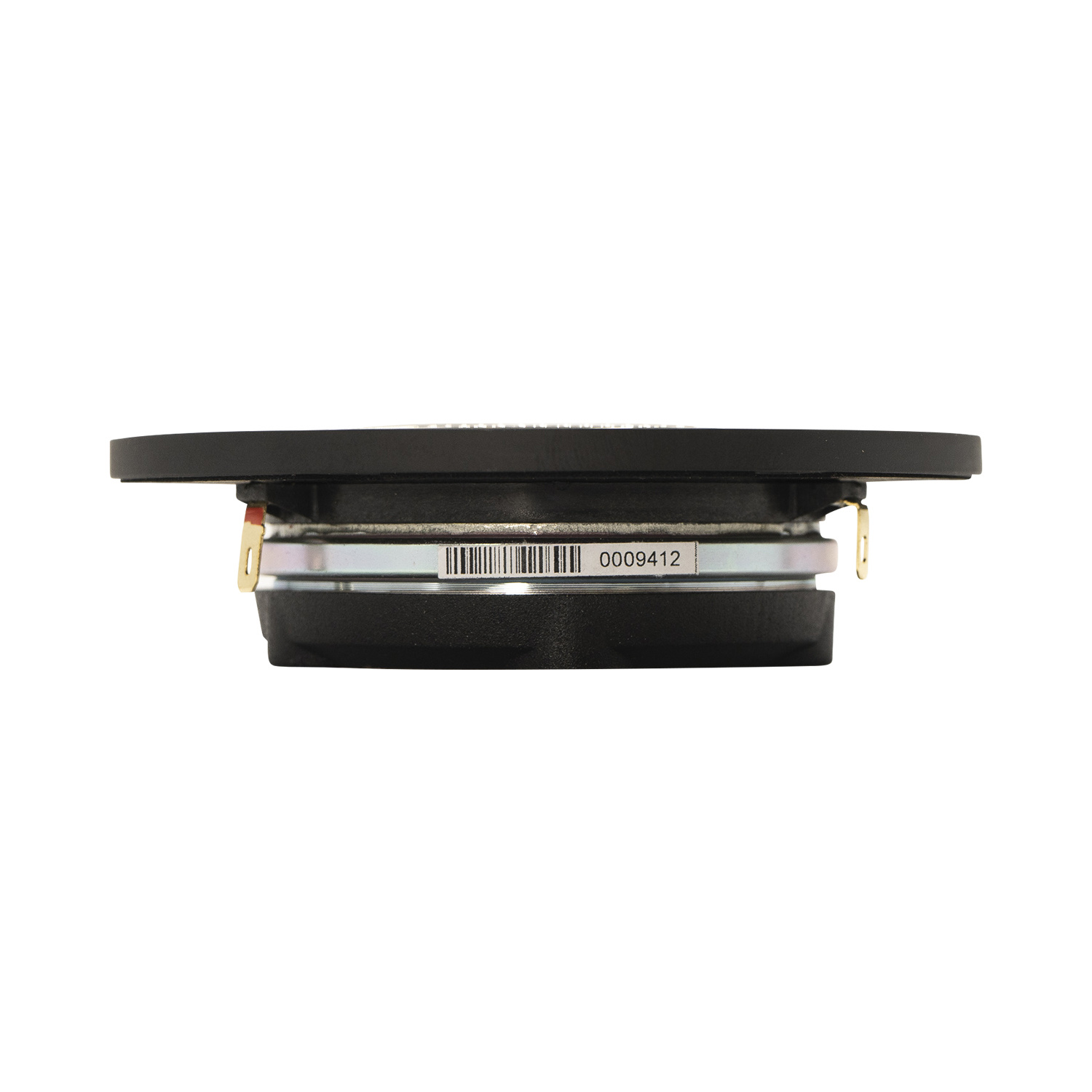

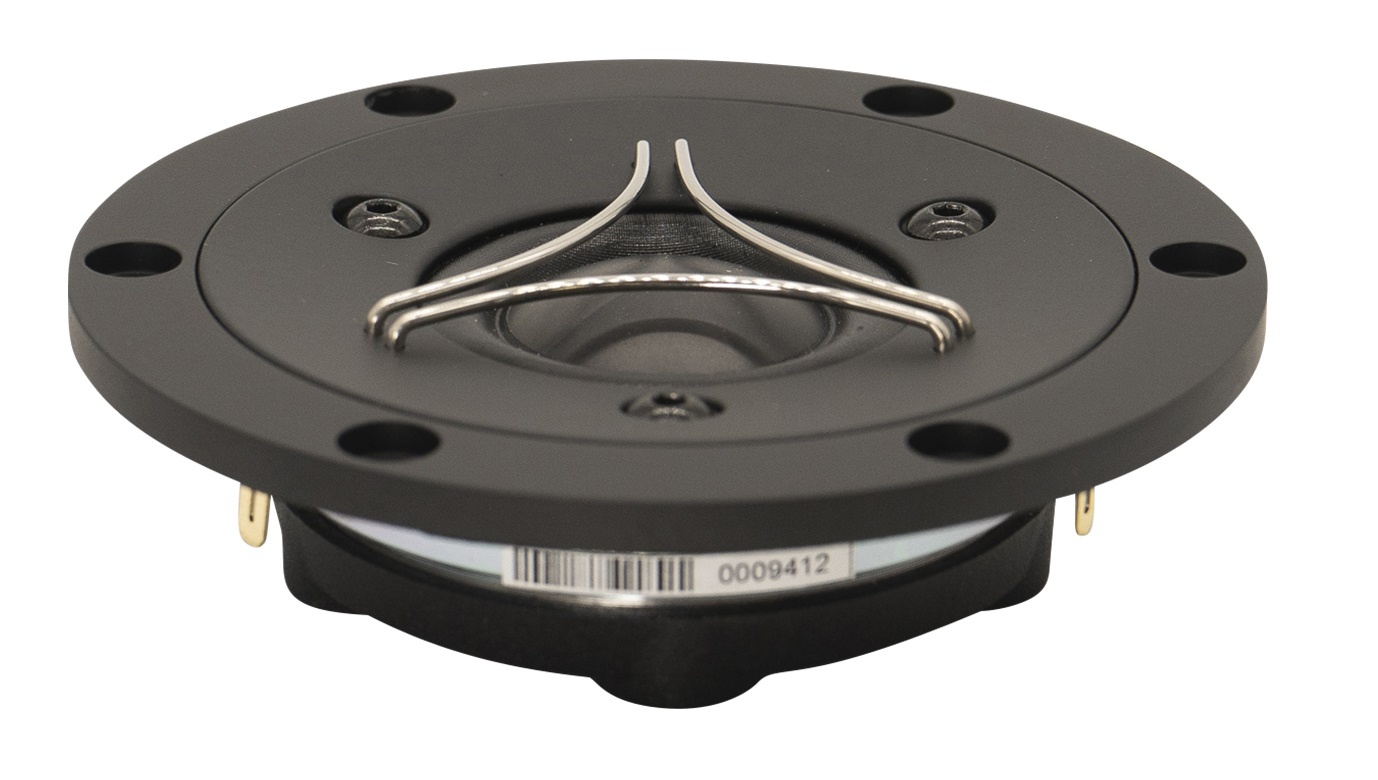

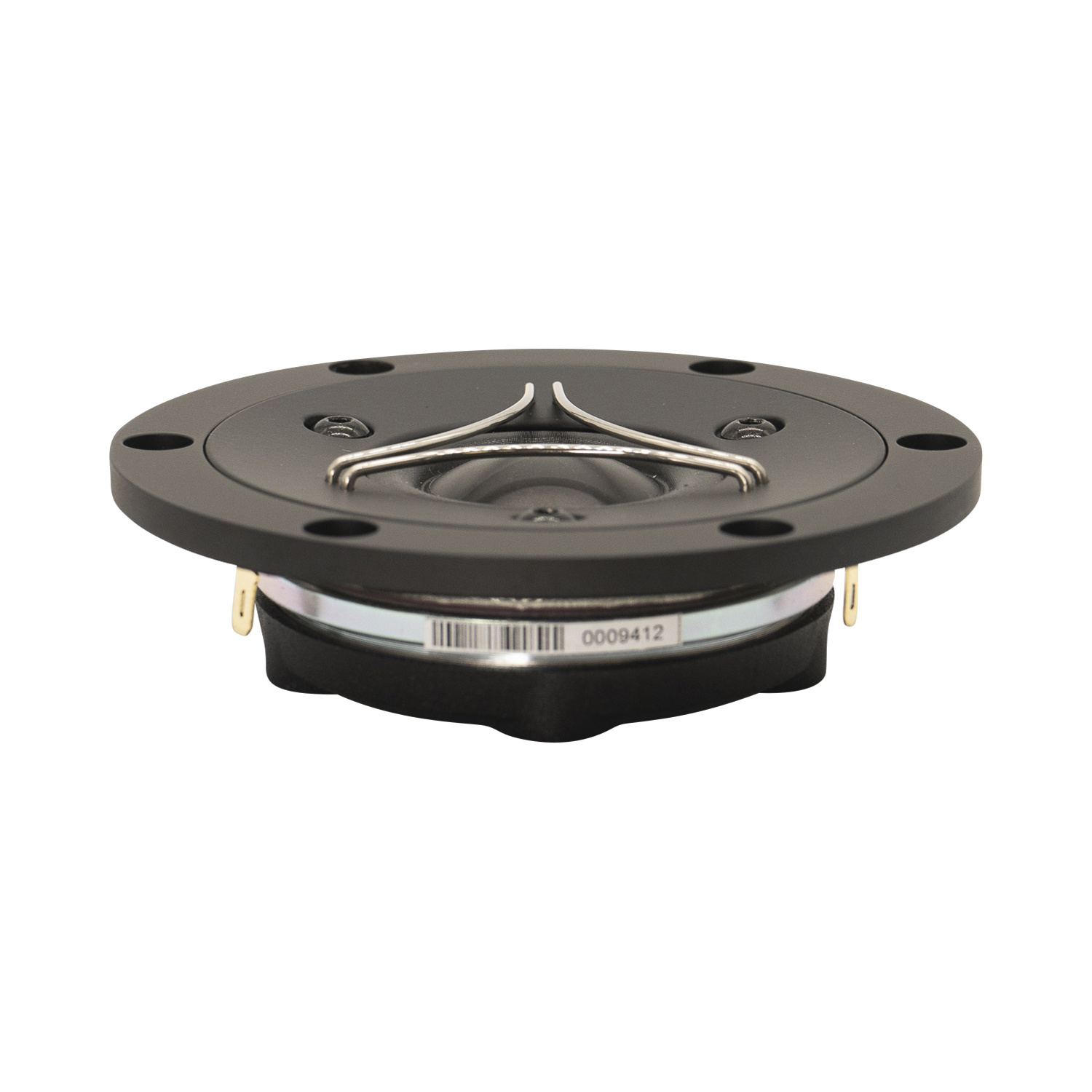

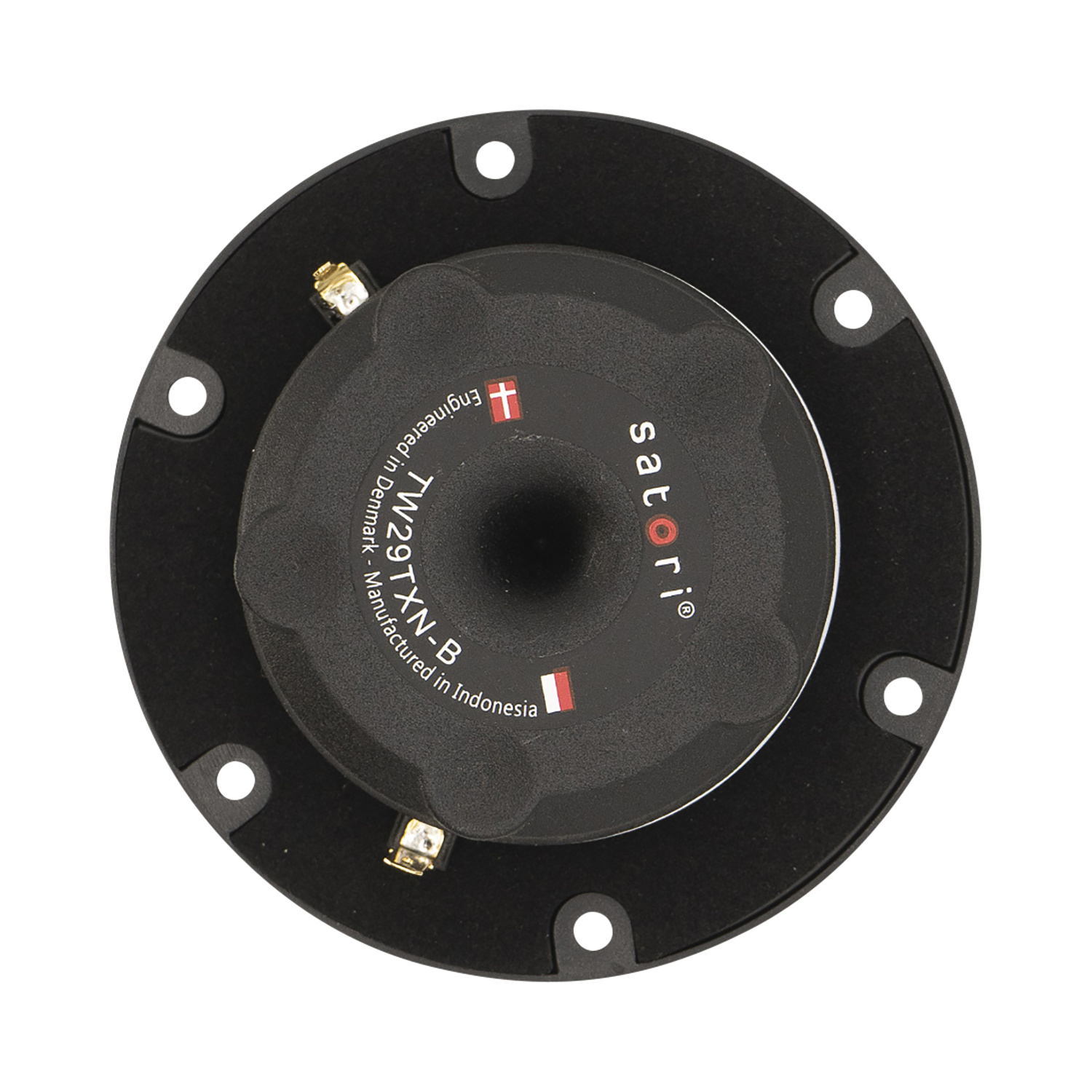

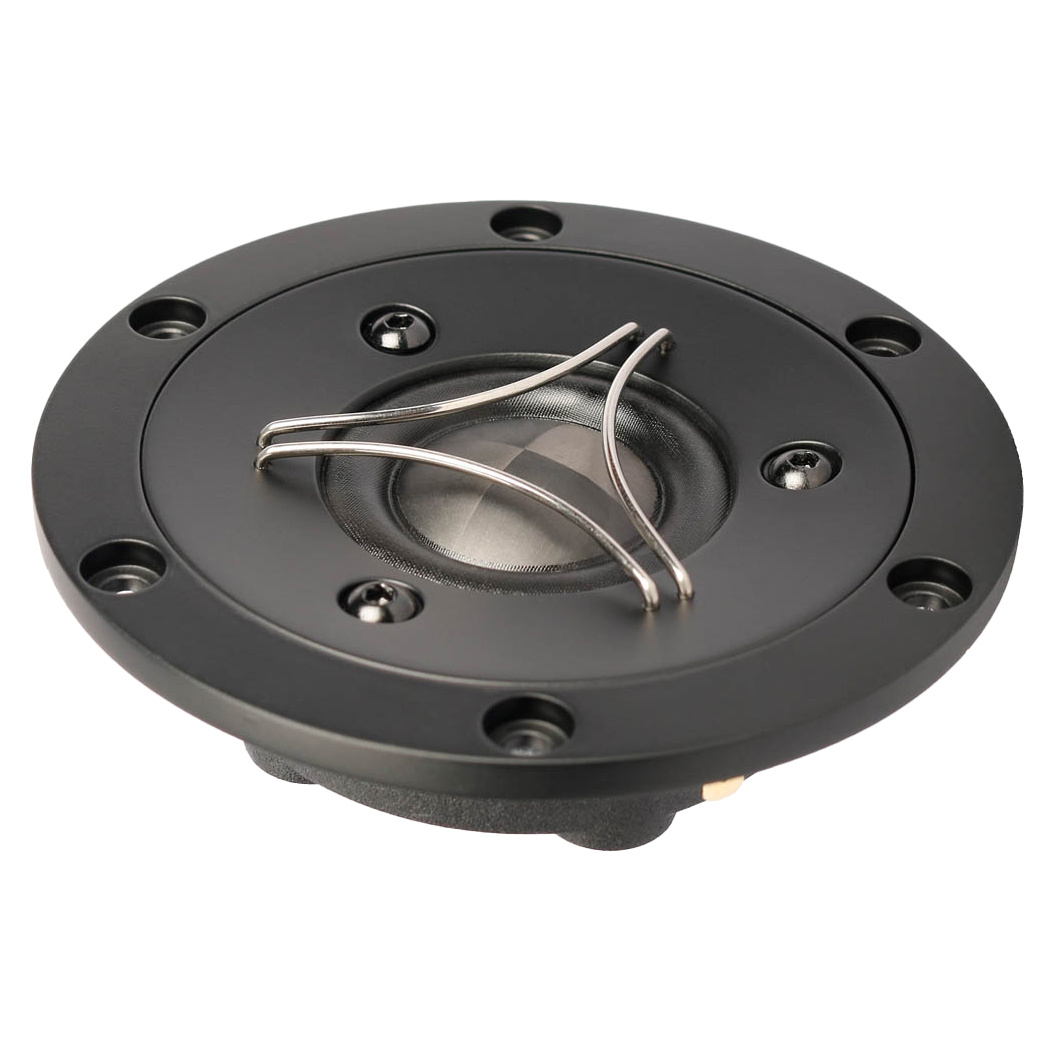

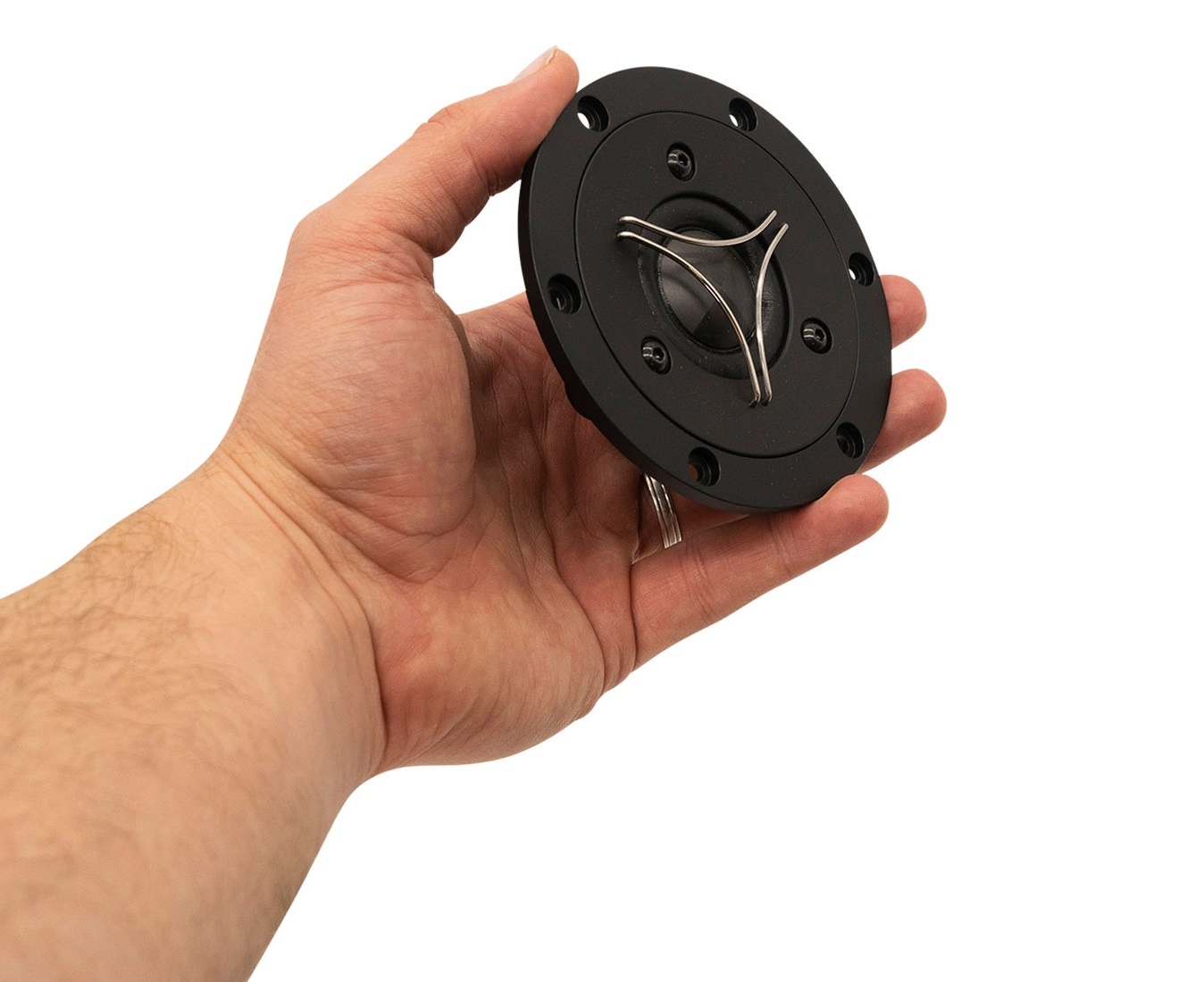

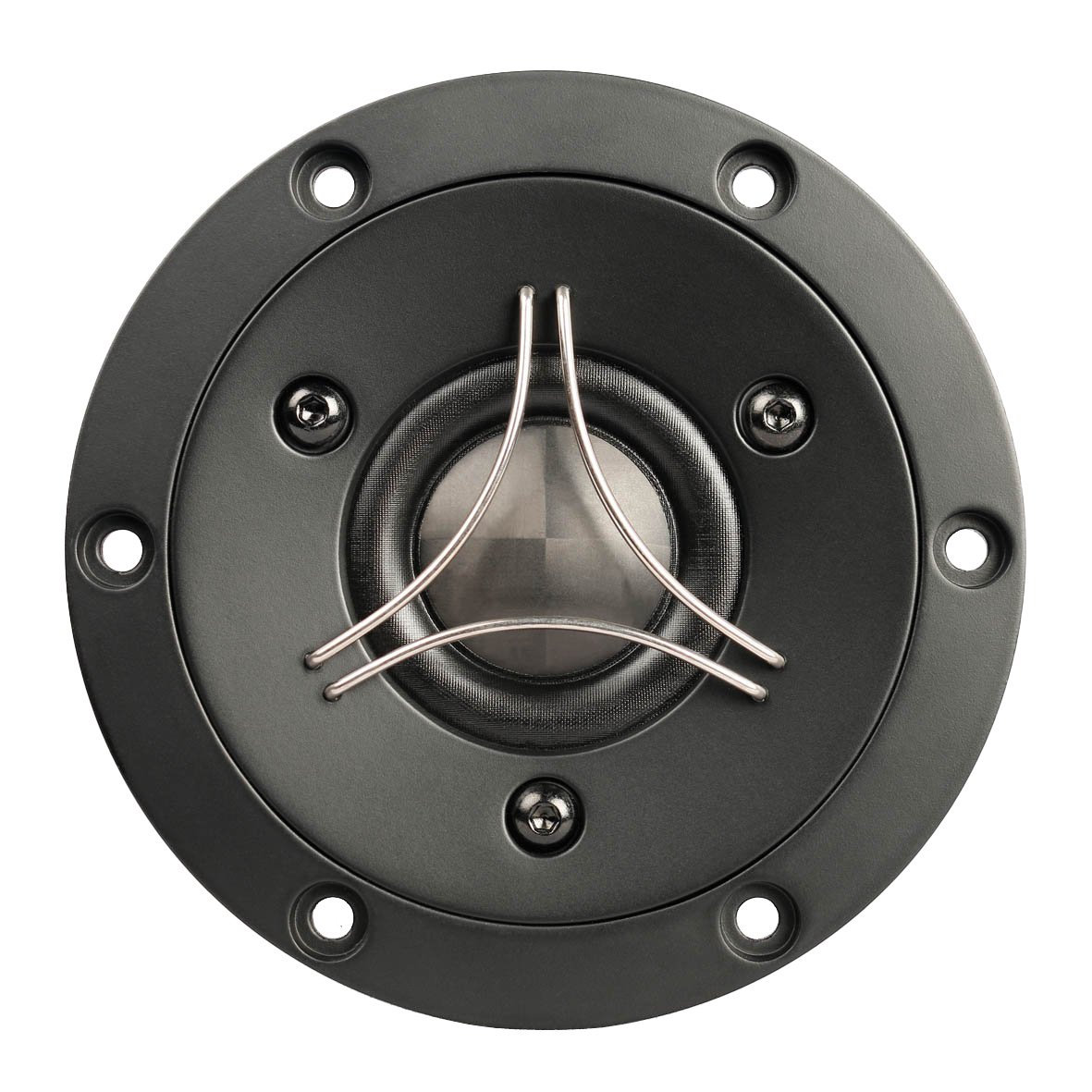

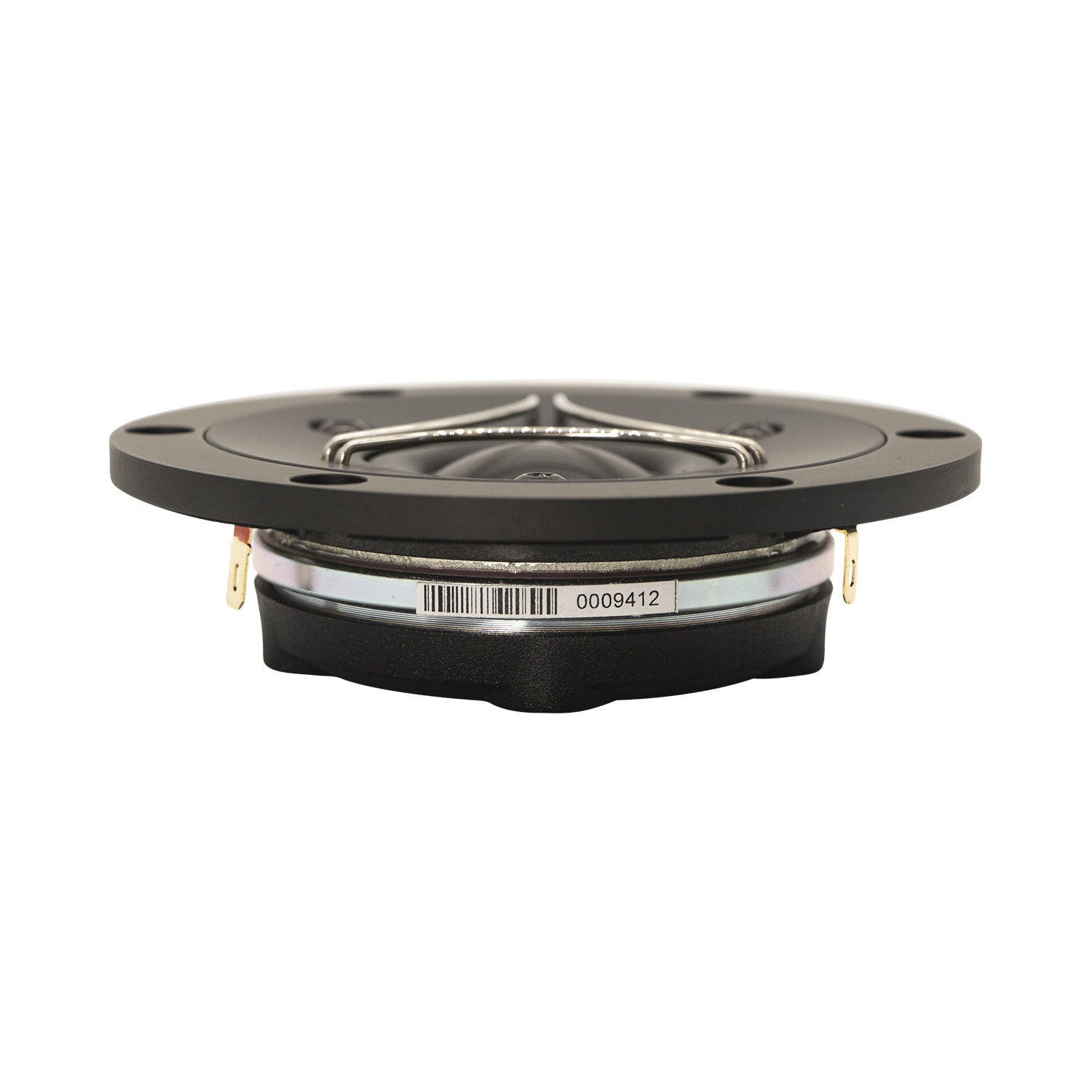

    SB Acoustics SATORI TW29TXN-B TeXtreme Dome Tweeter



    TeXtreme is a special carbon fiber material, that uses Spread Tow technology to create extremely thin laminar carbon fiber tapes. This minimizes the weight of the material without sacrificing strength. The use of TeXtreme as a dome material allows for a very stiff and lightweight dome. Combined with a copper coated aluminium wire voice coil makes this a smaller moving mass. The added benefit of the Textreme material is its strength to weight ratio. Allowing for a efficient driver that doesn’t distort easily because it maintains optimum pistonic motion for longer.



    But new fancy materials mean nothing if they are not combined with a quality design. Which SB-acoustic offers with its SATORI line of product. Creating a unique low-distortion high efficiency driver.

    Specifications

    Article number
    TW29TXN-B
    Tweeter Type
    Dome
    Tweeter Series
    SATORI
    Cone / Dome Diameter
    1⅛"
    Power Handling (RMS)
    80 Watts
    Impedance (Z)
    4 Ohms
    Sensitivity
    96 dB(2.83V/1m)
    Resonant Frequency (Fs)
    650 Hz
    DC Resistance (Re)
    3.0 Ohms
    Voice Coil Inductance (Le)
    0.02 mH
    Mechanical Q (Qms)
    1.62
    Electromagnetic Q (Qes)
    0.65
    Total Q (Qts)
    0.46
    Recommended cut frequency
    2600 Hz, 12 dB/oct

    Reviews

    5 from 5Based on 1 reviews
    Review this product
    5 of 5
    Brilliant tweeters. Smooth, silky, transparent, detailed. All tweeters should be at least as good as this. Most are not.
    By Master Kenjit on 19 December 2020
