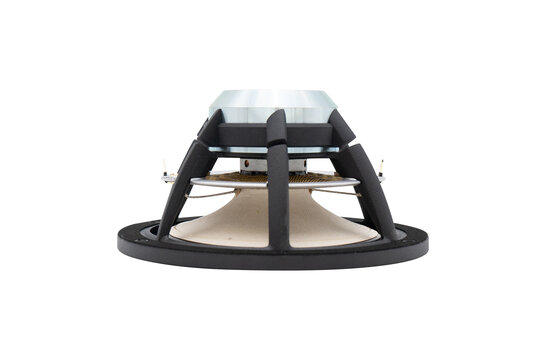

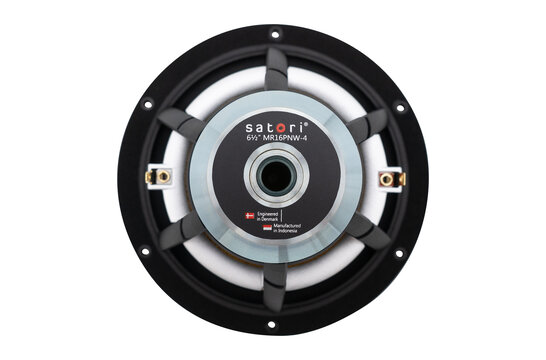

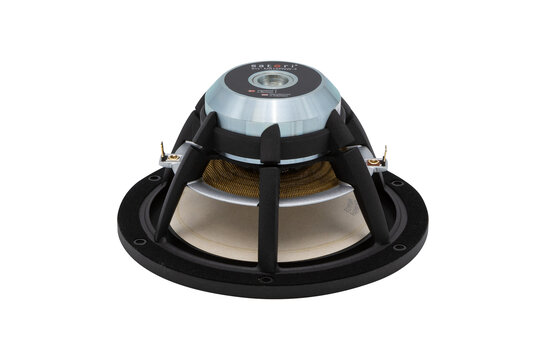

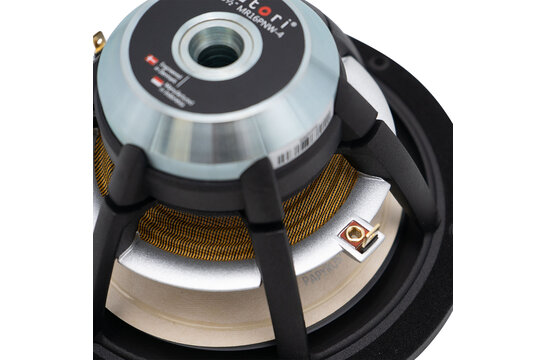

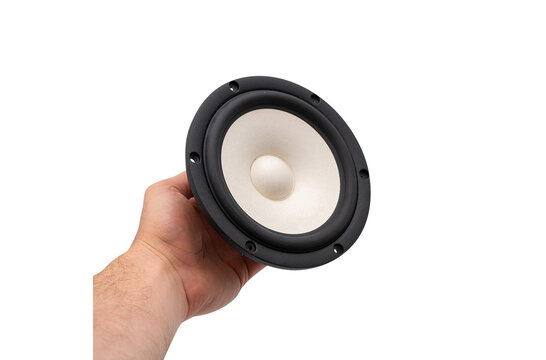

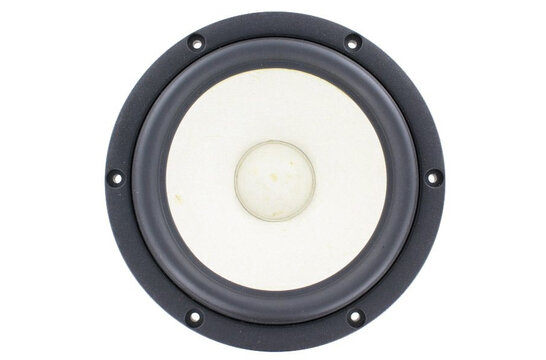

        Satori MR16PNW-4 6.5" Bass-midwoofer

        Satori MR16PNW-4 6.5" Bass-midwoofer


        SB Acoustics Satori MR16PNW-4 6.5" Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        4 stars
        3 stars
        2 stars
        1 star
        View all reviews
        € 156,98€ 189,95 4 In stock
        • -5% Purchase 4 for only € 180,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description


        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
        • Soft low damping rubber surround for optimum transient response
        • Advanced BIMAX spider for improved linearity
        • Powerful optimized low distortion neodymium motor system
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and reduced distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece and coil former for reduced compression
        • High piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
        • Mode balanced cone for reduced break-up


        Product details

        SB Acoustics Satori MR16PNW-4 6.5" White Egyptian Papyrus Cone Midrange


        Under the Satori brand are two new 5” and 6.5” midrange drivers, MR13P-4 and MW16PNW-4, respectively, featuring black or natural white cones using Egyptian Papyrus fibers produced in house with a proprietary method, combined with soft low damping rubber surrounds for optimum transient response and low resonance frequency. The cones reveal the natural textures of the papyrus material imported from Egypt, resulting in a distinctive appearance, which will certainly be appreciated for high-end speakers.


        For these new Satori drivers, the original ideal was to keep the natural finish of the Papyrus fibers as much as possible, which results in a light brown color. Since Papyrus fibers are not uniform, the cone shows visible spots of different colors which give it a look of a natural “organic” material - but the discussion about potential problems in the market arising from the wrong perception that those were “defects” or signs of an “old” driver, led the design team to also create a black version of the same cone. The fibers are still visible, but for more traditional clients, it might be better accepted.

        Show more


        Article number
        Woofer Series
        Satori Series
        Woofer Type
        Nominal Diameter
        Power Handling (RMS)
        40 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        92.5 dB
        Voice Coil Diameter
        DC Resistance (Re)
        3.2 ohms
        Voice Coil Inductance (Le)
        0.11 mH
        Resonant Frequency (Fs)
        31 Hz
        Mechanical Q (Qms)
        Electromagnetic Q (Qes)
        Total Q (Qts)
        Diaphragm Mass Inc. Airload (Mms)
        Mechanical Compliance of Suspension (Cms)
        2.35 mm/N
        Surface Area of Cone (Sd)
        119 cm2
        BL Product (BL)
        5.2 Tm
        Compliance Equivalent Volume (Vas)
        1.66 ft.³
        Maximum Linear Excursion (Xmax)
        3.1 mm
