    miniDSP OpenDRC-DI All Digital Floating Point Room Correction DSP

    € 380,12€ 459,95 9 In stock: delivery time 1-4 business days
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    All digital floating point room correction DSP with SPDIF/AES-EBU/Toslink interface. Boxed in sturdy aluminum enclosure.



    Highlights

    • Room correction with FIR filtering
    • Convolution engine for advanced/Custom filters
    • 2 way advanced filter engine
    • System equalization
    • Coupon for one free Plug-in download



    Product details

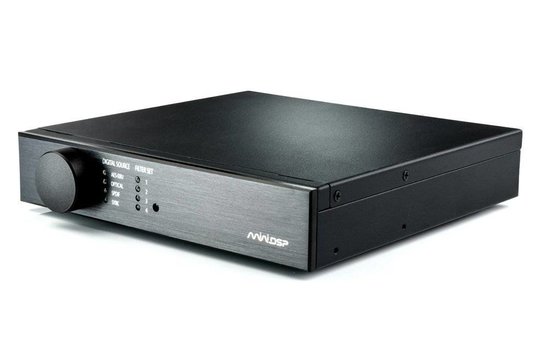

    miniDSP OpenDRC-DI All Digital Floating Point Room Correction DSP

    Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

    Introducing the OpenDRC platform, a new range of digital audio processor with floating point capabilities for an Open Digital Room Correction (DRC) community. Powered by Analog Devices ADSP21369 Sharc DSP, the OpenDRC engine easily handles complex audio filtering processing such as room correction, FIR crossover filtering, reverb engines... Flexibility, high performance and low cost are the obvious hallmarks of the OpenDRC series.

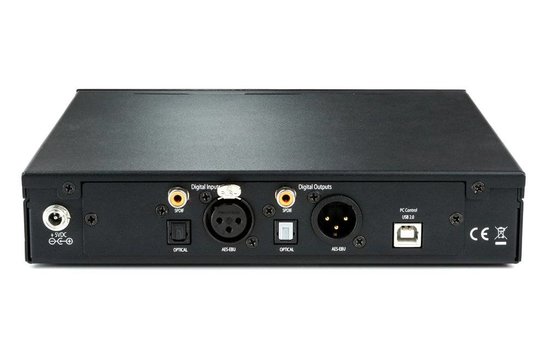

    As an all-digital solution, the OpenDRC-DI (DI for Digital) carries the most common stereo digital audio formats (AES-EBU, SPDIF and Toslink) to match your existing equipment. Combined with an high quality Asynchronous Sample Rate Converter, the processor also easily adapts to any sample rate. The IR learning remote feature and/or rotary encoder will allow control of your source, active preset or master volume without the need of any PC once the unit configured.



    Last but not least, the OpenDRC-DI follows the footstep of our proven miniDSP concept: "One hardware, many plug-ins". An easy to use platform that received praised for its simplicity of use. By setting some strategic partnership with 3rd party software developers, the OpenDRC takes it one step further. From advanced room correction to full featured linear phase crossover, miniDSP products provide an exciting range of audio processing solutions. A convolution engine without a PC in your system.



    Looking for an Analog IN, Analog OUT solution? You may want to consult the OpenDRC-AN version instead.



    Documents



    What's in the box?

    • 1 x OpenDRC-DI boxed in aluminum enclosure
    • 1 x USB cable Type B
    • 2 x Optical cables
    • 1 x Universal 5VDC power supply with interchangeable plugs for UK/EU/US/AU
    • 1 x Coupon code for miniDSP plugin download.



    System Diagram





    Mechanical Specifications





    Specifications

    Article number
    OpenDRC-DI
    Device type
    Boxed
    Device serie
    OpenDRC Series
    DSP chip
    Analog Devices ADSP21369
    Processing resolution & sample rate
    32 bit / 48 - 96 kHz
    Input / ouput configuration
    2 / 2
    Audio input connectivity
    AES/EBU, SPDIF, TOSLINK
    Audio output connectivity
    AES/EBU, SPDIF, TOSLINK
    Max input level
    -
    Max output level
    -
    Input impedance
    -
    Output impedance
    -
    Calibration software
    miniDSP OpenDRC plug-in
    IIR
    check
    FIR
    check
    Dirac Live®
    -
    DSP presets
    4
    Impulse response correction
    check
    Infrared remote learning
    check
    Windows / Mac compatible
    check / check
    UMIK-1 included
    -
    Room EQ wizard support
    check
    Dimensions
    200 x 180 x 52 mm
    Power
    5 VDC

    Reviews

    5 from 5Based on 1 reviews
    Review this product
    5 of 5
    alles so, wie es beschrieben ist, außer der unverständliche softwaredownload
    By Thomas D. on 18 December 2020
