        Product description miniDSP MCHStreamer Lite | DAC | USB

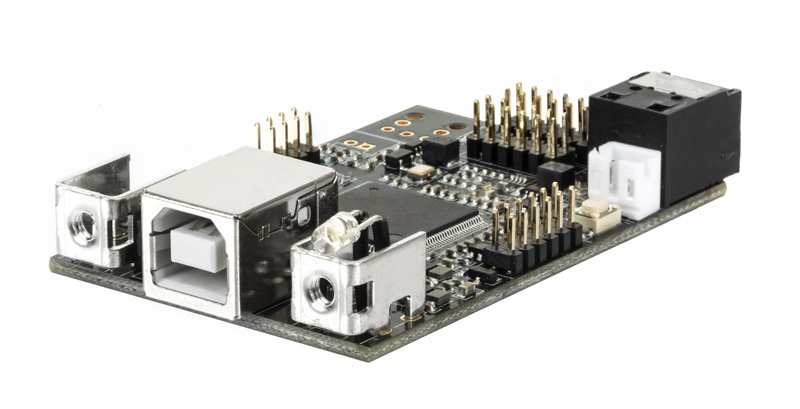

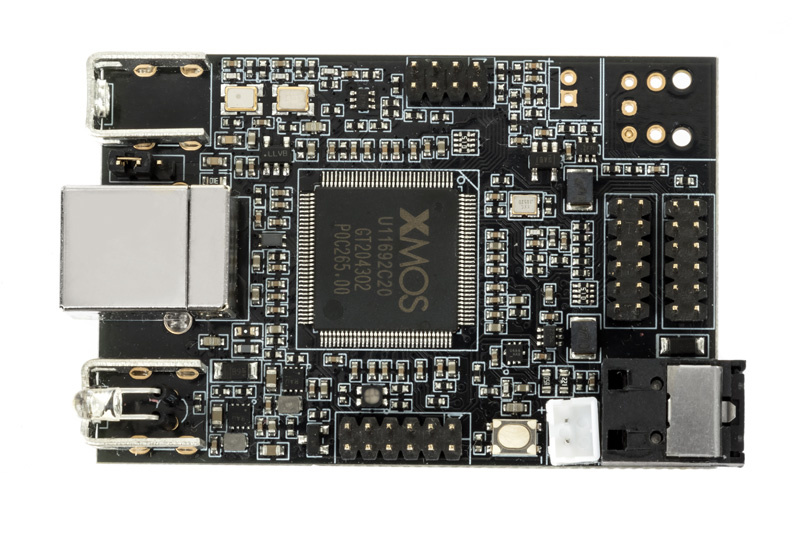

        The miniDSP MCHStreamer Lite, a simplified version of our MCHStreamer, is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages years of XMOS product development to achieve a rock solid performance in all configurations. Packaged on a tiny 40x62mm PCB, the MCHStreamer Lite is a perfect fit for OEM/DIY integration or as a testing tool for your R&D team.



        Highlights

        • Multi-channel USB audio interface (up to 24x24)
        • Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats
        • Native support up to 32bit / 384kHz
        • PDM to I2S converter for up to 16 MEMS microphones
        • Multichannel DSD (up to 8ch) support
        • USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization
        • OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
        • Toslink (optical) and SPDIF (coax) transmitter
        • Flexible board powering option: USB powered or External DC input power



        Product details

        miniDSP MCHStreamer Lite Multi-Channel USB Interface Kit



        By loading one of the miniDSP-provided firmware packages, MCHStreamer Lite supports I2S, TDM, DSD and PDM data formats for input and output. In addition, optical TOSLINK, ADAT and S/PDIF (coax), are supported for output only. This USB Audio Class 2 (UAC2) compliant interface truly is a powerful tool for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from PDM signal to I2S for up to 16 MEMS microphones: a neat tool for beamforming algorithm development.



        What's in the box?



        • 1 x MCHStreamer Lite
        • 1 x 1m long USB audio cable
        • 1 * Toslink audio cables
        • 2 * 2x6pin (2mm pitch) header cable harness for I2S In/Out interfacing

        Show more

        Specifications

        Article number
        MCHStreamer Lite
        EAN
        8785256859139
        Product type
        USB Digital Interface DAC
        Outputs
        Optical (Toslink/ADAT)
        USB Compatibility
        Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
        Processing resolution & sample rate
        24bit up to 192kHz. Please consult user manual for more details
        Power requirements
        USB powered OR 5Vdc external supply via header - 300mA requirement
        Dimensions
        13 x 40 x 62 mm
