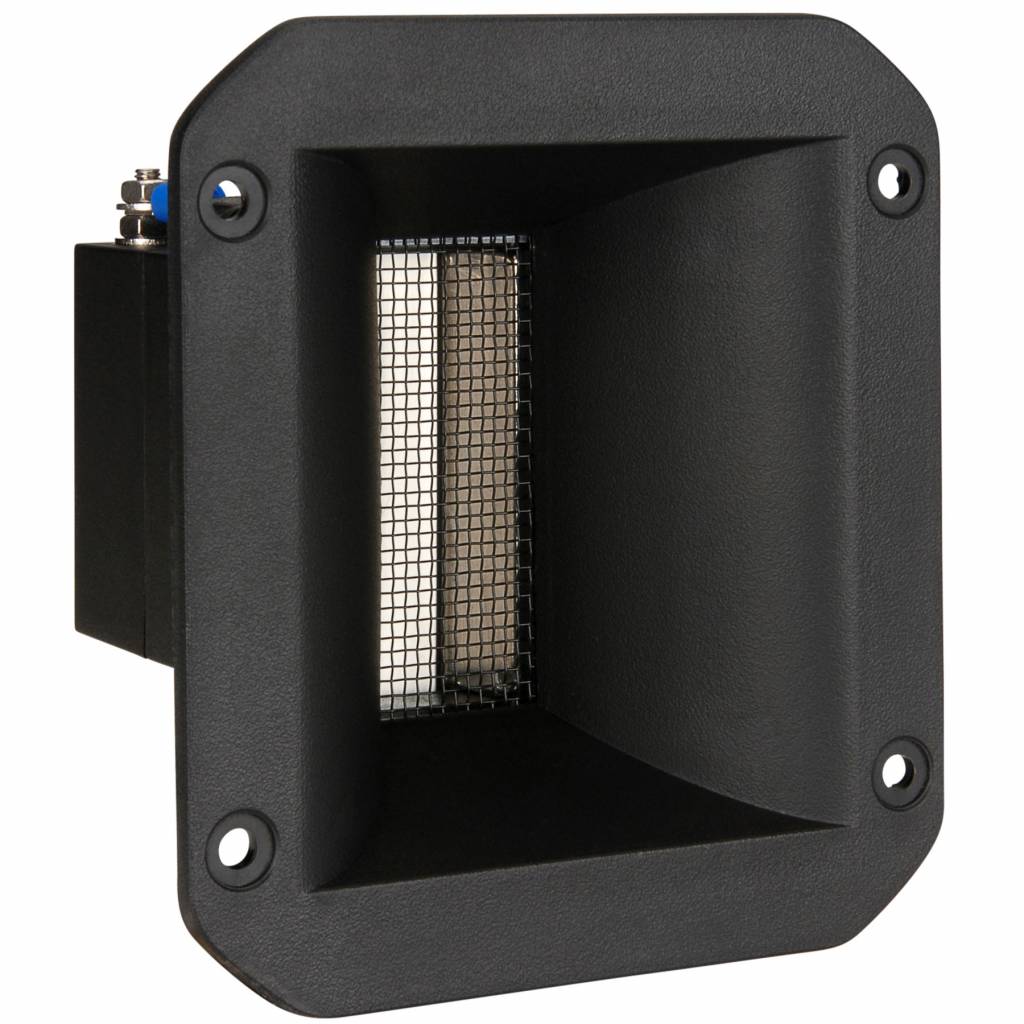

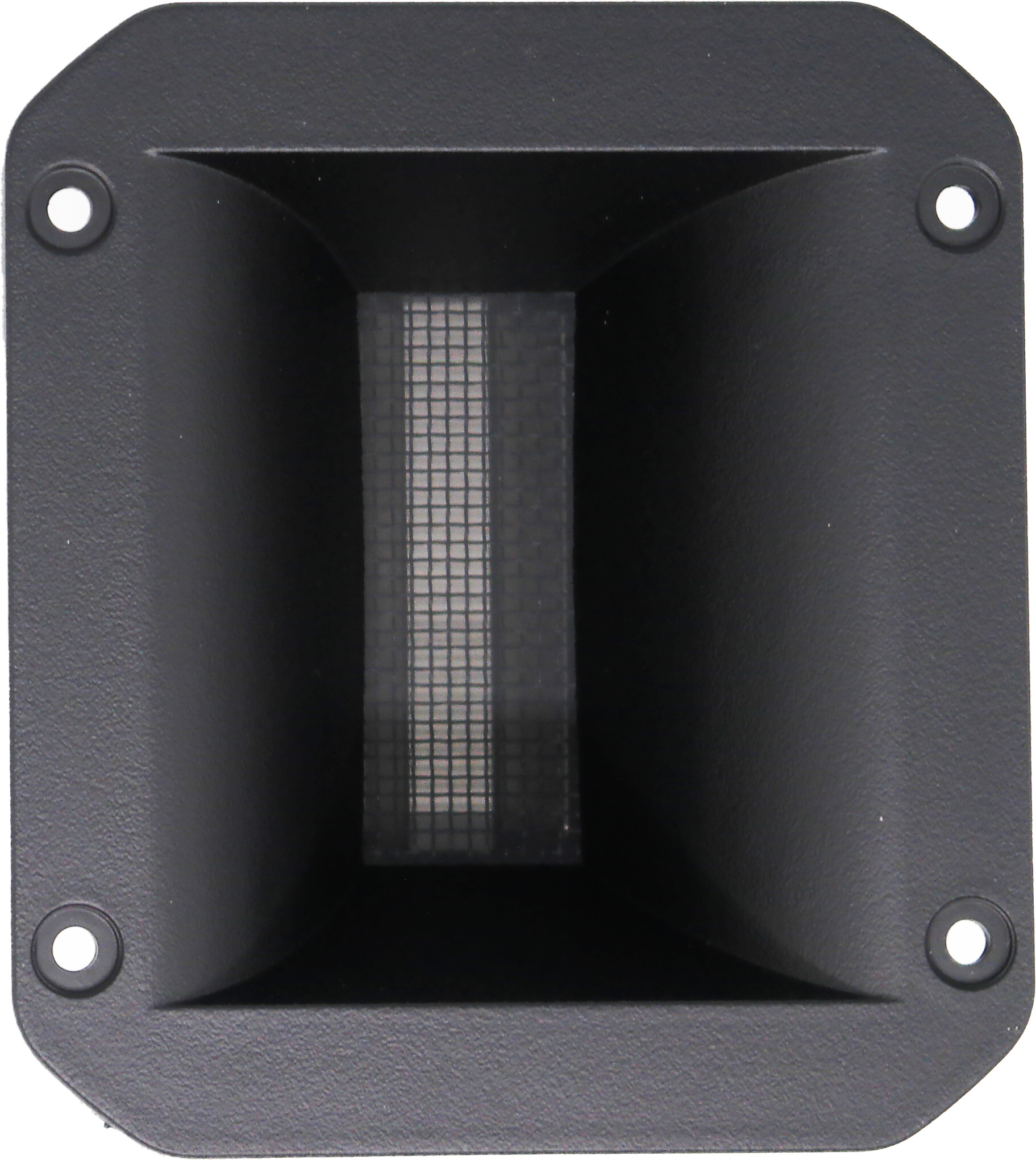

        Fountek NeoCD3.5H Horn Loaded Ribbon Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        4 stars
        3 stars
        2 stars
        1 star
        View all reviews
        Brand: Fountek
        € 115,66€ 139,95 8 In stock
        • -5% Purchase 4 for only € 132,95 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Fountek’s NeoCD3.5H is a unique horn-loaded true ribbon tweeter that combines high sensitivity with the exceptional speed and detail of ribbon technology.



        • Horn-loaded, true ribbon design
        • 2.36" H x 0.35" W ribbon element
        • 95.5 dB sensitivity combined with 1,100 to 30,000 Hz frequency response
        • Extremely fast transient response with wide horizontal dispersion


        Product details

        Fountek NeoCD3.5H Horn Loaded Ribbon Tweeter

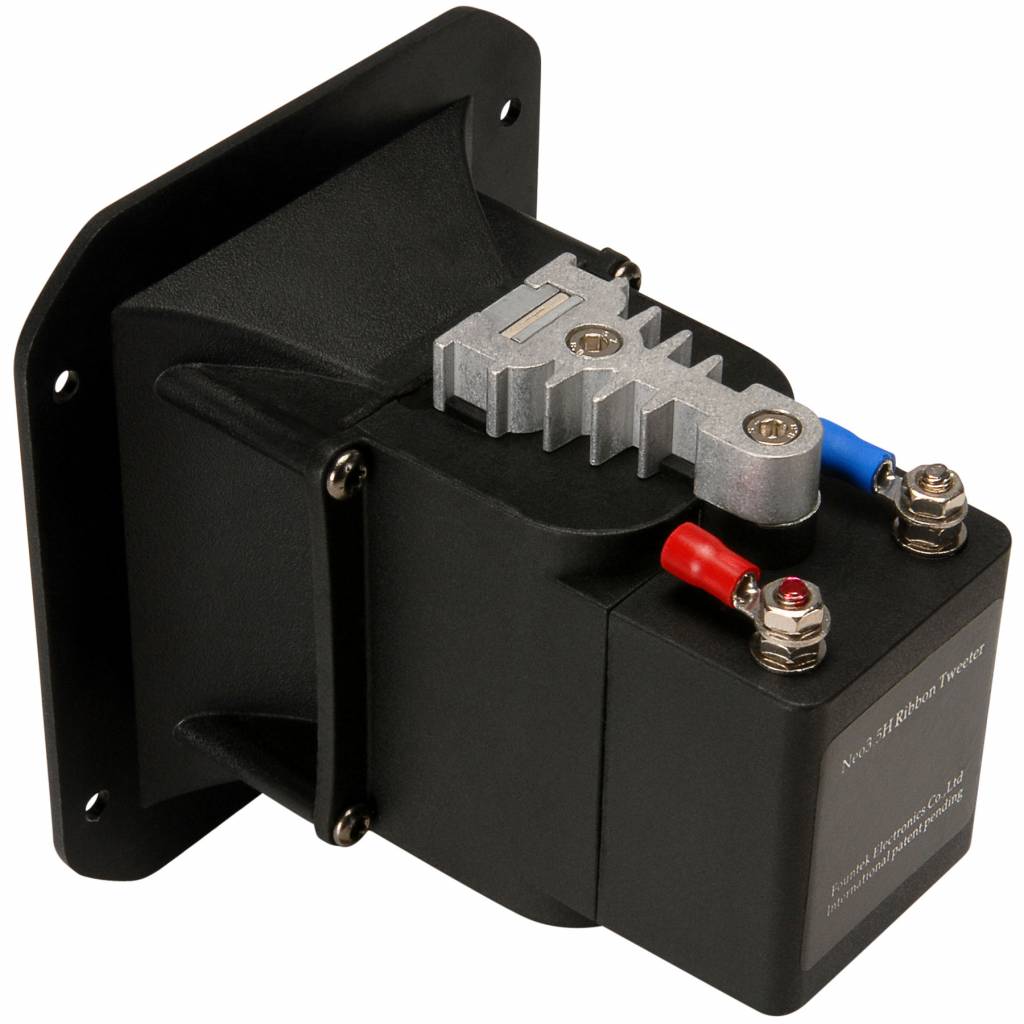

        Fountek, an innovator in ribbon transducer technology, is the first to mate true ribbon technology with horn-loading for high efficiency and low distortion with their NeoCD3.5H . A reinforced sandwiched-aluminum ribbon diaphragm and strong neodymium motor structure are extremely responsive, and deliver musical detail with speed and accuracy, from 1,100 to 30,000 Hz, while the wide horizontal off-axis dispersion makes for a larger listening sweet spot.


        A taller element is used in the NeoCD3.5H, which tames vertical off-axis dispersion. This helps to minimize ceiling and floor bounce reflections for world-class, pin-point precise imaging, while the focused output also reduces the amount of sound pressure level drop over distance. Recommended minimum crossover frequency: 2,500 Hz @ 18 dB/octave.

        Show more


        Article number
        Tweeter Type
        Tweeter Series
        CD series
        Cone / Dome Diameter
        0.35" W x 2.36" H
        Power Handling (RMS)
        12 Watts
        Impedance (Z)
        7 Ω
        Sensitivity (SPL at 1m / 2.83V)
        95.5 dB
        Frequency Response
        1,100 to 30,000 Hz
        DC Resistance (Re)
        0.02 ohms
        Overall Outside Diameter
        3.86'' W x 4.33'' H
        Cutout Diameter
        2.70'' W x 3.39'' H
        Recommended cut frequency
        2,500Hz with 3rd order

        Show more

        5 of 5
        Super Schnelle Lieferung Für den Preis Top Hochtöner Gefallen mir sehr und Klanglich auch sehr gut .
        By Mathias S. on 21 April 2020
        NeoCD3.5H Horn Loaded Ribbon Tweeter
