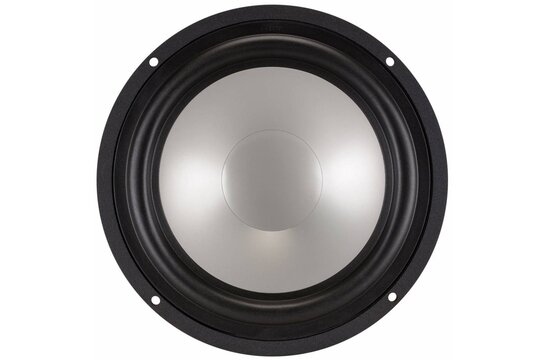

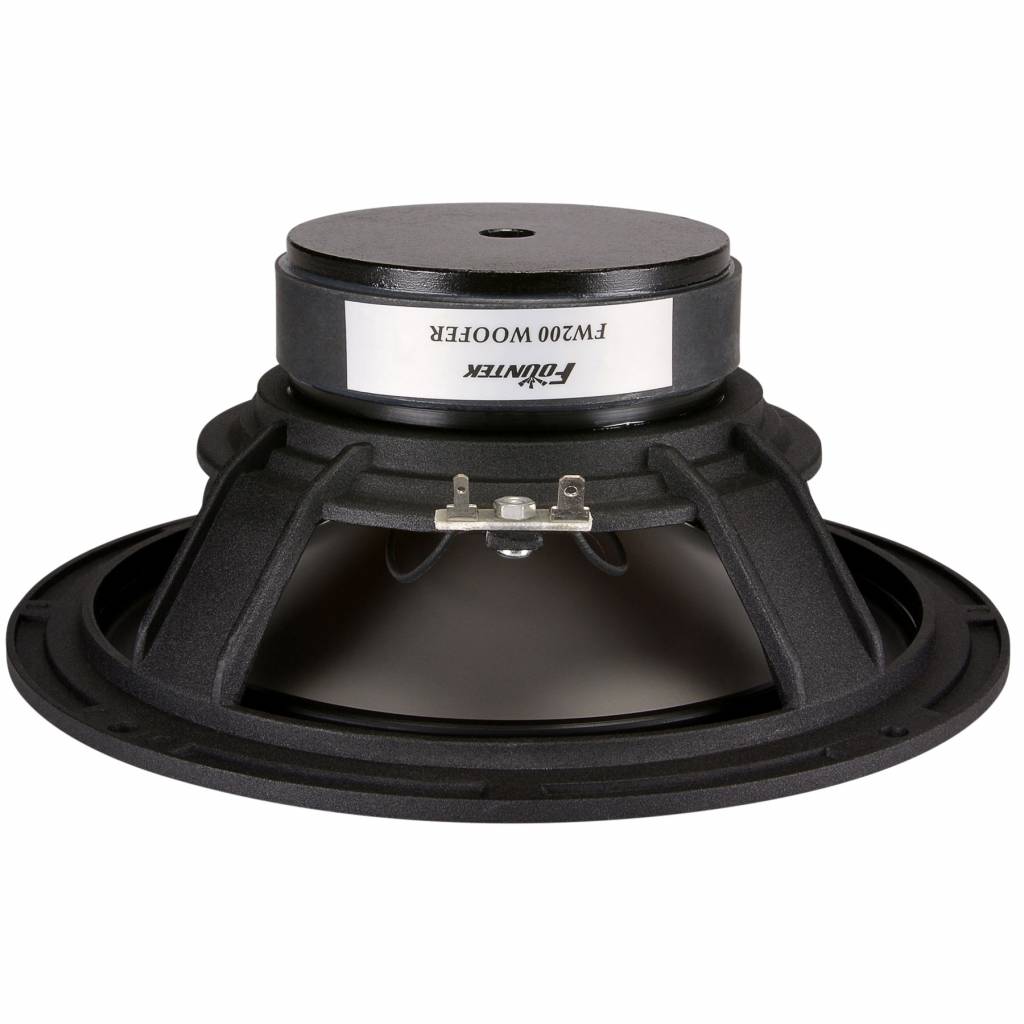

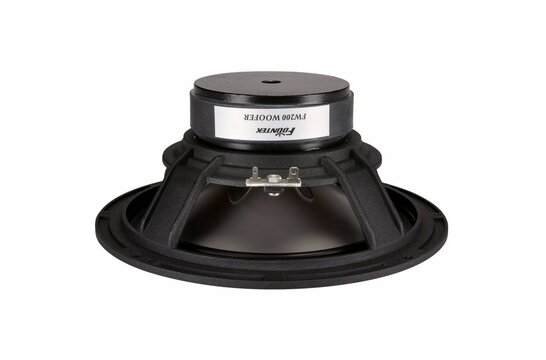

        FW200 8" Aluminum Midwoofer

        Fountek FW200 8" Aluminum Midwoofer

        €89,95

        Out of stock

        Add to cart

        Fountek FW200 8" Aluminum Midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Fountek
        Show all Bass-mid woofer
        8" | 8 Ω
        FW200 8" Aluminum Midwoofer
        FW200 8" Aluminum Midwoofer
        FW200 8" Aluminum Midwoofer
        FW200 8" Aluminum Midwoofer
        FW200 8" Aluminum Midwoofer
        FW200 8" Aluminum Midwoofer
        € 74,34€ 89,95 Out of stock
        • -5% Purchase 4 for only € 85,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        FW200 8" Aluminum Midwoofer
        FW200 8" Aluminum Midwoofer
        FW200 8" Aluminum Midwoofer
        FW200 8" Aluminum Midwoofer
        FW200 8" Aluminum Midwoofer
        FW200 8" Aluminum Midwoofer

        Product description Fountek FW200 Bass-midwoofer

        Fountek’s FW200 is a robust 8" midwoofer driver that features an attractive aluminum cone, a high-strength cast-aluminum frame, and an optimized motor structure, for low distortion and excellent detail.



        Highlights

        • Remarkably flat response up to 2,500 Hz makes crossover design simple
        • Rigid aluminum cone provides great transient response
        • Large spider keeps excursion linear for minimal distortion
        • Inverted dust cap for a sleek and unique look



        Product details

        Fountek FW200 8" Aluminum Midwoofer Speaker



        Fountek mid-bass drivers offer exceptional value with premium features like aluminum cones, robust cast frames, and optimized low-distortion motors.  They’re the perfect choice for use in high-end loudspeaker systems, paired with premium-quality tweeters like Fountek’s own ribbon units.

        The FW200 model  is an 8” midwoofer with an extended upper range that allows it to be used as a midbass driver, or as a woofer together with a dedicated midrange for further reduced distortion. The satin anodized-aluminum cone perfectly complements the other Fountek midwoofer drivers.

        Show more

        Specifications

        Article number
        FW200
        EAN
        0848864004242
        Woofer Type
        Midwoofer
        Nominal Diameter
        8"
        Power Handling (RMS)
        75 Watts
        Power Handling (max)
        150 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        35 to 3,000 Hz
        Voice Coil Diameter
        1.42"
        DC Resistance (Re)
        6.8 ohms
        Resonant Frequency (Fs)
        35.7 Hz
        Mechanical Q (Qms)
        2.26
        Electromagnetic Q (Qes)
        0.68
        Total Q (Qts)
        0.52
        Diaphragm Mass Inc. Airload (Mms)
        20.93g
        Mechanical Compliance of Suspension (Cms)
        0.95 mm/N
        Surface Area of Cone (Sd)
        213.8  cm²
        BL Product (BL)
        6.83 Tm
        Compliance Equivalent Volume (Vas)
        2.18 ft.³
        Maximum Linear Excursion (Xmax)
        4.35 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        8.54"
        Overall Depth
        3.5"
        Baffle Cutout Diameter
        7.28"
        # Mounting Holes
        4
        Sealed Volume
        1.55 ft.³
        Sealed F3
        54 Hz
        Vented Volume
        3.82 ft.³
        Vented F3
        26 Hz
