        FW146 5-1/4" Midwoofer

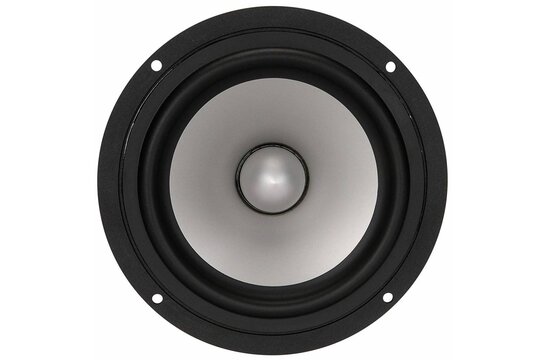

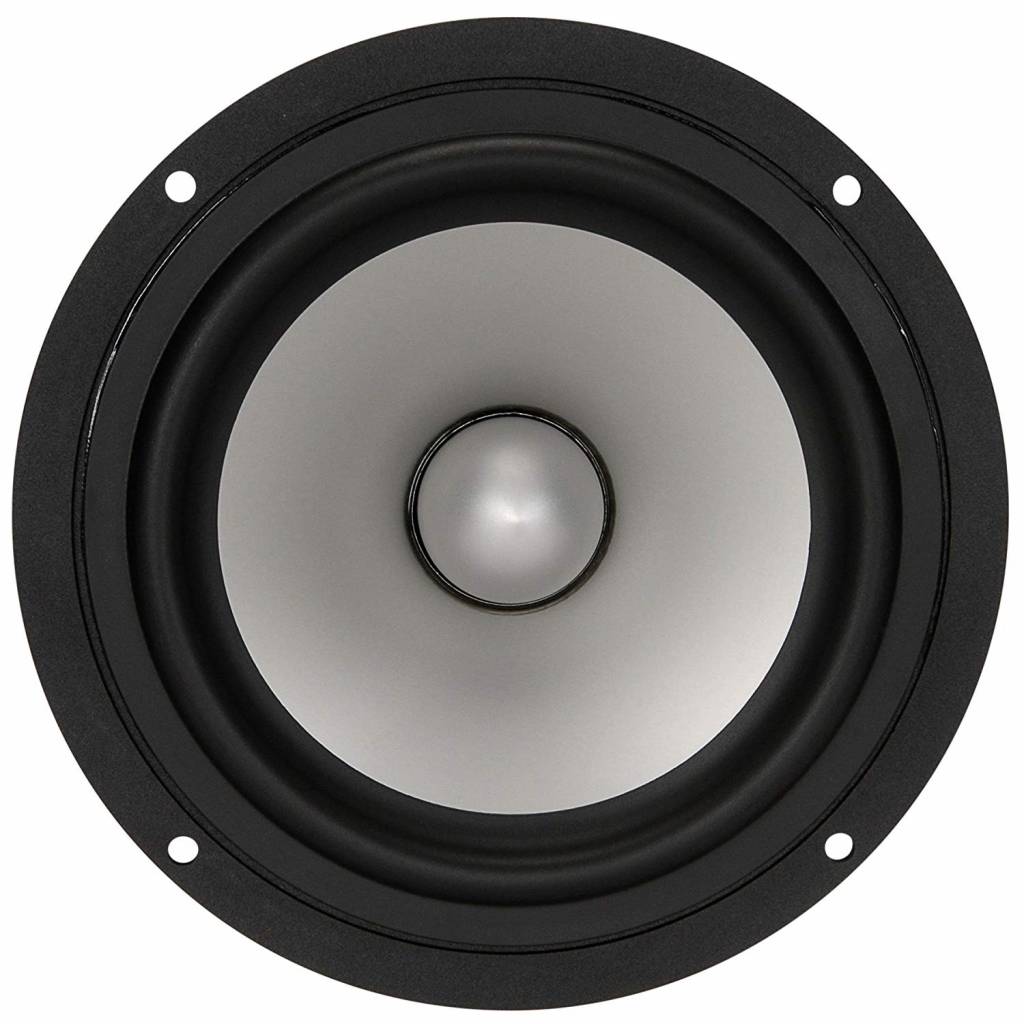

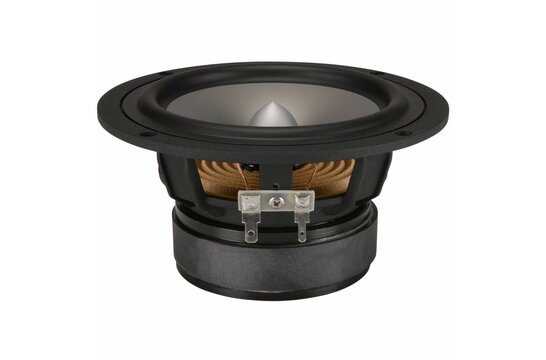

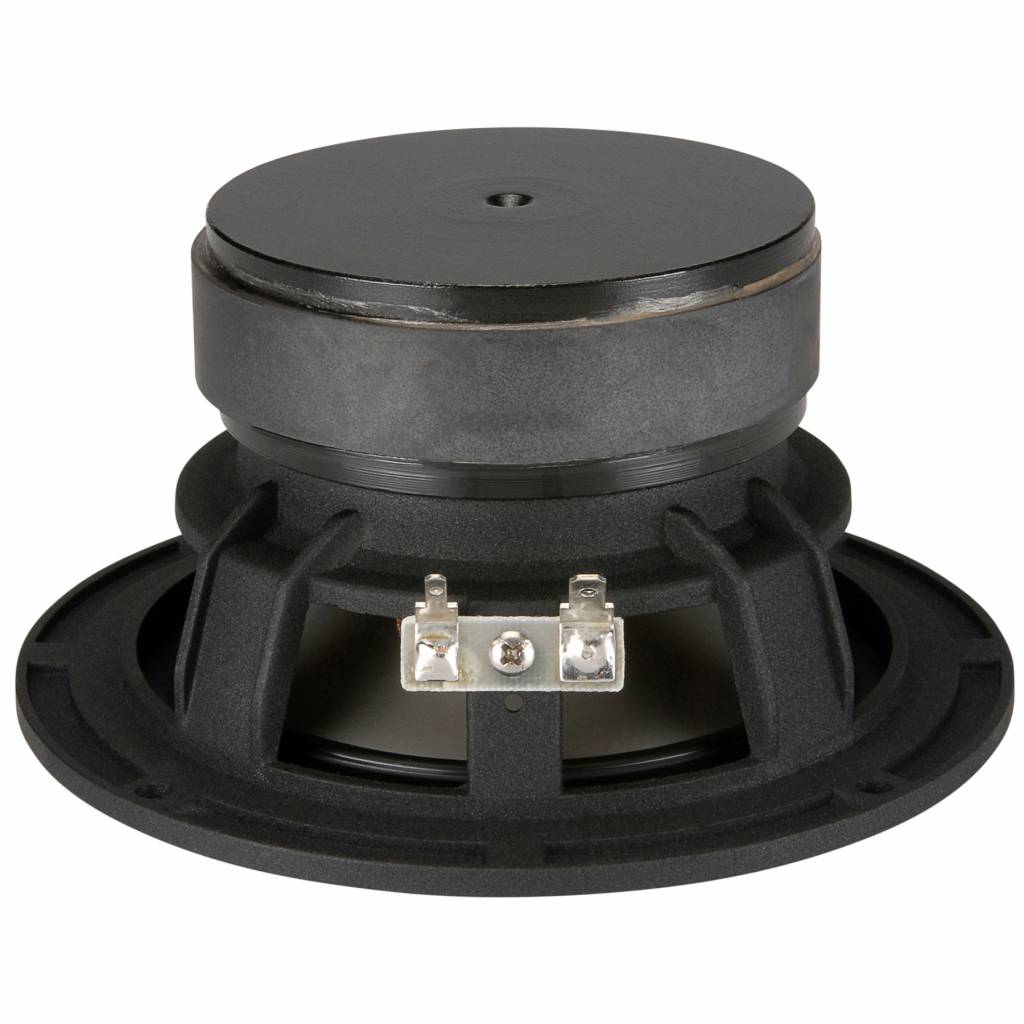

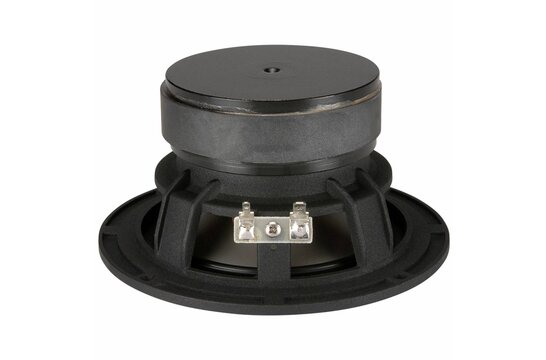

        Fountek FW146 5-1/4" Midwoofer

        €54,95

        Out of stock

        Add to cart

        Fountek FW146 5-1/4" Midwoofer

        1 reviews
        3 from 5
        1 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        100%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Fountek
        Show all Bass-mid woofer
        5¼" | 8 Ω
        FW146 5-1/4" Midwoofer
        FW146 5-1/4" Midwoofer
        FW146 5-1/4" Midwoofer
        FW146 5-1/4" Midwoofer
        FW146 5-1/4" Midwoofer
        FW146 5-1/4" Midwoofer
        € 45,41€ 54,95 Out of stock
        • -5% Purchase 4 for only € 52,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        FW146 5-1/4" Midwoofer
        FW146 5-1/4" Midwoofer
        FW146 5-1/4" Midwoofer
        FW146 5-1/4" Midwoofer
        FW146 5-1/4" Midwoofer
        FW146 5-1/4" Midwoofer

        Product description Fountek FW146 Bass-midwoofer

        Fountek’s FW146 is a robust 5-1/4" midbass driver that features an attractive aluminum cone (and phase plug), a high-strength cast-aluminum frame, and an optimized motor structure for low distortion and excellent detail.



        Highlights

        • Elegant satin anodized-aluminum cone with phase plug
        • Long-throw voice coil for dynamic bass
        • Linear response up to 5,000 Hz for easy integration with tweeters



        Product details

        Fountek FW146 5-1/4" Aluminum Midwoofer



        Fountek midbass drivers offer exceptional value with premium features like aluminum cones and phase plugs, robust cast frames, and optimized low-distortion motors.  They’re the perfect choice for use in high-end loudspeaker systems, paired with premium-quality tweeters like Fountek’s own ribbon units.

        The FW146 5-1/4” midwoofer is the perfect choice for compact mini-monitor speaker projects, or as a midrange in a three-way configuration together with a dedicated woofer. The aluminum cone and phase plug feature a discreet, stylish satin anodized finish, and the cast frame adds structural rigidity to the driver.

        Show more

        Specifications

        Article number
        FW146
        EAN
        0848864004228
        Woofer Type
        Midwoofer
        Nominal Diameter
        5-1/4"
        Power Handling (RMS)
        35 Watts
        Power Handling (max)
        70 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        86.1 dB
        Frequency Response
        45 to 4,000 Hz
        Voice Coil Diameter
        1.02"
        DC Resistance (Re)
        6 ohms
        Resonant Frequency (Fs)
        50 Hz
        Mechanical Q (Qms)
        3.51
        Electromagnetic Q (Qes)
        0.46
        Total Q (Qts)
        0.4
        Diaphragm Mass Inc. Airload (Mms)
        8.94g
        Mechanical Compliance of Suspension (Cms)
        1.14 mm/N
        Surface Area of Cone (Sd)
        77.61 cm²
        BL Product (BL)
        6.07 Tm
        Compliance Equivalent Volume (Vas)
        0.35 ft.³
        Maximum Linear Excursion (Xmax)
        3.6 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        5.72"
        Overall Depth
        2.7"
        Baffle Cutout Diameter
        4.53"
        # Mounting Holes
        4
        Sealed Volume
        0.12 ft.³
        Sealed F3
        98 Hz
        Vented Volume
        0.29 ft.³
        Vented F3
        52 Hz

        Show more

        Reviews

        1 reviews
        Review this product
        3 of 5
        Ik kon ze vergelijken met de seas excel 15cm en de verschil is best groot
        By T.K A. on 3 April 2019
