        Ultimax UM10-22 Subwoofer

        Ultimax UM10-22 Subwoofer

        €269,95

        Dayton Audio Ultimax UM10-22 Subwoofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 223,10€ 269,95 10+ In stock
        • -5% Purchase 4 for only € 256,45 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design.



        Highlights

        • Dual 2 ohm, 2-layer copper voice coils
        • Large vented pole piece and under-spider venting
        • 500 watts RMS power handling
        • Black anodized aluminum former and black pole improves heat dissipation
        • Thick, one-piece Nomex honeycomb covered cone with woven heavy-duty glass-fiber
        • Tall-boy rubber surround for extra-long linear excursion without reducing cone surface area
        • Dual linear stiffness spiders limit distortion and rocking modes



        Product details

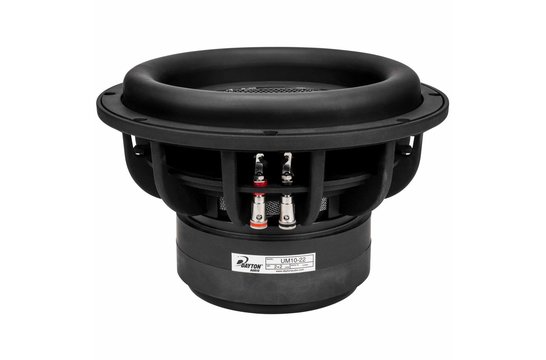

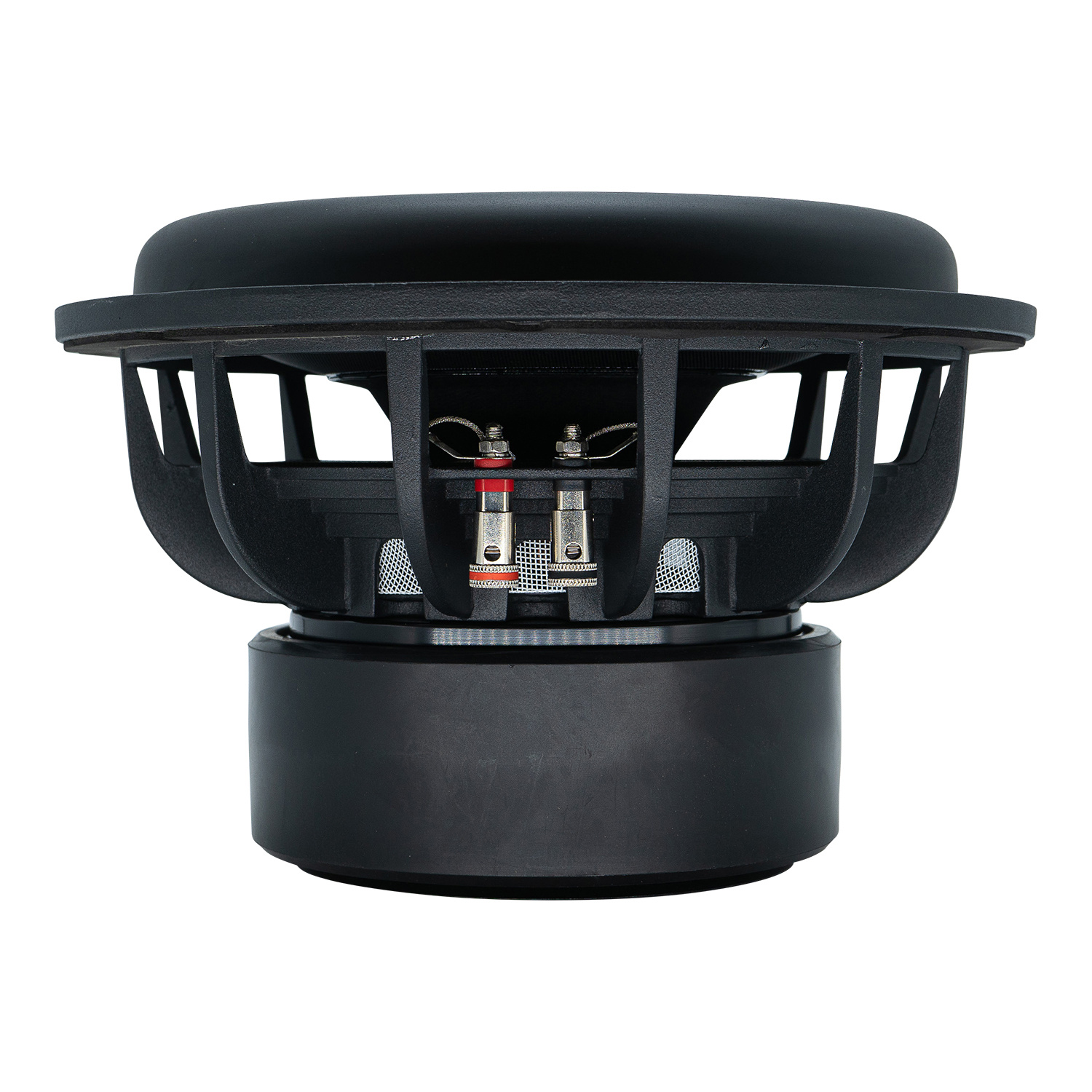

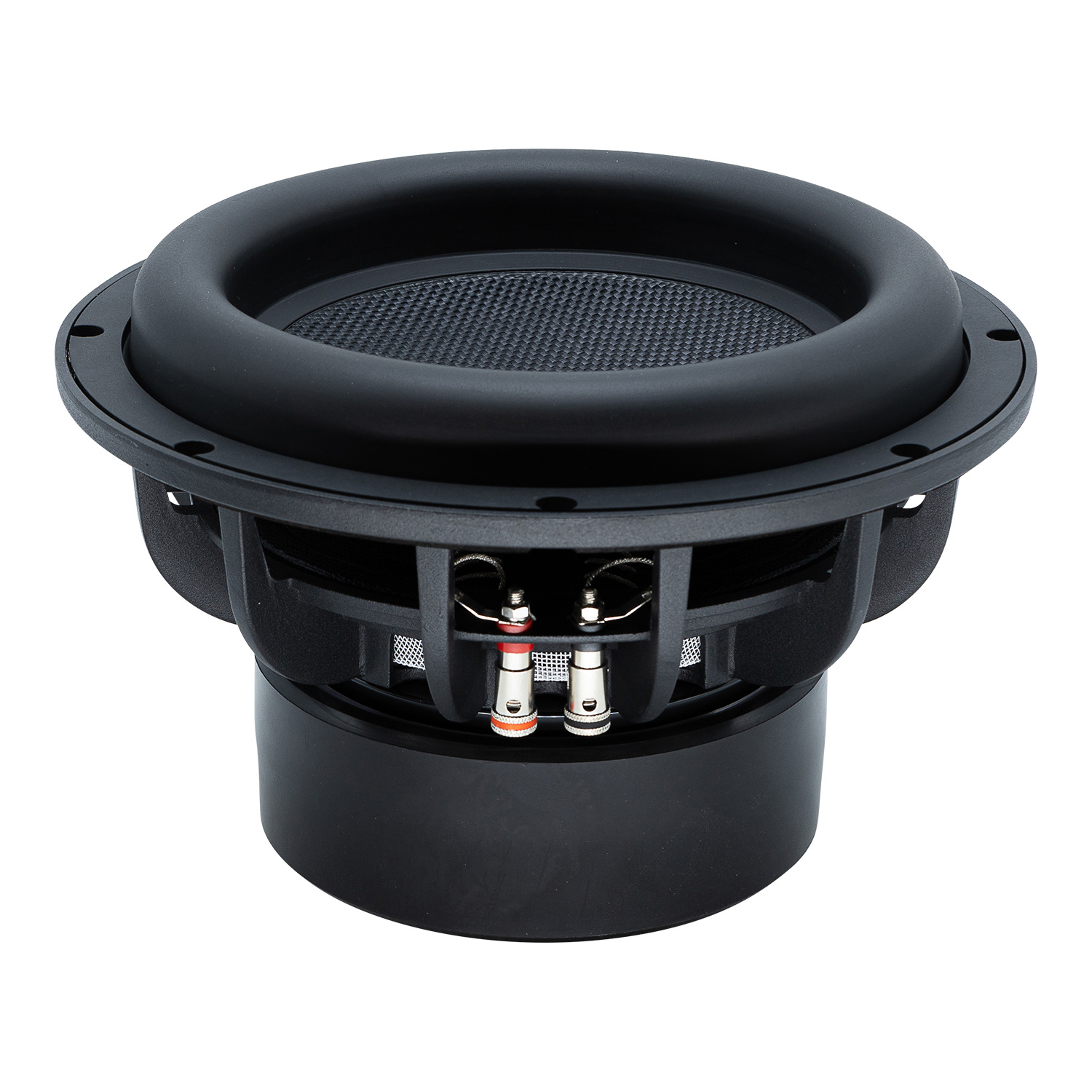

        Dayton Audio UM10-22 10" Ultimax DVC Subwoofer 2 ohms Per Coil



        If you want outrageous amounts of bass, you gotta move some air

        The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.



        The versatility you need for mobile, home, or pro subwoofer excellence

        Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.



        Built to produce massive low frequency output and keep on doing it

        To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils.

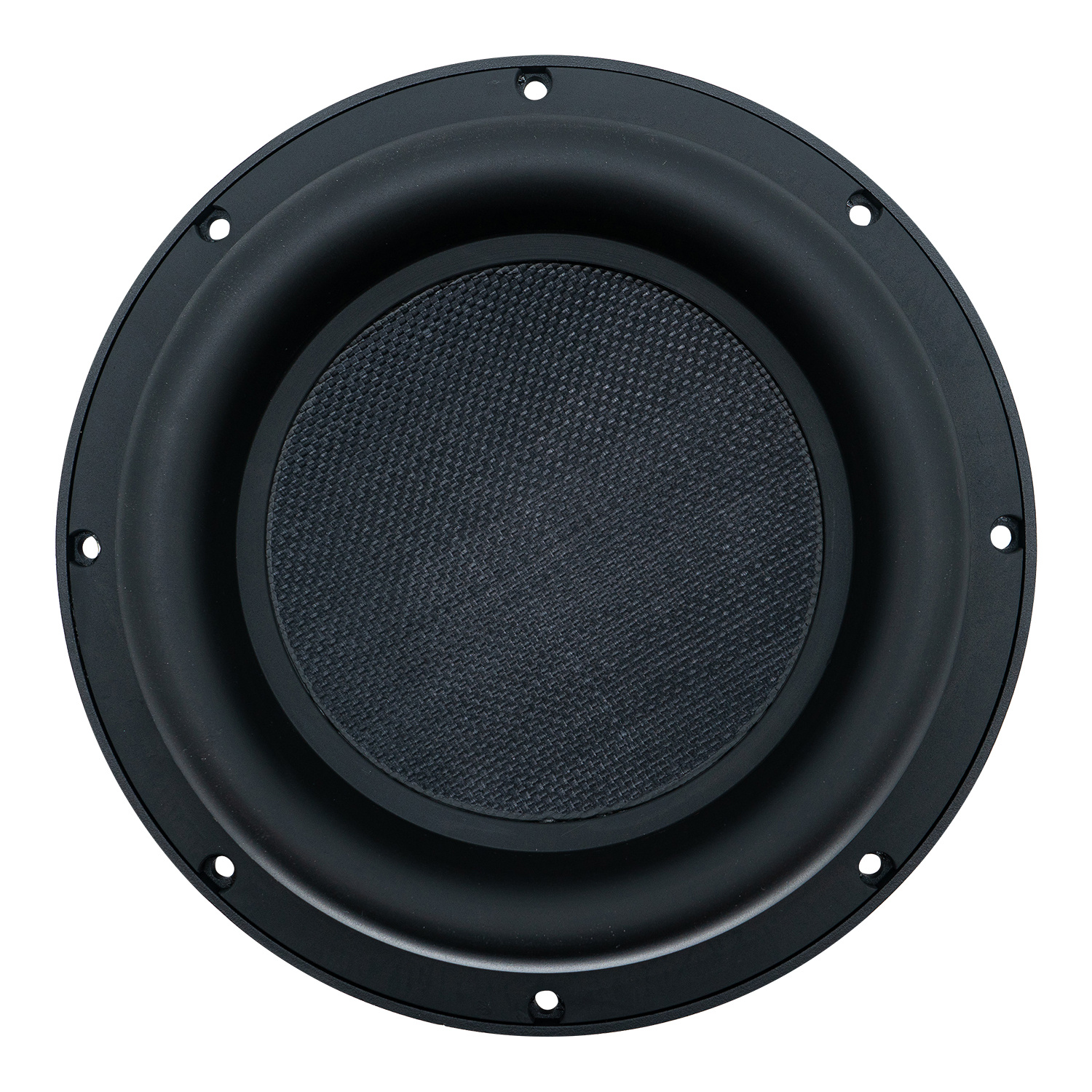

        Over 1-1/2" of travel (3/4" Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. "Tall-boy" rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation.



        A strong motor takes you to wherever you want to be

        A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.

        Cabinet recommendations:

        • Sealed: 0.75 cubic ft. (net internal, not including driver volume) produces an f3 of 38 Hz with a 0.85 Qtc alignment
        • Vented: 1.3 cubic ft. (net internal, not including driver or port volume) produces an f3 of 22 Hz



        Note: All parameters derived with voice coils wired in series.

        Show more

        Specifications

        Article number
        UM10-22
        Woofer Series
        Ultimax Series
        Woofer Type
        Subwoofer
        Power Handling (RMS)
        500 watts
        Power Handling (max)
        1,000 watts
        Impedance (Z)
        2+2 ohms
        Sensitivity (SPL at 1m / 2.83V)
        84.8 dB
        Frequency Response
        25 - 1,500 Hz
        Voice Coil Diameter
        63.5 mm
        DC Resistance (Re)
        3.7Ω
        Voice Coil Inductance (Le)
        0.77mH
        Resonant Frequency (Fs)
        31.9Hz
        Mechanical Q (Qms)
        3.02
        Electromagnetic Q (Qes)
        0.94
        Total Q (Qts)
        0.72
        Diaphragm Mass Inc. Airload (Mms)
        192g
        Mechanical Compliance of Suspension (Cms)
        0.13mm/N
        Surface Area of Cone (Sd)
        327.8 cm²
        Volume of Displacement (Vd)
        622.8 cm³
        BL Product (BL)
        12.3T·m
        Compliance Equivalent Volume (Vas)
        19.5 liters
        Maximum Linear Excursion (Xmax)
        19 mm
        Cone / Diaphragm Material
        Nomex Cone
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Dual Voice Coil
        Yes
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        273.5 mm
        Overall Depth
        178 mm
        Baffle Cutout Diameter
        236.7 mm
        Sealed Volume
        0.63 cubic ft. (net internal)
        Sealed F3
        45 Hz with a 0.707 Qtc alignment
        Vented Volume
        1.75 cubic ft. (net internal, not including driver or port volume) tuned to 25 Hz with a 10" wide by 1" high slot port that is 24" long
        Vented F3
        23 Hz

        Show more

        5 of 5
        Using it in a small (25l) sealed box with Monacor SAM500D, connected to an Onkyo TX-RZ740 AVR, doing some trickery with bass management. This thing is absolutely brutal, yet the sound is so nice to listen to. With some EQ and enough power this thing will go incredibly low and doesn't even need a big box. Mine had a manufacturing defect, though - too much glue on the spider, which was causing noticable noise. I had to grind it from there.
        By tk. on 22 March 2020
        5 of 5
        No description was given
        By sanmugam b. on 3 January 2018
