        DMA105-4 4" Aluminum Cone Full-Range Driver

        DMA105-4 4" Aluminum Cone Full-Range Driver

        €26,45

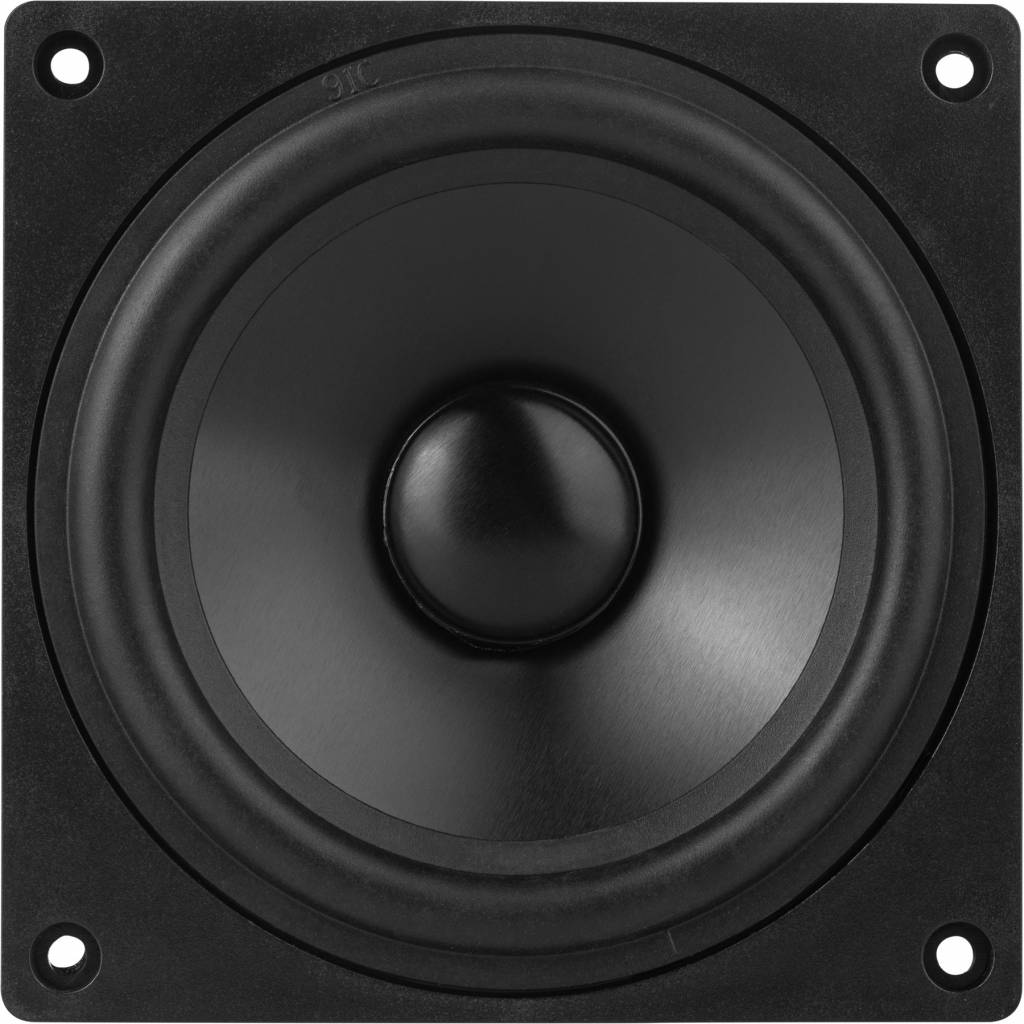

        Dayton Audio DMA105-4 4" Aluminum Cone Full-Range Driver

        3 reviews
        5 from 5
        3 reviews
        5 stars
        67%
        4 stars
        33%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 21,86€ 26,45 6 In stock
        • -5% Purchase 4 for only € 25,13 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Dayton Audio's DMA105-4 4" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA105-4 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



        Highlights

        • Excellent high frequency response for true full-range applications
        • Dual neodymium motor to create a symmetrical magnetic field for superb control
        • Large copper cap lowers distortion while improving high frequency response
        • Vented aluminum voice coil former with exceptional heat dissipation for high power handling
        • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
        • DIY friendly, oversized mounting flange makes installation simple
        • Matching tunable passive radiators also available!



        Product details

        Dayton Audio DMA105-4 4" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm



        Providing high efficiency with low distortion, Dayton Audio's DMA105-4 4" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA105-4 is the perfect full-range for the job.

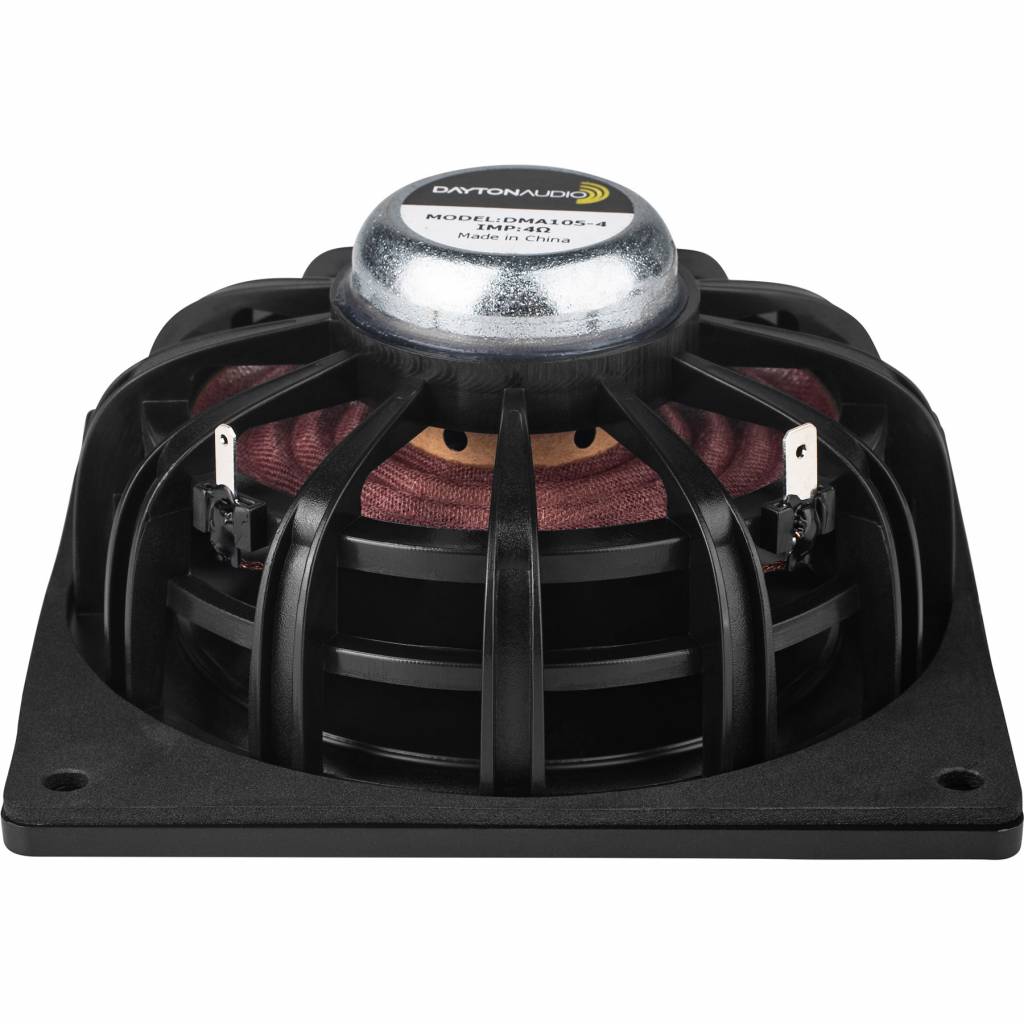

        Designed for the highest performance while delivering maximum value, the no compromise design of the DMA105-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

        Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.

        Show more

        Specifications

        Article number
        DMA105-4
        Woofer Series
        DMA series
        Woofer Type
        Full-range
        Nominal Diameter
        4”
        Power Handling (RMS)
        35 Watts
        Power Handling (max)
        70 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        89.8 dB
        Frequency Response
        70 to 20,000 Hz
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        3.4 ohms
        Voice Coil Inductance (Le)
        0.3 mH
        Resonant Frequency (Fs)
        72.7 Hz
        Mechanical Q (Qms)
        2.6
        Electromagnetic Q (Qes)
        0.63
        Total Q (Qts)
        0.51
        Diaphragm Mass Inc. Airload (Mms)
        4.53g
        Mechanical Compliance of Suspension (Cms)
        1.06 mm/N
        Surface Area of Cone (Sd)
        54.1 cm²
        BL Product (BL)
        3.35 Tm
        Compliance Equivalent Volume (Vas)
        0.15 ft.³
        Maximum Linear Excursion (Xmax)
        2.5 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Polymer
        Magnet Material
        Neodymium
        Overall Outside Diameter
        4.1" x 4.1"
        Overall Depth
        1.86"
        Baffle Cutout Diameter
        3.54"
        # Mounting Holes
        4
        Sealed Volume
        0.08 ft.³
        Sealed F3
        121 Hz
        Vented Volume
        0.23 ft.³
        Vented F3
        60 Hz

        Show more

        5 of 5
        Bought pair of these for three way BT speaker project. Handling them in my paws didn't exactly convince me - these are quite platicky, and when mounted by just four screws, the basket ("front flange") arcs a bit due to the foam isolation compression. Playing them open air looked like they will go over excutsion, but upon proper installation with eight screws (four supporting to mitigate the arcing), I am very surprised with how potent and strong ...

        Show more

        By Petr B. on 3 September 2023
        5 of 5
        Все чудово
        By Oleksandr on 7 October 2022
