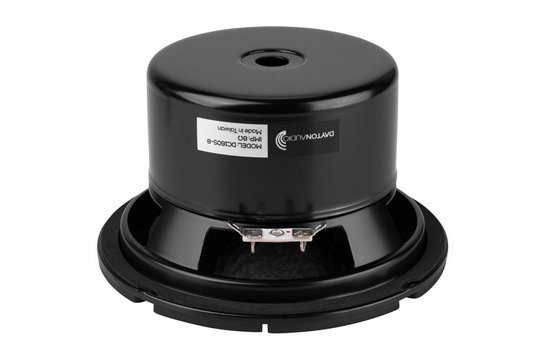

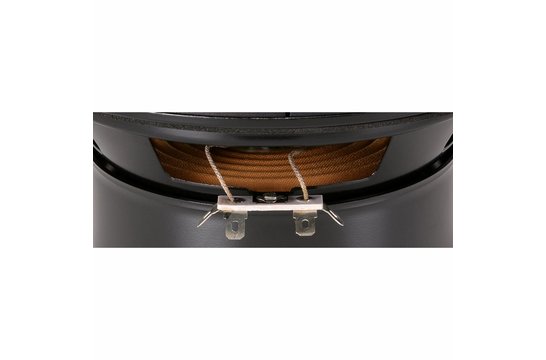

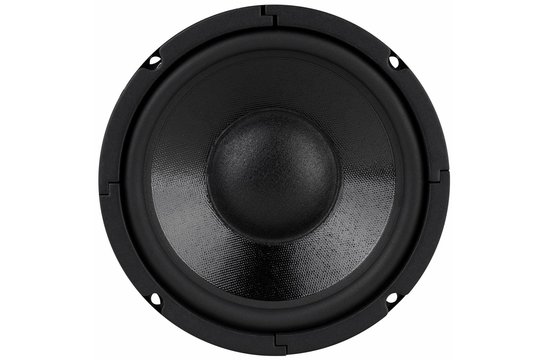

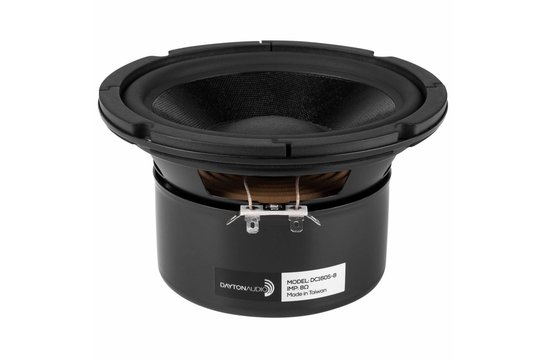

Dayton Audio DC160S-8 6-1/2" Classic Shielded Woofer

In stock

  • Article code: DC160S-8
  • Stock: 6 In stock

Choose the Dayton Audio DC160S-8 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.

€ 46,25 Incl. 21% VAT

  • Buy 4 for €43,94 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio DC160S-8 6-1/2" Classic Shielded Woofer

Choose the Dayton Audio DC160S-8 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.



Highlights

  • Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
  • Smooth frequency response up to 2 kHz and great bass response
  • Rubber surround, aluminum voice coil, and extended bump plate
  • Low 32 Hz free-air resonance



Product details

Dayton Audio DC160S-8 6-1/2" Classic Shielded Woofer



Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160S-8 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160S-8 as a small subwoofer! The excellent low frequency performance will amaze you.



A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Specifications

Specifications for: DC160S-8 6-1/2" Classic Shielded Woofer

  • Woofer Series Specific woofer production line of the manufacturer. Classic Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 6.50"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 50 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 100 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 85.3 dB @ 2.83V/1m
  • Frequency Response 33 - 4,000 Hz
  • Voice Coil Diameter 35 mm
  • Magnet Weight 15 oz.
  • DC Resistance (Re) 6.9 ohms
  • Voice Coil Inductance (Le) 2.29 mH @ 1 kHz
  • Resonant Frequency (Fs) 30.3 Hz
  • Mechanical Q (Qms) 3.04
  • Electromagnetic Q (Qes) 0.33
  • Total Q (Qts) 0.30
  • Diaphragm Mass Inc. Airload (Mms) 32.2g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.86 mm/N
  • Surface Area of Cone (Sd) 134.8 cm²
  • Volume of Displacement (Vd) 42.5 cm³
  • BL Product (BL) 11.3 Tm
  • Compliance Equivalent Volume (Vas) 22.5 liters
  • Maximum Linear Excursion (Xmax) 3.15 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded Yes
  • Overall Outside Diameter 165 mm
  • Overall Depth 95 mm
  • Baffle Cutout Diameter 144.6 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
