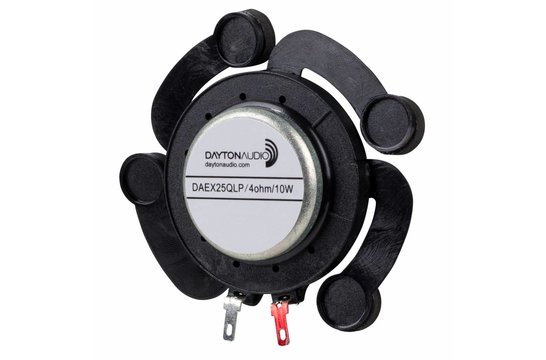

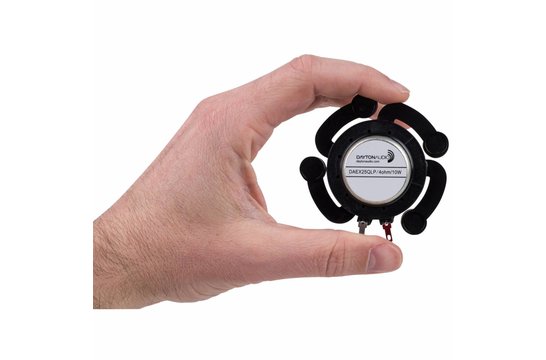

    Dayton Audio DAEX25QLP-4 Quad Feet Low Profile 25mm Exciter 10W 4 Ohm

    € 11,53€ 13,95 >10 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €13,25 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX25QLP-4 4 ohm sound exciter improves power handling with a vented voice coil.



    Highlights

    • Four arms provide extra support improving linearity
    • 4 ohm impedance for use with small, Class D amplifiers
    • Rare-earth neodymium motor and a proprietary vented voice coil
    • Turns any flat, rigid surface into a speaker



    Product details

    Dayton Audio DAEX25QLP-4 Quad Feet Low Profile 25mm Exciter 10W 4 Ohm



    Dayton Audio's DAEX25QLP-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces.



    A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!



    Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



    To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

    Specifications

    Article number
    DAEX25QLP-4
    Exciter type
    Full range
    Power Handling (RMS)
    10 watts
    Power Handling (max)
    -
    Impedance
    4 ohms
    Frequency Response
    -
    Resonant Frequency (Fs)
    300 Hz
    DC Resistance (Re)
    3.8 ohms
    Voice Coil Inductance (Le)
    0.28 mH
    Total Q (Qts)
    -
    Diaphragm Mass Inc. Airload (Mms)
    -
    Mechanical Compliance of Suspension (Cms)
    -
    BL Product (BL)
    -
    Voice Coil Diameter
    25 mm
    Overall Outside Diameter
    70 mm
    Overall Depth
    19 mm
    Overall Dimensions (L x W x H)
    -
    Mounting surface dimensions
    12 mm Ø
    # Mounting Holes
    -
    Mounting type
    Self 3M VHB adhesive pre-applied mounting
    Weight
    50 grams
