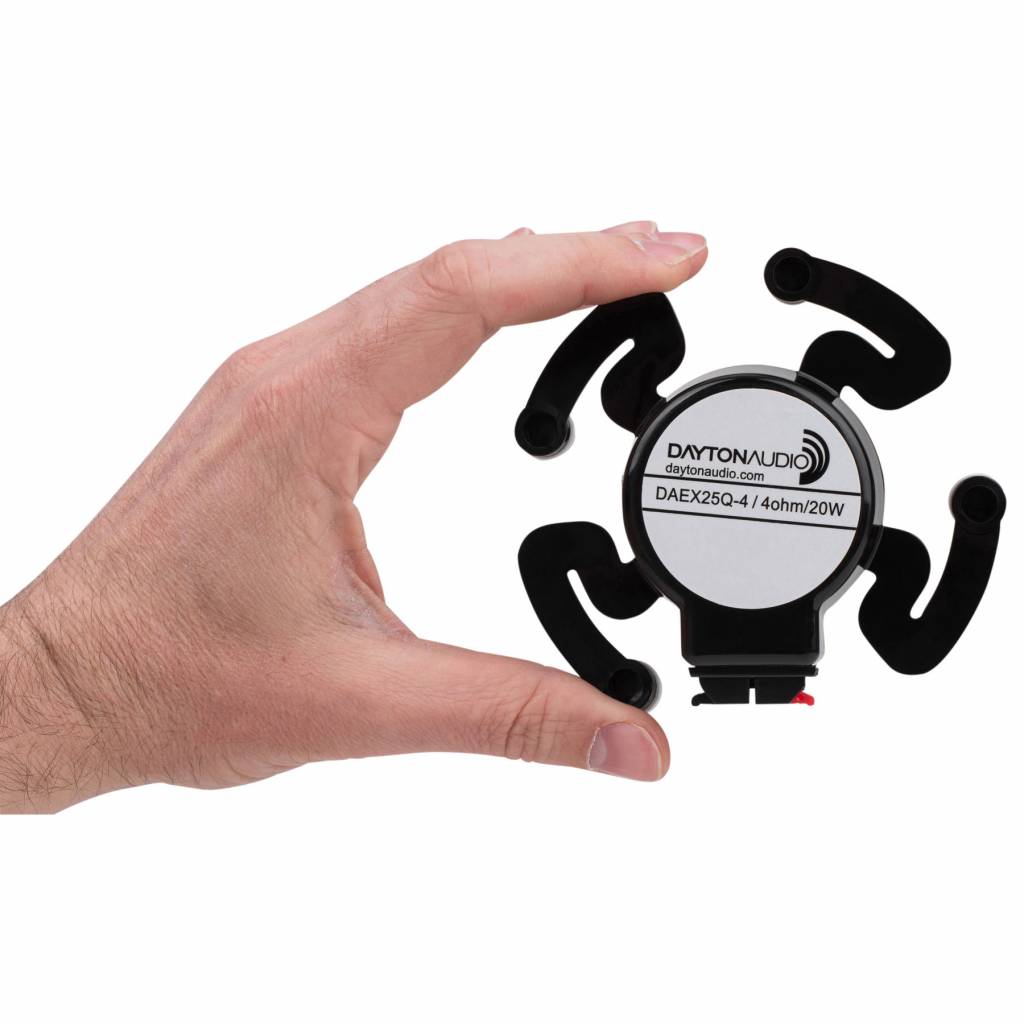

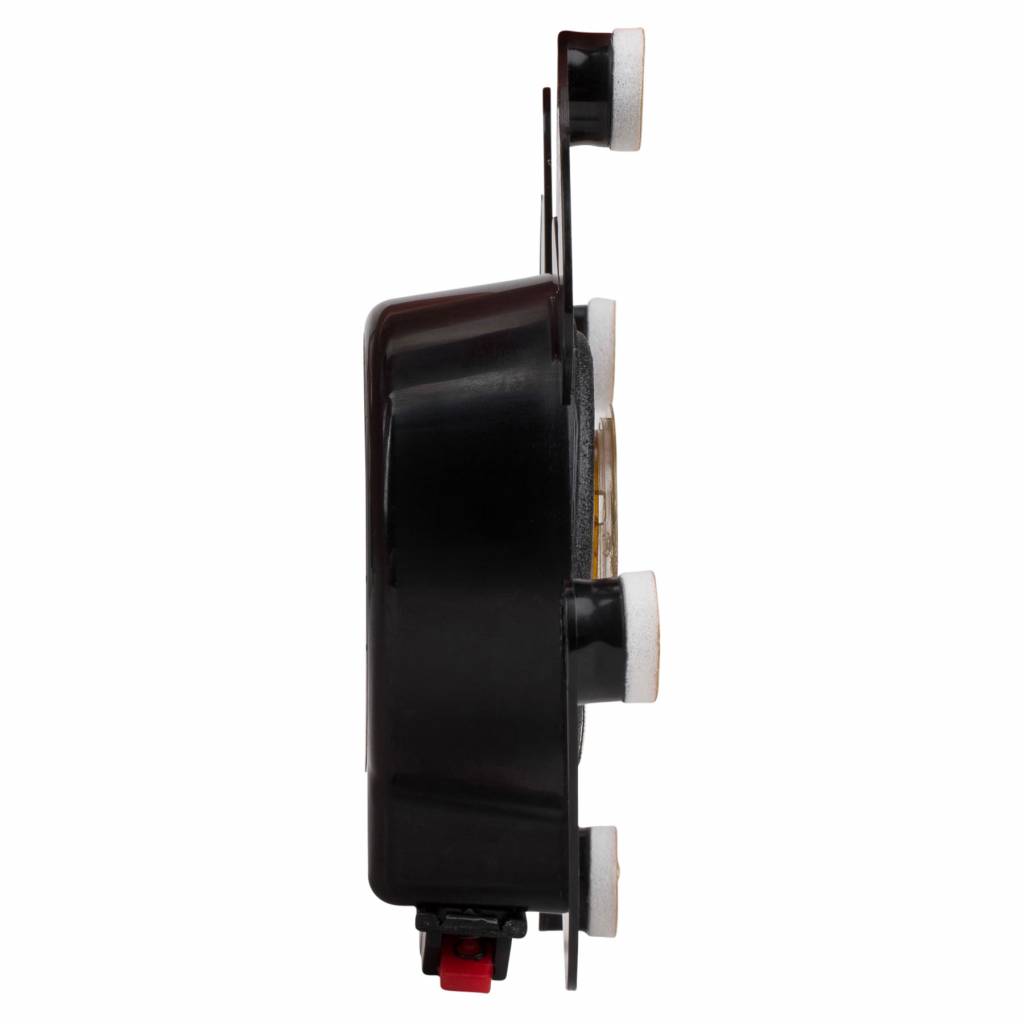

Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm

In stock

  • Article code: DAEX25Q-4
  • Stock: >10 In stock

For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25Q-4 features four extended arms. Spring-loaded speaker terminals facilitate quick electrical connection.

€ 16,45 Incl. 21% VAT

  • Buy 4 for €15,63 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm

For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25Q-4 features four extended arms. Spring-loaded speaker terminals facilitate quick electrical connection.



Highlights

  • Unique, four arm design for exciting a large surface
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Rare-earth neodymium motor and a proprietary voice coil
  • 4-ohm impedance for use with small, Class D amplifiers
  • 20 watt RMS power handling for high output



Product details

Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm

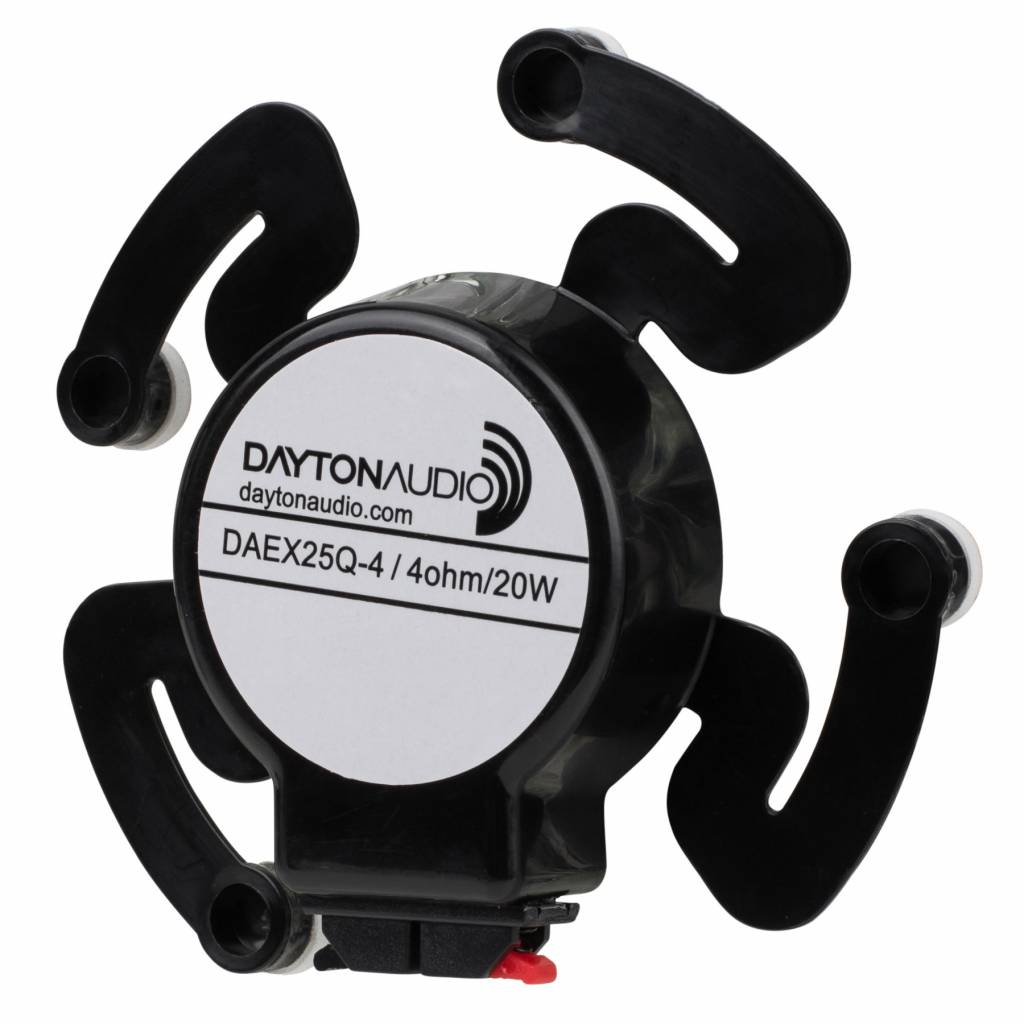

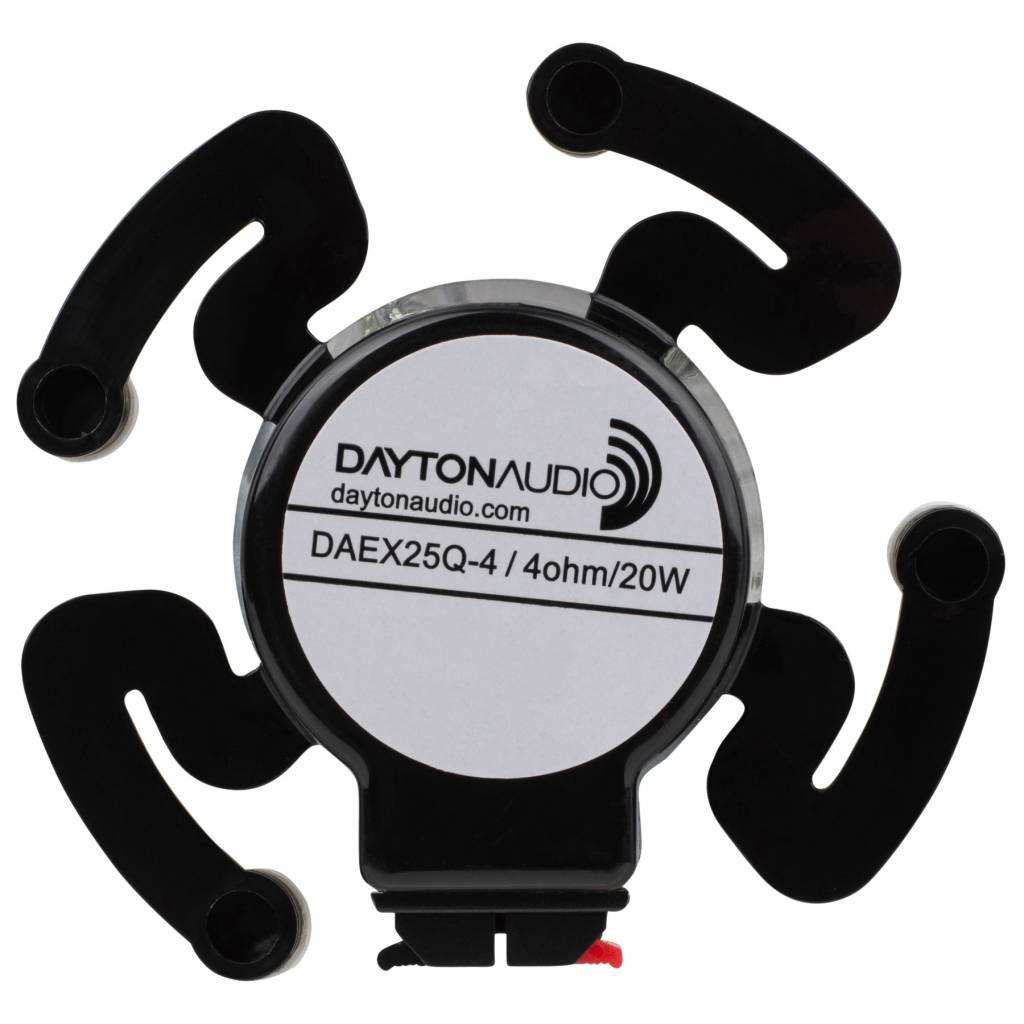

Dayton Audio's DAEX25Q-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass).



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power, creating rich, dynamic sound.

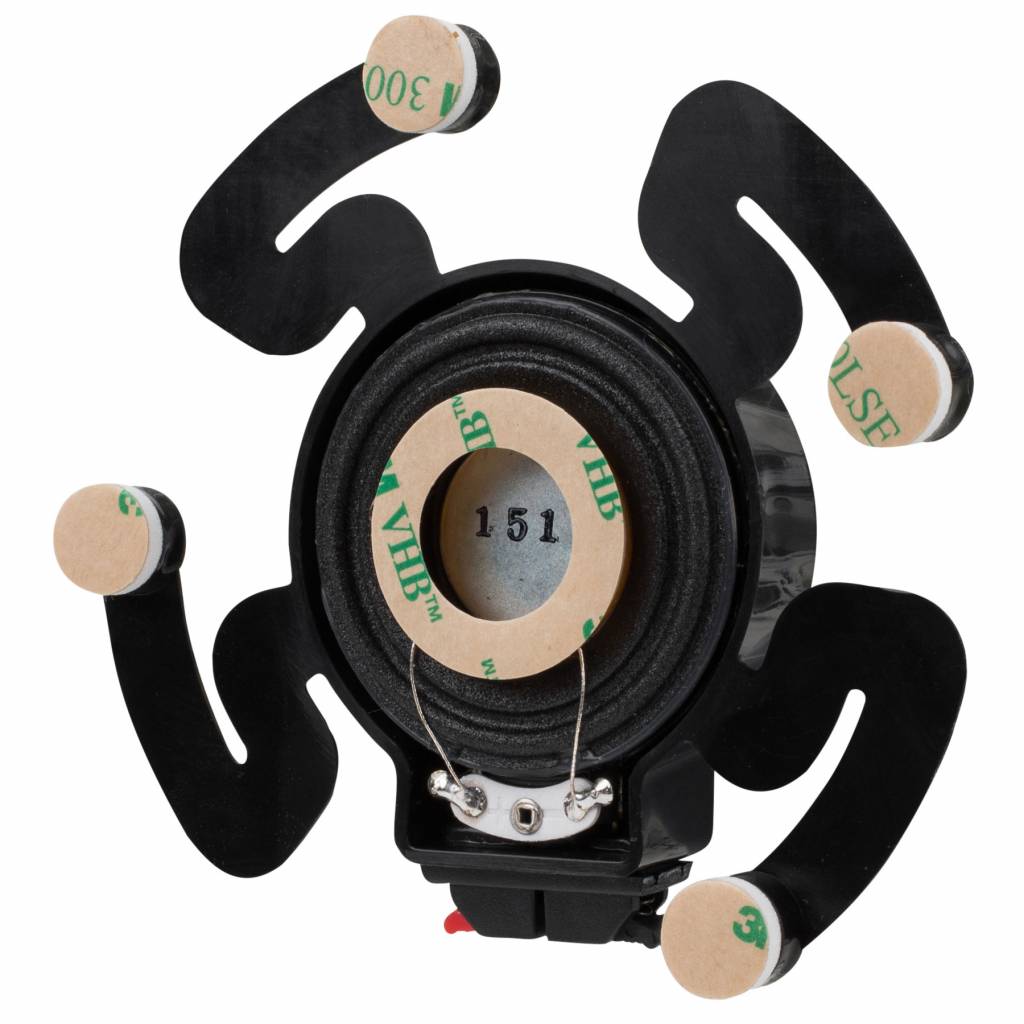

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick! Two spring-loaded terminals are built onto the main body for quick electrical connection.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specifications

Specifications for: DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 20 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency Response SPEC Frequency Response -
  • View all specifications
  • Resonant Frequency (Fs) -
  • DC Resistance (Re) 4.3 ohms
  • Voice Coil Inductance (Le) 0.25 mH
  • Total Q (Qts) 0.69
  • Diaphragm Mass Inc. Airload (Mms) 1.75 g
  • Mechanical Compliance of Suspension (Cms) 0.0003 mm/N
  • BL Product (BL) 3.86 Tm
  • Voice Coil Diameter 25 mm
  • Overall Outside Diameter 24.7 mm
  • Overall Depth 24.77 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 12 mm outside Ø
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 90.5 grams

Documenten

Reviews

User reviews 3.85 / 5 Reviews: (6)

  • PU By Peter U. on 04-03-2020 13:28

    5 / 5

    Koper heeft geen omschrijving achtergelaten.

  • DS By Dominic S. on 31-05-2019 07:10

    1 / 5

    Over priced junk, sound quality is terrible...

  • EB By Edd B. on 03-04-2019 12:24

    4 / 5

    Ben nog aan het experimenteren met plaatmateriaal om een zo prettig mogelijk geluid te krijgen. De plastic Spider arms vallen een beetje tegen.

  • MH By Mikko H. on 28-06-2018 08:02

    5 / 5

    No description was given

  • DA By dp a. on 18-05-2018 09:15

    4 / 5

    glue is not good for experimenting on different surfaces. You are attempting to build a full loudspeaker, so each fixing is a prototype. I bought this exciter so I could drill m3 screw holes in the four feet. So far I found 5mm plywood gives max energy transfer (loudness) and room position makes a big difference in bass performance.

  • FP By Fabio P. on 01-05-2018 16:11

    4 / 5

    No description was given
