        Product description

        Choose the Dayton Audio DA30 amplifier for your fixed audio application. Its small chassis fits away neatly for security, while the big sound fills classrooms and conference rooms.



        Highlights

        • 2 x 15W power output into 4 ohms or 1 x 30W bridged output into 8 ohms

        • Clear, articulate hi-fi sound quality, but built for the tough requirements of commercial duty

        • Cool-running Class D circuitry delivers high output while reducing AC line current demands

        • Ideal for classrooms, boardrooms, or bedrooms

        • Recessed, tamper-resistant tone controls provide simple sound shaping

        • Compact size makes it easy for this amp to fit almost anywhere

        • Add a Bluetooth receiver (sold separately) for even greater control flexibility!



        Product details

        Dayton Audio DA30 2 x 15W Class D Bridgeable Mini Amplifier

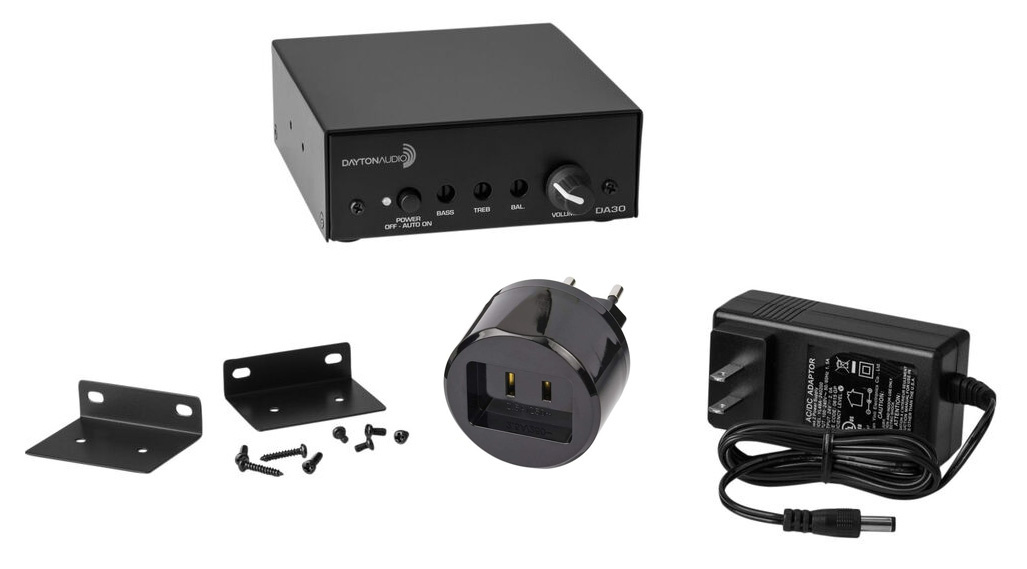

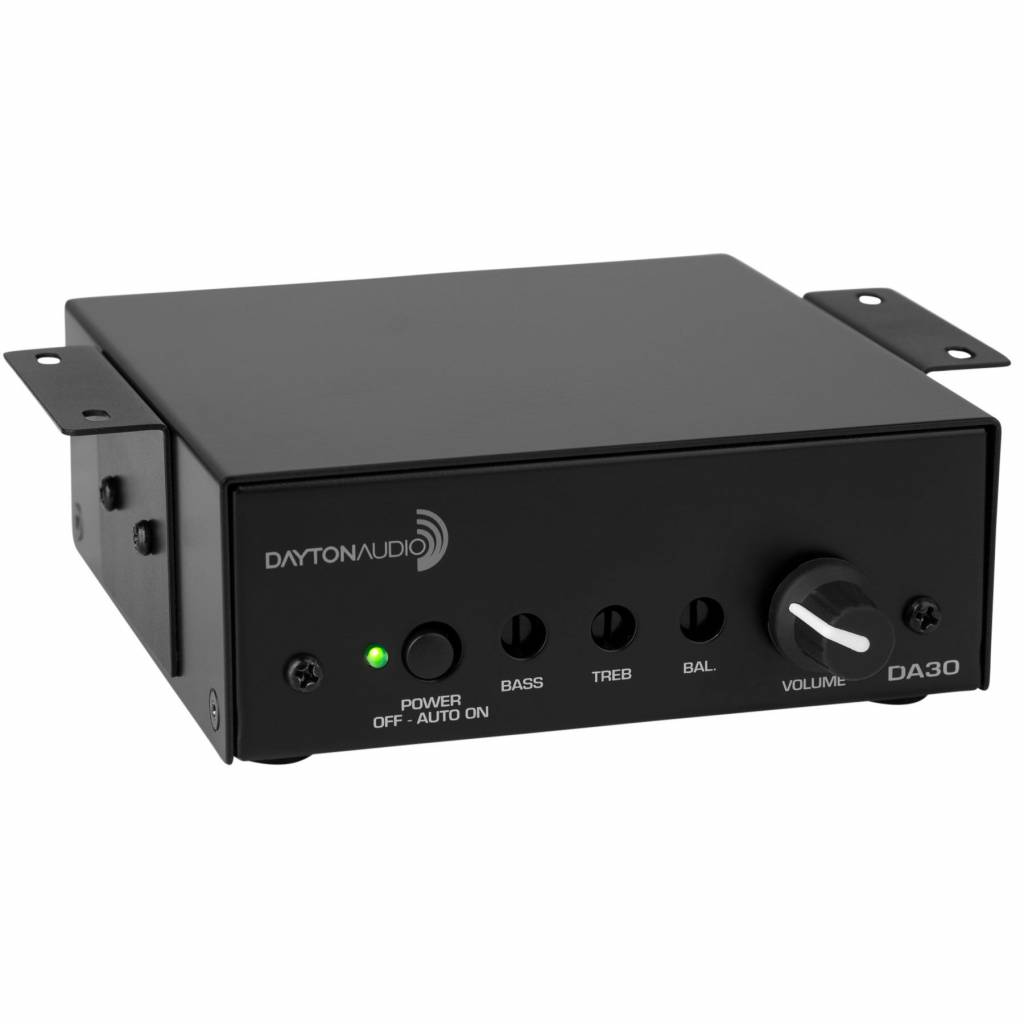

        Dayton Audio's DA30 is the ideal amplifier for commercial audio installations such as classrooms or offices, where a small, low wattage power amp is required. This palm-sized Class D amplifier sits inconspicuously on a desktop, and can also be installed on walls or under cabinets by using the included brackets. Perfect for powering ancillary zones in large setups, or mounted on or near a video projector!

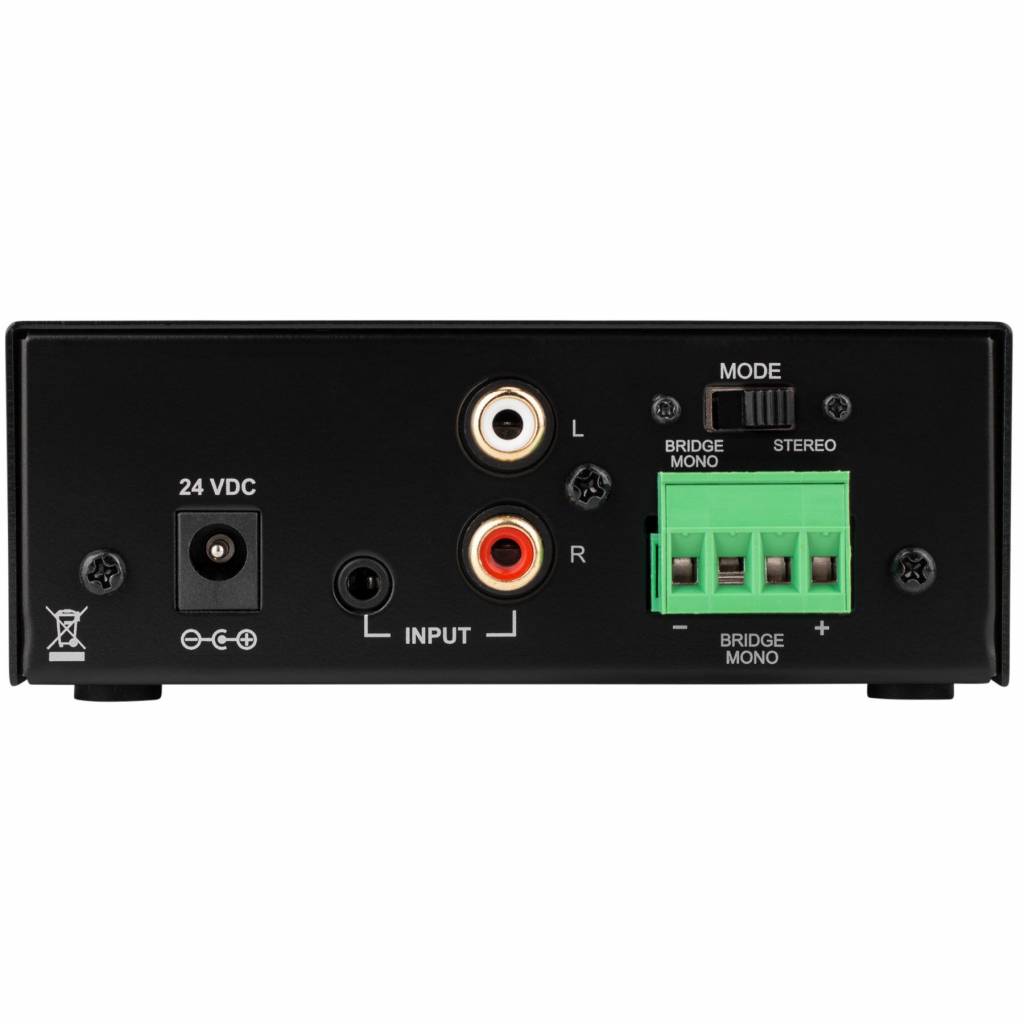

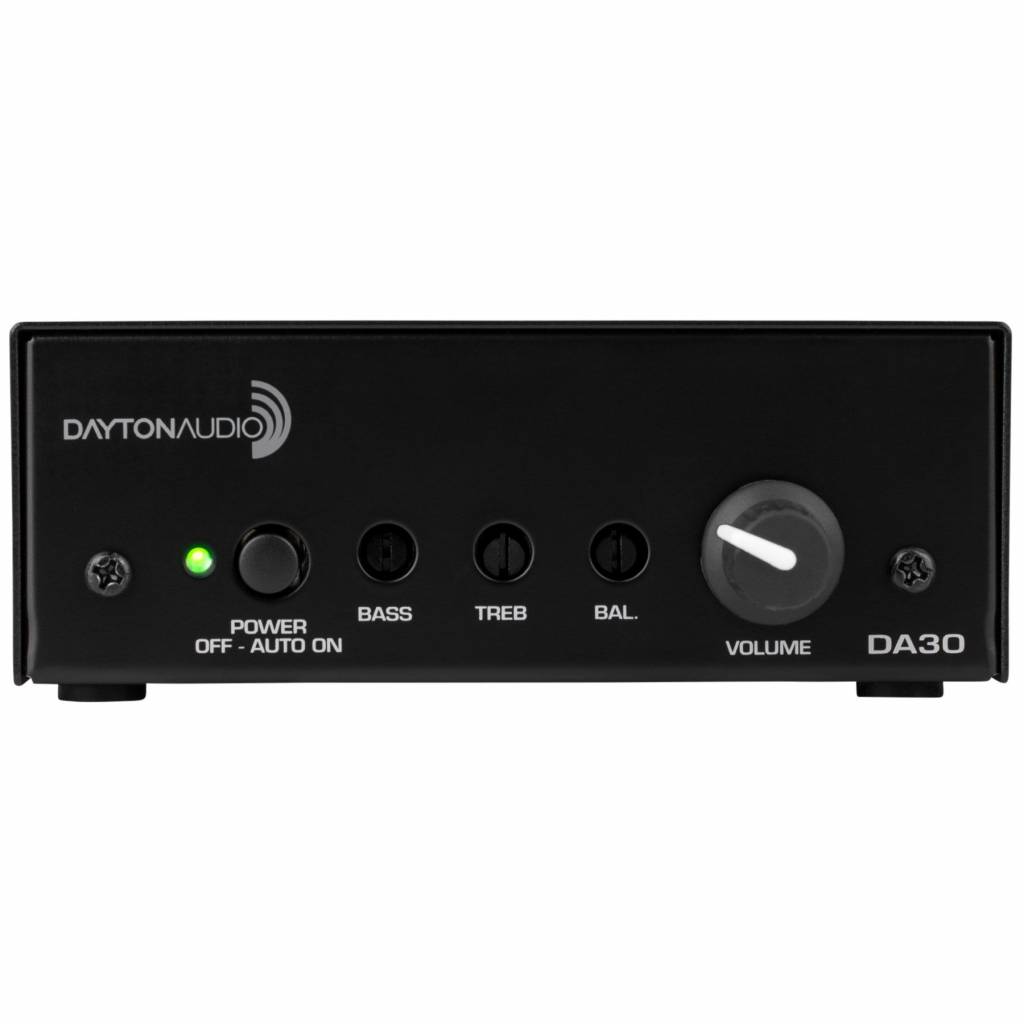

        The DA30 delivers 15 watts per channel in stereo mode and 30 watts when bridged mono. Two stereo audio inputs increase versatility: dual RCA or a single 3.5 mm TRS jack. Separate treble and bass controls allow the sound to be tailored to the room. The DA30's auto-on feature increases energy efficiency. An all-metal chassis and the selection of high-spec internal components ensure reliable operation and a long service life.

        Show more

        Specifications

        Article number
        DA30
        Rated power output (RMS)
        2 x 15 watts at 4 ohms
        Bridged power output (RMS)
        1 x 30 watts at 6 ohms
        Minimum load
        4 ohms
        Signal-to-noise ratio (SNR)
        -
        Distortion
        0.015%
        Distortion bridged
        -
        Efficiency
        92%
        Frequency response
        20 - 20,000 Hz
        Input impedance
        100k ohms
        Input sensitivity
        -
        Auto turn-on sensitivity
        <0.8 mV
        DSP
        -
        DAC
        -
        Maximum sampling rate
        -
        Circuit Topology
        -
        Amplifier classification
        Class D
        Speaker output channels
        2
        Subwoofer output channel
        -
        Analog in/out
        -/-
        Optical S/PDIF in/out
        -/-
        Coaxial in/out
        -/-
        RCA in/out
        1/-
        AUX in/out
        1/-
        Bus in/out
        -/-
        XLR in/out
        -/-
        USB
        -
        Memory card slot
        -
        Network connection
        -
        Headphone jack
        -
        Subwoofer pre-out
        -
        Bluetooth
        -
        NFC
        -
        Wi-Fi
        -
        Banana plug compatible
        -
        Remote control
        -
        App control
        -
        Auto turn-on
        Accepted file formats
        -
        Equalizer (EQ) adjustment
        Equalizer (EQ) profiles
        -
        Multi zone/room
        -
        Crossover frequency adjustment
        -
        Bridge mode
        Power requirements
        24 VDC / 2A
        Power inlet connector
        Jack
        Power consumption
        -
        Stand-by power consumption
        0.6 mA
        Dimensions (D x W x H)
        139.7 x 112.7 x 41.3 mm
        Case material
        -

        Show more

        2 of 5
        Na 4-5 jaar in gebruik te zijn (waarvan het meeste standby) heb ik helaas moeten vaststellen dat de elektrolytische filter caps naar de speakers toe gedegradeerd zijn en er een fluittoon te horen is, ook in standby.
        By Maarten Zanders on 31 August 2022
        4 of 5
        Perfecte match voor een chromecast audio in een vaste installatie thuis. Dit is de tweede (badkamer, keuken,...), Ook samen met dayton ceiling speakers. Vermogen is meer dan voldoende voor dergelijke opstellingen.
        By Maarten Z. on 25 November 2017
