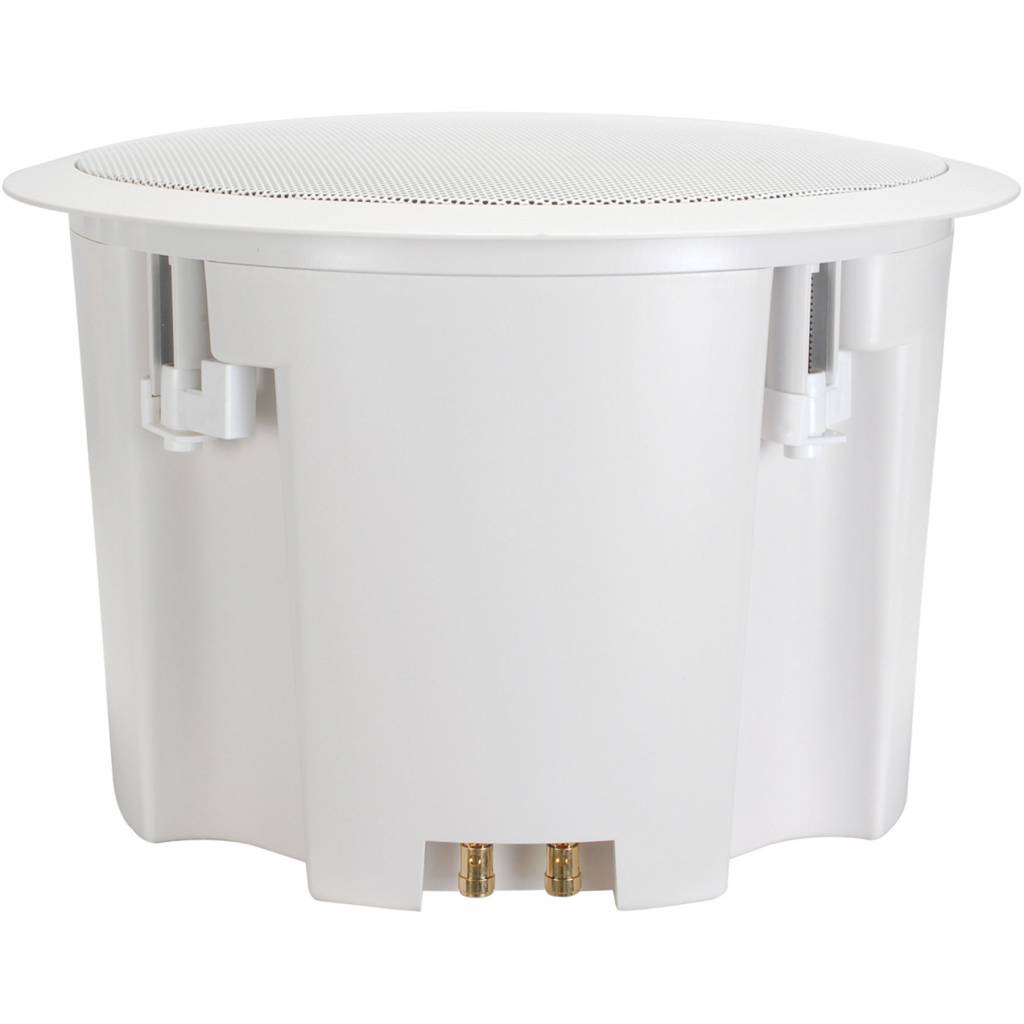

Dayton Audio CS620ECT 6-1/2" 2-Way 70V Enclosed Ceiling Speaker
If you have an attic with blown-in insulation, then the Dayton Audio CS620ECT is your ideal 6-1/2" ceiling speaker.
Highlights
- 6-1/2" black coated poly cone woofer
- Mylar tweeter
- Gold plated spring loaded binding posts
- 70V transformer is easily accessible from the front
- UL94 high temperature rated enclosure
Product details
Dayton Audio CS620ECT 6-1/2" 2-Way 70V Enclosed Ceiling Speaker
For large rooms and tighter bass response, try this 6-1/2” enclosed ceiling speaker. The Dayton Audio CS620ECT 6-1/2" ceiling speaker's dual slot ports tune the woofer to the enclosure for deeper bass reproduction. Step up to a real sounding ceiling speaker! UL94 high temperature rated enclosure. System includes: one speaker, removable steel mesh grills, built-in mounting brackets, hardware, and installation instructions. Sold individually.
*Note: Remove and discard the 1/8" perforated ring that connects the center "painting grill mask" and the outer "mounting template" before attempting to use the templates.

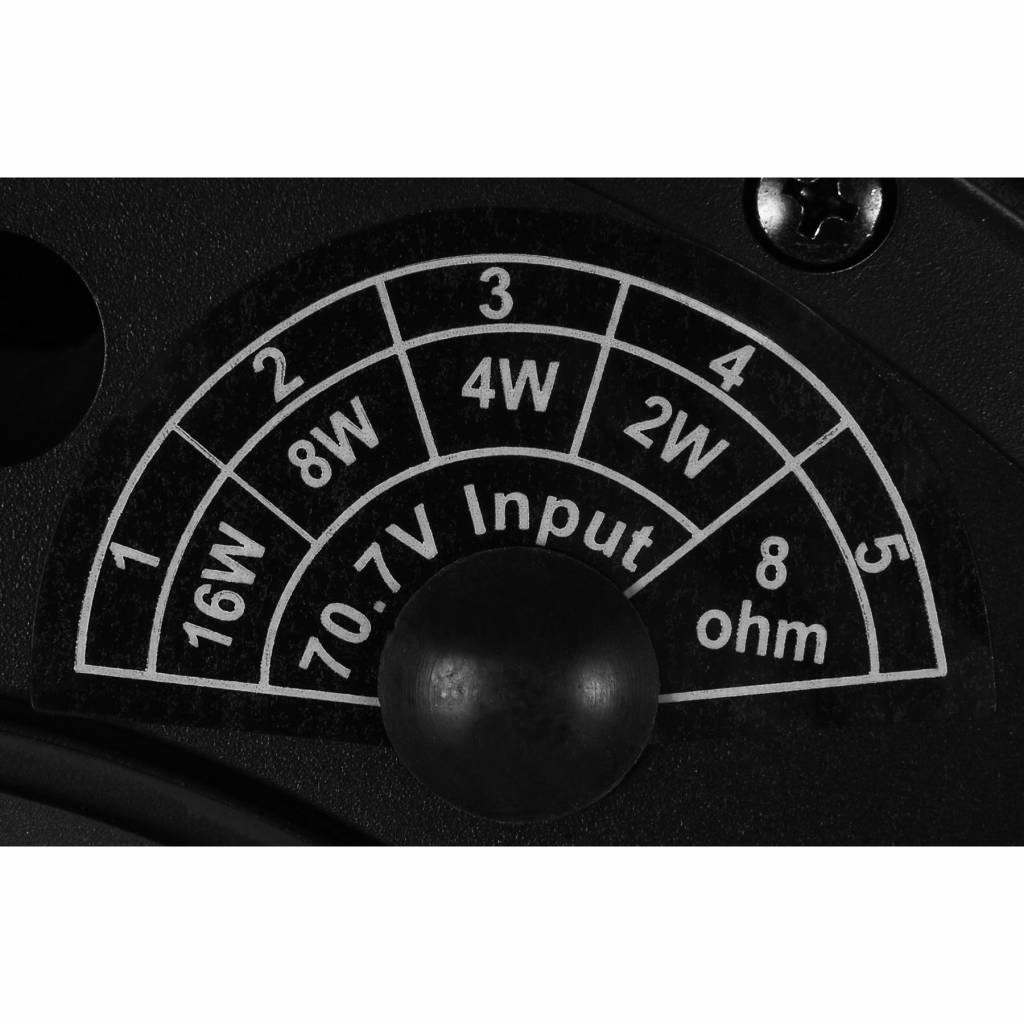

Specifications: • Power handling: 25 watts RMS/50 watts max • Frequency response: 50-20,000 Hz • 70V transformer tap settings: 2W, 4W, 8W, and 16W, 8 Ohm • Dimensions: 11" dia. x 7" D • Cutout size: 9-9/16" dia.
PRODUCT SPECIFICATIONS
|
Input Rating |
70V |
|
Mounting Style |
In-ceiling |
|
Special Features |
Enclosed Back |
|
Woofer Diameter |
6-1/2" |
