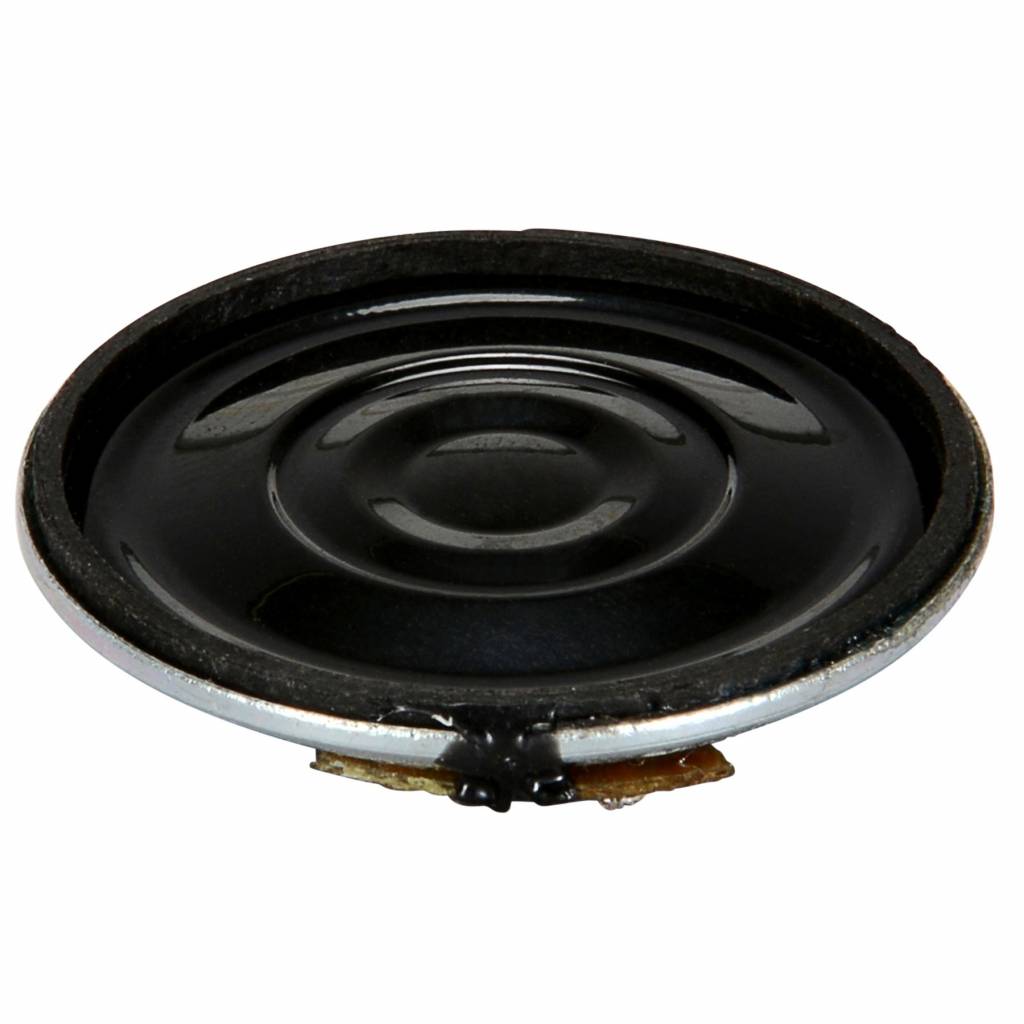

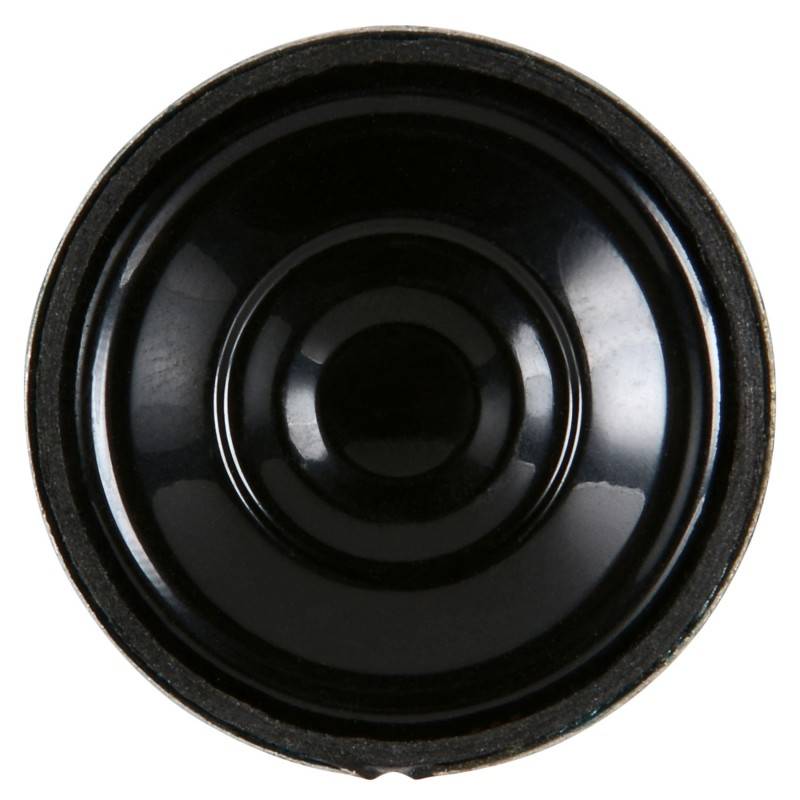

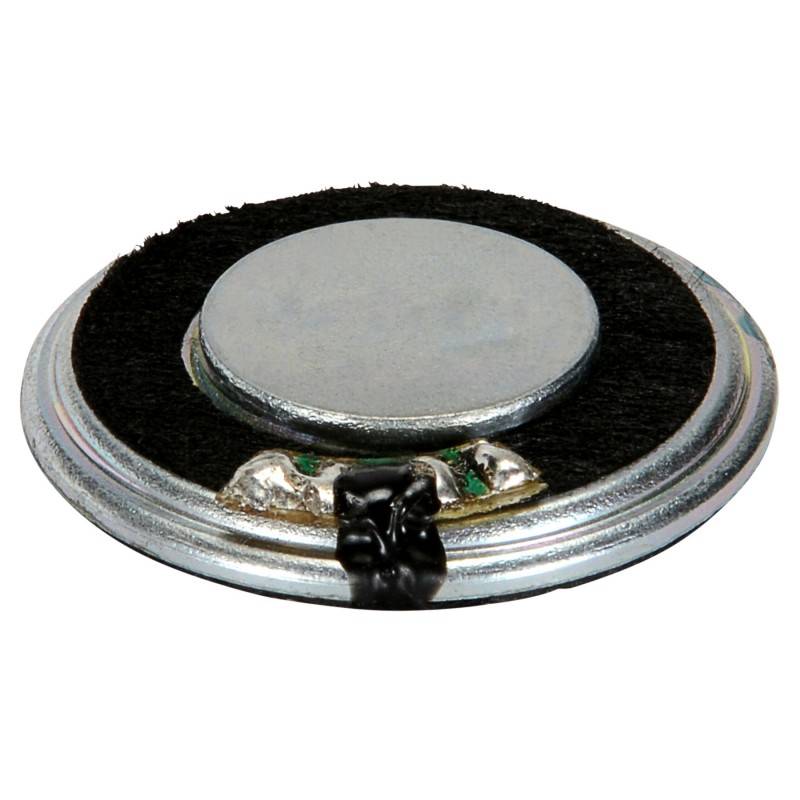

Dayton Audio CE30MB-16A 1-1/4" Mini Speaker

In stock

  • Article code: CE30MB-16A
  • Stock: 8 In stock

Dayton Audio’s CE30MB-16A is a low power, high-efficiency buzzer-style mini speaker with a lightweight yet rugged Mylar diaphragm. Excellent for applications where high output is required with minimum drive voltage.

€ 2,95 Incl. 21% VAT

  • Buy 4 for €2,80 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio CE30MB-16A 1-1/4" Mini Speaker

Dayton Audio’s CE30MB-16A is a low power, high-efficiency buzzer-style mini speaker with a lightweight yet rugged Mylar diaphragm. Excellent for applications where high output is required with minimum drive voltage.



Highlights

  • High efficiency buzzer-style design
  • Lightweight mylar diaphragm
  • Rugged steel frame with front gasket
  • Powerful neodymium magnet
  • 16 ohm impedance



Product details

The Commercial Engineering (CE) series of speaker drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

The Dayton Audio CE30MB-16A is a compact, high-efficiency “buzzer-style” mini speaker with a lightweight Mylar diaphragm designed for high output. When minimal drive voltage is available, select this driver for rugged, reliable audio. It’s the perfect choice for instrument panels, security control panels, electronic toys, and portable electronics.



Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

Specifications

Specifications for: CE30MB-16A 1-1/4" Mini Speaker

  • Woofer Series Specific woofer production line of the manufacturer. CE series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Micro speaker
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 1-1/4"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 0.5 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 1.0 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 16 ohms
  • Sensitivity 77.1 dB 1W/1m
  • Frequency Response 830 to 5,000 Hz
  • Voice Coil Diameter 0.50"
  • Magnet Weight
  • DC Resistance (Re) 14.4 ohms
  • Voice Coil Inductance (Le) 1.35 mH
  • Resonant Frequency (Fs) 831 Hz
  • Mechanical Q (Qms) 2.42
  • Electromagnetic Q (Qes) 8.71
  • Total Q (Qts) 1.89
  • Diaphragm Mass Inc. Airload (Mms) 0.05g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.70 mm/N
  • Surface Area of Cone (Sd) 4.5 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 0.68 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.1 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Poly / Mylar Diaphragm
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.18"
  • Overall Depth 0.19"
  • Baffle Cutout Diameter 1.07"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
