      CP-16 Compression Tweeter

      Beyma CP-16 Compression Tweeter

      €42,95

      2 In stock

      Beyma CP-16 Compression Tweeter

      0 reviews
      0 from 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 star
      0%
      View all reviews
      Brand: Beyma
      € 42,95 2 In stock
      • -5% Purchase 4 for only € 40,80 per piece
      • We ship to United States of America
      • Ordered now, shipped on Monday
      • At least two years warranty
      • 45-day cooling-off period to return
      • Customer rating:
      Request quotation

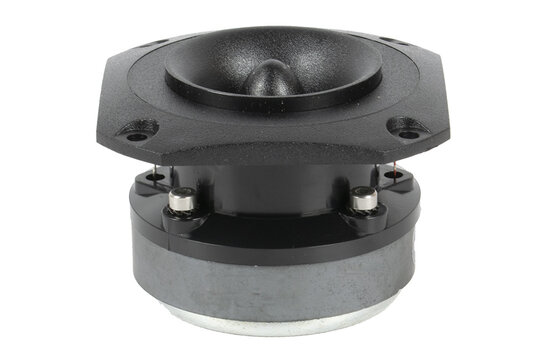

      Product description Beyma CP-16 Compression Tweeter

      The Beyma CP-16 is a professional compression tweeter designed for outdoor and sound reinforcement applications. With high sensitivity and a controlled narrow dispersion, it delivers powerful and focused high-frequency output for multi-element speaker systems.



      Highlights of the Beyma CP-16

      • 1” (25.4 mm) aluminum voice coil with 105 dB sensitivity
      • Extended frequency response from 3 kHz to 20 kHz
      • 40º conical directivity for long-throw precision
      • Durable aluminum diaphragm, ideal for outdoor use



      Product details Beyma CP-16

      Beyma CP-16 Compression Tweeter



      The Beyma CP-16 is a high-efficiency compression tweeter optimized for clarity and projection in high-frequency ranges. Designed for use in multi-element loudspeaker systems, the CP-16 features a 1” (25.4 mm) aluminum voice coil paired with an aluminum diaphragm, producing a high sensitivity of 105 dB (1W/1m). Its frequency range spans from 3 kHz to 20 kHz, with power handling rated at 15 W AES and 30 W program power. The tweeter’s focused 40º conical dispersion ensures accurate long-distance coverage, making it ideal for outdoor sound systems and installations requiring high directivity. The CP-16 is lightweight at 0.75 kg, with an overall size of 86 x 86 mm and a depth of 65 mm, allowing for easy integration into compact speaker enclosures. A crossover at 6 kHz or higher (12 dB/octave minimum) is recommended. With a flux density of 1.45 T and a Bl factor of 4 N/A, this tweeter delivers dynamic and distortion-free high-frequency performance in demanding audio environments.

      Specifications

      Article number
      CP-16
      EAN
      8435469045606
      Tweeter Type
      Compression tweeter
      Power Handling (RMS)
      30 Watts
      Impedance (Z)
      8 Ω
      Sensitivity (SPL at 1m / 2.83V)
      105 dB
      Frequency Response
      3.000-20.000 Hz
