        6CMV2 Bass-midwoofer

        Beyma 6CMV2 Bass-midwoofer

        €47,95

        Out of stock

        Add to cart

        Beyma 6CMV2 Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        6" | 8 Ω
        6CMV2 Bass-midwoofer
        6CMV2 Bass-midwoofer
        6CMV2 Bass-midwoofer
        6CMV2 Bass-midwoofer
        € 39,63€ 47,95 Out of stock
        • -5% Purchase 4 for only € 45,55 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        6CMV2 Bass-midwoofer
        6CMV2 Bass-midwoofer
        6CMV2 Bass-midwoofer
        6CMV2 Bass-midwoofer

        Pros and cons

        According to our specialists
        • Designed for bass and midbass applications in compact vented cabinets

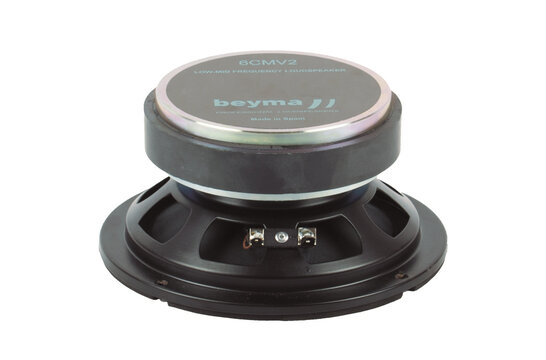

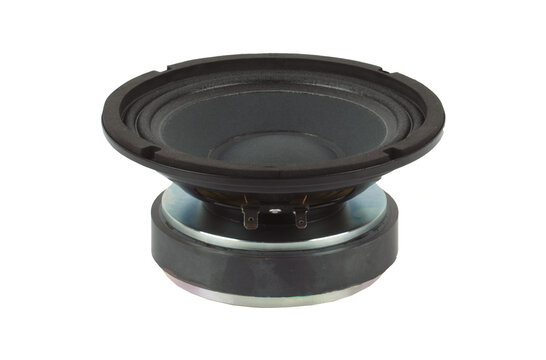

        Product description Beyma 6CMV2 Bass-midwoofer

        High-performance 6.5-inch low and mid-frequency driver built for compact vented cabinet designs, offering clean, linear response with strong power handling and low distortion.



        Highlights of the Beyma 6CMV2

        • 220 W AES / 440 W program power handling with 94 dB sensitivity
        • Wide frequency response from 95 to 8,000 Hz
        • Pressed steel frame with ferrite magnet for durability and stability
        • 1.5” copper wire voice coil and double roll cloth surround for clean midbass performance



        Product details Beyma 6CMV2

        Beyma 6CMV2 Low & Mid Frequency Transducer



        The Beyma 6CMV2 is a 6.5” low and mid-frequency transducer engineered for precision and efficiency in compact vented enclosures. With an AES-rated power handling of 220 W and a program power rating of 440 W, it provides strong output with minimal distortion. The driver’s 94 dB sensitivity ensures high efficiency in a variety of professional audio setups. Designed for bass and midbass reproduction, the 6CMV2 utilizes a 1.5” copper wire voice coil and a ferrite magnet motor structure, delivering accurate, controlled response from 95 Hz to 8,000 Hz. The pressed steel frame adds mechanical stability, while the double roll cloth surround helps maintain linear cone motion even under high excursion. With a maximum linear excursion (Xmax) of 5.7 mm and a total peak-to-peak displacement of 30 mm, the 6CMV2 supports substantial dynamic headroom. Its low moving mass (0.013 kg) and moderate inductance (0.5 mH) further improve transient response and clarity, making it a well-rounded solution for compact PA systems, stage monitors, and versatile multi-way speakers.

        Show more

        Specifications

        Article number
        6CMV2
        EAN
        8435469050914
        Woofer Type
        Low & Mid Frequency Transducer
        Nominal Diameter
        6.5"
        Power Handling (RMS)
        400 Watts
        Continuous Program Power
        440 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Frequency Response
        95-8.000 Hz
        Voice Coil Diameter
        1.5"
        DC Resistance (Re)
        5.3 Ω
        Voice Coil Inductance (Le)
        0.5 mH
        Resonant Frequency (Fs)
        90 Hz
        Mechanical Q (Qms)
        1.4
        Electromagnetic Q (Qes)
        0.45
        Total Q (Qts)
        0.34
        Diaphragm Mass Inc. Airload (Mms)
        0,013 kg
        Mechanical Compliance of Suspension (Cms)
        235 µm / N
        Surface Area of Cone (Sd)
        0,014 m²
        Volume of Displacement (Vd)
        80 cm³
        BL Product (BL)
        9,4 N/A
        Compliance Equivalent Volume (Vas)
        6.5 Liters
        Maximum Linear Excursion (Xmax)
        +/- 5.7 mm
        Driver's Mechanical Losses (Rms)
        5,5 kg / s
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        167 mm
        Overall Depth
        80 mm
        Baffle Cutout Diameter
        141 mm
        Bolt Circle Diameter
        156 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        5.4 mm

        Show more
