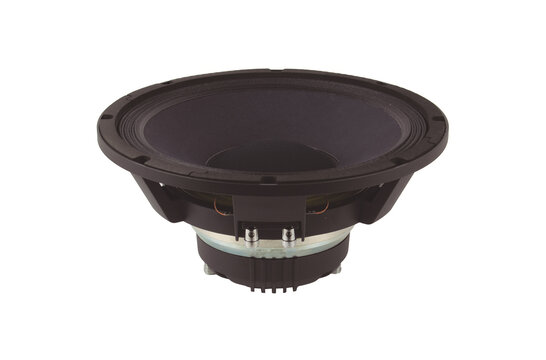

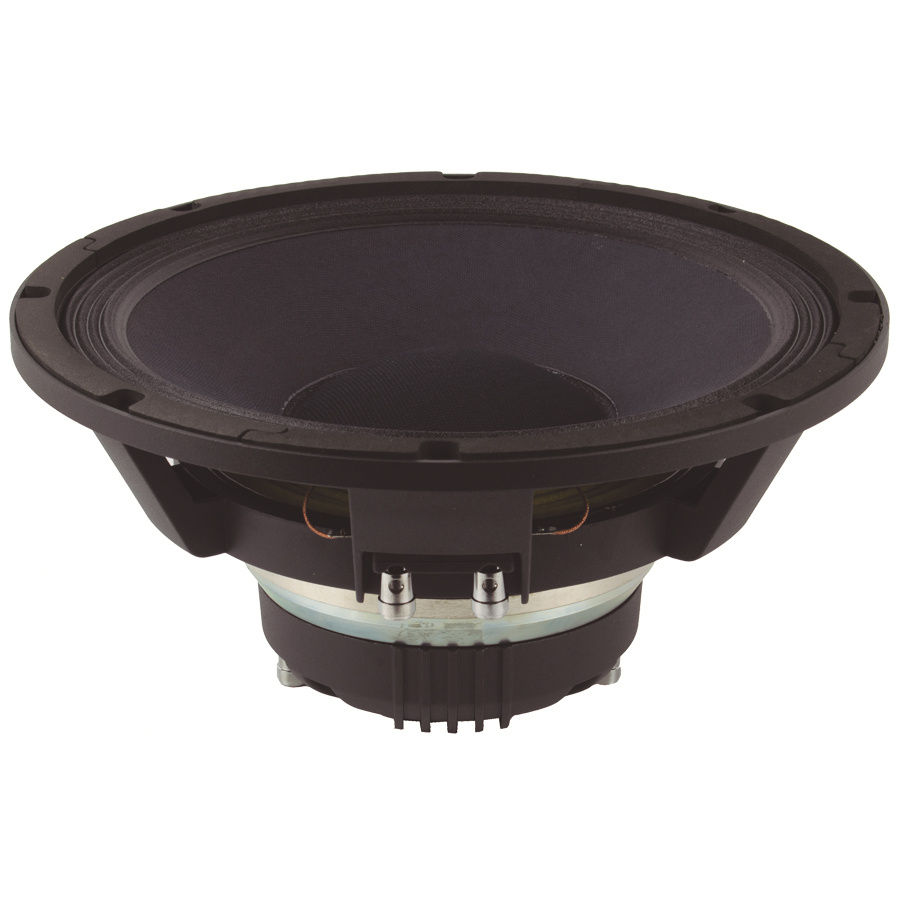

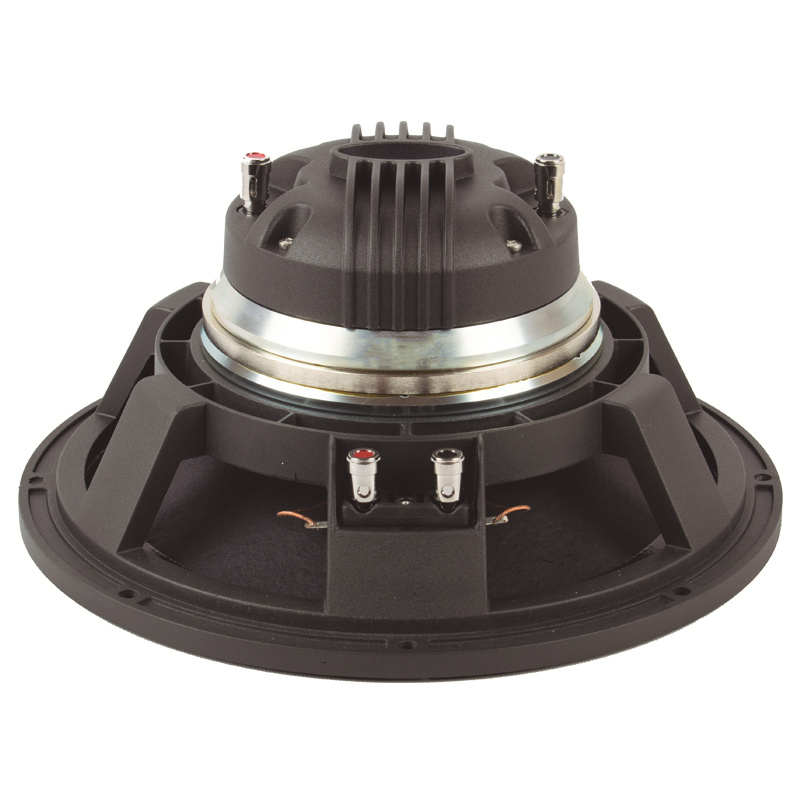

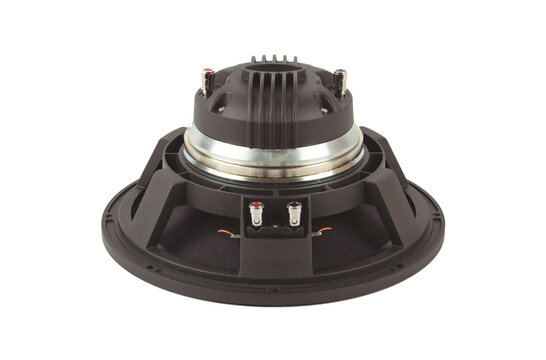

Beyma 12XA30Nd Coaxial Woofer

€559,95

2 In stock

Add to cart

Beyma 12XA30Nd Coaxial Woofer

Name: Beyma 12XA30Nd Coaxial Woofer
Brand: Beyma
SKU: 12XA30Nd
Price: 559.95 EUR
Availability: InStock

0 reviews

Brand: Beyma

Show all New products

12" | 8 Ω

€ 559,⁹⁵ 2 In stock

We ship to United States of America
Ordered now, shipped today
At least two years warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description Beyma 12XA30Nd Coaxial Woofer

High-efficiency 12-inch coaxial transducer with integrated compression driver, designed for compact full-range systems requiring detailed performance and extended bandwidth.

Highlights of the Beyma 12XA30Nd

700 W / 180 W program power handling (LF / HF) with 98 / 105 dB sensitivity
Shared neodymium magnet system for reduced weight and compact design
4” aluminum voice coil (LF) and 2.85” aluminum voice coil (HF)
Flat and extended response from 40 Hz to 20,000 Hz with demodulating rings

Product details Beyma 12XA30Nd

Beyma 12XA30Nd Coaxial Transducer

The Beyma 12XA30Nd is a high-performance 12” coaxial transducer combining a bass loudspeaker and a compression driver into a single compact unit. Designed for space-efficient bass-reflex enclosures, this model delivers 350 W AES power for the LF and 90 W AES for the HF, with program power ratings of 700 W and 180 W respectively. Its outstanding efficiency—98 dB for the woofer and 105 dB for the HF driver—ensures high output with minimal power input. The coaxial design features a 4” aluminum voice coil for the LF unit and a 2.85” aluminum voice coil compression driver with a composite Titanium/Polyester diaphragm. Both drivers are powered by a common neodymium magnet system to reduce total weight and improve phase coherence. With an extended frequency response from 40 Hz to 20 kHz and recommended crossover above 1.8 kHz (12 dB/oct), the 12XA30Nd is well-suited for stage monitors, portable PA cabinets, and high-definition installation systems. Demodulating rings in both LF and HF motors reduce distortion, while the compact form factor (152 mm depth) and net weight of 6.3 kg ensure easy integration and transportability. This transducer provides a high-performance solution where full-range, high-fidelity audio reproduction is required in minimal space.
