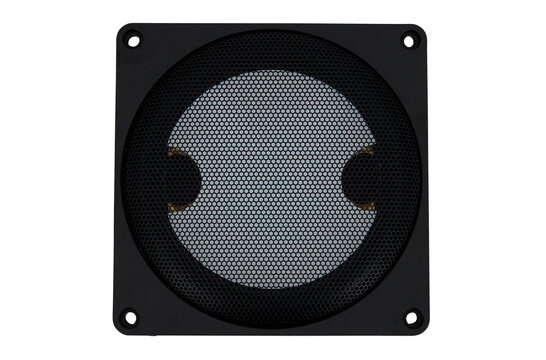

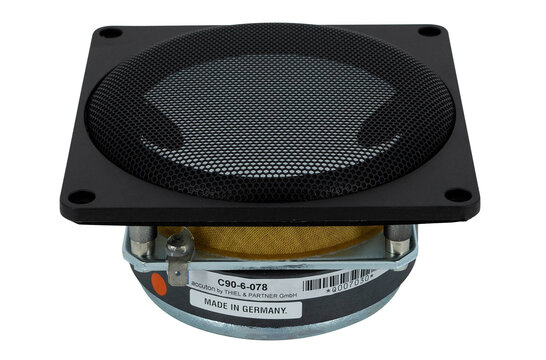

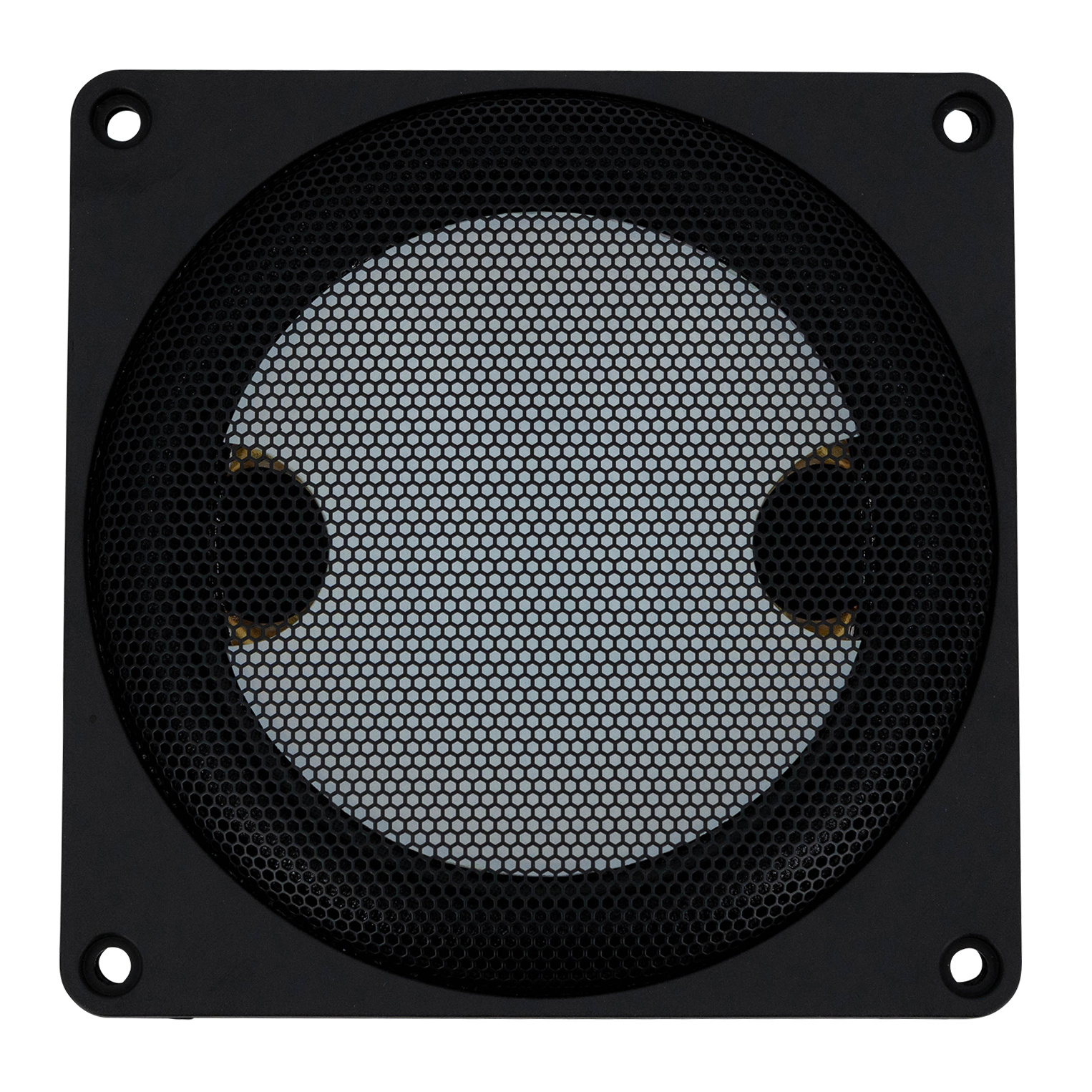

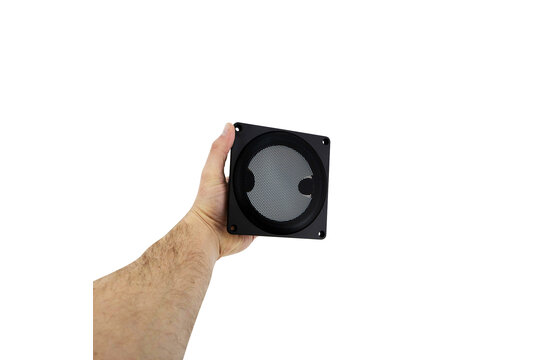

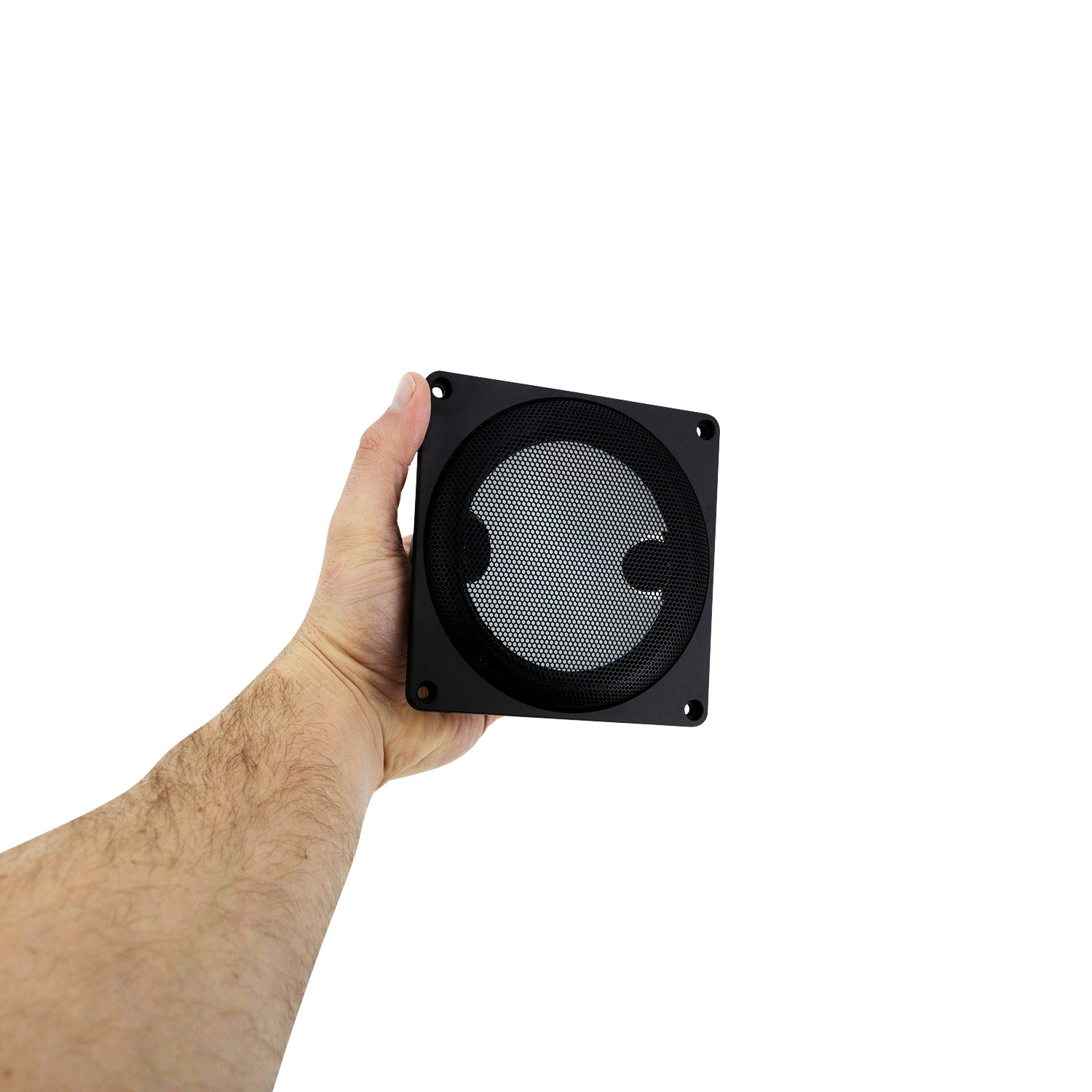

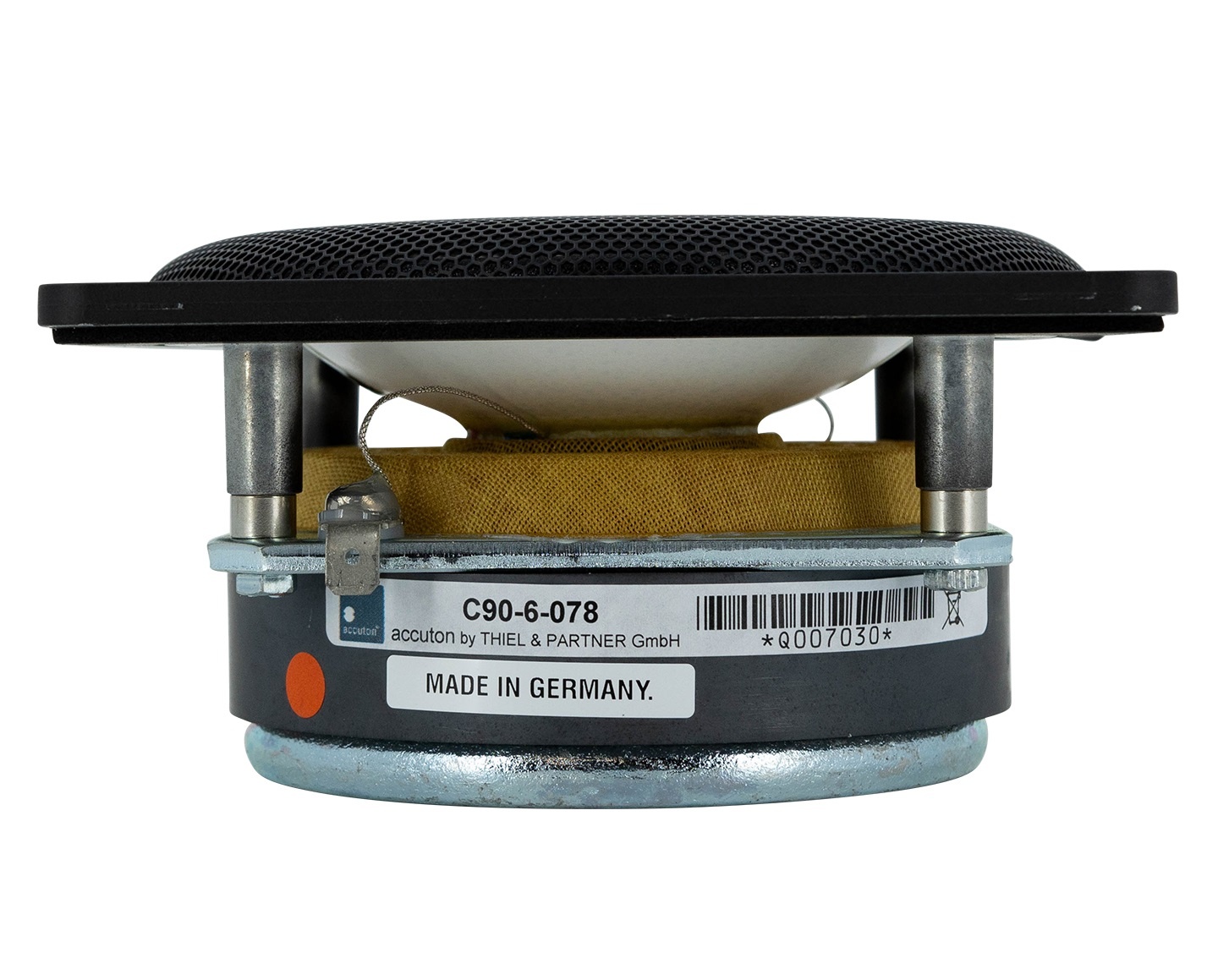

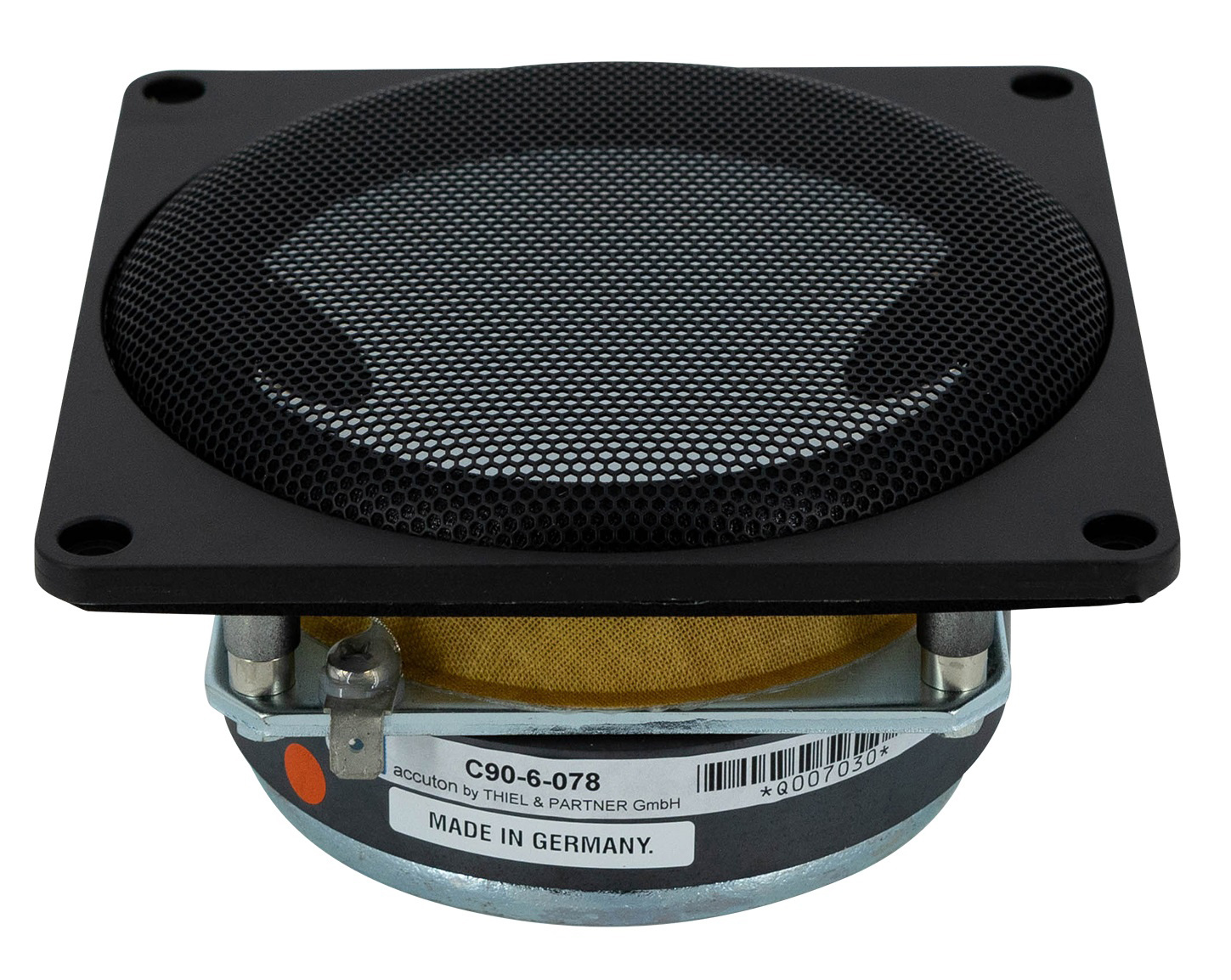

        C90-6-078 Mid-range Woofer

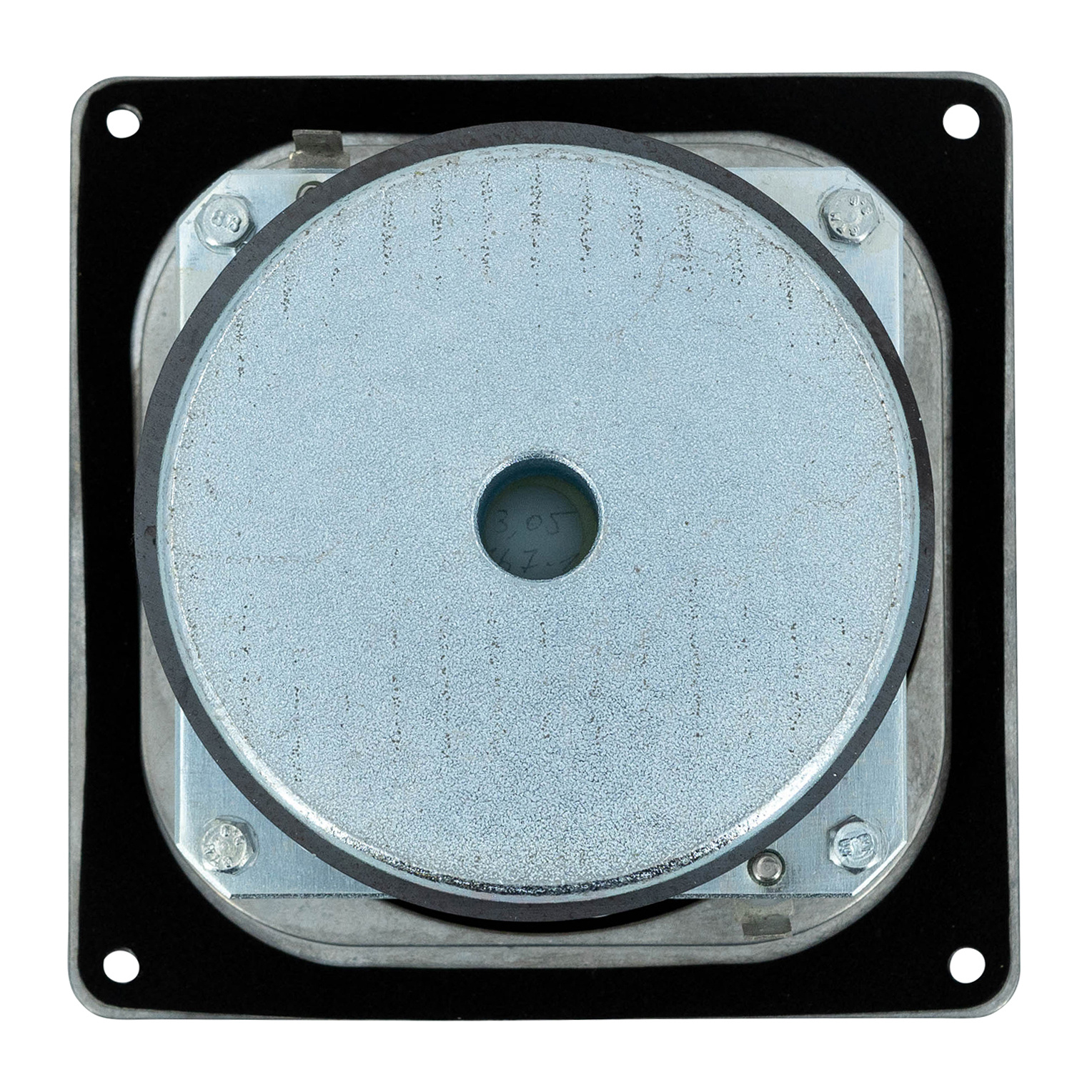

        Accuton C90-6-078 Mid-range Woofer

        €799,95

        1 In stock

        Add to cart

        Accuton C90-6-078 Mid-range Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Accuton
        Show all Mid-range woofer
        5" | 6 Ω
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        € 661,12€ 799,95 1 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer
        C90-6-078 Mid-range Woofer

        Product description Accuton C90-6-078 Mid-range Woofer

        The Accuton C90-6-078 is a high-performance 5-inch ceramic midrange driver designed for demanding audiophile applications. Engineered with precision and utilizing advanced materials, it delivers transparent, low-distortion performance ideal for high-end home audio systems.



        Highlights of the Accuton C90-6-078

        • Ultra-hard ceramic dome with anti-resonant cutout fills for damping 8 kHz resonance
        • FEA-optimized overhung motor with 38 mm aluminium voice coil former
        • Low-loss fabric surround and thin spider for high linearity
        • Vented pole piece and spider for improved thermal and mechanical performance



        Product details Accuton C90-6-078

        Accuton C90-6-078 Midrange Driver



        The Accuton C90-6-078 is a 130 mm (5-inch) midrange loudspeaker unit featuring a highly rigid ceramic dome, optimized to minimize resonances through specialized cutout fills. These design elements effectively dampen the dome’s 8 kHz resonance, contributing to a clean and uncolored midrange response. Built around a FEA-optimized overhung motor structure, the driver utilizes a 38 mm aluminium voice coil former and a copper voice coil for low energy storage and efficient heat transfer. Its sensitivity of 88 dB and a linear excursion of ±3 mm make it suitable for integration in high-fidelity systems. The C90-6-078 covers a frequency range from 200 Hz to 5,000 Hz, ideal for 3-way or active multi-driver configurations in audiophile-grade loudspeaker designs. The soft fabric surround and thin spider provide excellent centering with minimal mechanical resistance, ensuring high linearity throughout the operating range. The vented pole piece and spider further support thermal stability and mechanical ventilation during extended use. With a nominal impedance of 6.4 Ohms and robust 120W power handling, this driver stands out as a premium midrange solution for home stereo or studio monitor applications.

        Show more

        Specifications

        Article number
        C90-6-078
        EAN
        9501255562233
        Woofer Type
        Mid-range Woofer
        Nominal Diameter
        5"
        Power Handling (RMS)
        120 Watts
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        200-5.000 Hz
        Voice Coil Diameter
        38 mm
        DC Resistance (Re)
        6.4 Ω
        Voice Coil Inductance (Le)
        0.18 mH
        Resonant Frequency (Fs)
        100
        Mechanical Q (Qms)
        2.4
        Electromagnetic Q (Qes)
        1.52
        Total Q (Qts)
        0.92
        Diaphragm Mass Inc. Airload (Mms)
        6.96
        Mechanical Compliance of Suspension (Cms)
        0.36
        Surface Area of Cone (Sd)
        86 cm²
        BL Product (BL)
        4.3 Tm
        Compliance Equivalent Volume (Vas)
        3.9 Liters
        Driver's Mechanical Losses (Rms)
        1.86
        Voice Coil Former
        Aluminium
        Overall Outside Diameter
        130 mm
        Overall Depth
        64.5 mm
        Baffle Cutout Diameter
        102 mm
        Bolt Circle Diameter
        110 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        4.5 mm

        Show more
