Passive Reference 8" Mini Subwoofer Kit

€399,95

Add to cart

Dayton Audio Passive Reference 8" Mini Subwoofer Kit

Name: Dayton Audio Passive Reference 8" Mini Subwoofer Kit
Brand: Dayton Audio
SKU: 300-7320
Price: 399.95 EUR
Availability: InStock

0 reviews

Brand: Dayton Audio

Show all DIY subwoofer kits

8'' | passive

€ 330,54€ 399,95 5 In stock

We ship to
Ordered now, shipped today
Five-year warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

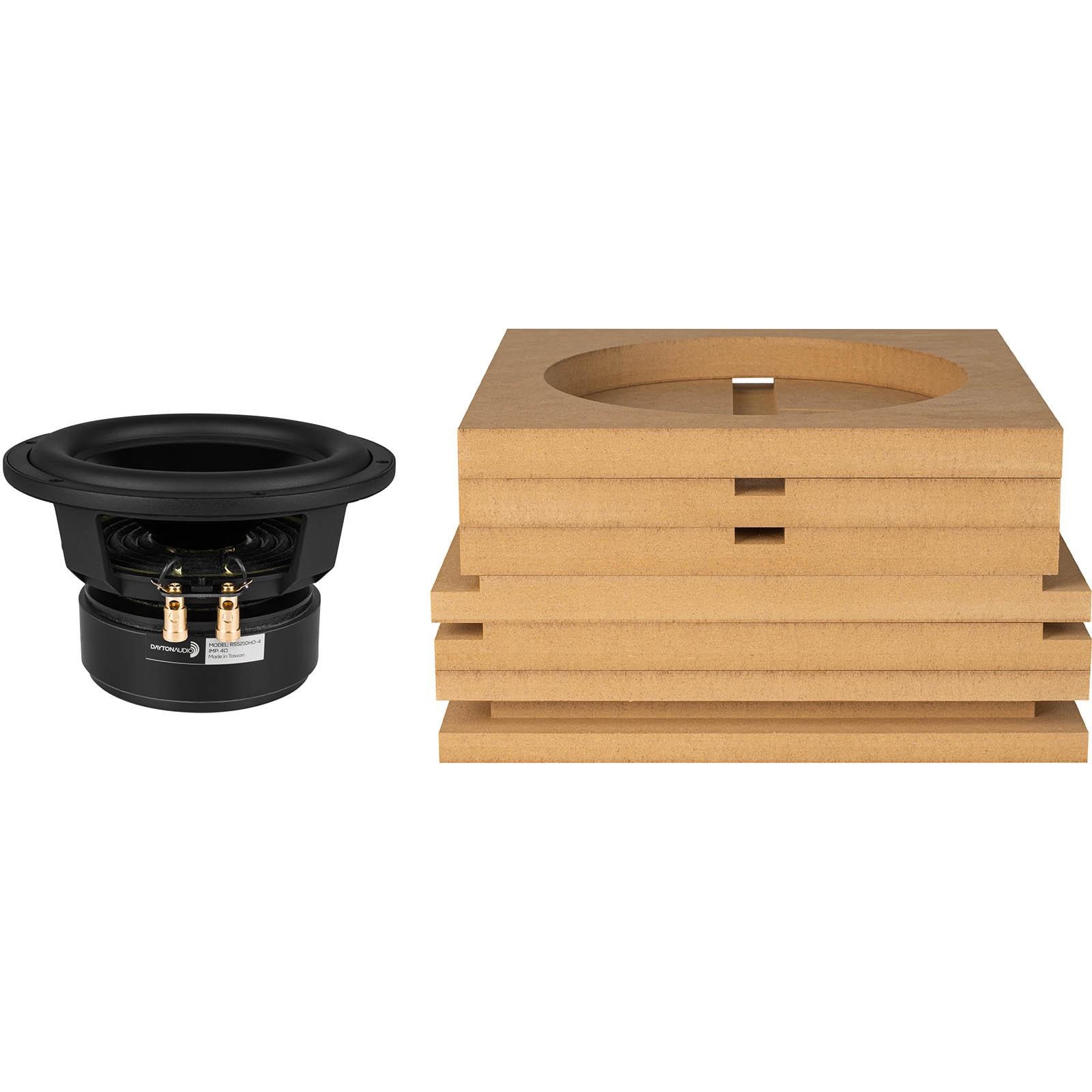

Occupying only 9,9L, this Hi-Output passive mini 20,32cm (8") subwoofer kit will deliver surprisingly powerful output making it a perfect addition to smaller stereo and home theater systems. With the impressive Dayton Audio RSS210HO-4 8" driver and precision CNC cut compact enclosure, this system can be used as a dedicated subwoofer, or used as a small separate woofer bin in a multi-way design.

Highlights

Extremely compact design will fit almost anywhere
Use multiples to help minimize room modes for more even, room-filling low end
High excursion Dayton Audio RSS210HO-4 8" driver provides powerful output capability
CNC-cut 19,05mm MDF panels for precise fit, easy assembly, and smooth finish

Product details

Hi-Output: Passive Dayton Audio Reference 8" Mini Subwoofer Kit

Housed in just a 25,4cm cube, the Hi-Output Dayton Audio RSS210HO-4 20,32cm (8") Passive Mini Subwoofer Kit is the perfect solution for providing high output bass response without taking up much space. With the high excursion Dayton Audio RSS210HO-4 8" subwoofer driver you can expect incredibly accurate response with low distortion. Thanks to the small size this subwoofer is ideal for using multiples strategically positioned around rooms to minimize room nodes (null and peaks) for more even bass distribution.

This is an all-around overachiever. It will eat power for breakfast and ask for seconds, all while sounding fantastic. This sub leaves nothing on the table. It will perform well for almost any application providing the ultimate in output capabilities in a tiny package.

Simulated performance specifications: • Maximum output: 105.2 dB • F3: 50 Hz • F10: 29 Hz

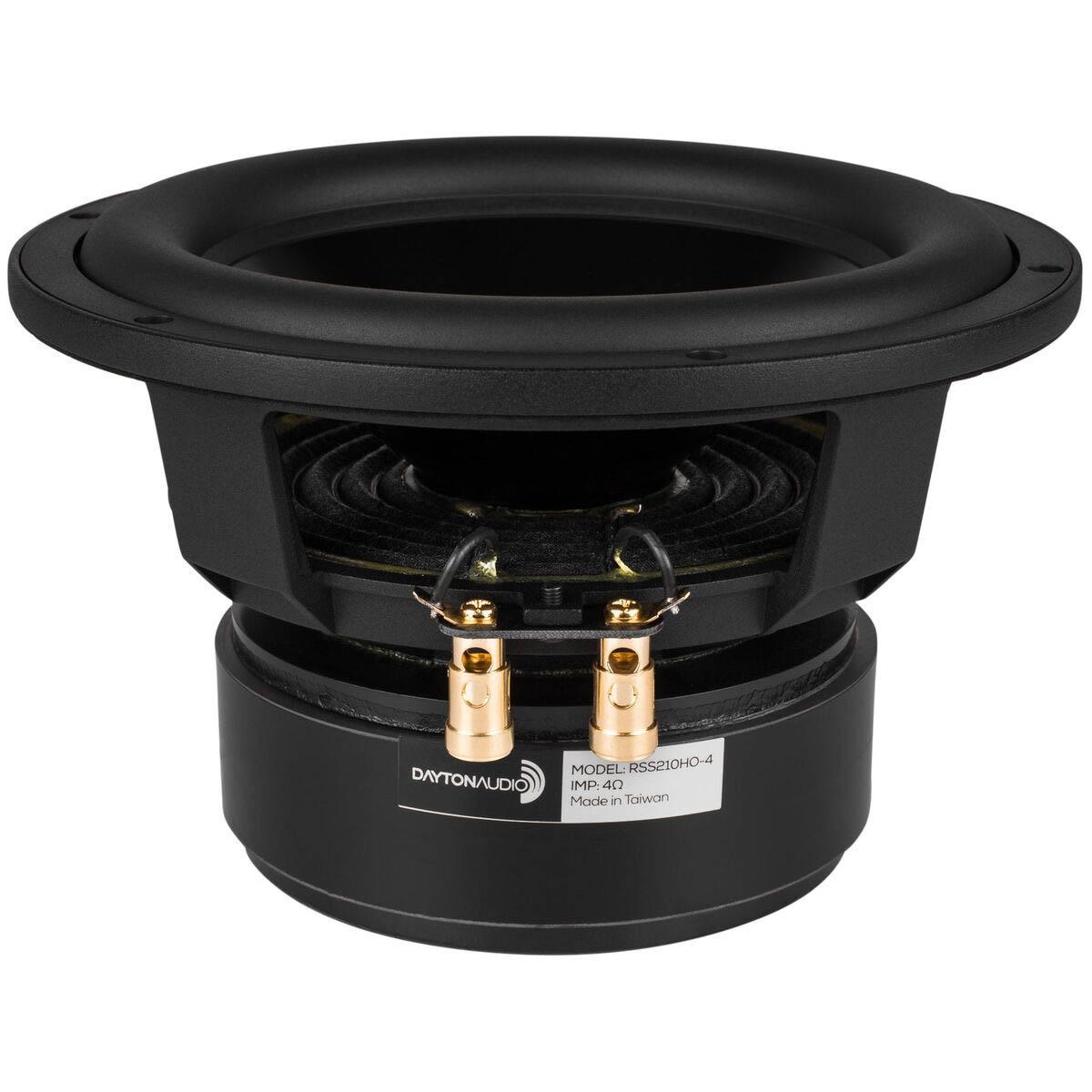

Dayton Audio RSS210HO-4 8" Subwoofer Specifications: • Power handling: 300 watts RMS/600 watts max • Le: 0.99 mH • Impedance: 4 ohms • Re: 3.6 ohms • Frequency range: 30 to 1,500 Hz • Fs: 29.6 Hz • SPL: 85.7 dB 2.83V/1m • Vas 18,7L. • Qms: 3.33 • Qes: 0.46 • Qts: 0.40 • Xmax: 11 mm.

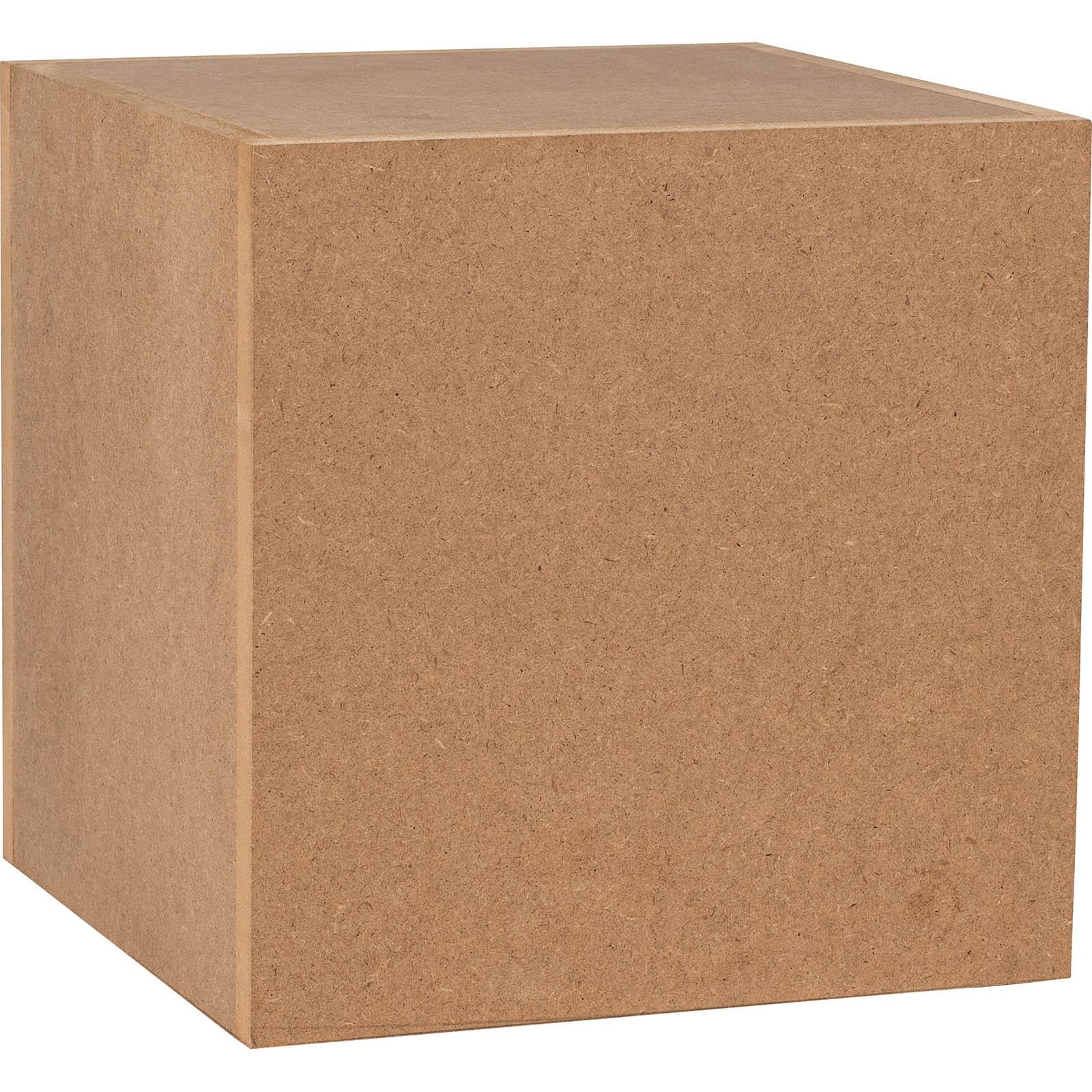

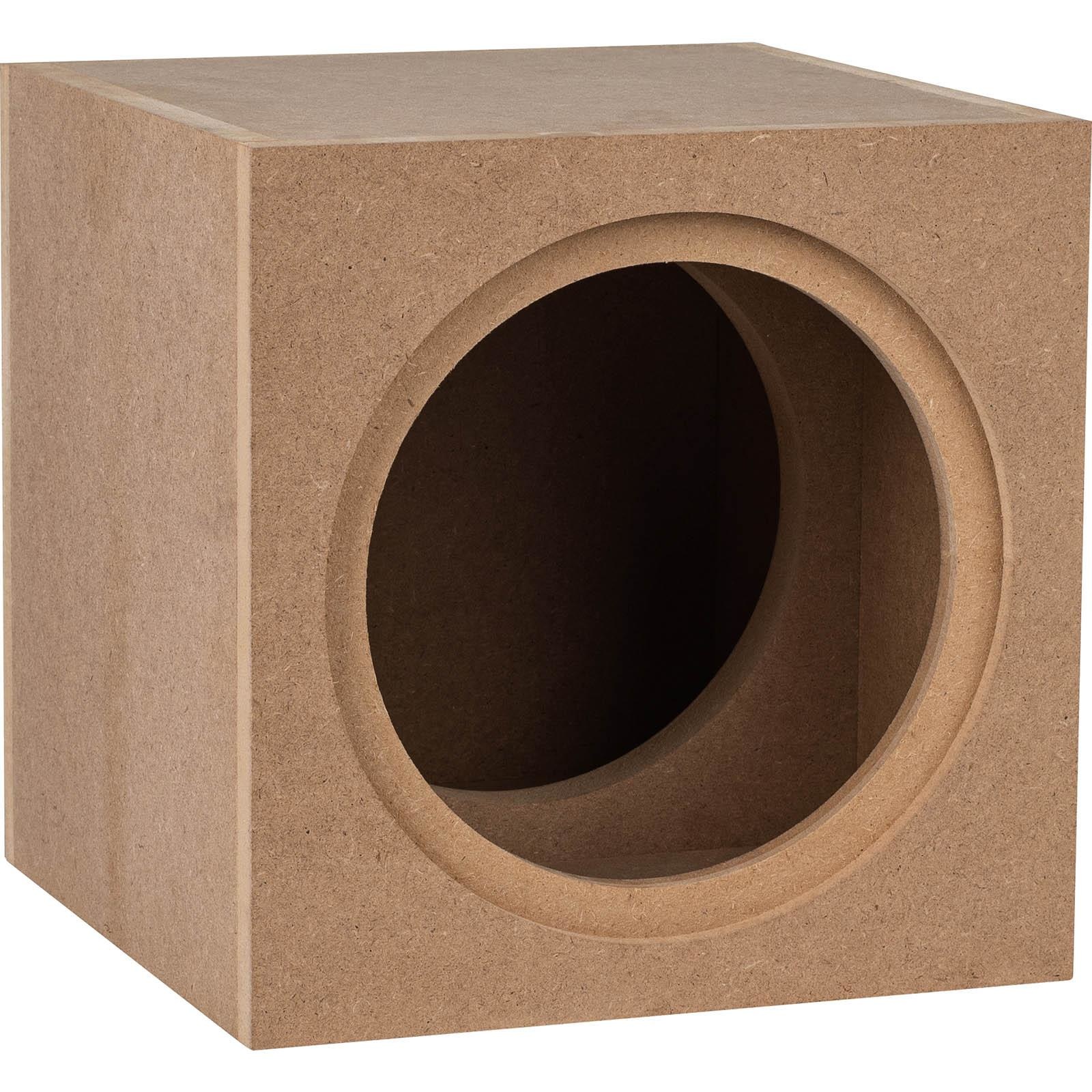

Enclosure Specifications: • Panel thickness: 19,05mm • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 9,9L • External dimensions: 25,4cm H x 25,4cm W x 25,4cm D • Weight: 10.43kg. • Made in the USA.

Note: Mounting screws, binding posts and feet are not included.
