        JDM-PIO-12-CU-0,82 | 0,82 mH | 5% | 12 AWG | JDM Wax PIO Pure Copper Foil Air-Core Inductor

        Duelund Coherent Audio JDM-PIO-12-CU-0,82 | 0,82 mH | 5% | 12 AWG | JDM Wax PIO Pure Copper Foil Air-Core Inductor

        €106,95

        2 In stock

        Add to cart

        Duelund Coherent Audio JDM-PIO-12-CU-0,82 | 0,82 mH | 5% | 12 AWG | JDM Wax PIO Pure Copper Foil Air-Core Inductor

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Duelund Coherent Audio
        New
        JDM-PIO-12-CU-0,82 | 0,82 mH | 5% | 12 AWG | JDM Wax PIO Pure Copper Foil Air-Core Inductor
        € 88,39€ 106,95 2 In stock
        € 106,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        JDM-PIO-12-CU-0,82 | 0,82 mH | 5% | 12 AWG | JDM Wax PIO Pure Copper Foil Air-Core Inductor

        Pros and cons

        According to our specialists
        • Highend material
        • Handmade Danish quality

        Product description Duelund Coherent Audio JDM-PIO-12-CU-0,82 | 0,82 mH | 5% | 12 AWG

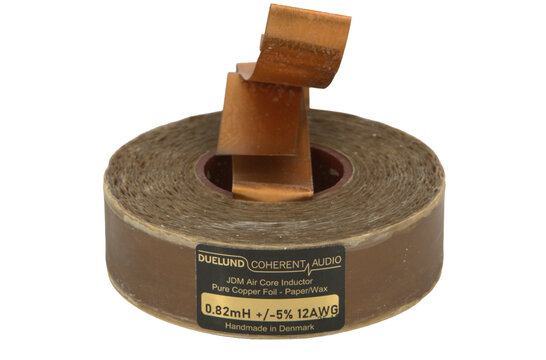

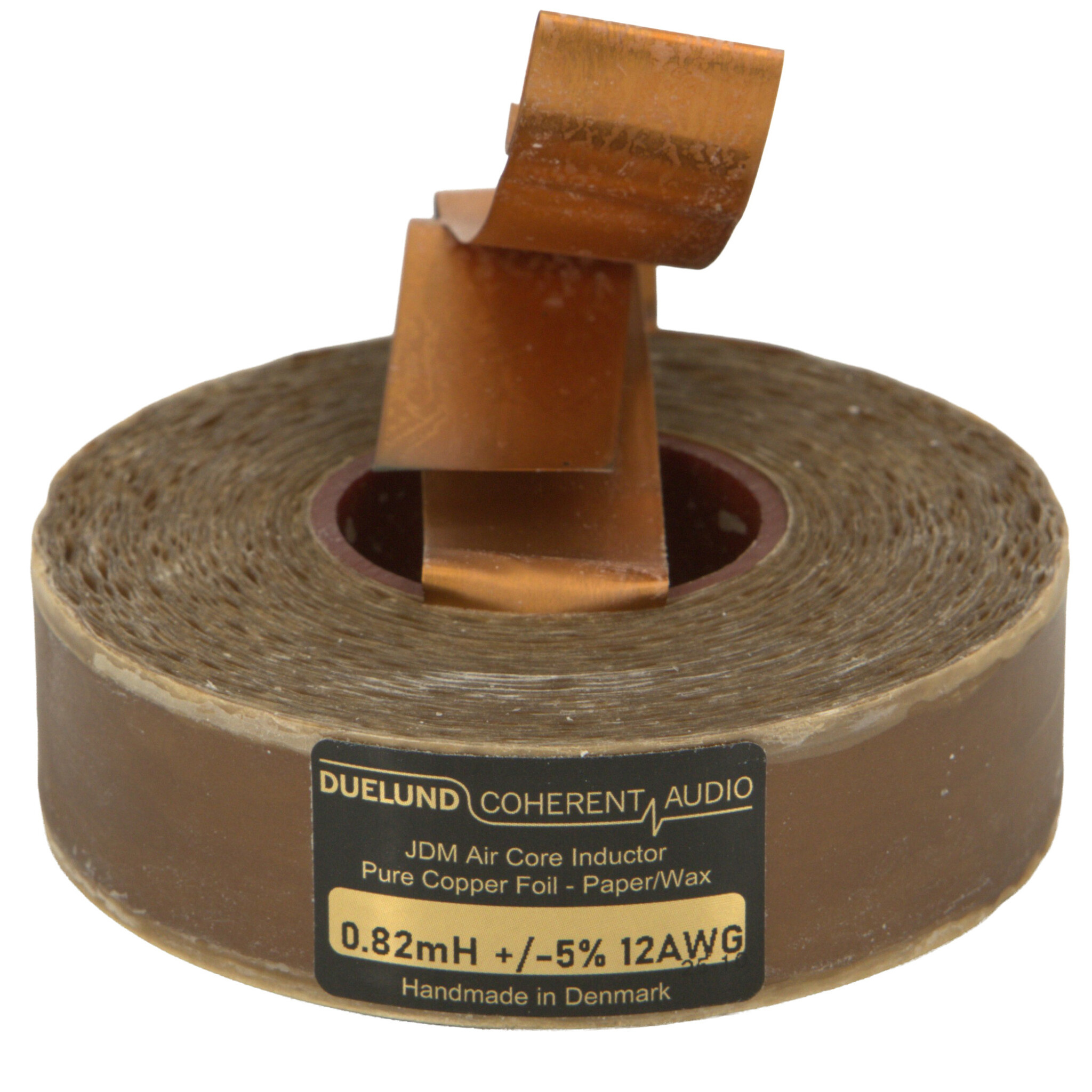

        The Duelund Coherent Audio JDM-PIO-12-CU-0,82 is a 0,82 mH JDM Wax PIO pure copper foil air-core inductor for high-quality loudspeaker crossover networks, built with annealed copper foil, paper and wax/oil insulation.


        Highlights of the JDM-PIO-12-CU-0,82

        • 0,82 mH air-core copper foil inductor with 5% tolerance
        • 12 AWG copper foil construction, 150 micrometres thick and 20 mm high
        • Waxed/oiled paper insulation with zero plastic construction
        • Fully deep vacuum impregnated with proprietary WPIO dielectricum
        • Designed for loudspeaker crossover networks, filters and audio electronics

        Product details JDM-PIO-12-CU-0,82

        Duelund Coherent Audio JDM-PIO-12-CU-0,82 0,82 mH 5% 12 AWG JDM Wax PIO Pure Copper Foil Air-Core Inductor

        The Duelund Coherent Audio JDM-PIO-12-CU-0,82 is part of the JDM Wax PIO inductor range, developed for demanding crossover components in loudspeaker designs. Its air-core construction uses annealed pure copper foil instead of conventional wire, supporting a clean, natural and dynamic response with minimal loss in audio crossover networks.


        The inductor is wound on a compressed paper former, with waxed and oiled paper used to insulate the copper foils. Duelund uses the actual integral foils as terminals, keeping the signal path direct and consistent with the zero-plastic construction. This makes it a refined choice among premium coils for DIY and high-end loudspeaker projects.


        Unlike coils that are only dipped in wax, this JDM Wax PIO inductor is fully deep vacuum impregnated under high pressure using Duelund’s proprietary WPIO dielectricum. This process takes several days and gives the component strong damping properties, high mechanical stability and reduced sensitivity to vibration.


        With its 12 AWG copper foil measuring 150 micrometres thick by 20 mm high, the JDM-PIO-12-CU-0,82 is built for reliable performance in speaker crossover networks, filters and audio electronics where low distortion, mechanical stability and long-lasting durability are important.

        Show more

        Specifications

        Article number
        JDM-PIO-12-CU-0.82
        EAN
        9508483722286
        Inductance
        0.82 mH
        Wire diameter
        12 AWG
