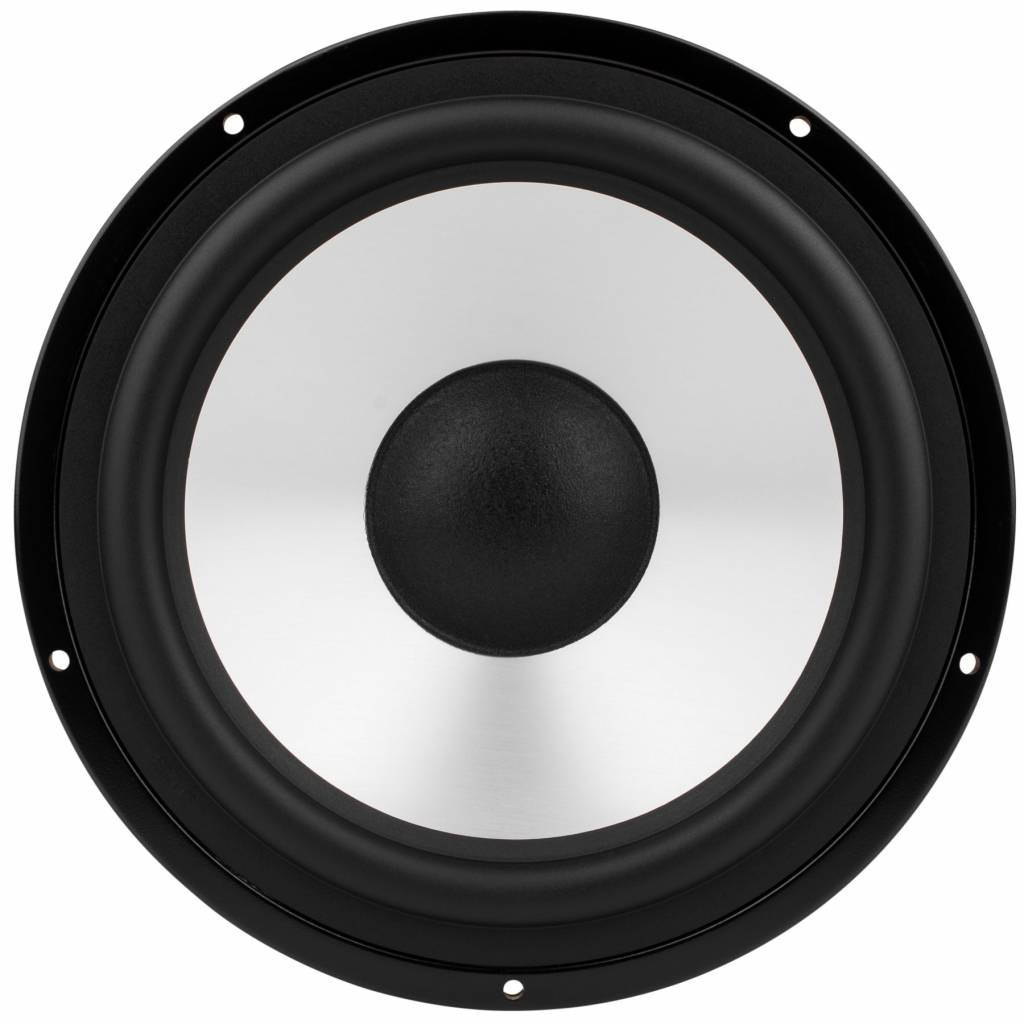

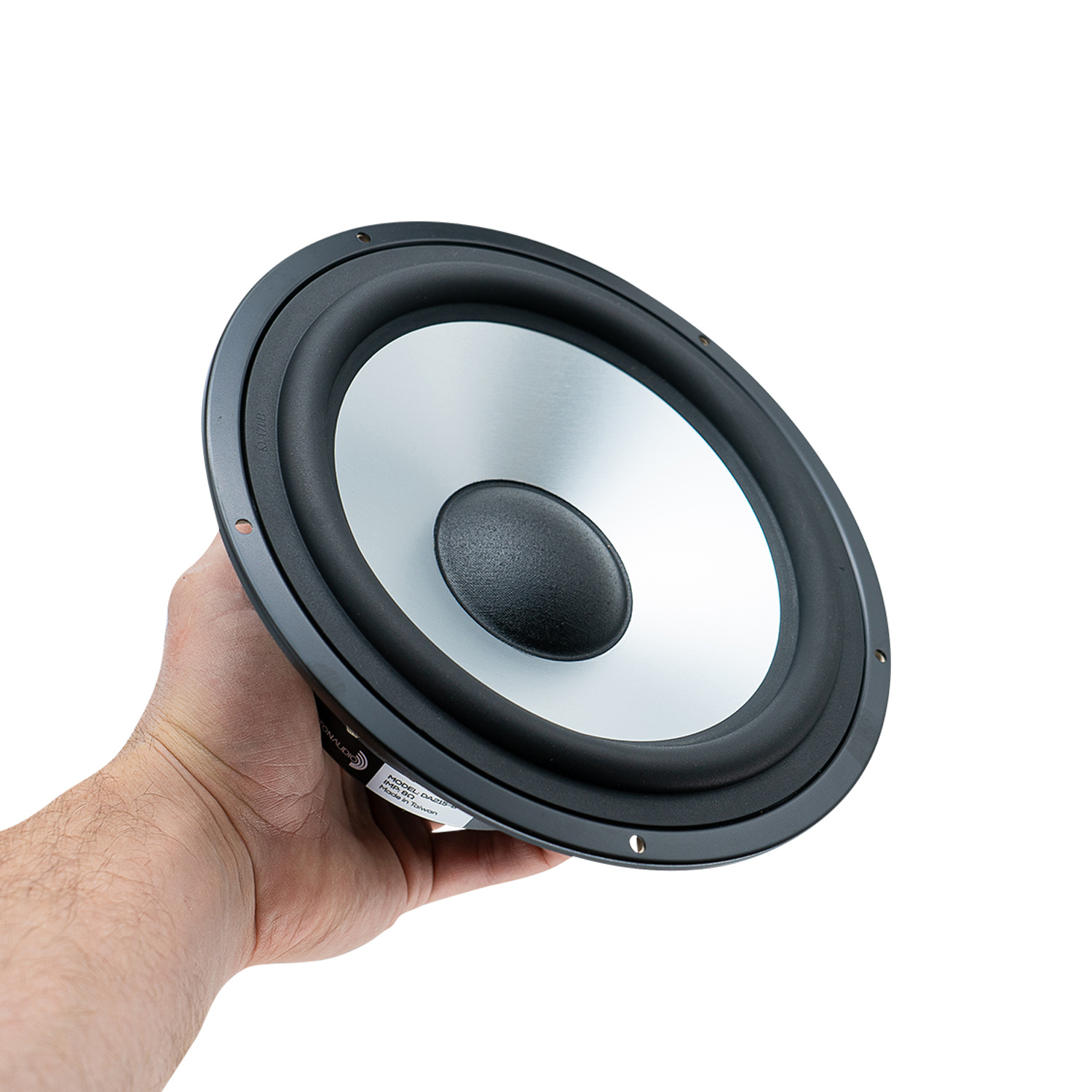

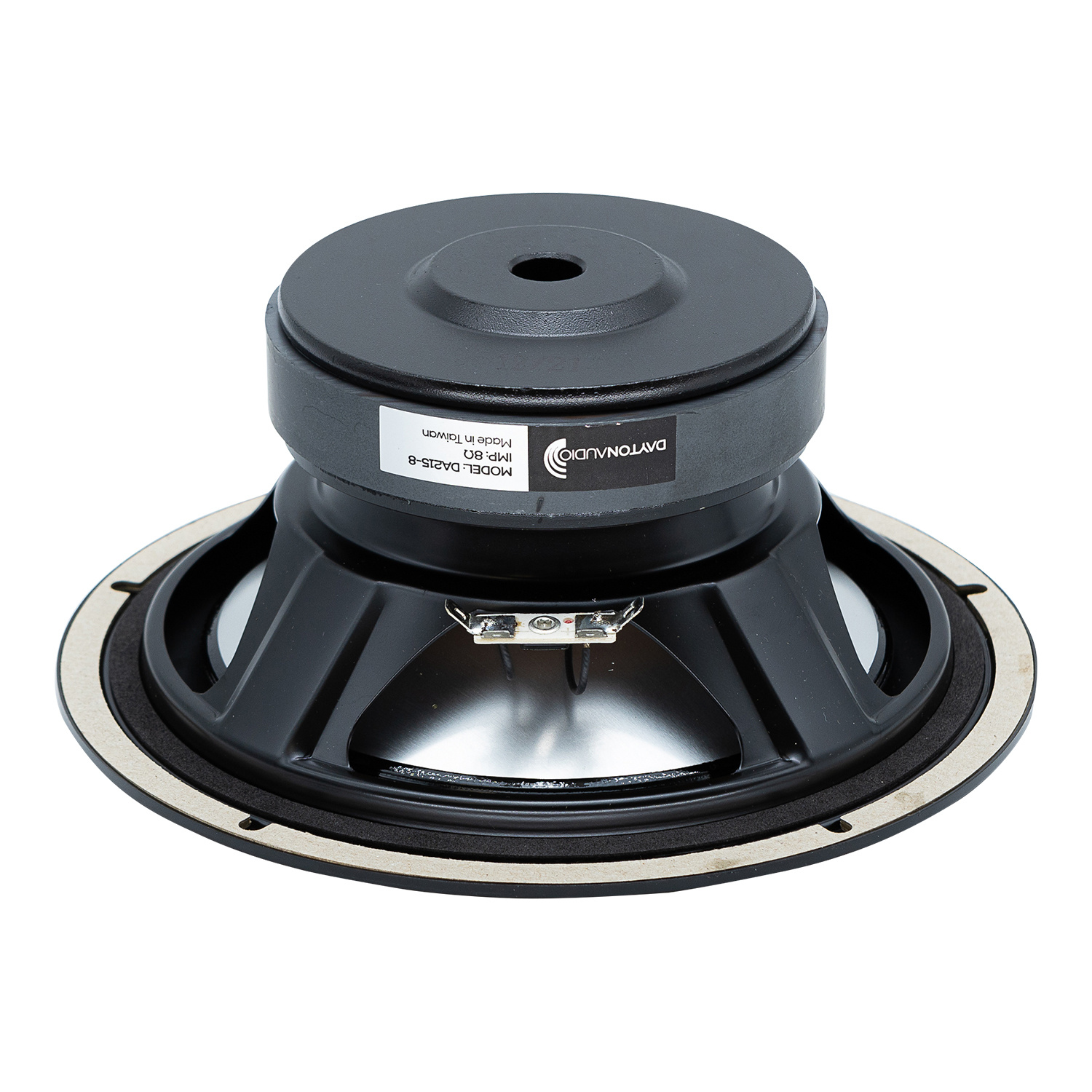

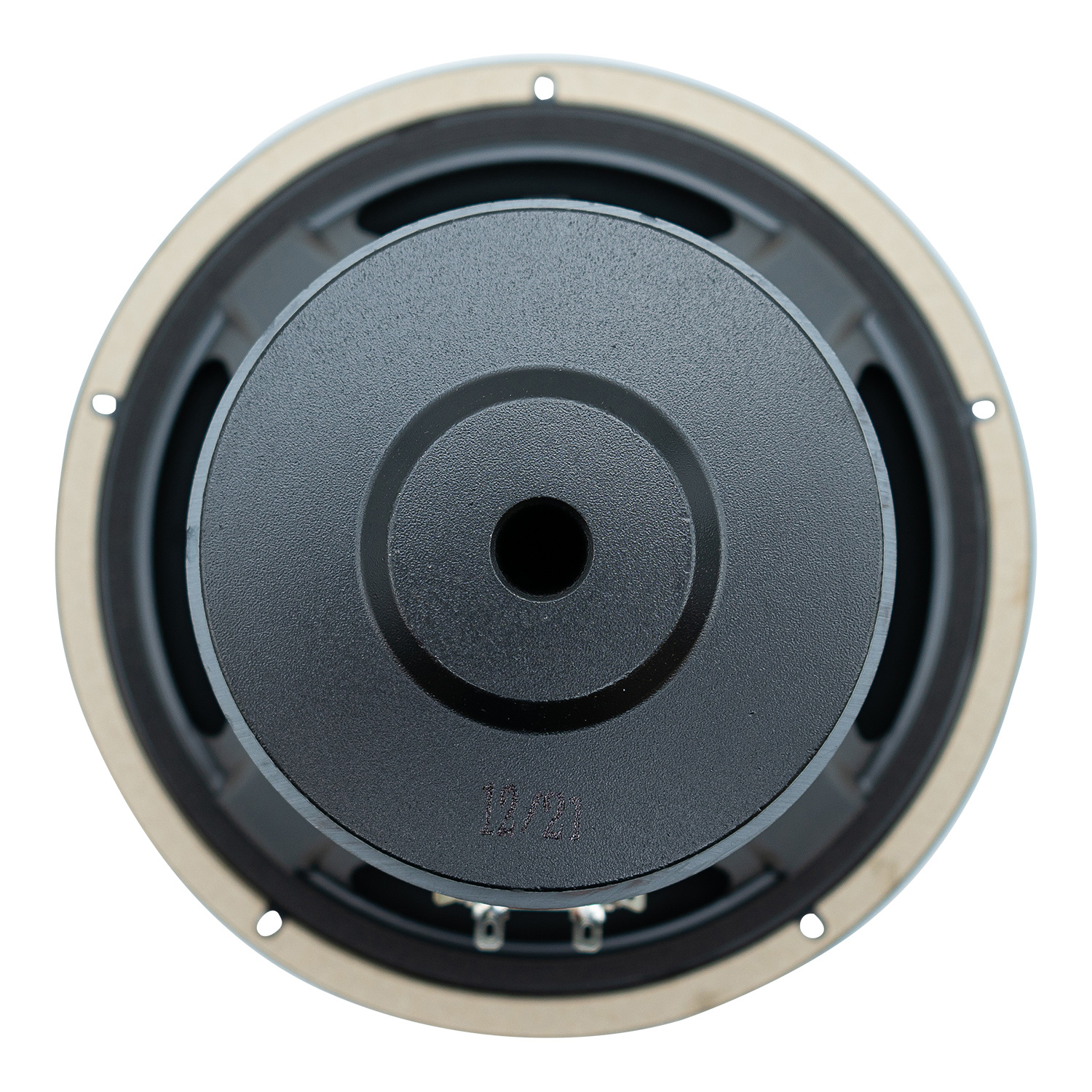

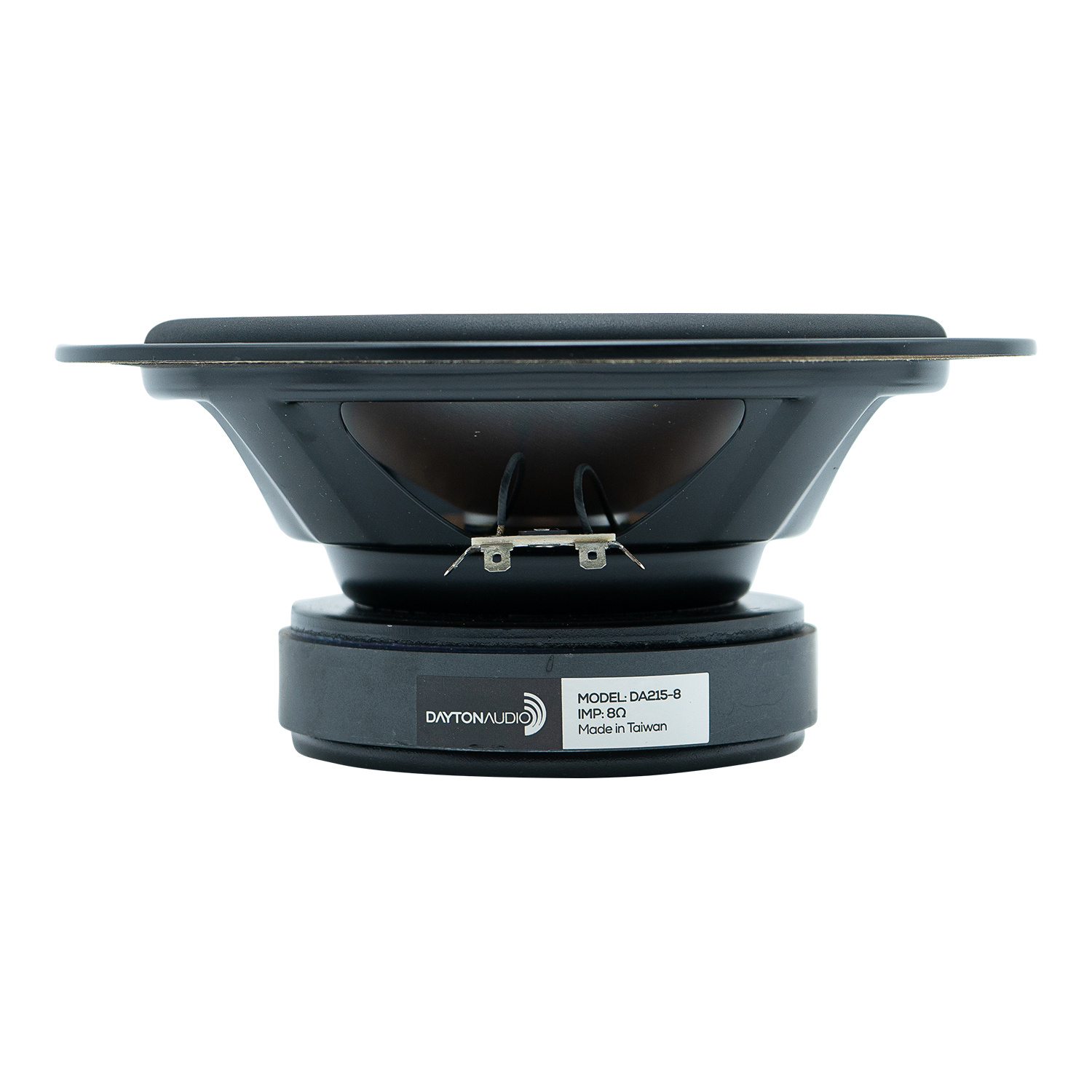

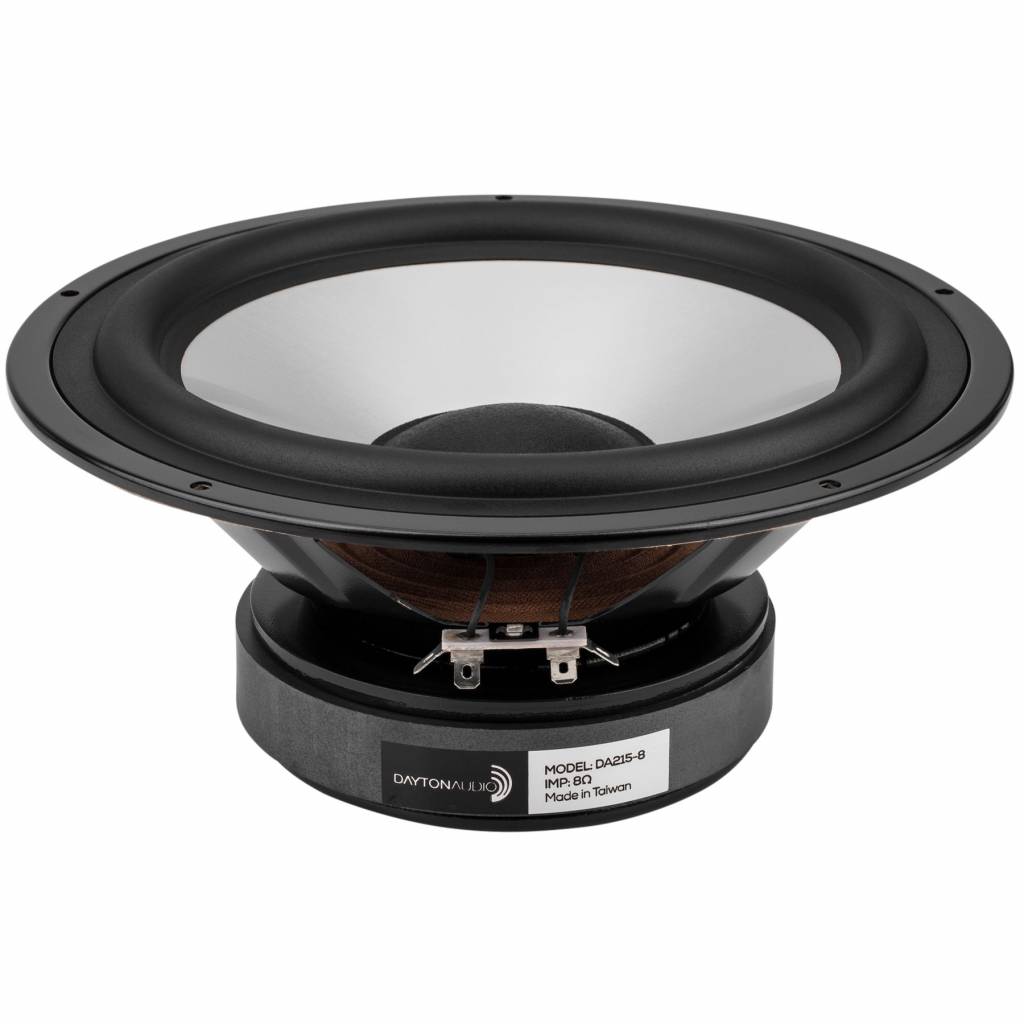

Dayton Audio DA215-8 8" Aluminum Cone Woofer

In stock

  • Article code: DA215-8
  • Stock: 6 In stock

The aluminum cone on this driver is extremely rigid yet well damped, making the bass and midbass region very clean and low in distortion.

€ 59,95 Incl. 21% VAT

  • Buy 4 for €56,95 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DA215-8 8" Aluminum Cone Woofer

The aluminum cone on this driver is extremely rigid yet well damped, making the bass and midbass region very clean and low in distortion.



Highlights

  • Great looking and sounding woofer
  • One-piece aluminum cone
  • Cosmetic stamped steel frame
  • Flat frequency response in passband region
  • Impressive output capabilities when used in MTM designs
  • Very low distortion



Product details

Dayton Audio DA215-8 8" Aluminum Cone Woofer



The aluminum cone on this driver is extremely rigid yet well damped, making the bass and midbass region very clean and low in distortion. When used with a well-designed crossover, an extremely flat frequency response can be achieved that is clean well into the midrange region.

Specifications

Specifications for: DA215-8 8" Aluminum Cone Woofer

  • Woofer Series Specific woofer production line of the manufacturer. Specialty Drivers Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 8"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 60 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 120 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 88.7 dB @ 1W/1m
  • Frequency Response 35 - 8,000 Hz
  • Voice Coil Diameter 36 mm
  • Magnet Weight 30 oz.
  • DC Resistance (Re) 6.8 ohms
  • Voice Coil Inductance (Le) 1.44 mH
  • Resonant Frequency (Fs) 34.9 Hz
  • Mechanical Q (Qms) 1.95
  • Electromagnetic Q (Qes) 0.45
  • Total Q (Qts) 0.37
  • Diaphragm Mass Inc. Airload (Mms) 30.3g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.68 mm/N
  • Surface Area of Cone (Sd) 211.2 cm²
  • Volume of Displacement (Vd) 112.0 cm³
  • BL Product (BL) 10.00 Tm
  • Compliance Equivalent Volume (Vas) 42.7 liters
  • Maximum Linear Excursion (Xmax) 5.3 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum Cone
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 216 mm
  • Overall Depth 94.5 mm
  • Baffle Cutout Diameter 180 mm
  • Bolt Circle Diameter
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume 0.32 ft.³
  • Sealed F3 81 Hz
  • Vented Volume 0.89 ft.³
  • Vented F3 46 Hz
