        88616 500 VA | 2 x 25 V Toroidal Transformer

        Amplimo 88616 500 VA | 2 x 25 V Toroidal Transformer

        €104,95

        Out of stock

        Add to cart

        Amplimo 88616 500 VA | 2 x 25 V Toroidal Transformer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Amplimo
        Show all Power supply modules
        NEW
        88616 500 VA | 2 x 25 V Toroidal Transformer
        € 86,74€ 104,95 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        88616 500 VA | 2 x 25 V Toroidal Transformer

        Product description Amplimo 88616 500 VA | 2 x 25 V Toroidal Transformer

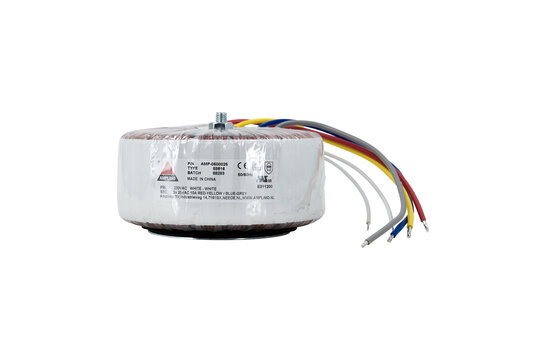

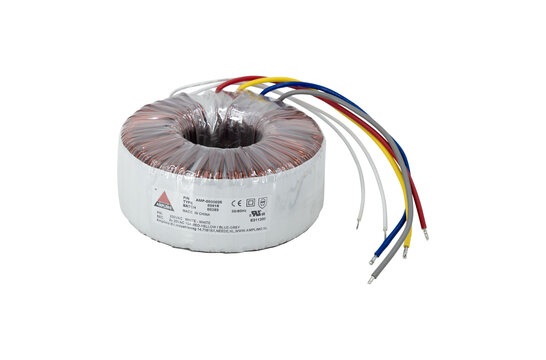

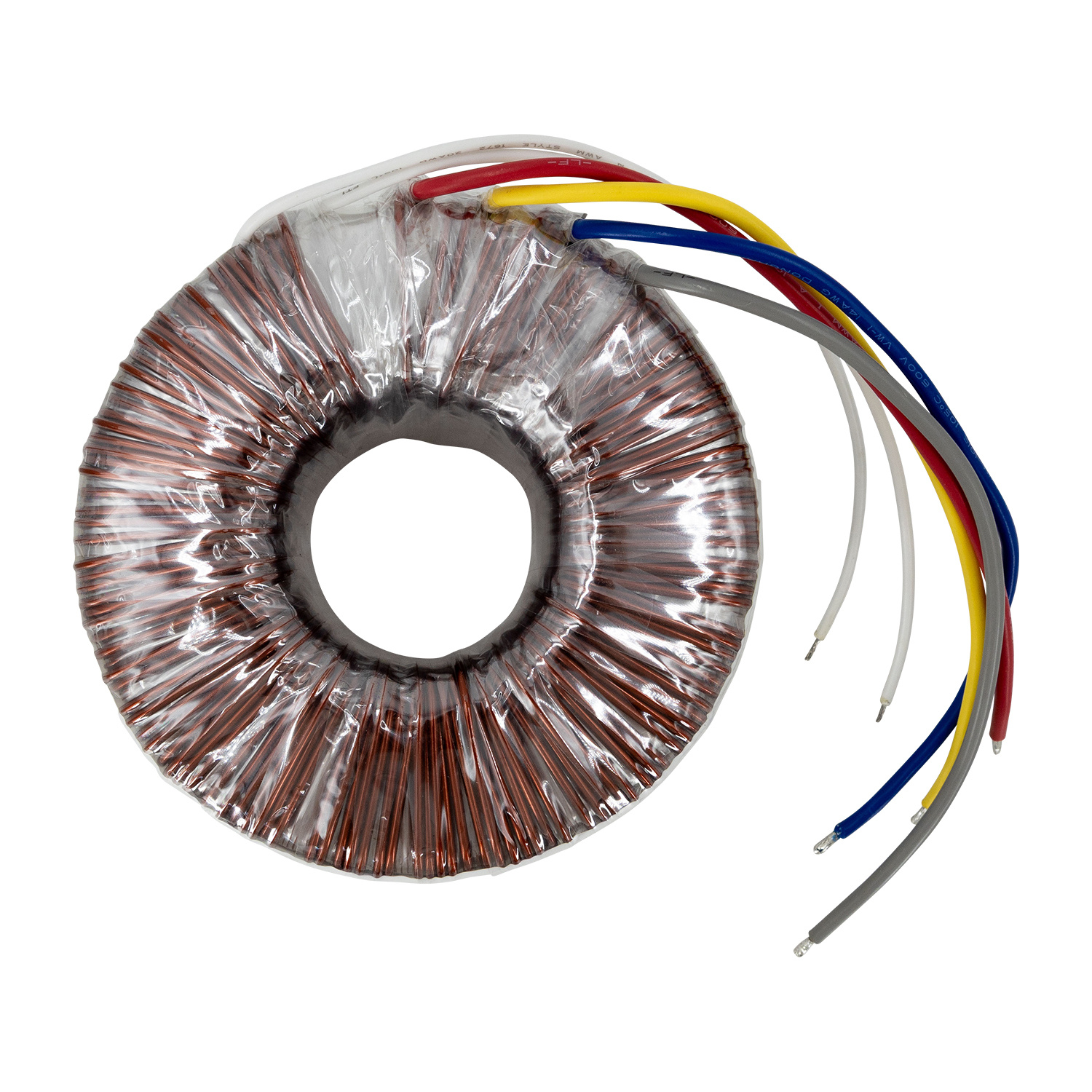

        The Amplimo 88616 is a 500 VA toroidal transformer with a 230 V primary and two 25 V, 10 A secondary windings. It is supplied with mounting hardware, approx. 200 mm leads, and international approvals for reliable integration.

        Highlights of the Amplimo 88616

        • 500 VA toroidal transformer with 230 V primary
        • Dual 25 V secondary windings rated at 10 A each
        • 5% regulation, with voltages specified under full ohmic load
        • Secondary windings can be used in series or parallel
        • Supplied with metal washer, neoprene washers, bolt, and nut
        • EN61558 compliant, CE, UL/CSA approved, and RoHS compliant

        Product details Amplimo 88616

        Amplimo 88616 500 VA Toroidal Transformer 2 x 25 V

        The Amplimo 88616 is designed for robust AC power conversion in demanding power supplies. Its 500 VA rating, 230 V primary, and two 25 V secondary windings provide a strong basis for projects that require a high-current transformer with predictable electrical behaviour.


        Each secondary winding is rated at 10 A, with output voltages specified under full ohmic load. The transformer has 5% regulation and supports both serial operation to double the secondary voltage and parallel operation to double the secondary current, giving flexibility during system design and wiring.

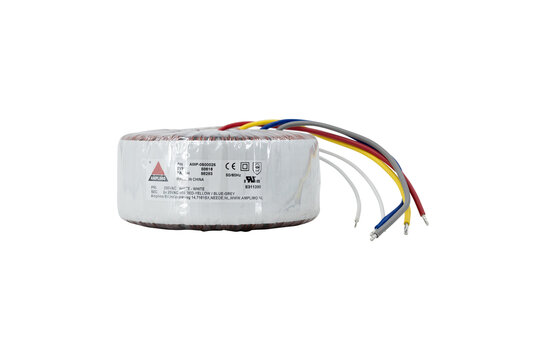

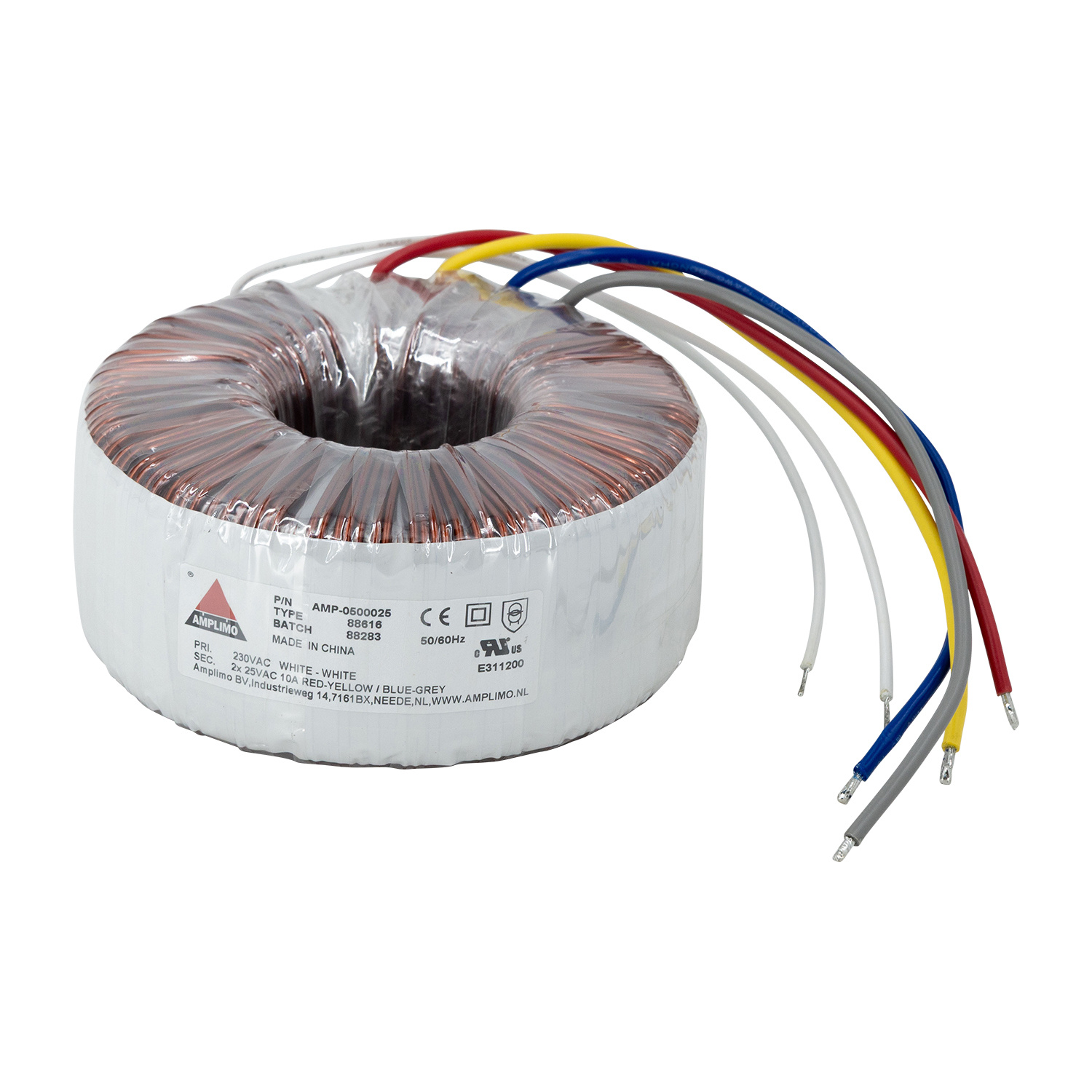

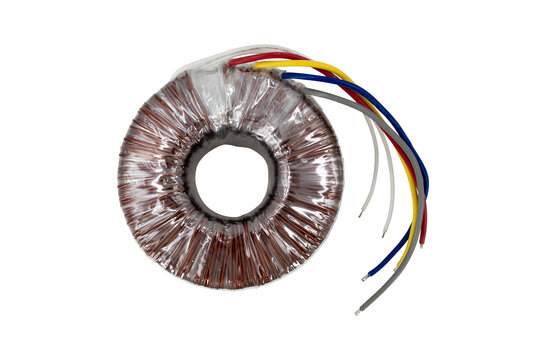

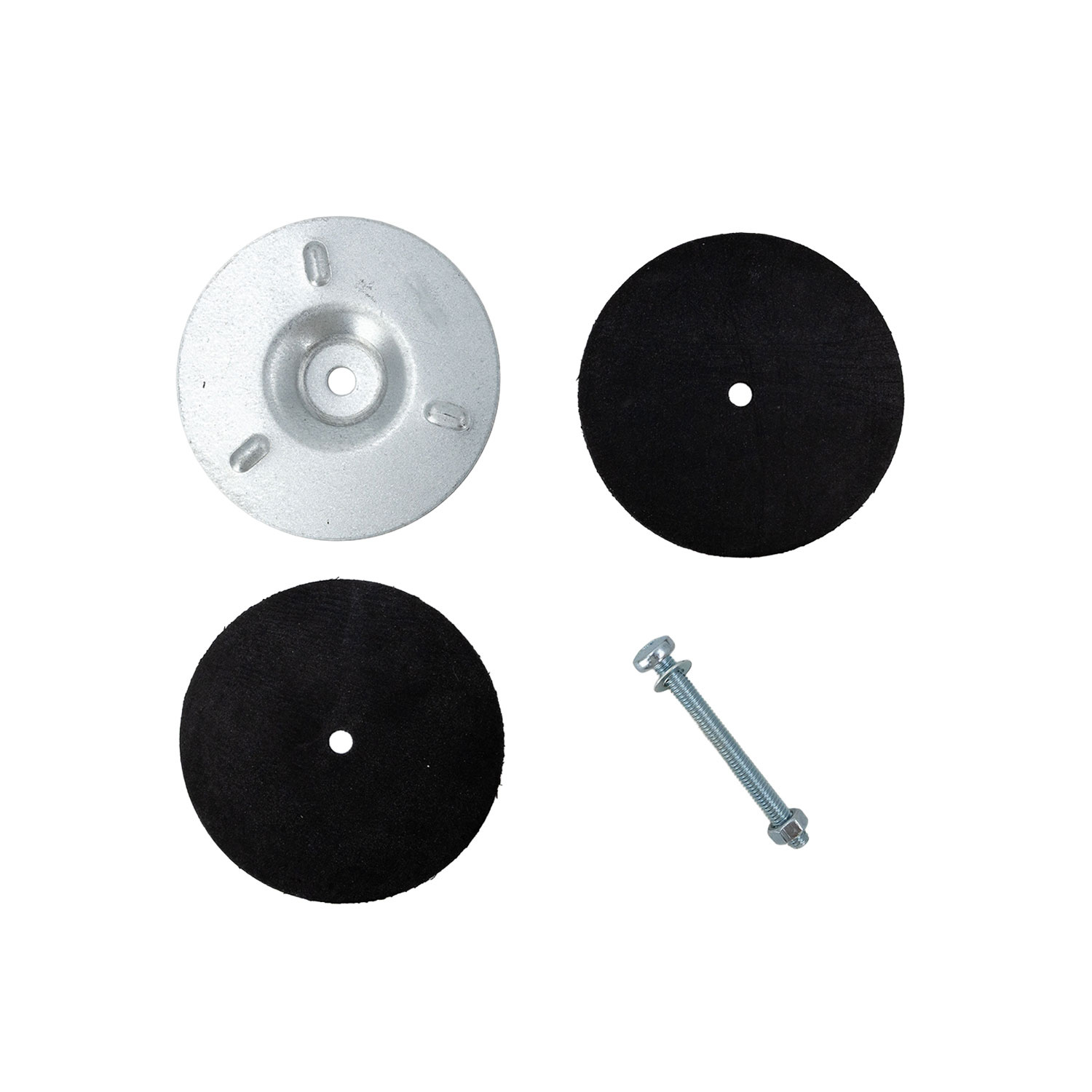

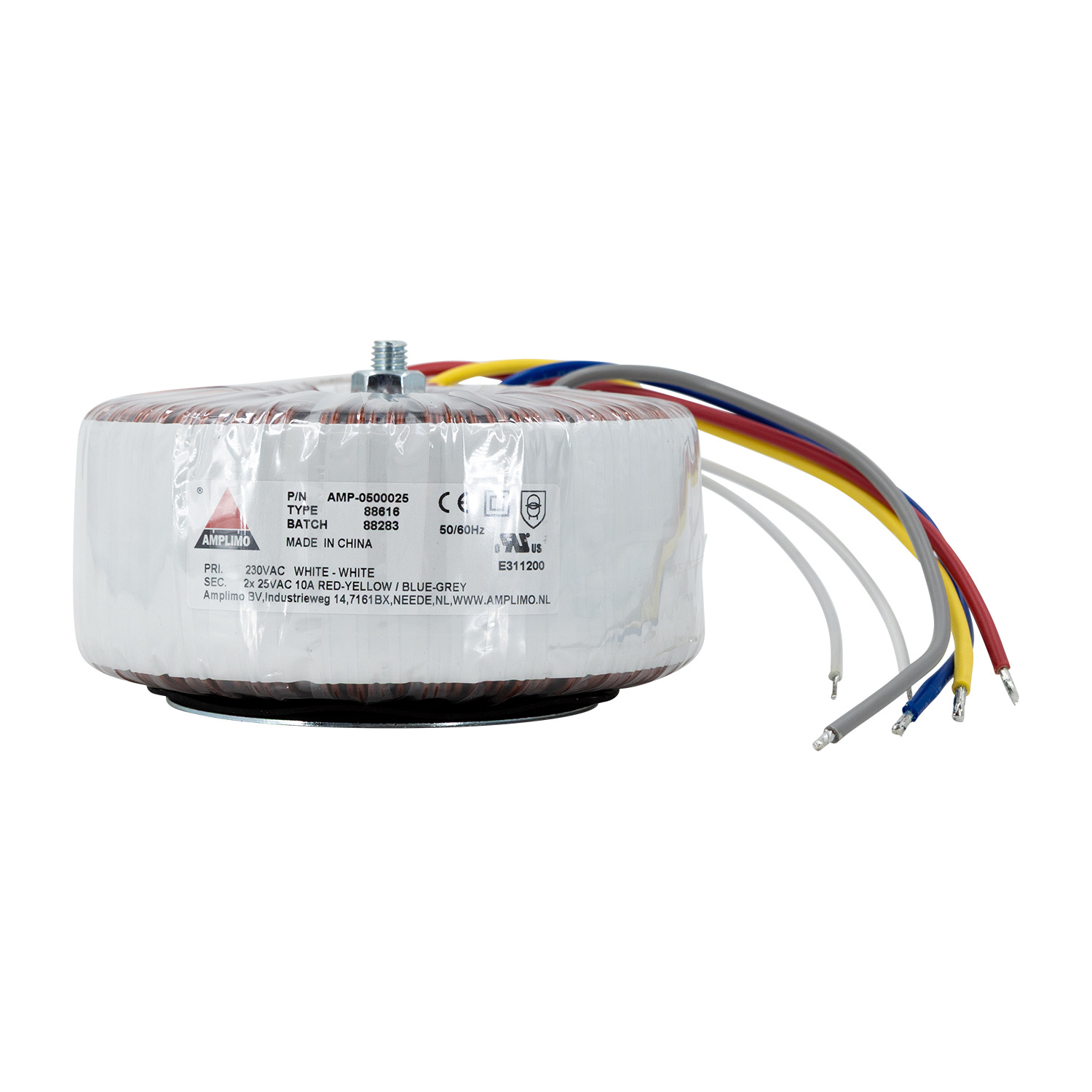

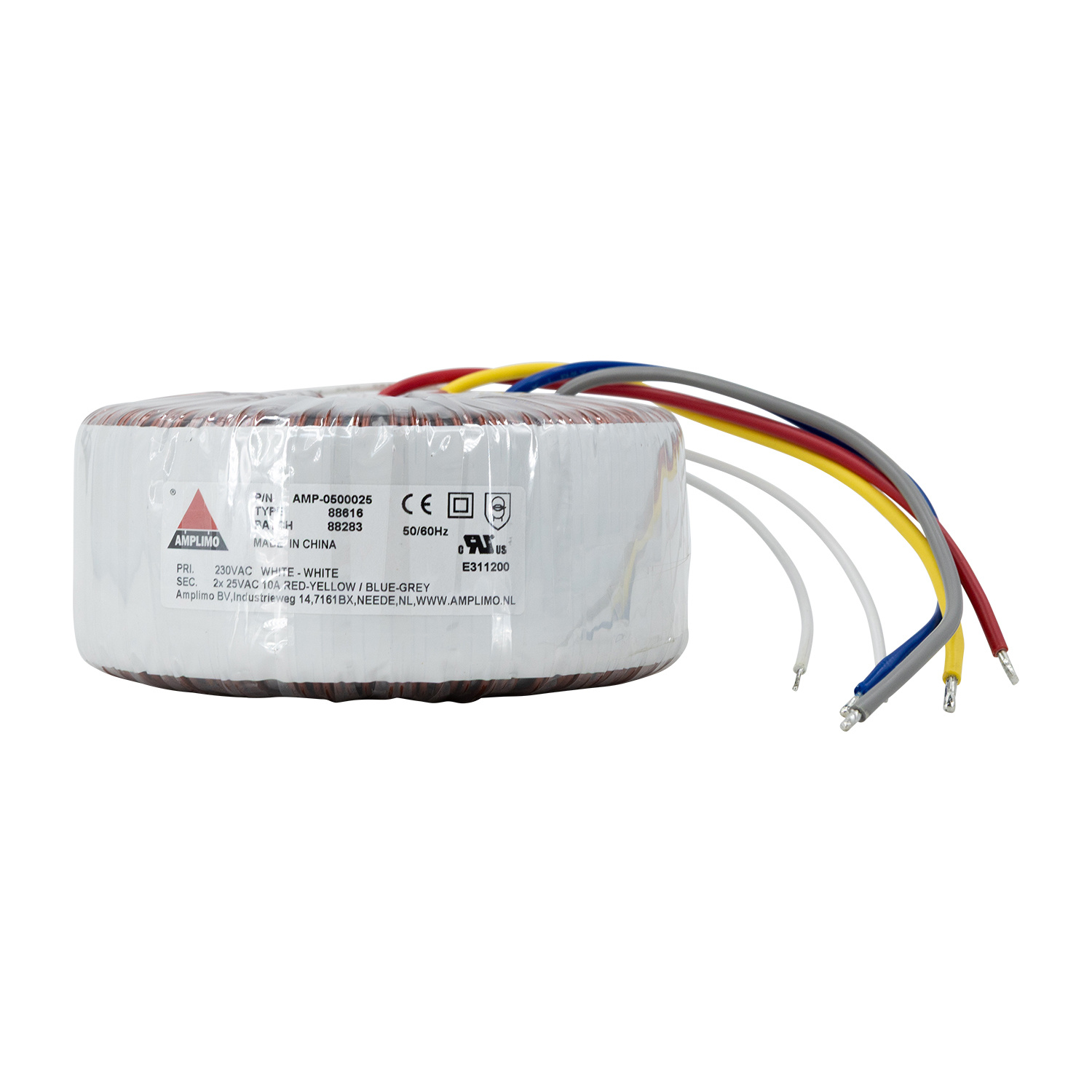

        Installation is straightforward thanks to the included mounting materials: one metal washer, two neoprene washers, and one bolt with nut. All leads are approximately 200 mm long, with white-white for the 230 V primary and red-yellow plus blue-grey for the secondary connections, making it practical for use alongside other amplifier accessories.

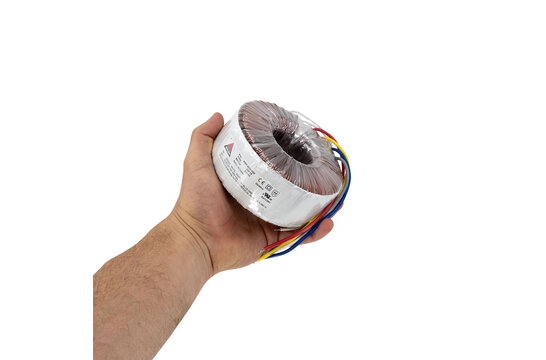

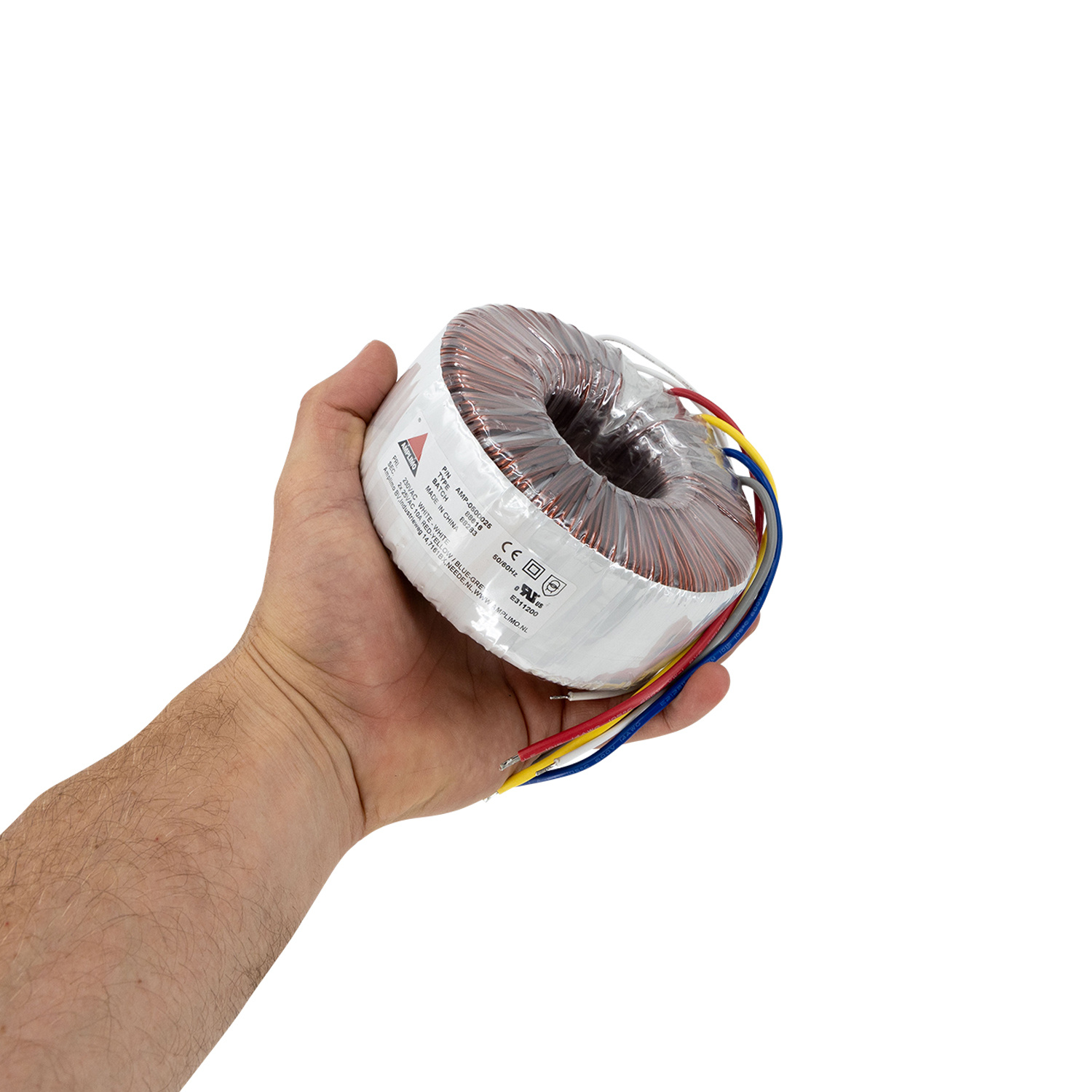

        With a diameter of 135 mm, a height of 58 mm, and a weight of 4.6 kg without mounting materials, the 88616 is compact for its power class. It is built according to EN61558, carries CE and UL/CSA approvals, has UL file number E311200, and is RoHS compliant, making it a dependable choice within electromechanics applications.

        Show more

        Specifications

        Article number
        88616
        EAN
        9502116718233

        Show more

        Reviews

        0 reviews
        Review this product

        There are no reviews written yet about this product..
