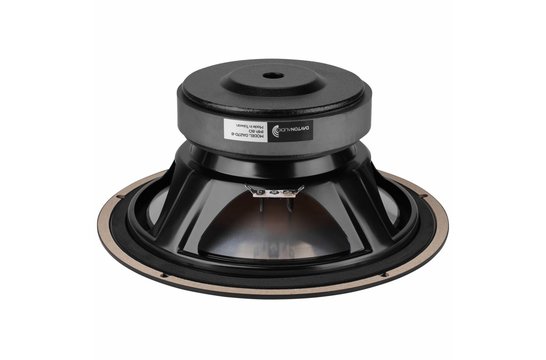

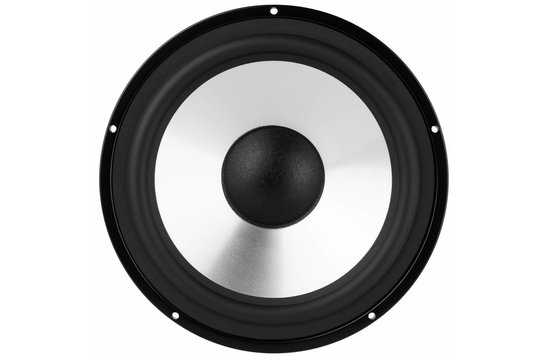

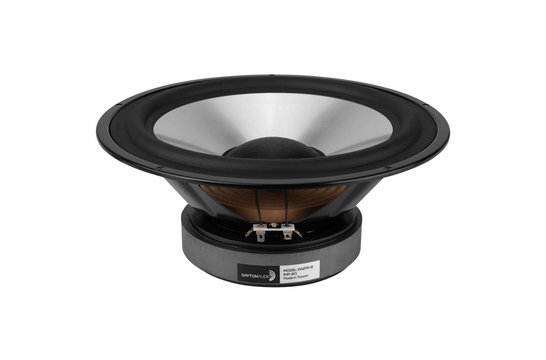

Dayton Audio DA270-8 10" Aluminum Cone Woofer

Spezifikationen für: DA270-8 10" Aluminum Cone Woofer

• Woofer SeriesSpezielle Woofer- Produktionsreihe des Herstellers. Specialty Drivers Series
• Woofer TypeArt des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer/Subwoofer
• Nominal DiameterUngefährer Durchmesser des Drivers, gemessen in Inch. 10"
• Power Handling (RMS)Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 80 watts
• Power Handling (max)Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 160 watts
• View all specifications
• Continuous Program Power
• Impedance 8 ohms
• Sensitivity 88.2 dB @ 1W/1m
• Frequency Response 25 - 6,000 Hz
• Voice Coil Diameter 36 mm
• Magnet Weight 53 oz.
• DC Resistance (Re) 6.3 ohms
• Voice Coil Inductance (Le) 1.20 mH
• Resonant Frequency (Fs) 27.8 Hz
• Mechanical Q (Qms) 1.95
• Electromagnetic Q (Qes) 0.55
• Total Q (Qts) 0.43
• Diaphragm Mass Inc. Airload (Mms) 51.3g
• Moving Mass Of Diaphragm (Mmd)
• Mechanical Compliance of Suspension (Cms) 0.64 mm/N
• Surface Area of Cone (Sd) 346.4 cm²
• Volume of Displacement (Vd) 211.3 cm³
• BL Product (BL) 10.1 Tm
• Compliance Equivalent Volume (Vas) 108.5 liters
• Maximum Linear Excursion (Xmax) 6.1 mm
• Driver's Mechanical Losses (Rms)
• Cone / Diaphragm Material Aluminum Cone
• Surround Material Rubber
• Voice Coil Wire Material Copper
• Voice Coil Former Aluminum
• Dual Voice Coil
• Basket / Frame Material Steel
• Magnet Material Ferrite
• Shielded
• Overall Outside Diameter 270 mm
• Overall Depth 115 mm
• Baffle Cutout Diameter 227 mm
• Bolt Circle Diameter
• # Mounting Holes 5
• Mounting Hole Diameter
• Sealed Volume 1.2 ft.³
• Sealed F3 55 Hz
• Vented Volume 3.74 ft.³
• Vented F3 30 Hz
