      SIG120-4 4” Signature Series Extended Range 4 Ohm

      Dayton Audio SIG120-4 4” Signature Series Extended Range 4 Ohm

      €34,95

      10+ Auf Lager

      Zum Warenkorb hinzufügen

      Dayton Audio SIG120-4 4” Signature Series Extended Range 4 Ohm

      10 klantbeoordelingen
      5 von 5
      10 klantbeoordelingen
      5 Sterne
      90%
      4 Sterne
      10%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Dayton Audio
      4'' | 4 Ω
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      28,88 €34,95 € 10+ Auf Lager
      • -5% Bestelle 4 für nur 33,20 € je Stück
      34,95 €
      +-
      Zum Warenkorb hinzufügen
      🔒 Sicher bezahlen
      MastercardVisaBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm
      SIG120-4 4” Signature Series Extended Range 4 Ohm

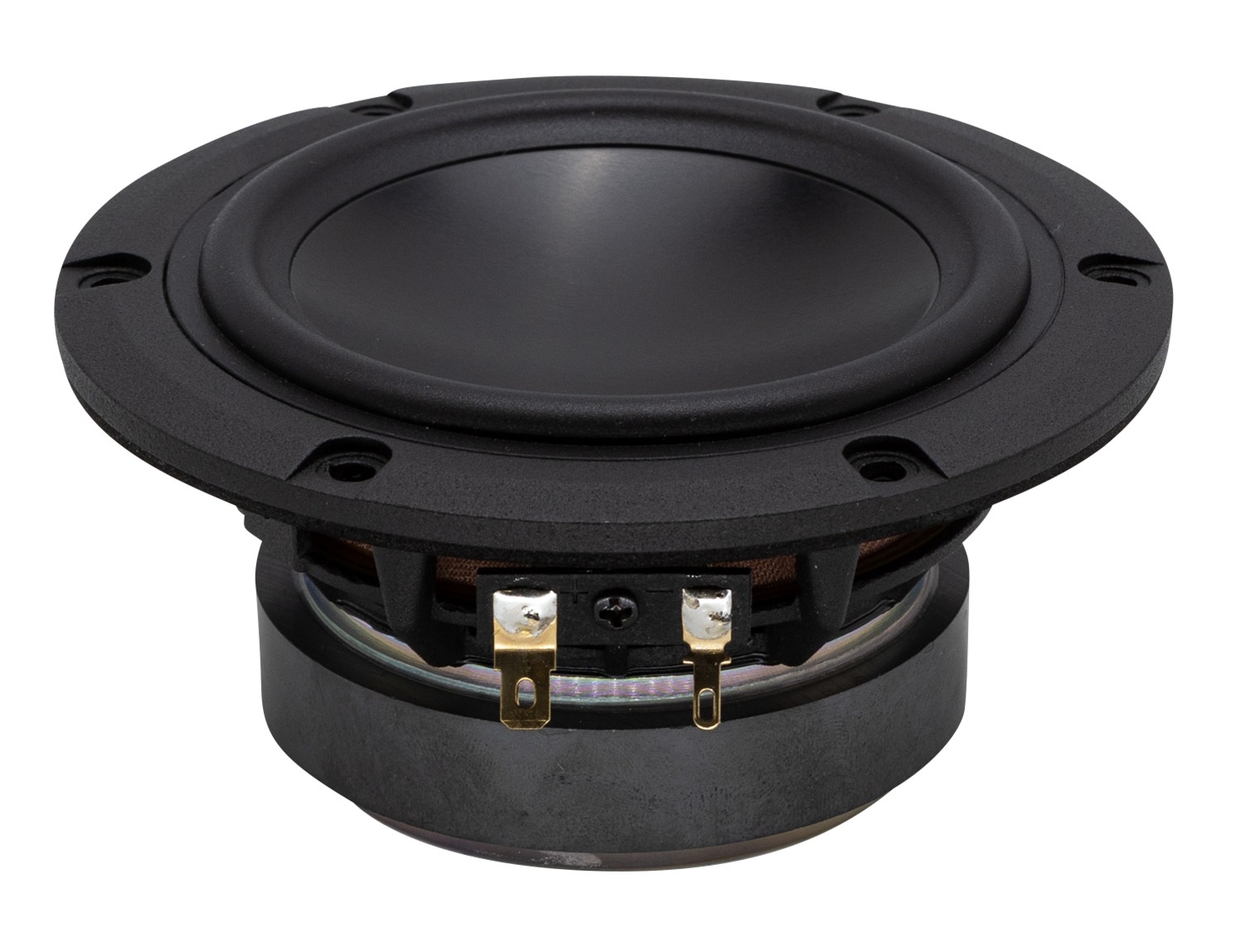

      Produktbeschreibung Dayton Audio SIG120-4 Mid-range Woofer

      The Dayton Audio Signature Series was designed to give DIY speaker designers access to the pinnacle of speaker technology at the value expected from Dayton Audio. Featuring an open aluminum cast frame, anodized aluminum cone and a polyimide former, these drivers can provide extended range with incredibly low distortion. After hours of painstaking engineering and testing with meticulous attention to detail, we at Dayton Audio deem this driver line worthy of the endorsement of even the most critical audiophile.



      Highlights

      • Extensive Klippel LMP and LSI testing to optimize Bl symmetry and parameters
      • Indexed cone/surround junction for smooth transition/frequency response
      • Polyimide formers and aluminum sleeve for improved inductance, damping, and frequency response
      • One piece concave black anodized aluminum cone
      • Vented former and elevated spider for improved air flow
      • Open aluminum cast frame for improved heat dissipation
      • Countersunk stainless steel magnet badging for long time aesthetics



      Product details

      SIG120-4 4” Signature Series Extended Range 4 Ohm



      The Dayton Audio Signature Series was designed to give DIY speaker designers access to the pinnacle of speaker technology at the value expected from Dayton Audio. Featuring an open aluminum cast frame, anodized aluminum cone and a polyimide former, these drivers can provide extended range with incredibly low distortion.



      Signature Sound and Performance

      The smooth and extended frequency response of these Dayton Audio speaker drivers ensures that the entire audible spectrum is accurately reproduced, from the lowest bass notes to the highest treble frequencies. This well-balanced frequency response delivers a natural and immersive listening experience, allowing you to hear every detail and nuance in your favorite music or movies.



      Meticulous Attention to Detail

      The speaker drivers' design, materials, and meticulous engineering work in harmony to minimize distortion, ensuring that the sound remains clean and clear even at high volumes. By achieving low distortion, these speaker drivers provide an accurate representation of the original audio signal, allowing audiophiles to enjoy a true-to-life listening experience with exceptional clarity and precision. The Signature Series speaker drivers used rigorous Klippel testing throughout the design process, a state-of-the-art analysis method to provide optimal performance, consistency, and reliability by precisely measuring and optimizing the drivers' magnetic and mechanical properties.



      Indexed Cone and Surround Junction

      Diffraction caused by the abrupt edge of the surround is minimized by the use of an indexed junction. This design feature helps create a smooth transition between the cone and surround, resulting in improved frequency response while improving the rigidity of the cone further resulting in less cone distortion at high excursion.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SIG120-4
      EAN
      0848791009051
      Tieftöner-Serie
      Dayton Audio Signature series
      Nenndurchmesser
      4"
      Belastbarkeit (QMW)
      40 Watt
      Belastbarkeit (max)
      80 Watt
      Impedanz (Z)
      4 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      89.7dB
      Frequenzgang
      75 - 8500 Hz
      Schwingspulendurchmesser
      25 mm
      Gleichstromwiderstand (Re)
      3.7 Ω
      Schwingspuleninduktion (Le)
      0.22 mH
      Resonanzfrequenz (Fs)
      74.6 Hz
      Mechanische Güte (Qms)
      4.84
      Elektrische Güte (Qes)
      0.47
      Gesamtgüte (Qts)
      0.43
      Bewegliche Masse (Mms)
      6.7 g
      Nachgiebigkeit der Aufhängung (Cms)
      0.68 mm/N
      Membranfläche (Sd)
      56.4 cm²
      Kraftfaktor (BL)
      5 Tm
      Äquivalentvolumen (Vas)
      3.09 L
      Maximale Auslenkung (Xmax)
      4 mm
      Cone / Diaphragm Material
      Aluminum
      Sicke-Material
      Rubber
      Schwingspulenformmaterial
      Kapton® / Polyimide
      Korb- / Rahmenmaterial
      Cast Aluminum
      Außendurchmesser
      122.94 mm
      Gesamttiefe
      59.18 mm
      Ausschnittdurchmesser
      95 mm
      Bolt Circle Diameter
      4.33
      # Befestigungsbohrungen
      6
      Geschlossenes Volumen
      1.42 L
      Geschlossenes F3
      130 Hz
      Bassreflex Volumen
      4.19 L
      Bassreflex F3
      68.9 Hz

      Mehr anzeigen

      Bewertungen

      10 klantbeoordelingen
      Produkt bewerten
      5 von 5
      -
      Durch Roar on 22 Dezember 2025
      5 von 5
      fait franchement je job , je l'utilise comme medium , très bon produit
