Sure Electronics AA-JA32172 2 x 50 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-50

€ 44,42€ 53,75 >10 Auf Lager: Lieferzeit 1-3 Werktage
The Sure Electronics AA-JA32172 2 x 50 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-50 an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €51,06 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

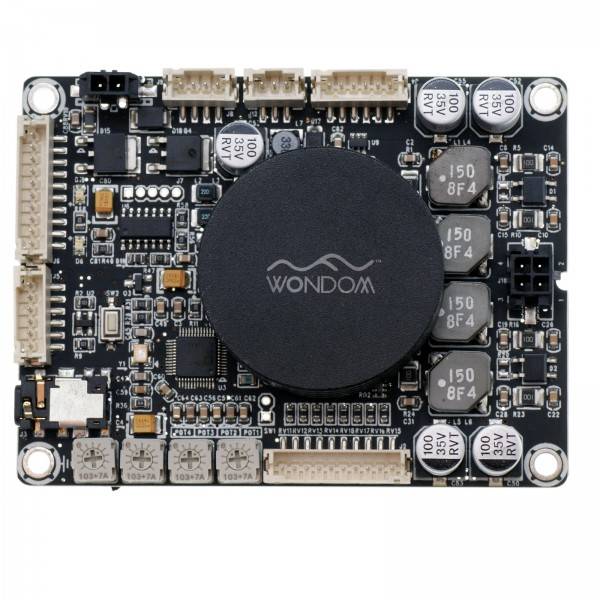

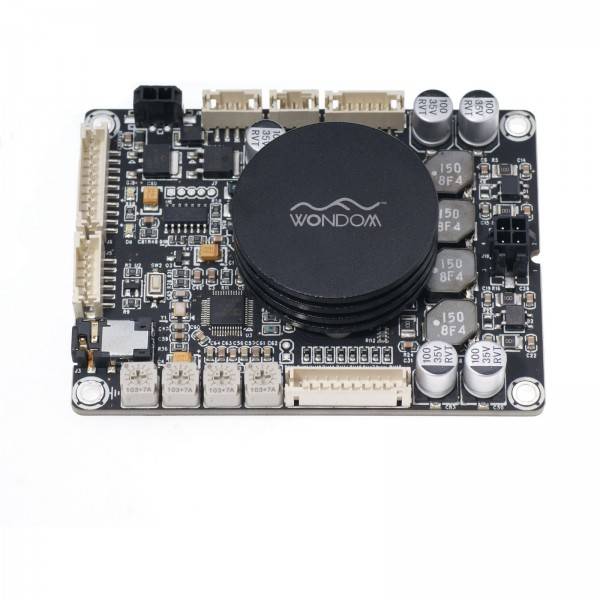

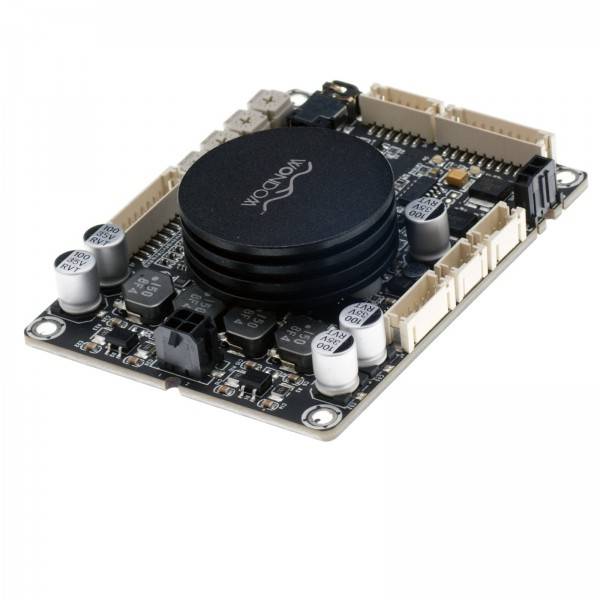

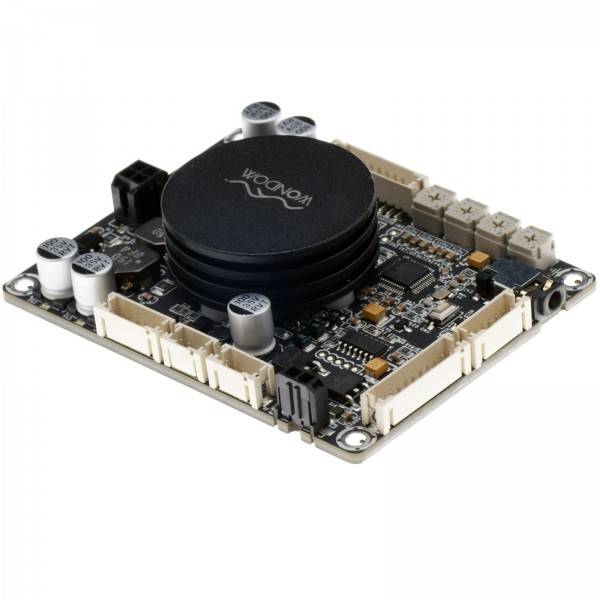

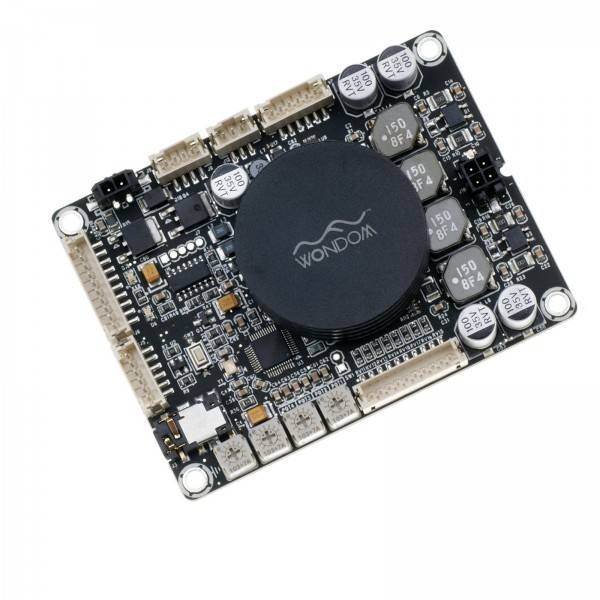

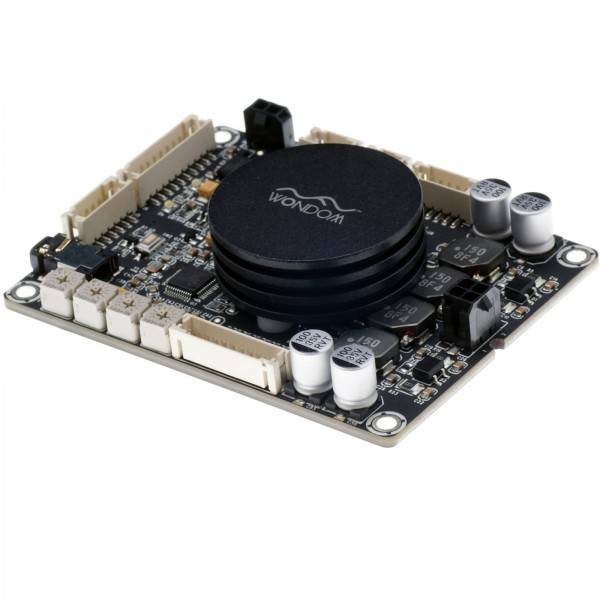

The Sure Electronics AA-JA32172 2 x 50 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-50 an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board.



Highlights

  • ADAU1707 Audio DSP Integrated
  • PBTL Configurable
  • Fully Compatiable with JAB1 and JAB2
  • USBi or WONDOM In-Circuit Programmer
  • Debug Port for Sigma Studio through original



Connections:





High Quality Audio Performance

The Sure Electronics AA-JA32172 2 x 50 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-50 delivers high quality sound without drawing a lot power. The JAB series amplifier boards support Parallel Bridge Tied Load mode, under which two outputs are connected together as one channel. Under PBTL (mono) mode, either of the two inputs can work as the input connector. If audio signal is transmitted to both of the two inputs, the outputs are mixed. Connect the positive and negative output together for best efficiency



Compatible with JAB1/ 2

JAB1 and JAB2 provide a stereo solution for portable Bluetooth speakers with MPPT battery charging. More than the headphone amplifier, JAB3 also provides a flexible DSP solution. This means, when working with JAB1/2 main boards, it is a complete 4.0 (BTL), 2.1 and 0.2 (PBTL) audio system with control interfaces and signal processing. The application ranges from active louderspeaker concepts (digital 3 way 3 unit, 2 way 2 unit crossover, bass enhancement, etc.) and realize the transformation from 2.0 to 2.1 (when used with JAB2). With four potentiometers, customers can get the default function and adjust the volume of audio input, gain, cut-off frequency of bass and treble.



DSP Integration

With integrated debug port for Sigima Studio, customers can pre-program with Sure Electronics ICP1, ICP2 or the original Analog USBi to get more functions which includes equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc. The on board fully programmable 28-/56-bit audio DSP ADAU1701 from Analog device is competent in various signal processing applications. This process can compensate for real-world limitations of speakers, amplifiers, and listening environments, providing dramatic improvements in perceived audio quality. Most process is done in full 56-bit, double precision mode, resulting in very good low level signal performance. Two Σ-Δ ADCs and four Σ-Δ DACs integrated in this DSP provide a 98.5 dB analog input to analog output dynamic. Each ADC has a THD + N of -83 dB, and each DAC has a THD + N of -90 dB. The popular applications are active louderspeaker, public address system and active subwoofer, including stereo high pass filter and mixed low pass filter, also named with powered speaker controller.



Extremely low standby power

The Sure Electronics JAB3-50 will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit).







Applications





Package includes

  • 1 x Sure Electronics JAB3-50 2 x 50 Watt Class D Audio Amplifier Board with Audio DSP
  • 1 x power cable
  • 1 x 4-conductor speaker cable
  • 1 x 5mm jack cable

Eigenschaften

Artikelnummer:
AA-JA32172
Rated power output
2 x 50 watts at 4 ohms
Minimum load
4 ohms
Efficiency
84 %
Signal-to-noise ratio (SNR)
88 dB
Distortion

0.04 % THD at 1 kHz, 4 ohms, 5 watts
0.06 % THD at 1 kHz, 4 ohms, 10 watts

Frequency Response
20 - 20,000 Hz
Gain
26 dB
Input sensitivity
0.77 V
Input impedance
10k ohms
Amplifier Classification
Class D
Circuit Topology
Texas Instruments TPA3116
Speaker output channels
2
Input connection type
4 pin PCB connector
Speaker output connection type
4 pin PCB connector
DSP function
check
Bluetooth
-
EQ Adjustment
check
Power Requirements
12 - 26 VDC
Power inlet connector
2 pin PCB connector
Current limit
-
Under/over voltage protection
check
Dimensions (L x W x H)
91 x 69 x 23 mm
Mounting hole spacing
84 x 61 mm
Mounting hole diameter
3.5 mm

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
The Mudule works as expected.
Dsp integration in other more power
modules would be perfect.
Durch kai m. on 2 Juni 2020
5 van 5
Mooi modulair bordje, veel functies en goede support van SoundImports
Durch Roelof D. on 11 Juli 2018
