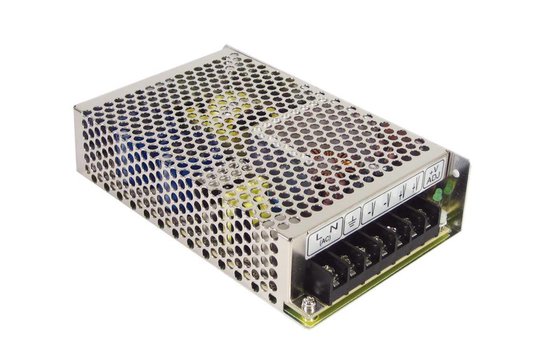

Mean Well RS-100-24 24VDC 4.5A 100W Regulated Switching Power Supply

3 reviews

Marke: Mean Well

Alle anzeigen Netzteile

Vergleichen

1 x 24 VDC

RS-100-24 24VDC 4.5A 100W Regulated Switching Power Supply

€ 31,78€ 38,45 >10 Auf Lager: Lieferzeit 1-3 Werktage

A reliable, fully tested power supply for larger power amplifier boards. Specially chosen for its low noise characteristics. AC voltage input range for 220V/230V operation. Output voltage of 24V.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

A reliable, fully tested power supply for larger power amplifier boards. Specially chosen for its low noise characteristics. AC voltage input range for 220V/230V operation. Output voltage of 24V.

Highlights

Protection: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
High operating temperature up to 70°C
Withstand 5G vibrations
High efficiency,long life & high reliability

Product details

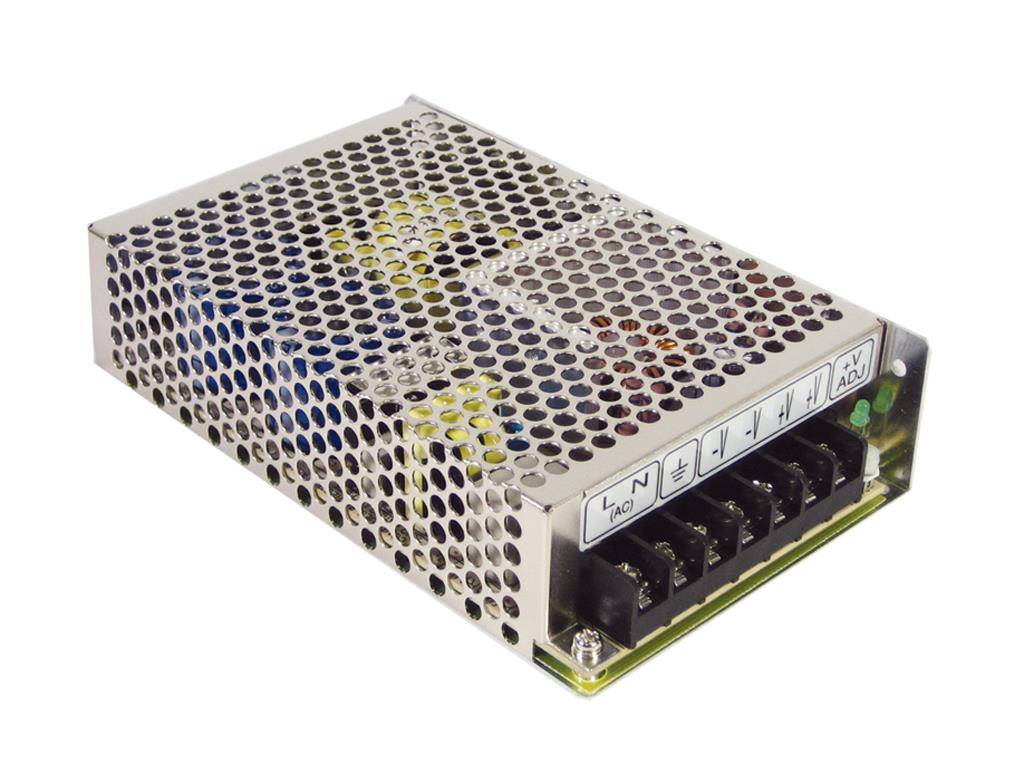

Mean Well MW RS-100-24 24VDC 4.5A 100W Regulated Switching Power Supply

This power supply is the best choice for reliable, fully tested power output when used with larger power amplifier board. Short-circuit, over-load, over-voltage protection is built-in. Cooling is accomplished by air convection. 100% full load burn-in tested. LED indicator for power-on indication. Barrier strip connections. This product is chosen for its low noise characteristics. Dimensions: 159mm L* 97mm W* 38mm H.

Product Specifications
