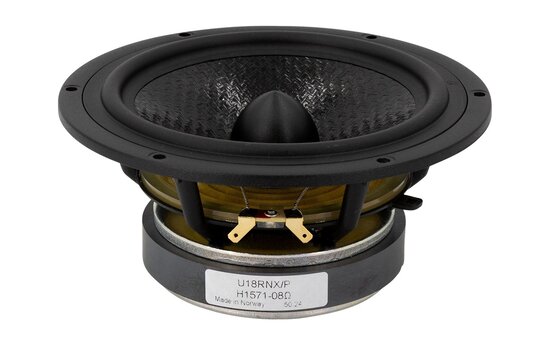

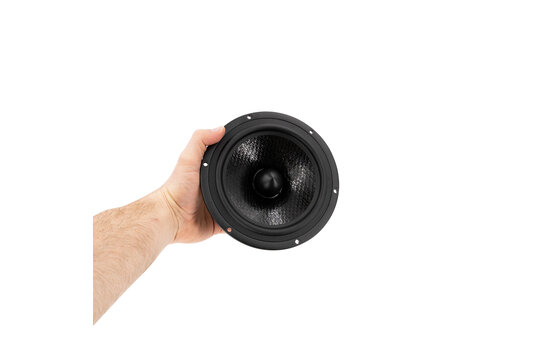

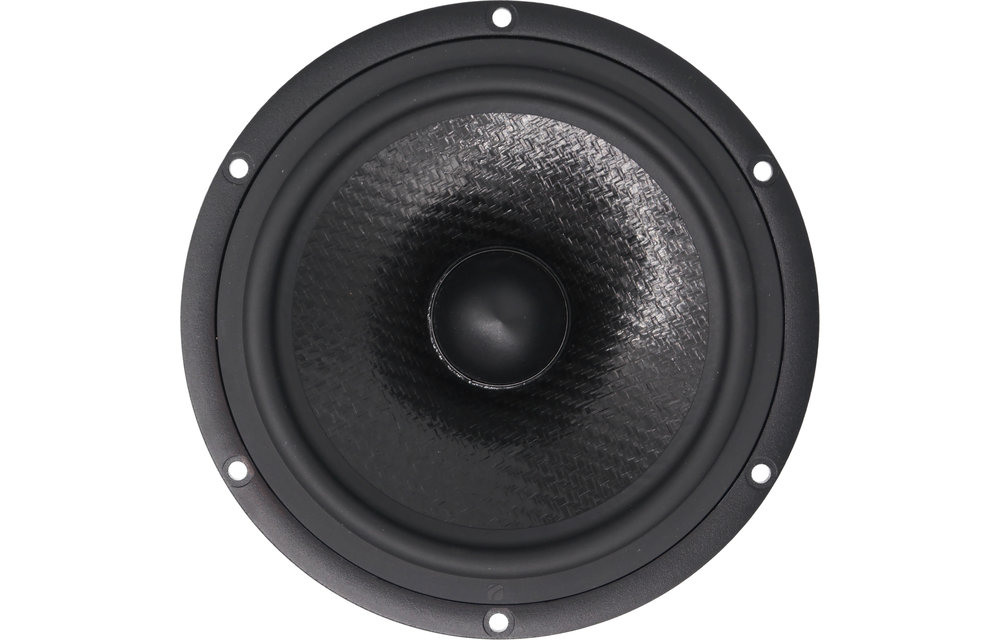

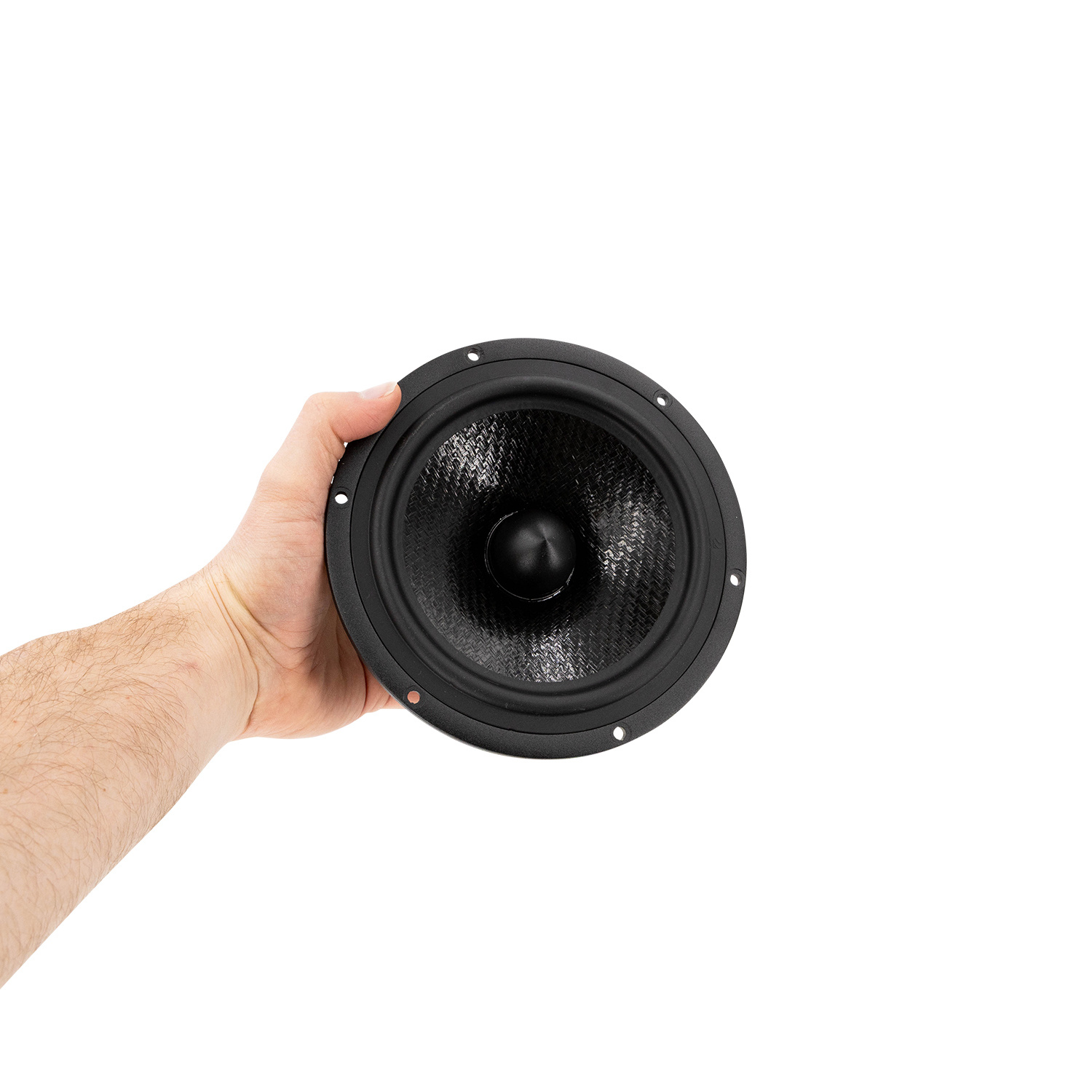

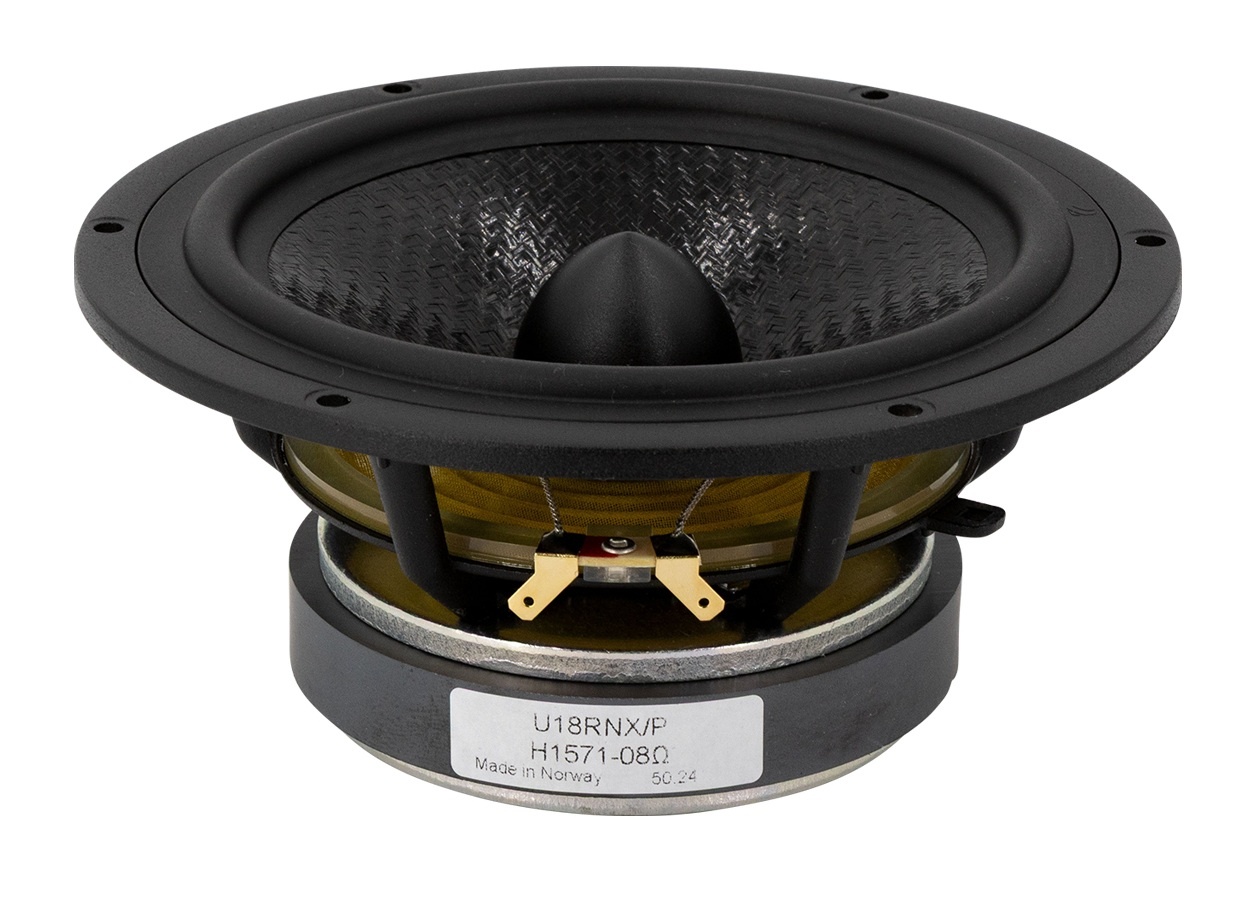

SEAS Prestige U18RNX/P - H1571-08 7" Curv Cone Woofer

€ 92,11€ 111,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
The U18RNX/P is a 6.5” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts g... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €105,88 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 80 Watts
  • Heavy copper ring below the T shaped pole piece reduces nonlinear and modulation distortion
  • Bullet shaped phase plug reduces compression due to temperature variations in the voice coil while avoiding resonance problems



Product details

Seas Prestige U18RNX/P - H1571-08 7" Curv Cone Woofer

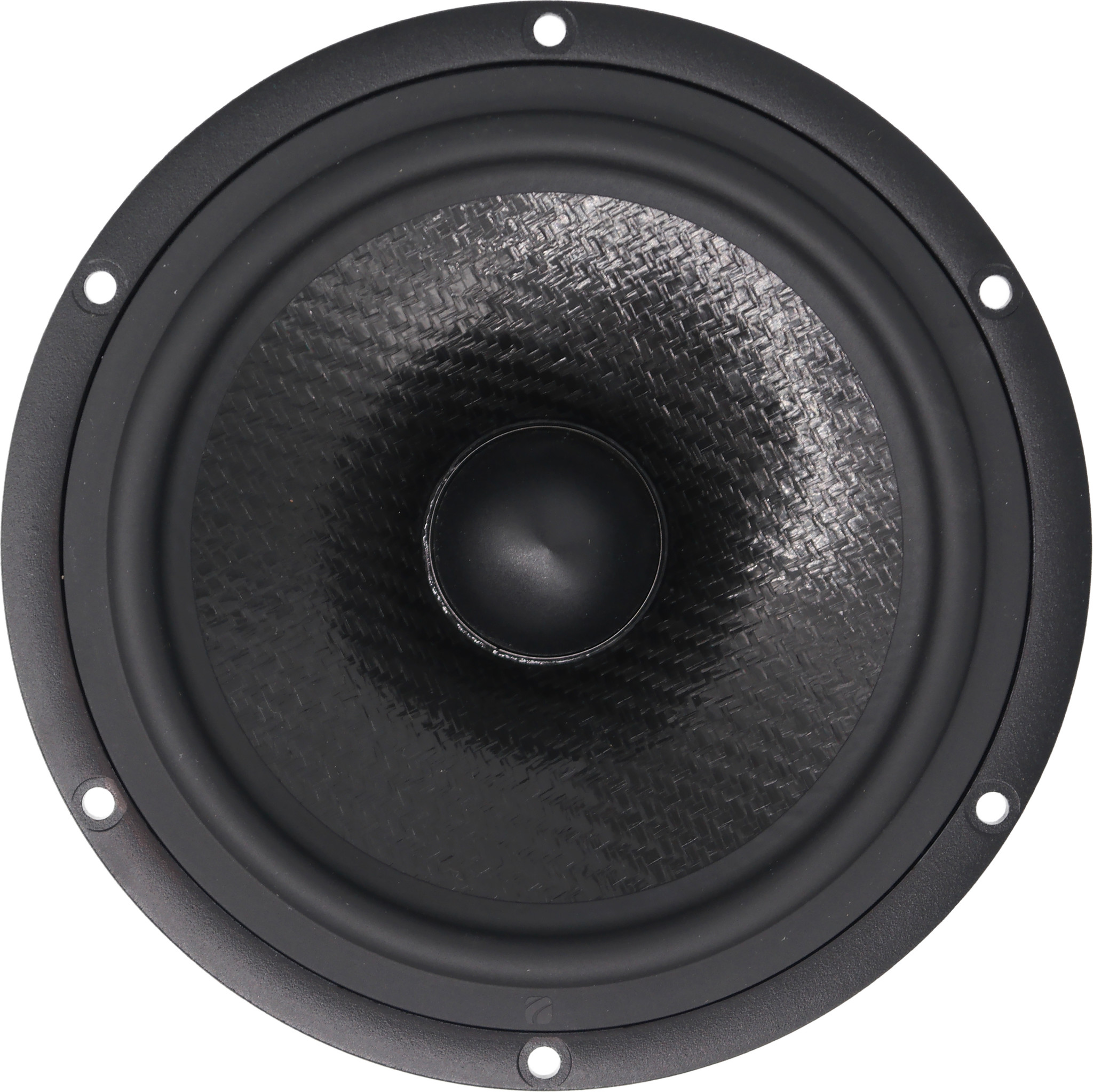

The U18RNX/P is a 6.5” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.

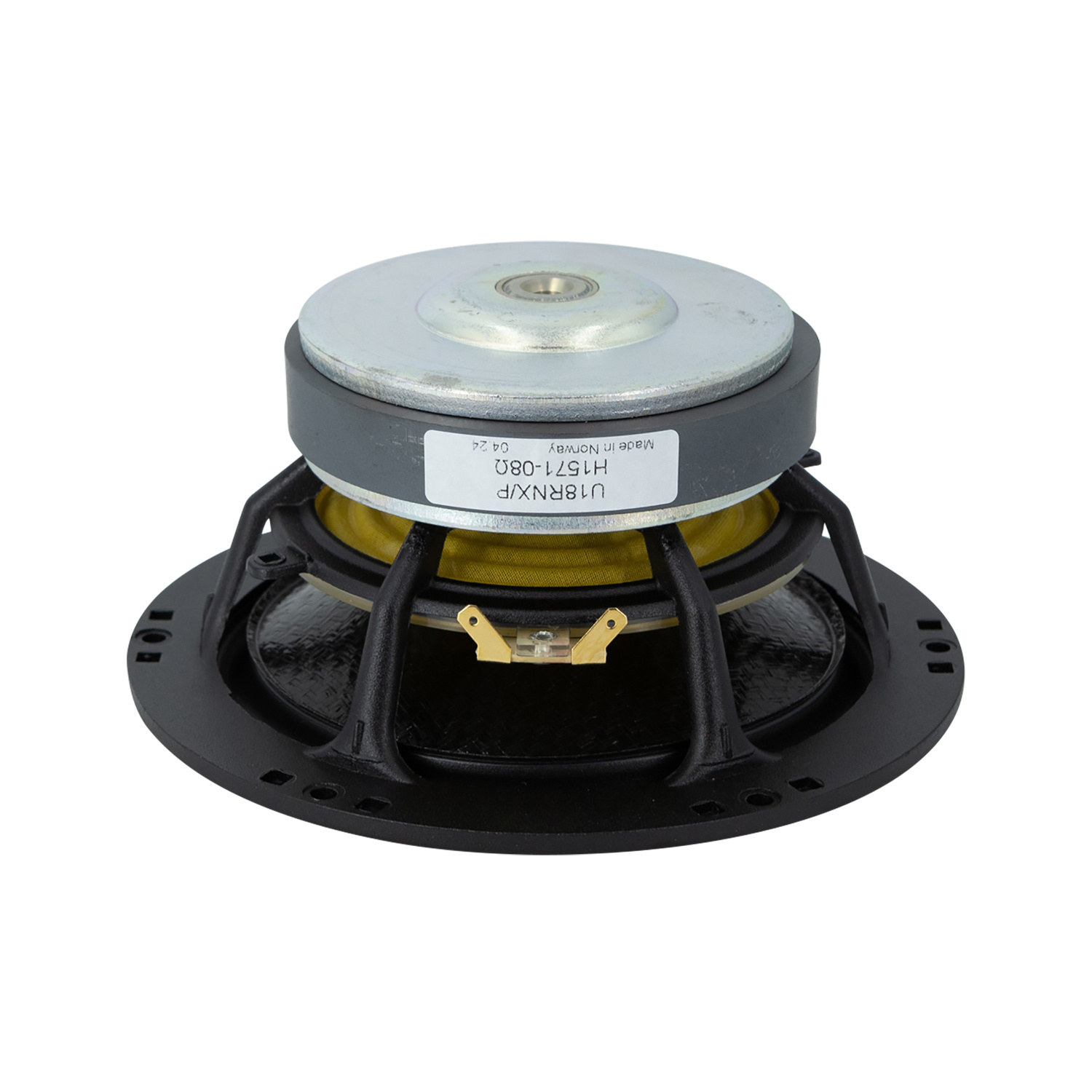

Bumped back plate in the magnet system, together with the very long and light weight copper clad aluminum voice coil, allow extreme coil excursion with low distortion. Heavy copper ring below the T shaped pole piece will reduce nonlinear and modulation distortion. Bullet shaped phase plug reduces compression due to temperature variations in the voice coil, avoids resonance problems which would occur in the volume between the dust cap and the pole piece and increases the long-term power handling capacity.

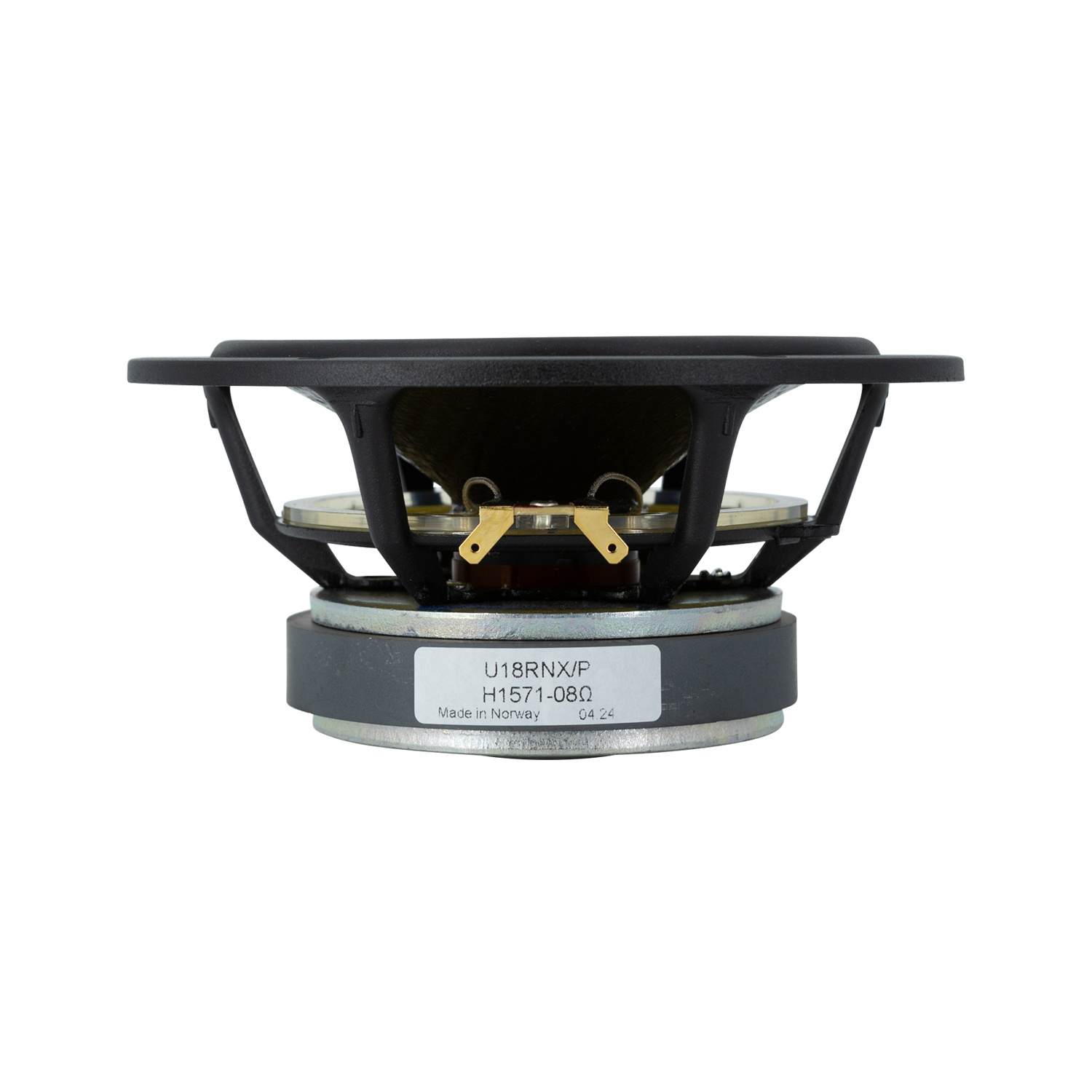

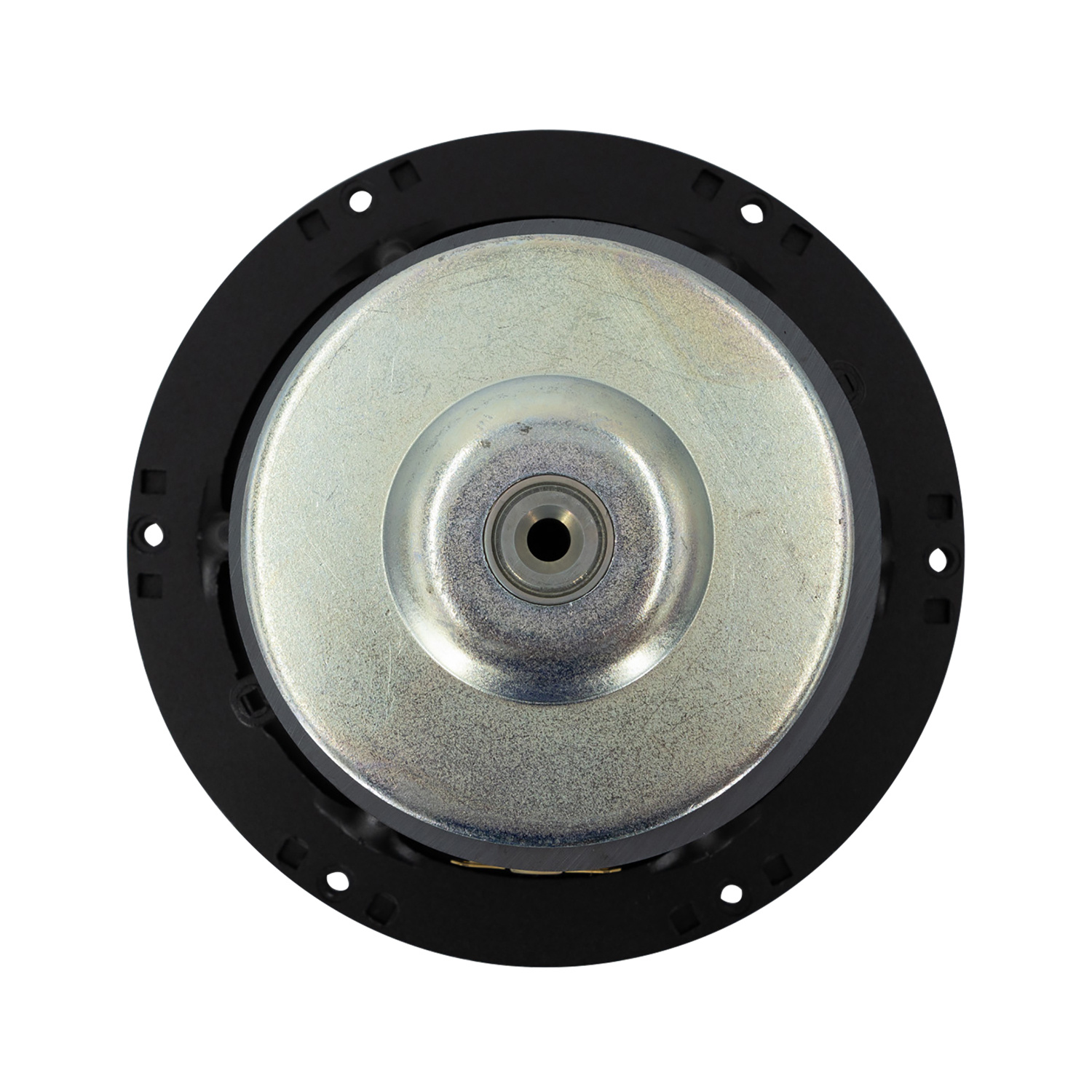

Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
U18RNX/P
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
7"
Power Handling (RMS)
80 Watts
Power Handling (max)
250 Watts
Impedance
8 ohms
Sensitivity
88 dB 2.83V/1m
Frequency Response
45 to 4,000 Hz
Voice Coil Diameter
1.53"
Magnet Weight
22.5 oz.
DC Resistance (Re)
5.9 ohms
Voice Coil Inductance (Le)
0.25 mH
Resonant Frequency (Fs)
43 Hz
Mechanical Q (Qms)
2.05
Electromagnetic Q (Qes)
0.45
Total Q (Qts)
0.37
Diaphragm Mass Inc. Airload (Mms)
13.4g
Mechanical Compliance of Suspension (Cms)
1 mm/N
Compliance Equivalent Volume (Vas)
0.77 ft.³
Maximum Linear Excursion (Xmax)
6 mm
Overall Outside Diameter
6.93"
Overall Depth
3.28"
Baffle Cutout Diameter
5.72"
Bolt Circle Diameter
6.54"
# Mounting Holes
6
Mounting Hole Diameter
0.2"
