SEAS Extreme L26RO4Y - XM004-04 10" Aluminum Cone Subwoofer

€ 214,83€ 259,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Extremely stiff and rigid aluminum cone gives tremendous bass precision. The cone and the long throw low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones. Lead-out wires symmetrically stitched... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €246,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 250 Watts
  • Tremendous bass precision thanks to the extremely stiff and rigid aluminum cone
  • Total suspension designed to assure stability for extreme excursions
  • Extra large magnet system provides high efficiency and low Q



Product details

Seas Extreme L26RO4Y - XM004-04 10" Aluminum Cone Subwoofer



Extremely stiff and rigid aluminum cone gives tremendous bass precision. The cone and the long throw low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones. Lead-out wires symmetrically stitched to the spider to avoid resonances.



Total suspension designed to assure stability for extreme excursions. 4-layer, extremely long, high temperature voice coil wound on a glass fiber voice coil former gives a high power handling capacity. Cu-cap around the pole pieces reduce non linear and modulation distortion and increase overload margin. Extra large magnet system provides high efficiency and low Q.

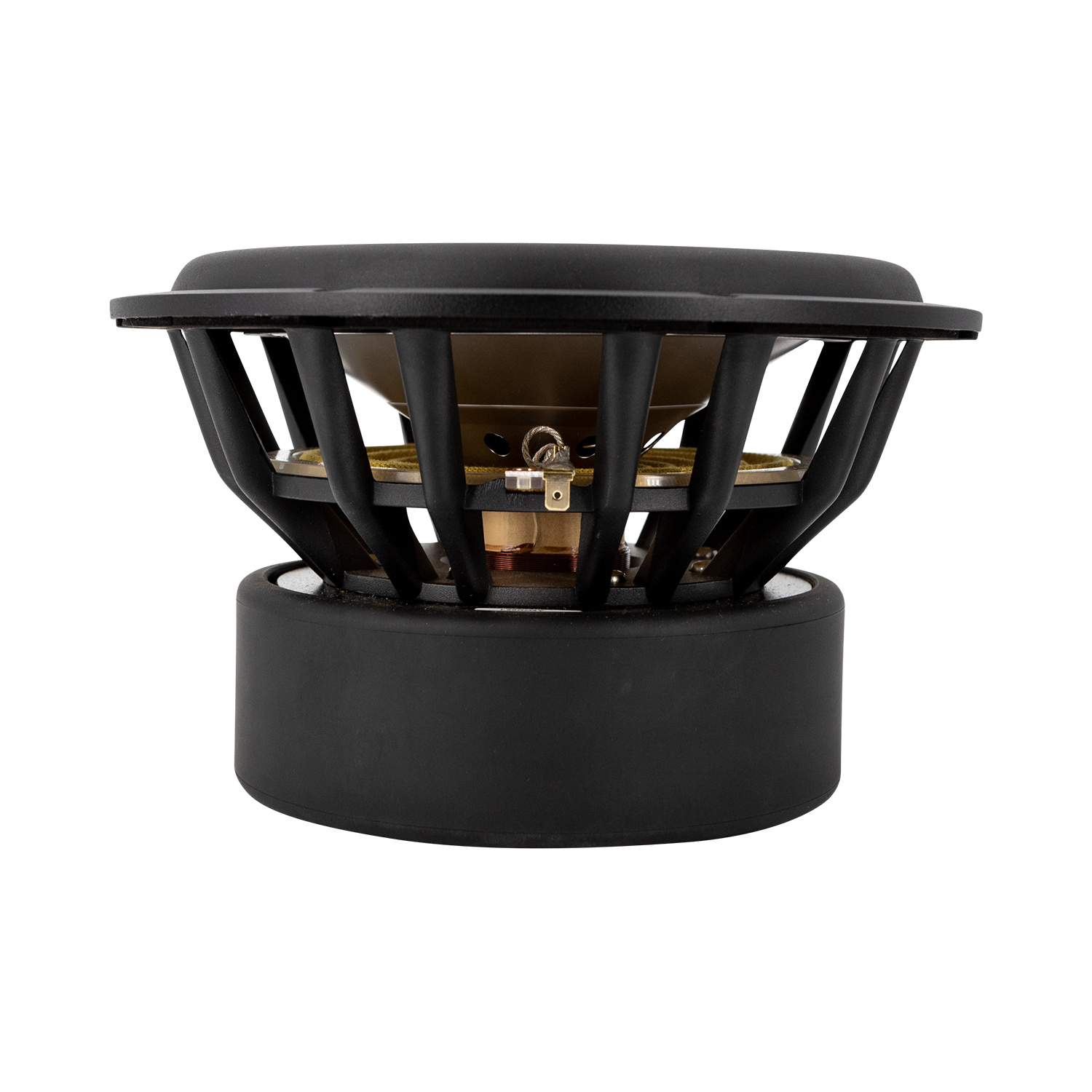

Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
L26RO4Y
Woofer Series
Design By Seas Series
Woofer Type
Subwoofer
Nominal Diameter
10"
Power Handling (RMS)
250 Watts
Power Handling (max)
500 Watts
Impedance
4 ohms
Sensitivity
86 dB 2.83V/1m
Frequency Response
20 to 1,000 Hz
Voice Coil Diameter
2.20"
Magnet Weight
82.5 oz.
DC Resistance (Re)
3.5 ohms
Voice Coil Inductance (Le)
2.33 mH
Resonant Frequency (Fs)
26 Hz
Mechanical Q (Qms)
3.94
Electromagnetic Q (Qes)
0.29
Total Q (Qts)
0.27
Diaphragm Mass Inc. Airload (Mms)
160g
Mechanical Compliance of Suspension (Cms)
0.24 mm/N
Compliance Equivalent Volume (Vas)
1.62 ft.³
Maximum Linear Excursion (Xmax)
15 mm
Overall Outside Diameter
10.59"
Overall Depth
5.96"
Baffle Cutout Diameter
9.29"
Bolt Circle Diameter
10.1"
# Mounting Holes
8

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Cloned the FlexBase25 of Amphion, these drivers are a perfect fit related to the reversed engineered bass management kit.
Ultra Fast, and clean bass – i.e Reference Sound
Durch Peter B. on 9 September 2019
