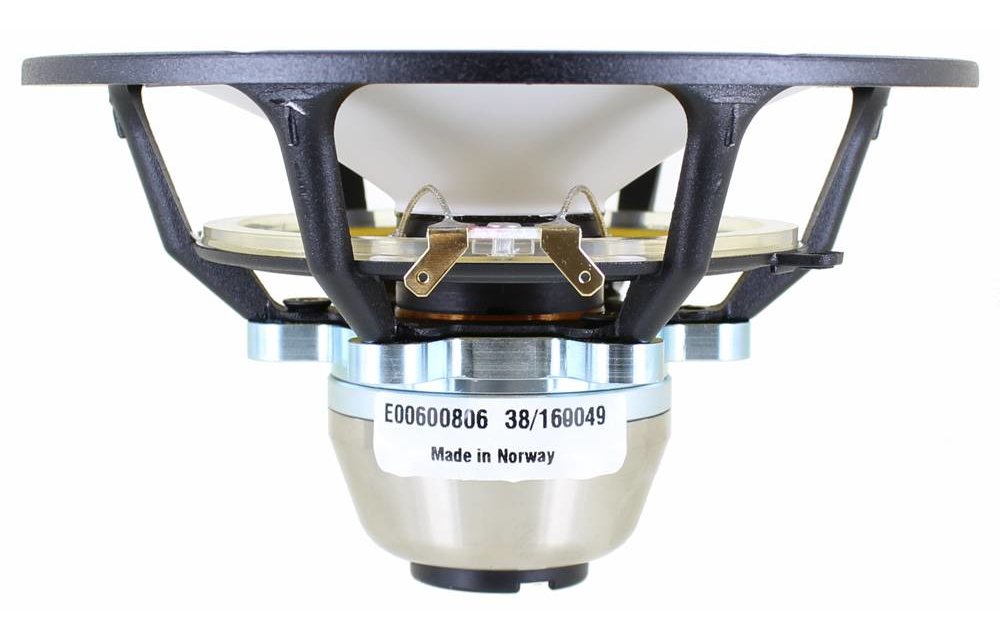

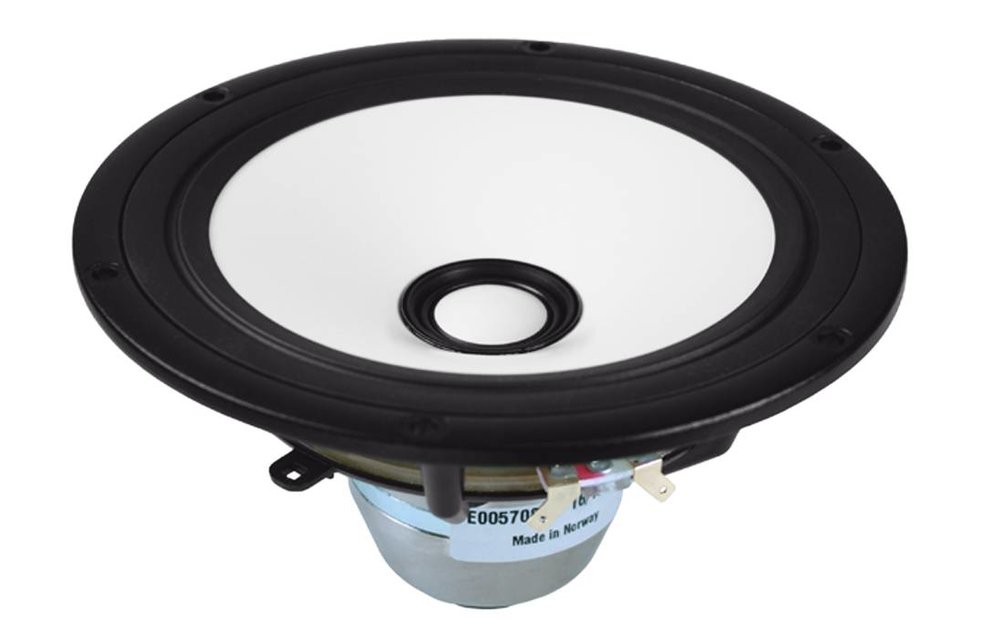

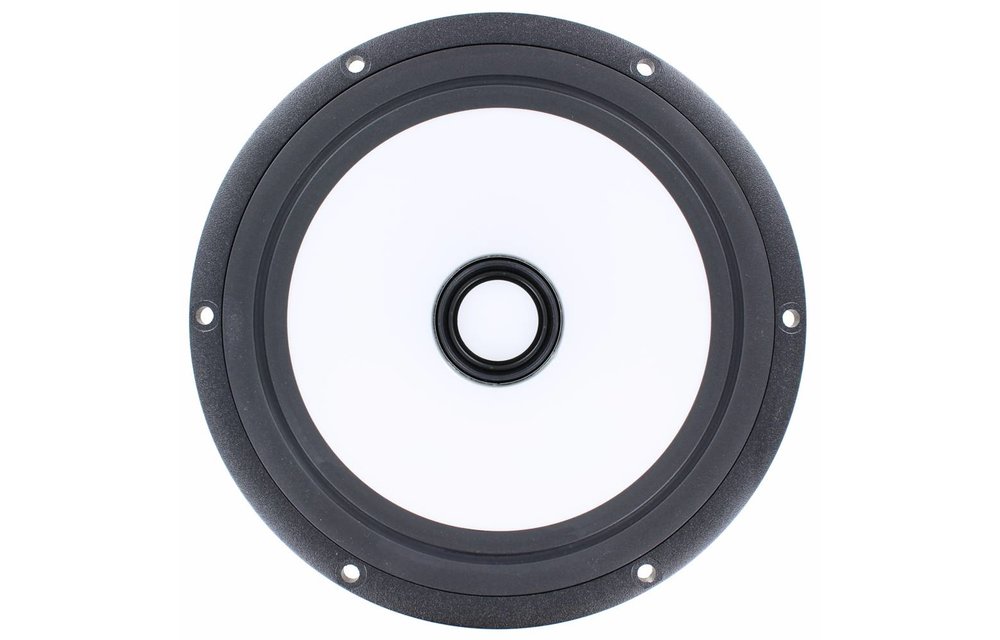

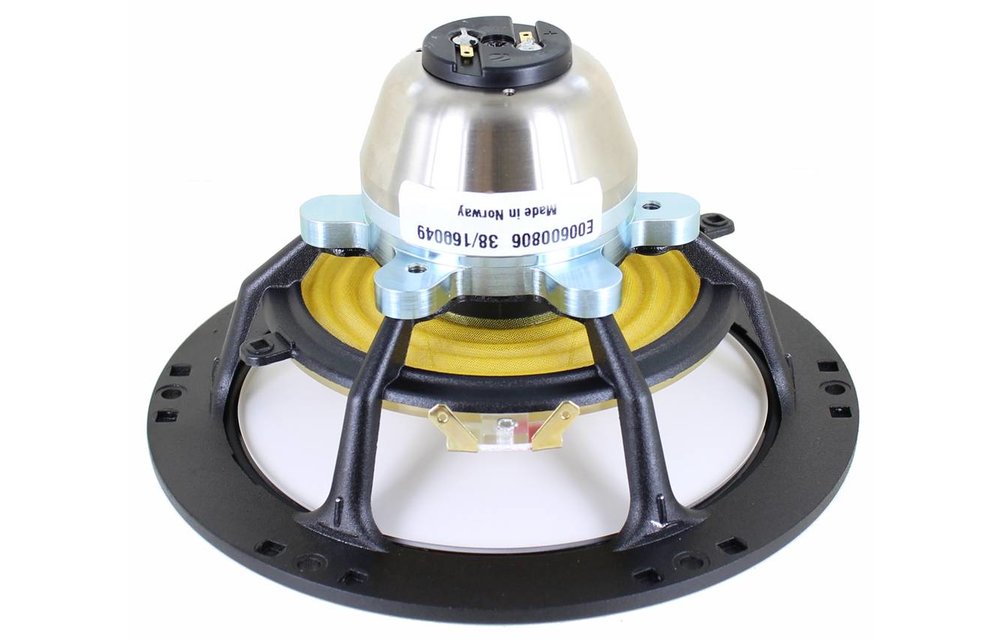

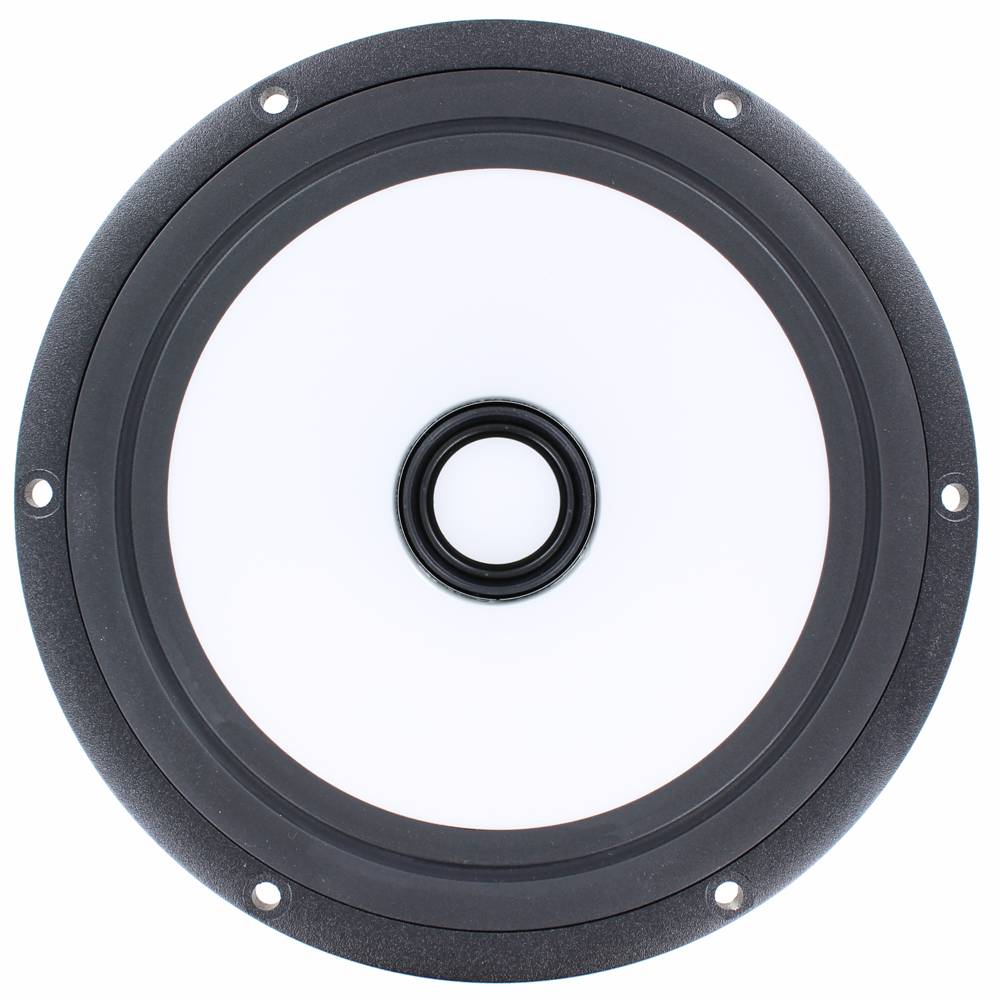

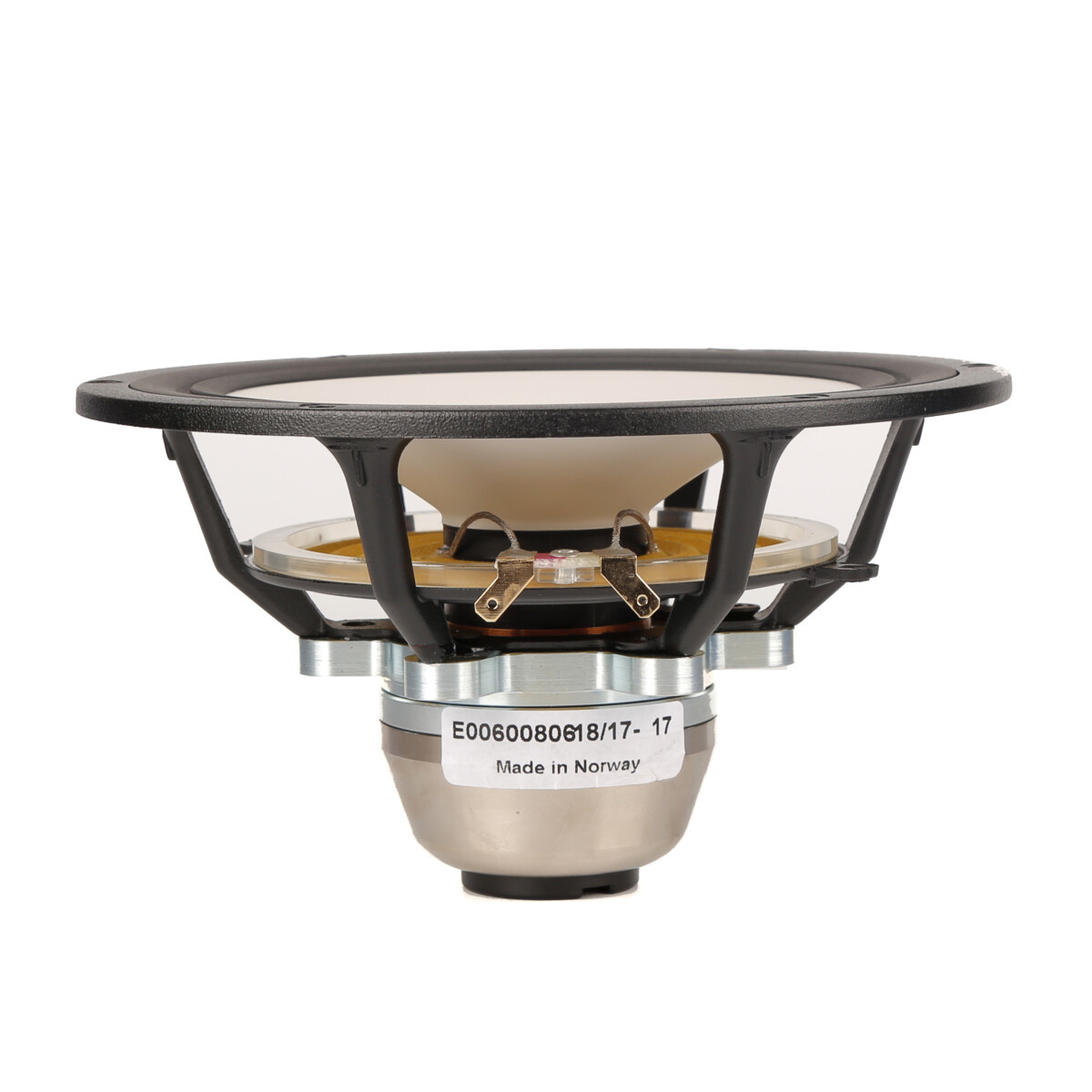

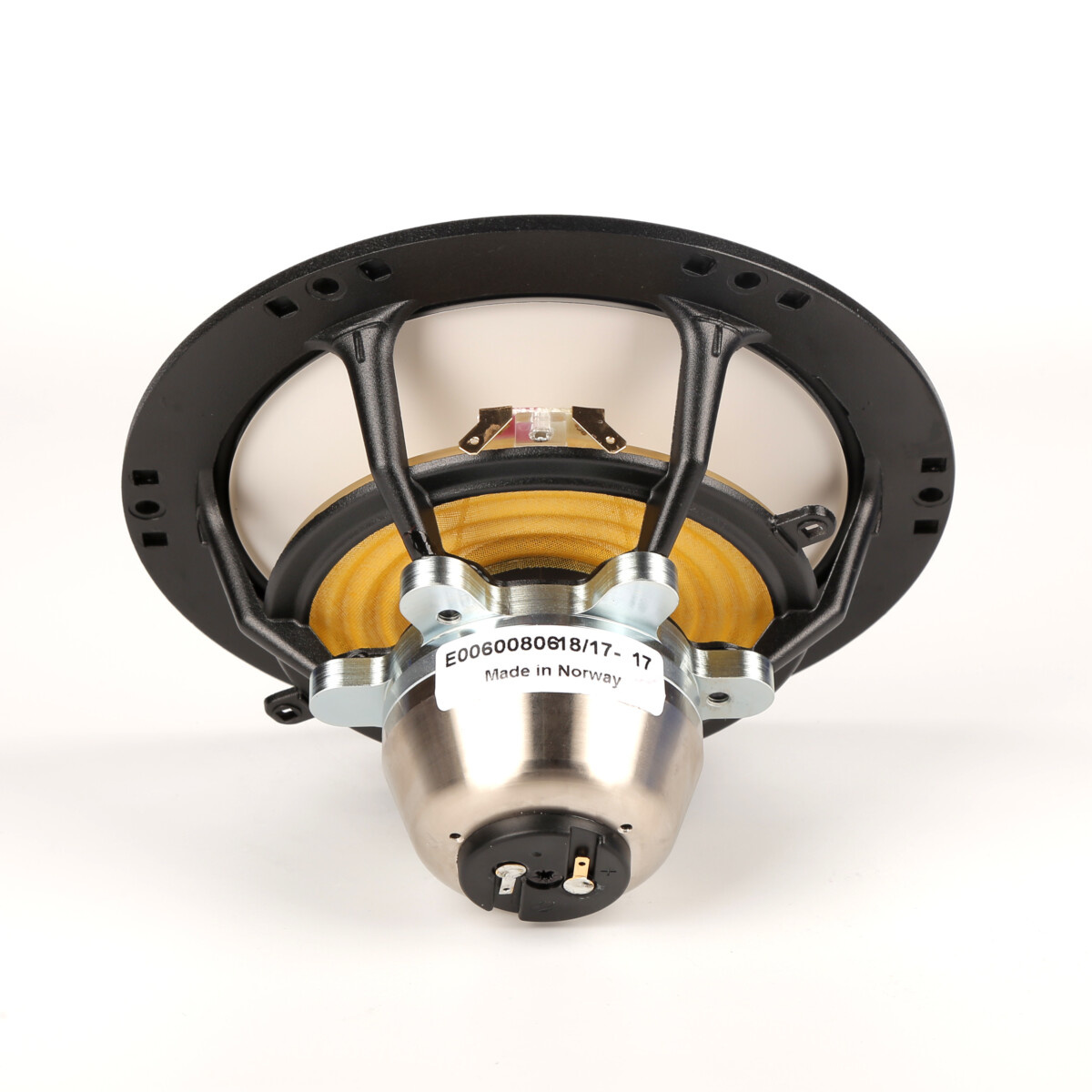

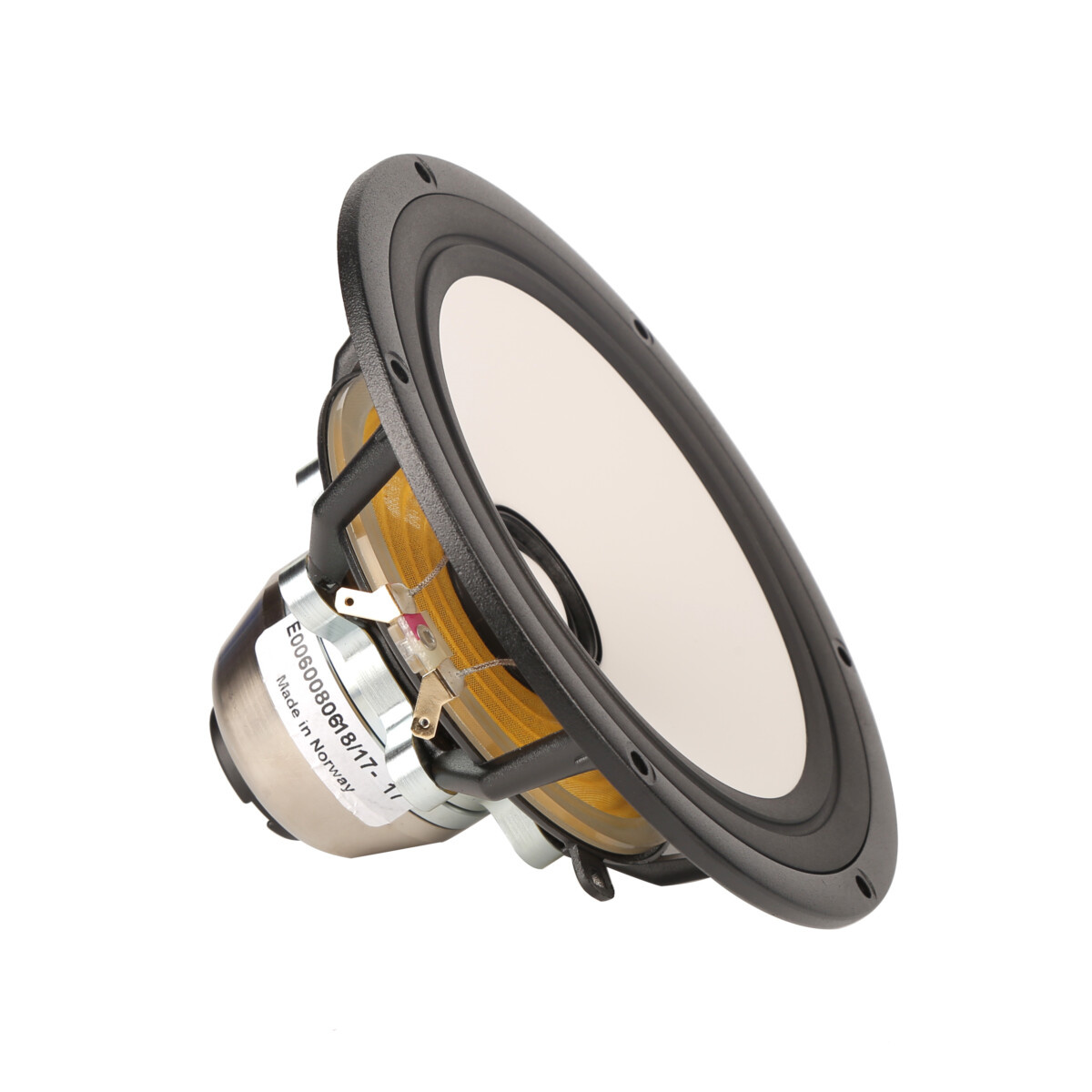

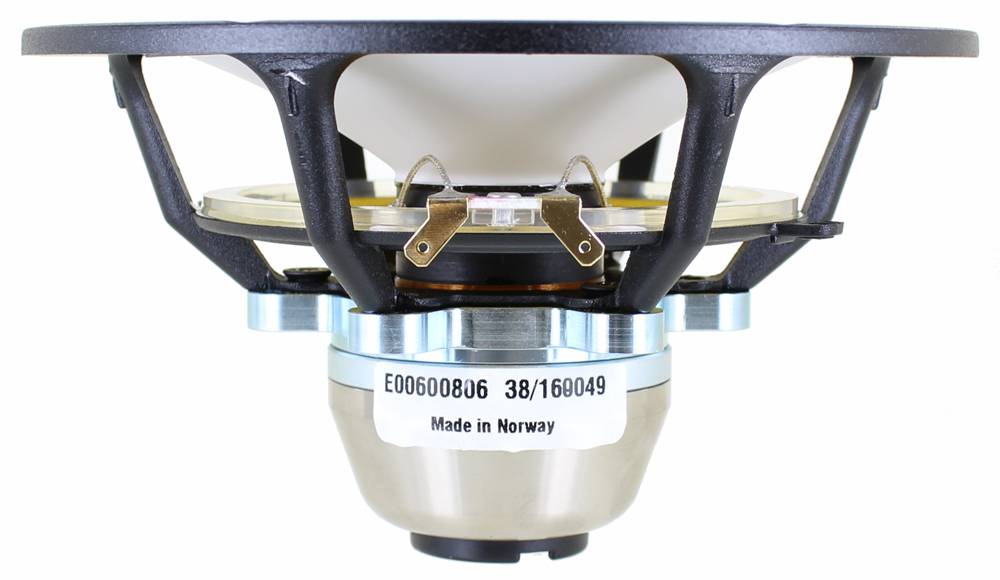

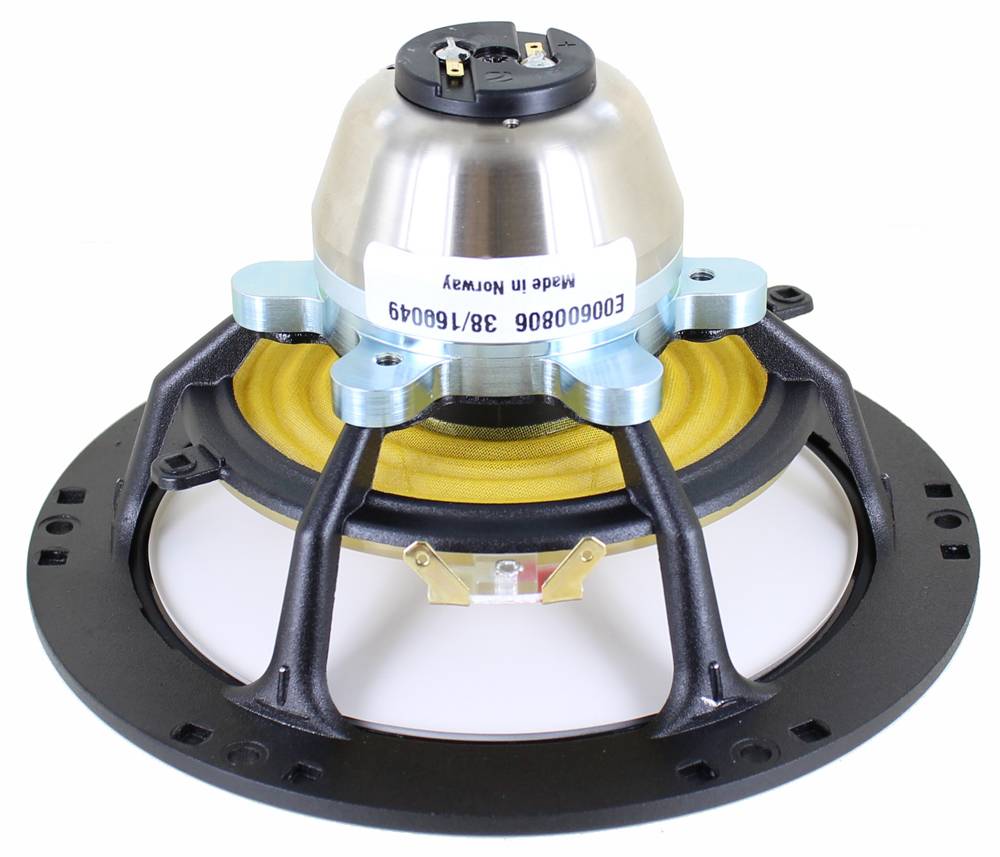

SEAS Excel C18EN002/A - E0060-08/06S 6.5" Coaxial Woofer

€ 330,54€ 399,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
This driver features a low-mass, surface-treated aluminum/magnesium alloy cone which behaves like a piston throughout the audible frequency range, without any sign of midrange resonances. The coaxially mounted aluminum/magnesium alloy dome tweeter has a l... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €379,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 100 Watts (Woofer) and 90 Watts (Tweeter)
  • Low-mass, surface-treated aluminum/magnesium alloy cone
  • Powerful neodymium magnet system results in high midrange sensitivity with minimal back wave reflections



Product details

Seas Excel C18EN002/A - E0060-08/06S 6.5" Coaxial Woofer



This driver features a low-mass, surface-treated aluminum/magnesium alloy cone which behaves like a piston throughout the audible frequency range, without any sign of midrange resonances. The coaxially mounted aluminum/magnesium alloy dome tweeter has a low resonance frequency and integrates with the cone driver to form a point source. The cone profile has been carefully designed to optimally load the tweeter’s radiation.



A completely new rubber surround reduces resonances and prevents surround break up in the midrange band. The surround’s small inverted roll, combined with a profile that follows the shape of the cone, results in almost total elimination of diffraction effects on the tweeter’s output. The powerful neodymium magnet system, with its small profile and optimal shape, results in high midrange sensitivity with minimal back wave reflections.



Heavy copper rings mounted above and below the T-shaped pole piece reduce nonlinear and modulation distortion and increase overload margin. The crown-shaped copper tweeter support ring eliminates any resonance coming from the cavity between the tweeter body and midrange voice coil former. All these features work together to provide a smooth and well behaved off-axis response throughout the entire operating range.

Eigenschaften

Artikelnummer:
C18EN002/A
Woofer Series
Excel Series
Woofer Type
Coaxial
Nominal Diameter
6.5"
Power Handling (RMS)
100 Watts
Power Handling (max)
250 Watts
Impedance
8 ohms
Sensitivity
87 dB 2.83V/1m
Frequency Response
150 - 25,000 Hz
Voice Coil Diameter
1.53"
Magnet Weight
33.5 oz.
DC Resistance (Re)
6.2 ohms
Voice Coil Inductance (Le)
0.62 mH
Resonant Frequency (Fs)
98 Hz
Mechanical Q (Qms)
2.16
Electromagnetic Q (Qes)
0.86
Total Q (Qts)
0.62
Diaphragm Mass Inc. Airload (Mms)
1.69g
Mechanical Compliance of Suspension (Cms)
0.17 mm/N
Compliance Equivalent Volume (Vas)
0.13 ft.³
Maximum Linear Excursion (Xmax)
3 mm
