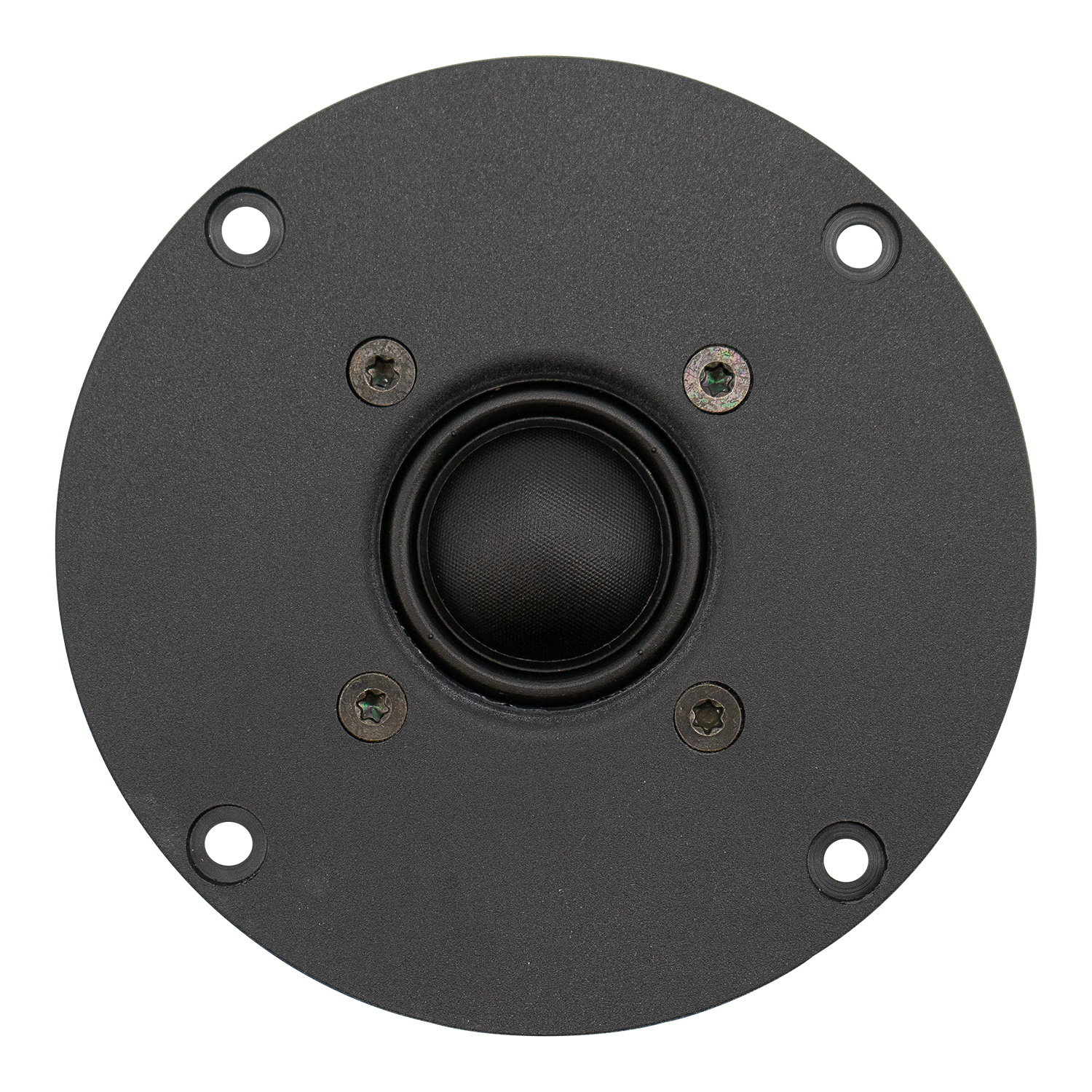

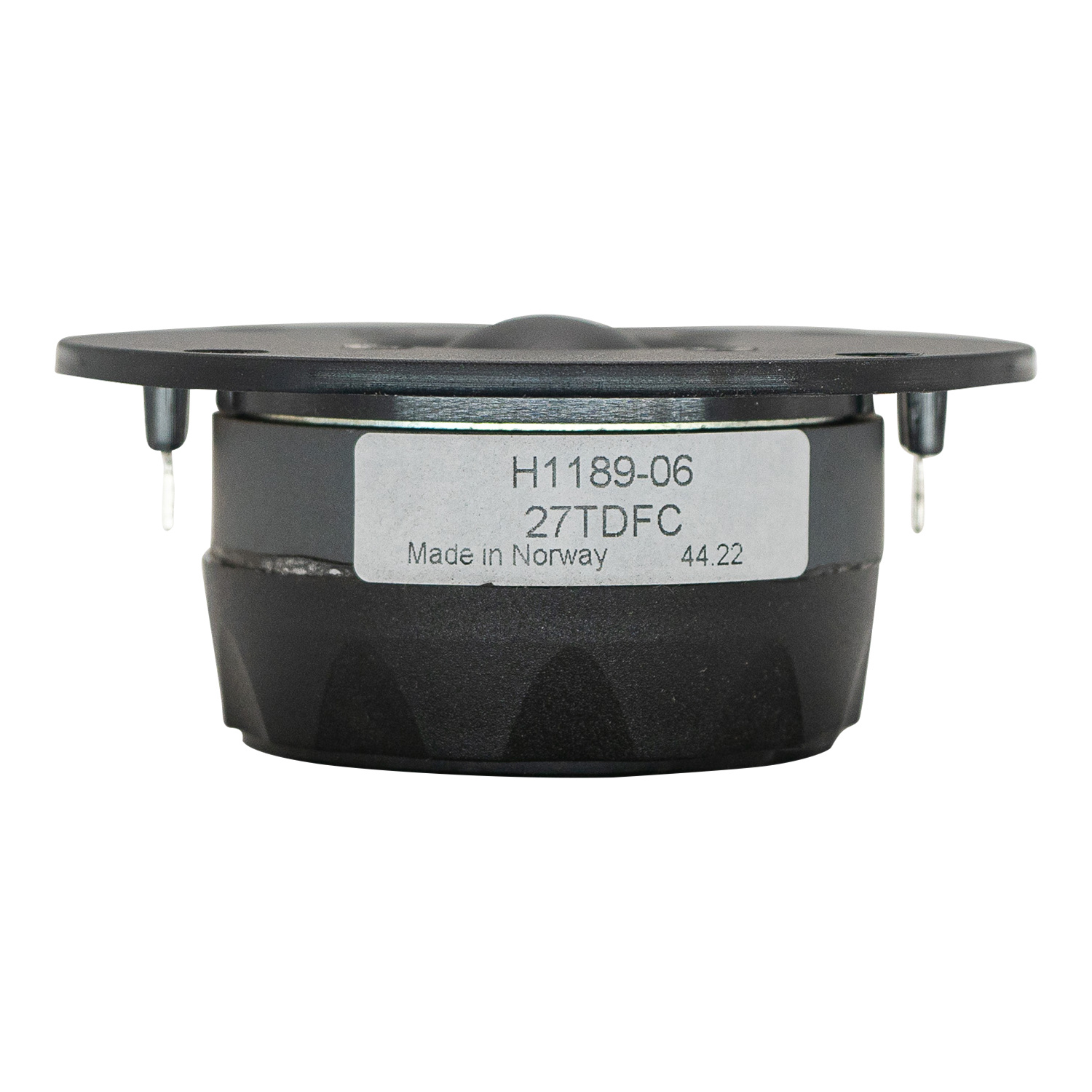

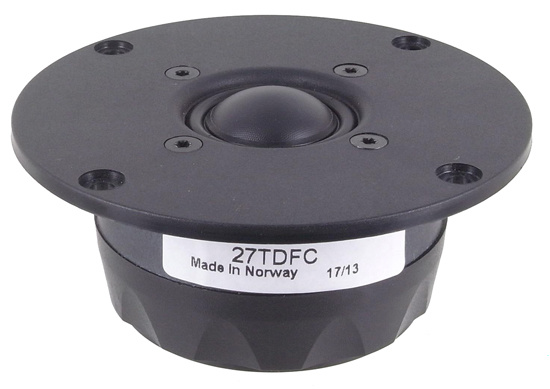

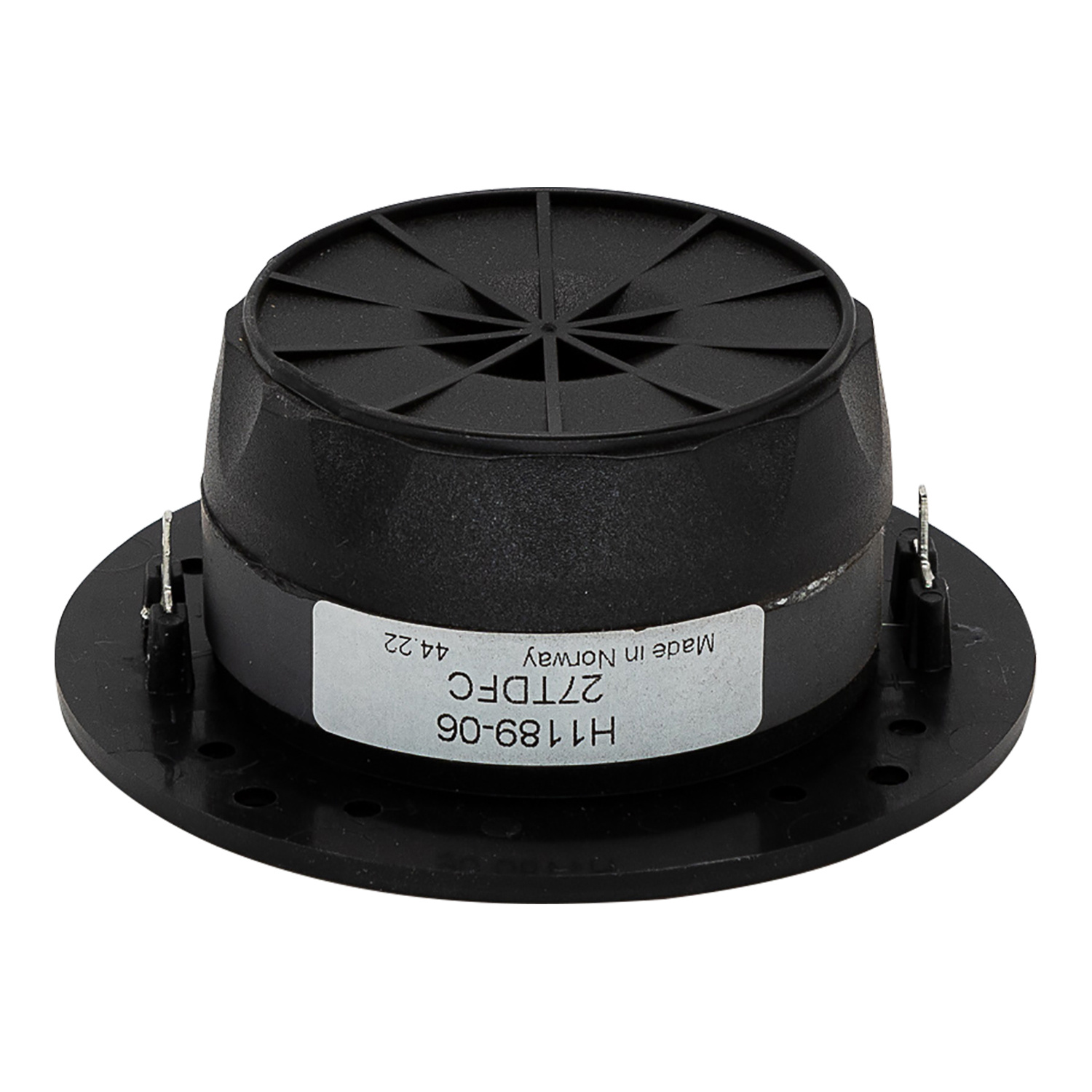

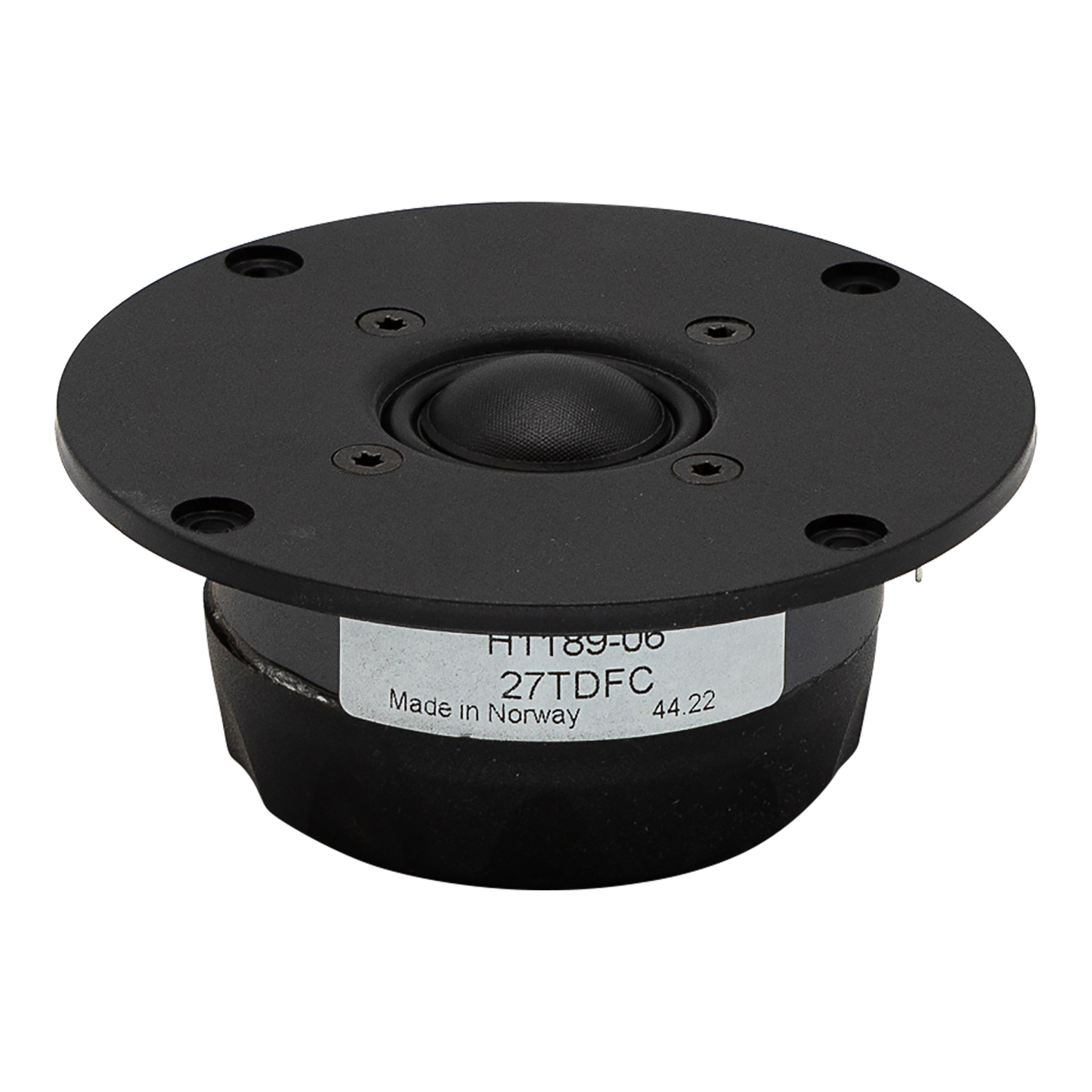

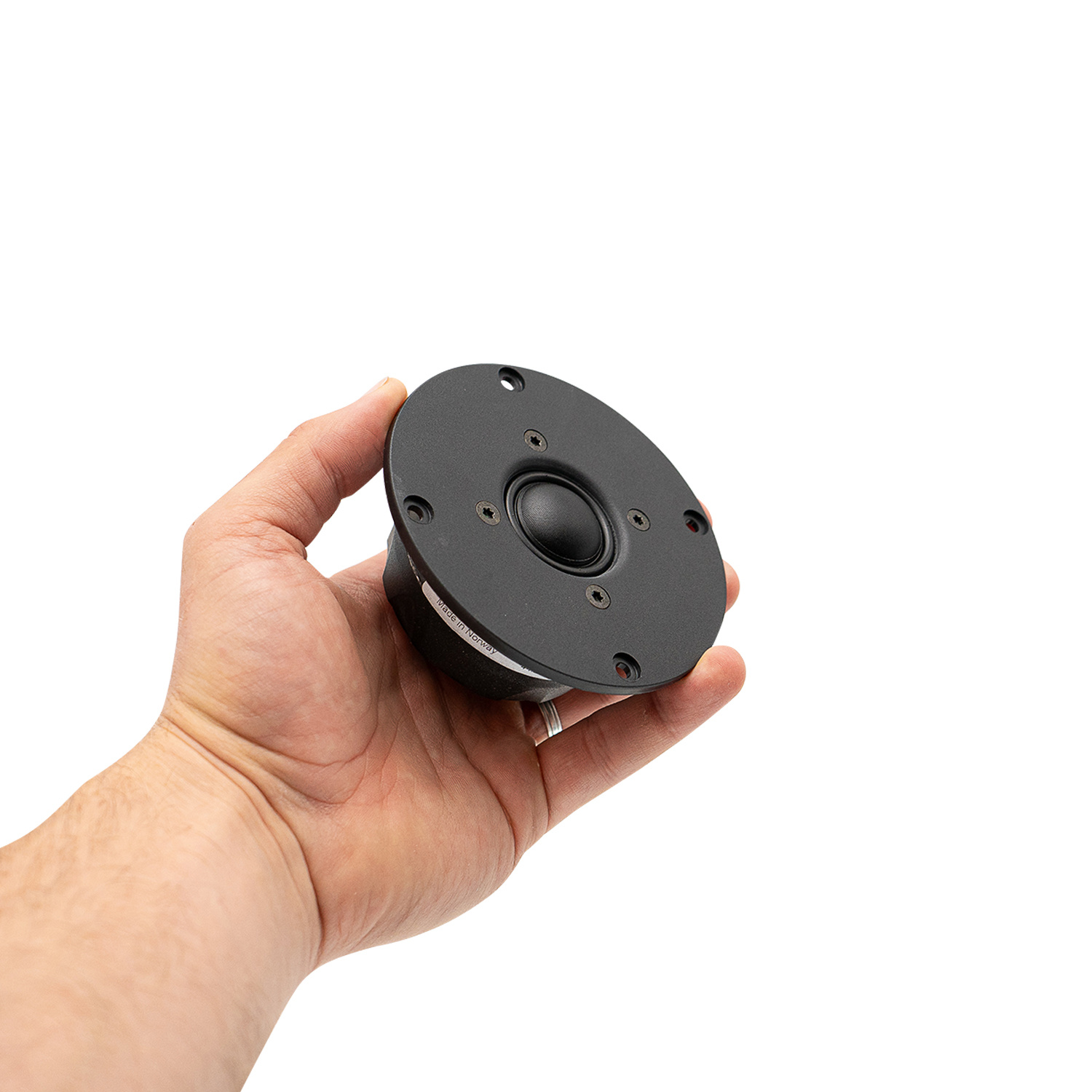

SEAS Prestige 27TDFC - H1189-06 1'' Textile Dome Tweeter

€ 39,88€ 48,25 >10 Auf Lager: Lieferzeit 1-3 Werktage
The 27TDFC is a high definition precoated fabric dome tweeter with a wide, soft polymer surround and a rear chamber. Sonotex precoated fabric diaphragm with high consistency and excellent stability against variations in air humidity. Sonomax surround for... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €45,84 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Sonotex precoated fabric diaphragm with high consistency and excellent stability against variations in air humidity
  • 90 Watts RMS Power Handling
  • 90 dB 2.83V/1m Sensitivity



Product details

Seas Prestige 27TDFC - H1189-06 1'' Textile Dome Tweeter



The 27TDFC is a high definition precoated fabric dome tweeter with a wide, soft polymer surround and a rear chamber. Sonotex precoated fabric diaphragm with high consistency and excellent stability against variations in air humidity. Sonomax surround for low resonance and excellent mechanical linearity.



Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. Stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies.



The chassis is precision molded from glass fiber reinforced plastic, and its front design offers optimum radiation conditions.

Eigenschaften

Artikelnummer:
27TDFC
Tweeter Type
Textile Dome
Tweeter Series
Prestige Series
Cone / Dome Diameter
1''
Power Handling (RMS)
90 Watts
Impedance
6 ohms
Sensitivity
90 dB 2.83V/1m
Frequency Response
1,500 to 25,000 Hz
Resonant Frequency (Fs)
90 dB 2.83V/1m
DC Resistance (Re)
4.8 ohms
Voice Coil Inductance (Le)
0.05 mH
Overall Outside Diameter
4.09"
Cutout Diameter
3.35"
Depth
1.67"
