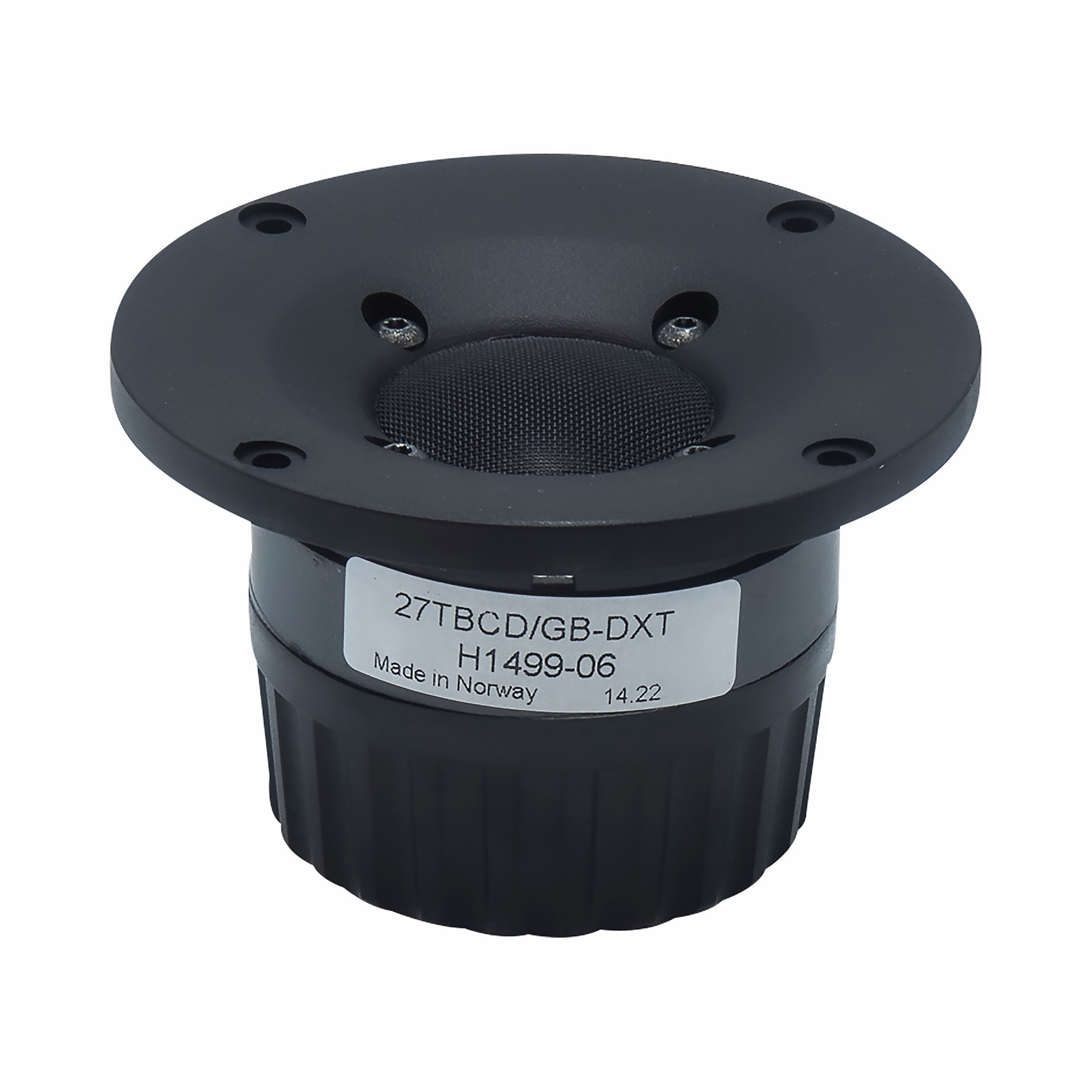

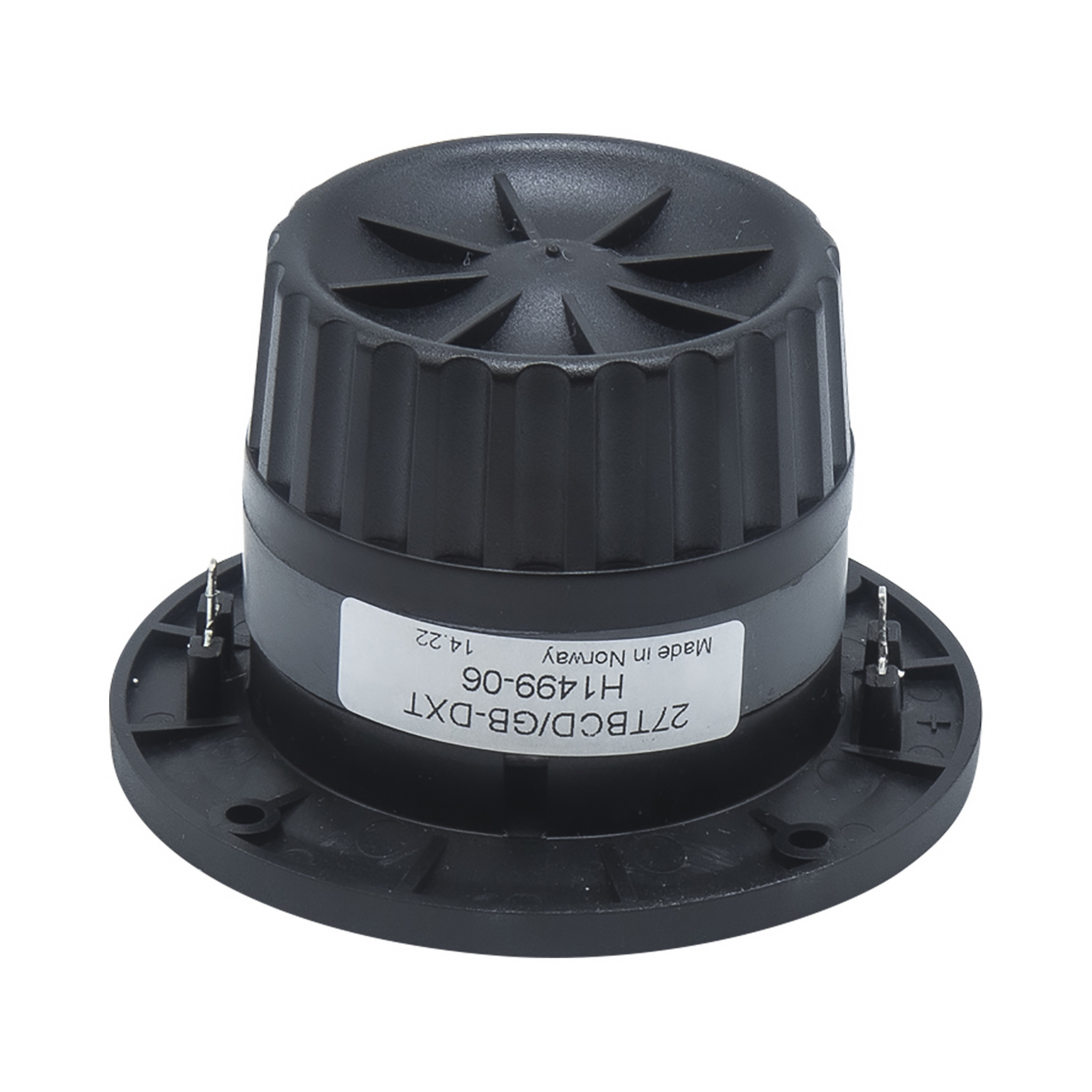

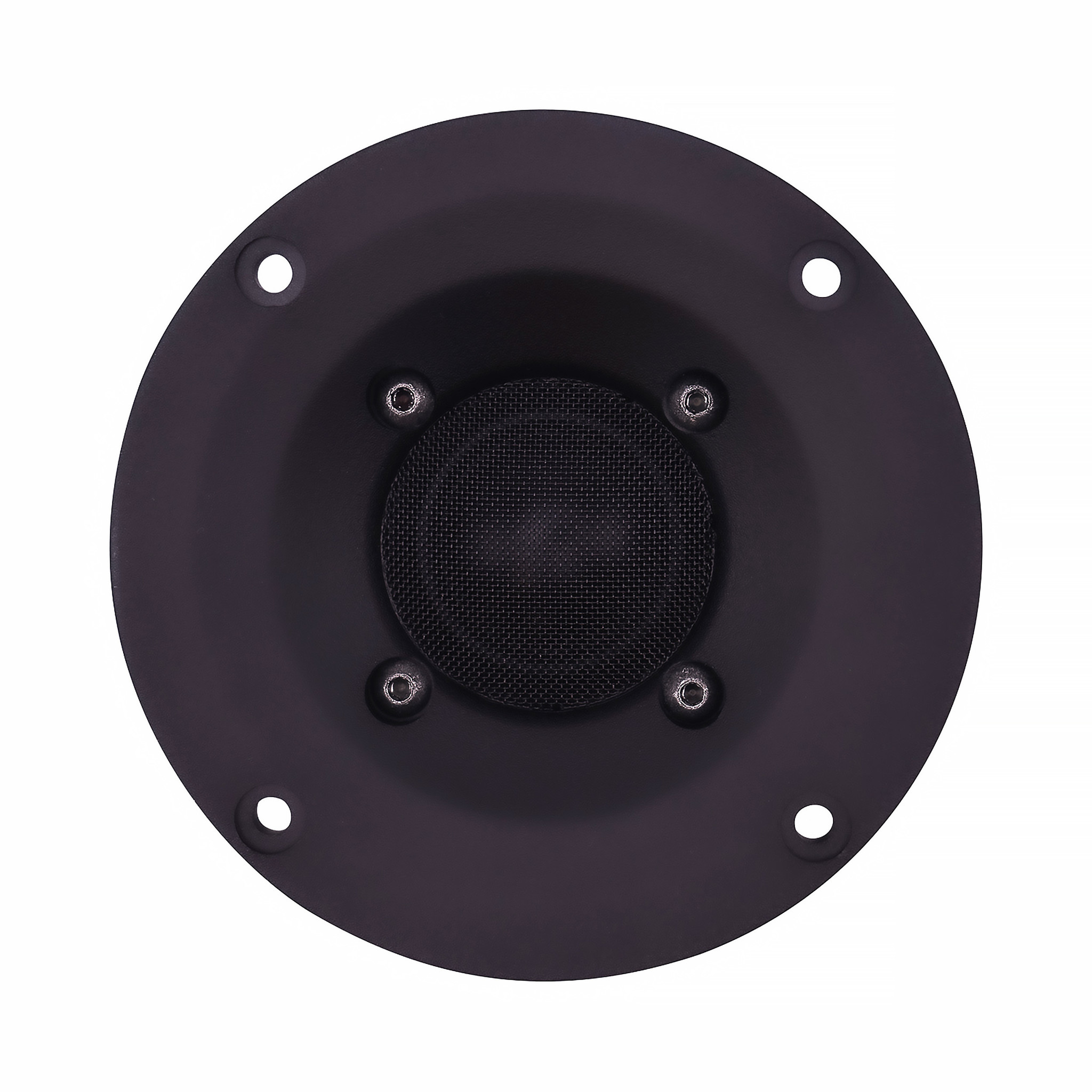

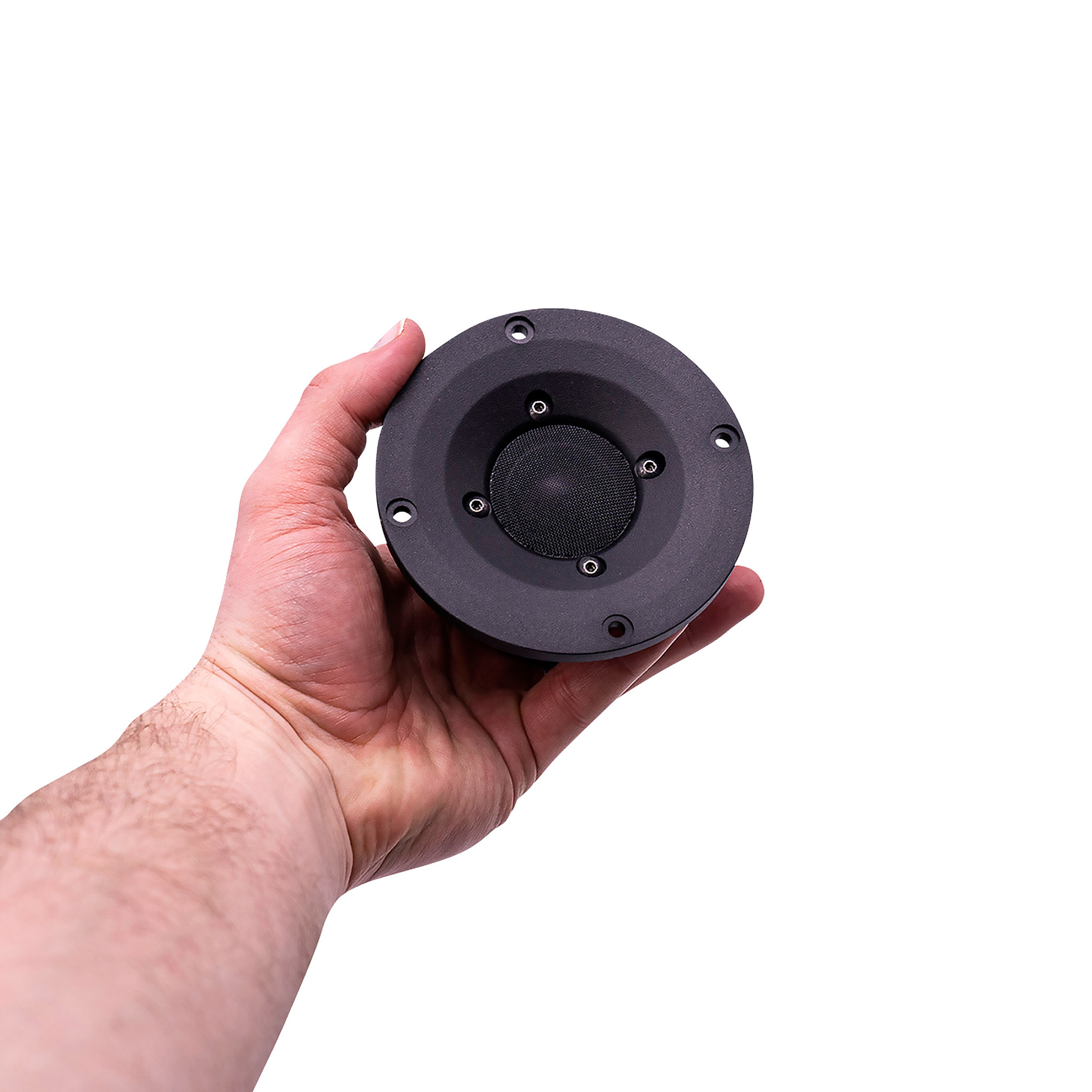

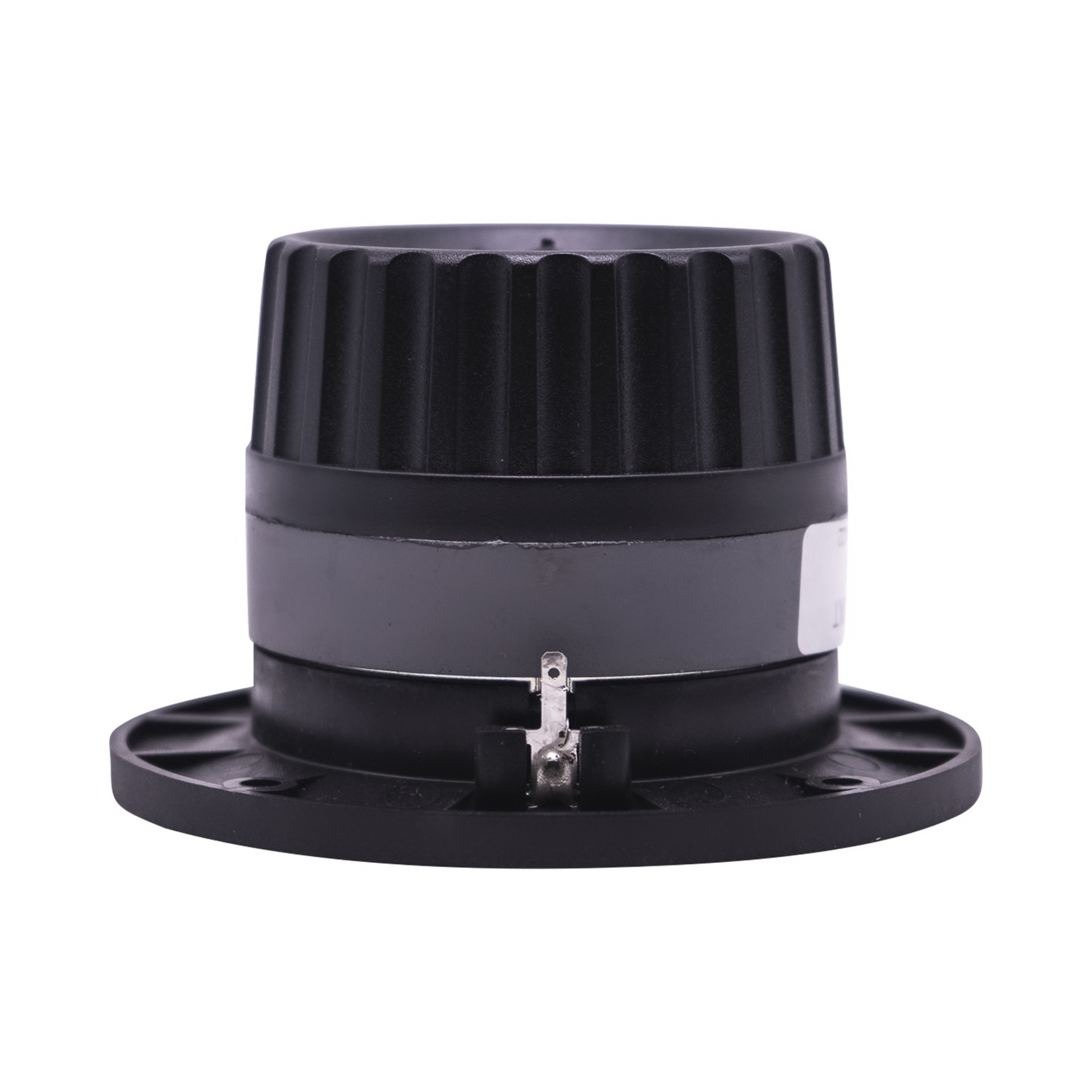

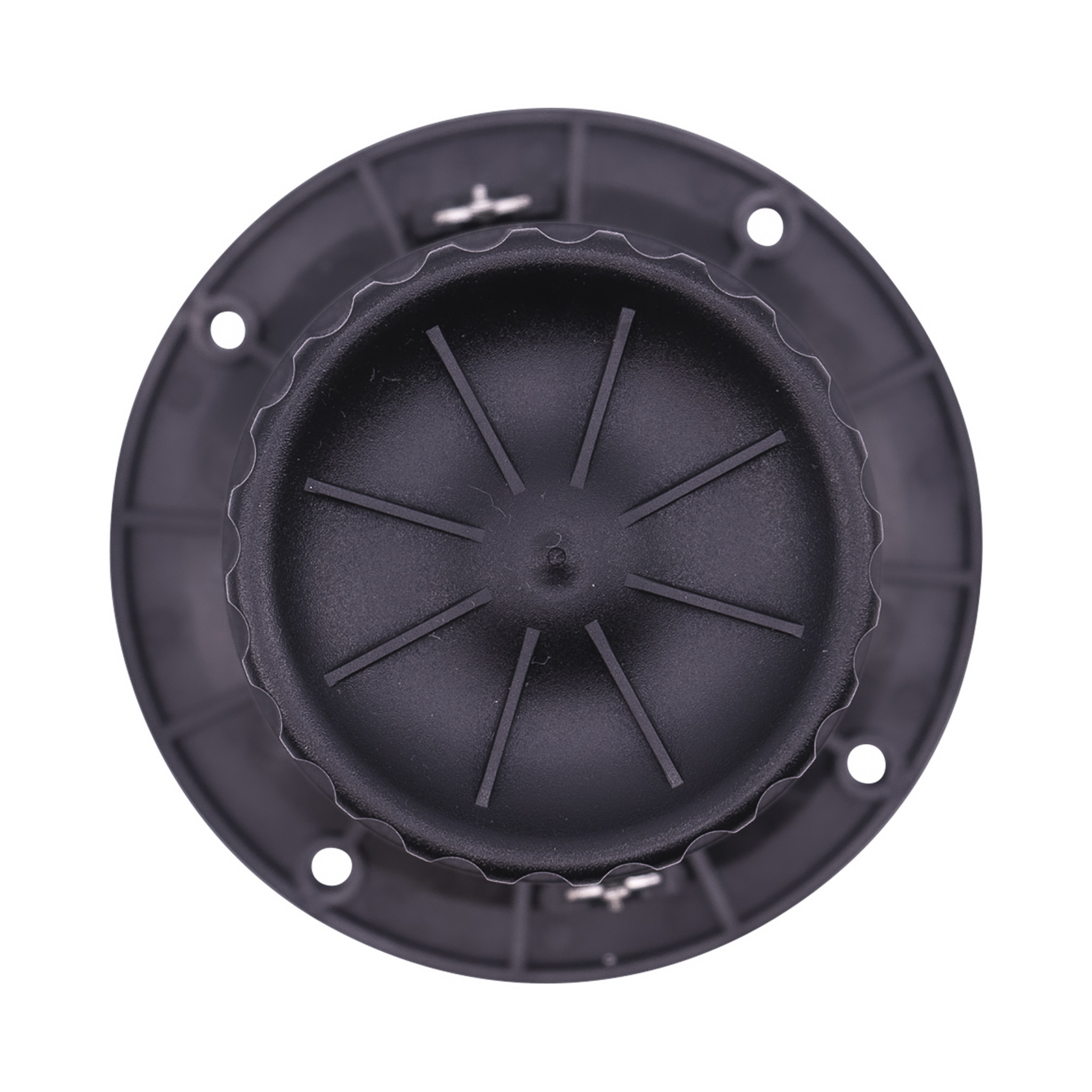

SEAS Prestige 27TBCD/GB-DXT - H1499-06 1'' Aluminum Dome Tweeter

€ 69,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
The 27TBCD/GB-DXT is a High Definition aluminum/magnesium alloy dome tweeter with DXT® lens. An optimally shaped dome and a wide SONOMEX surround, both manufactured by SEAS, ensure excellent performance and consistency. The compensation magnet increases t... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €66,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Compensation magnet increases sensitivity and reduces the magnetic strayfield while allowing its use in close proximity to CRT screens
  • 55 Watts RMS Power Handling
  • 92 dB 2.83V/1m Sensitivity



Product details

Seas Prestige 27TBCD/GB-DXT - H1499-06 1'' Aluminum Dome Tweeter



The 27TBCD/GB-DXT is a High Definition aluminum/magnesium alloy dome tweeter with DXT® lens. An optimally shaped dome and a wide SONOMEX surround, both manufactured by SEAS, ensure excellent performance and consistency. The compensation magnet increases the sensitivity and reduces the magnetic strayfield and allows use in close proximity to CRT screens. A fine mesh grid protects the diaphragm.



The stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies. This revolutionary DXT® tweeter addresses the major issues regarding directivity control in traditional loudspeaker designs as well as off-axis response, integration with midrange units and baffle diffractions.

Eigenschaften

Artikelnummer:
27TBCD/GB-DXT
Tweeter Type
Aluminum Dome
Tweeter Series
Prestige Series
Cone / Dome Diameter
1''
Power Handling (RMS)
55 Watts
Impedance
6 ohms
Sensitivity
92 dB 2.83V/1m
Frequency Response
2,000 to 25,000 Hz
Resonant Frequency (Fs)
900 Hz
DC Resistance (Re)
4.8 ohms
Voice Coil Inductance (Le)
0.05 mH
Overall Outside Diameter
4.1"
Cutout Diameter
3.35"
Depth
2.57"

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
Als Ersatz für meine kaputte Pioneer s99t Hochtöner. Super Klang
Durch Ramiz M. on 30 Dezember 2019
5 van 5
From my perspective the Seas DXT is one of the best tweeters available, also Grimm are using it in their LS1 as well as the Kii Three (both >8.000EUR a pair).

The frequency response shows a wide increase from 790Hz to 10.000Hz caused/proofe that the Waveguide works. But the increase is easily to handle (active but also passive) so that we end around 88db @ 2,83V/m. The harmonic distortion is low even at 100db, from 2.000Hz K2 will be under 1% and K3 is also very low...

The major benefit of the DXT is the extreme uniform sound dispersion pattern, which is close to constant directivity!

My recommendation for best directivity is a very small baffle with wide chamfers close to the tweeter!

Best regards
Durch MS on 2 August 2019
