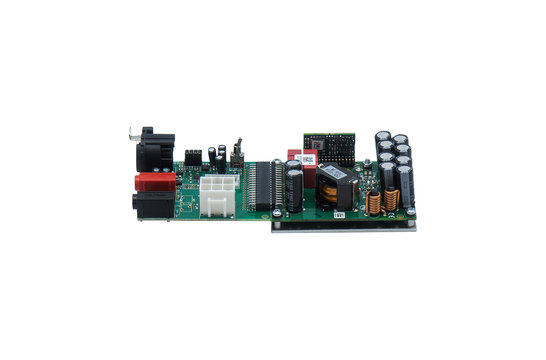

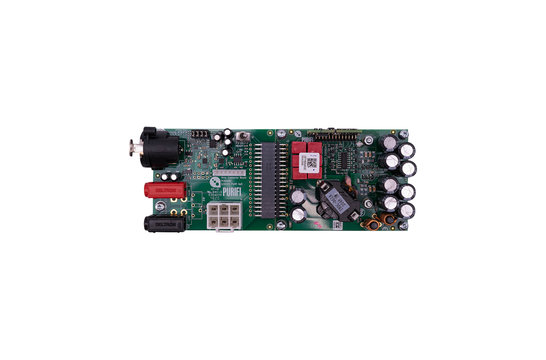

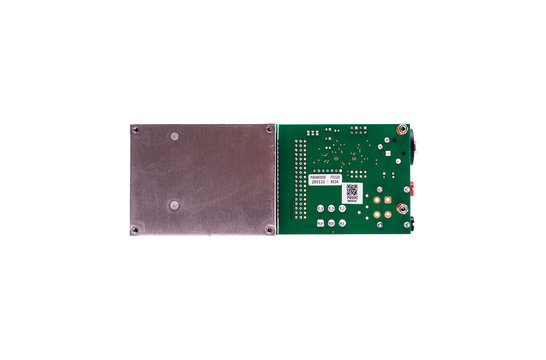

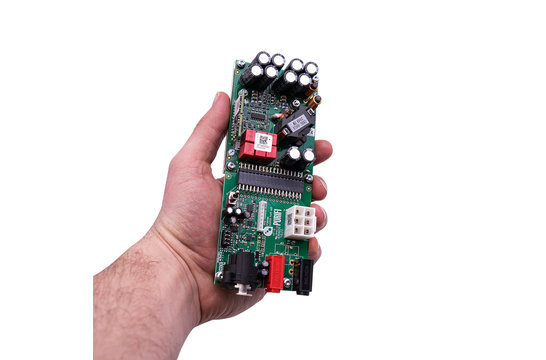

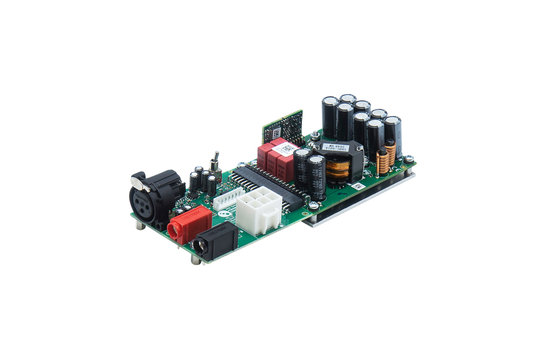

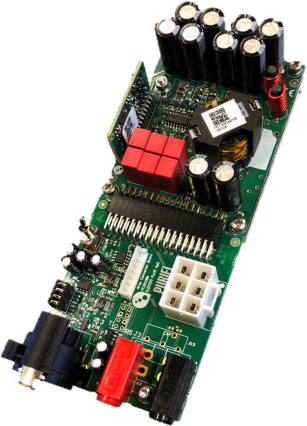

PURIFI EVAL2 | Eigentakt | Mono Amplifier Kit

€ 499,95 8 Auf Lager: Lieferzeit 1-3 Werktage
The EVAL2 mono evaluation kit creates easy signal and power supply connections for a mono 1ET400A setup. The kit is developed for evaluation purposes, but is perfect suitably for DIY applications... Mehr anzeigen
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

The EVAL2 mono evaluation kit creates convenient signal and power supply connections for a mono 1ET400A setup. The kit is developed for evaluation purposes, but is perfect suitably for DIY applications.



Highlights

  • Convenient 1-channel evaluation platform for 1ET400A
  • Balanced analog input (XLR) and banana-plug speaker connectors
  • On-board voltage regulators
  • Suitable for DIY projects
  • Two jumper selectable gain options



Product details

PURIFI EVAL2 | Eigentakt | Mono Amplifier Kit

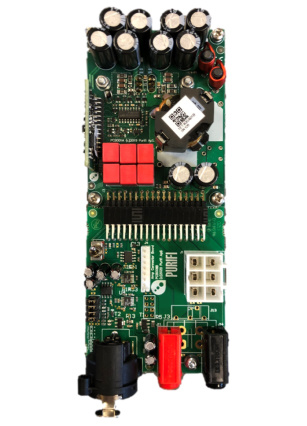

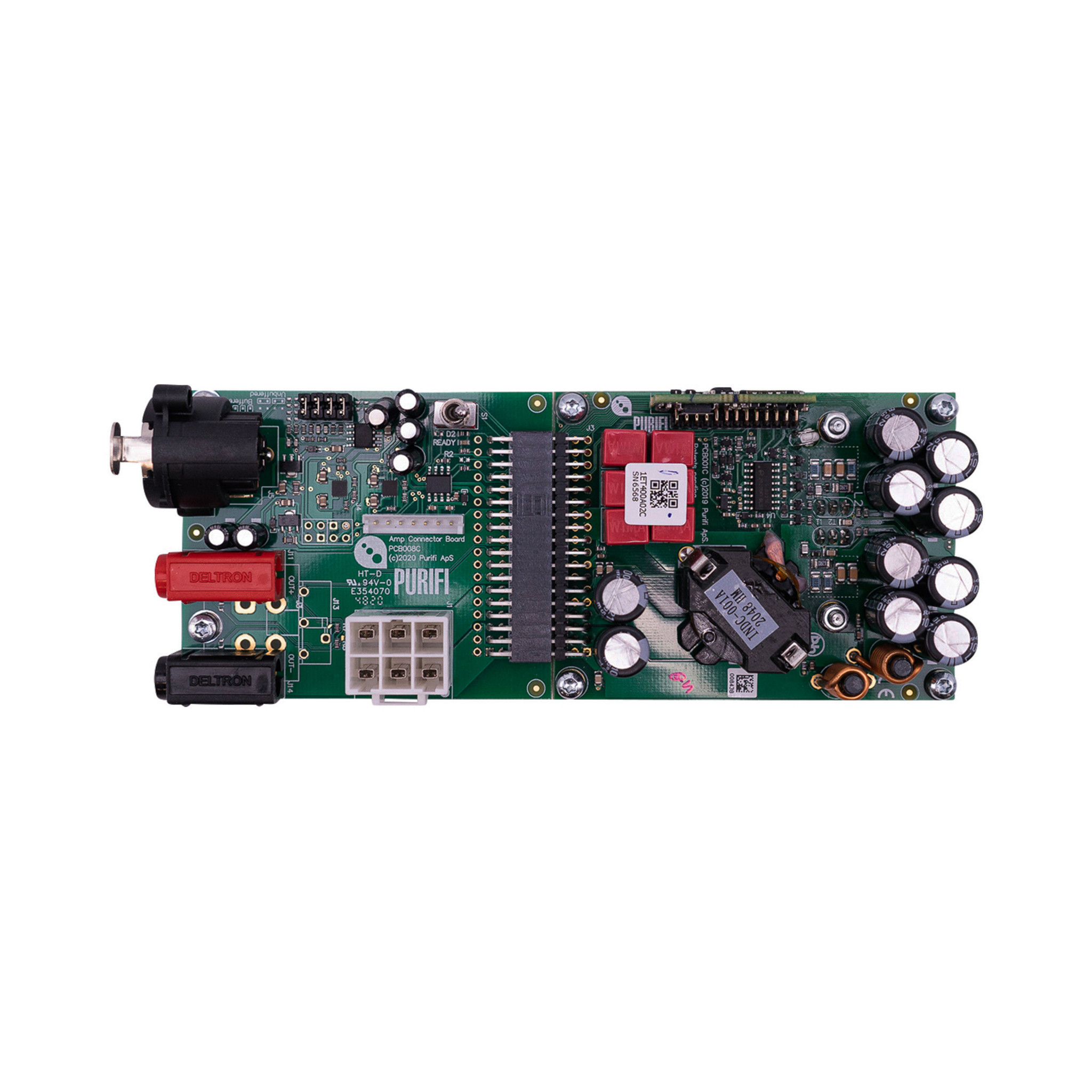

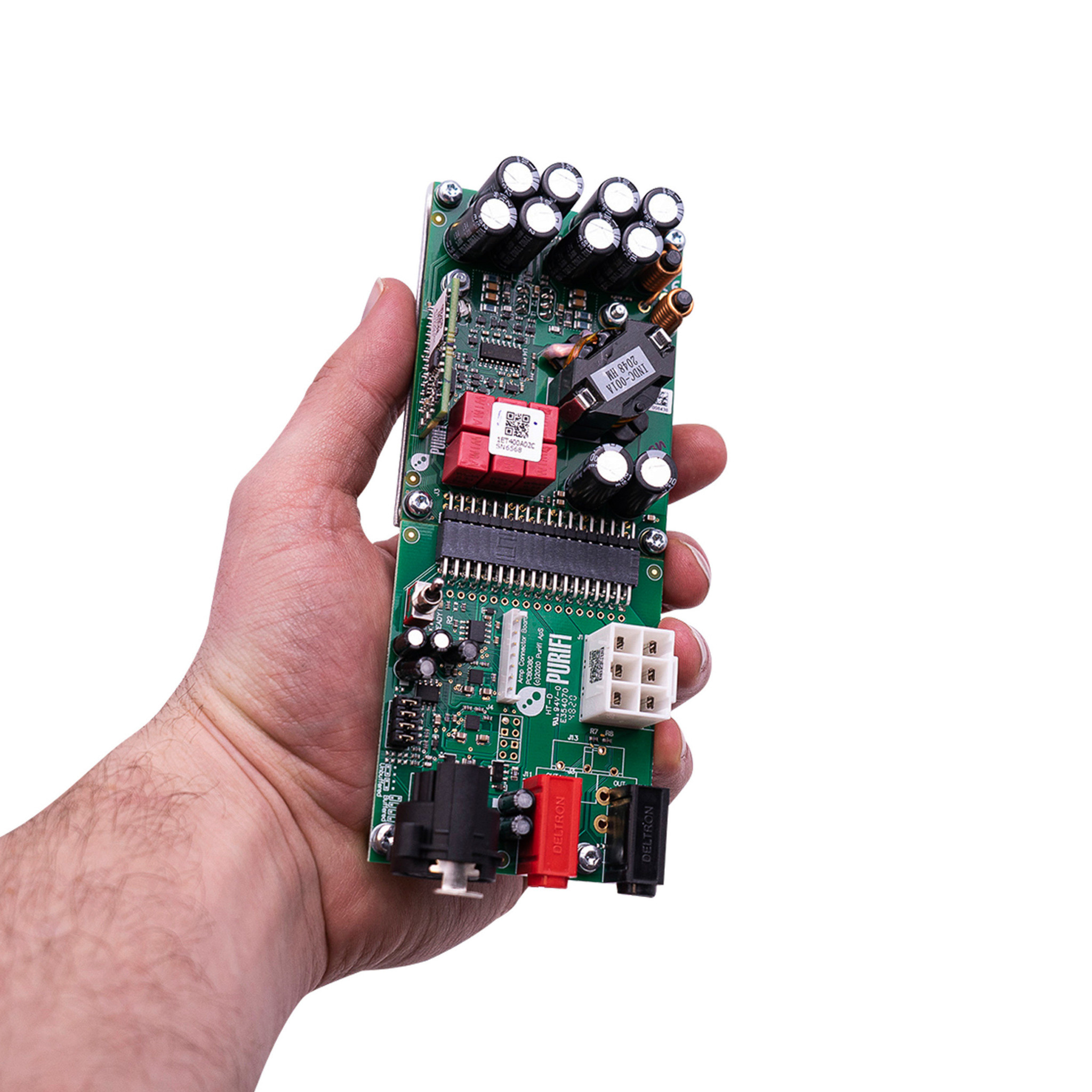

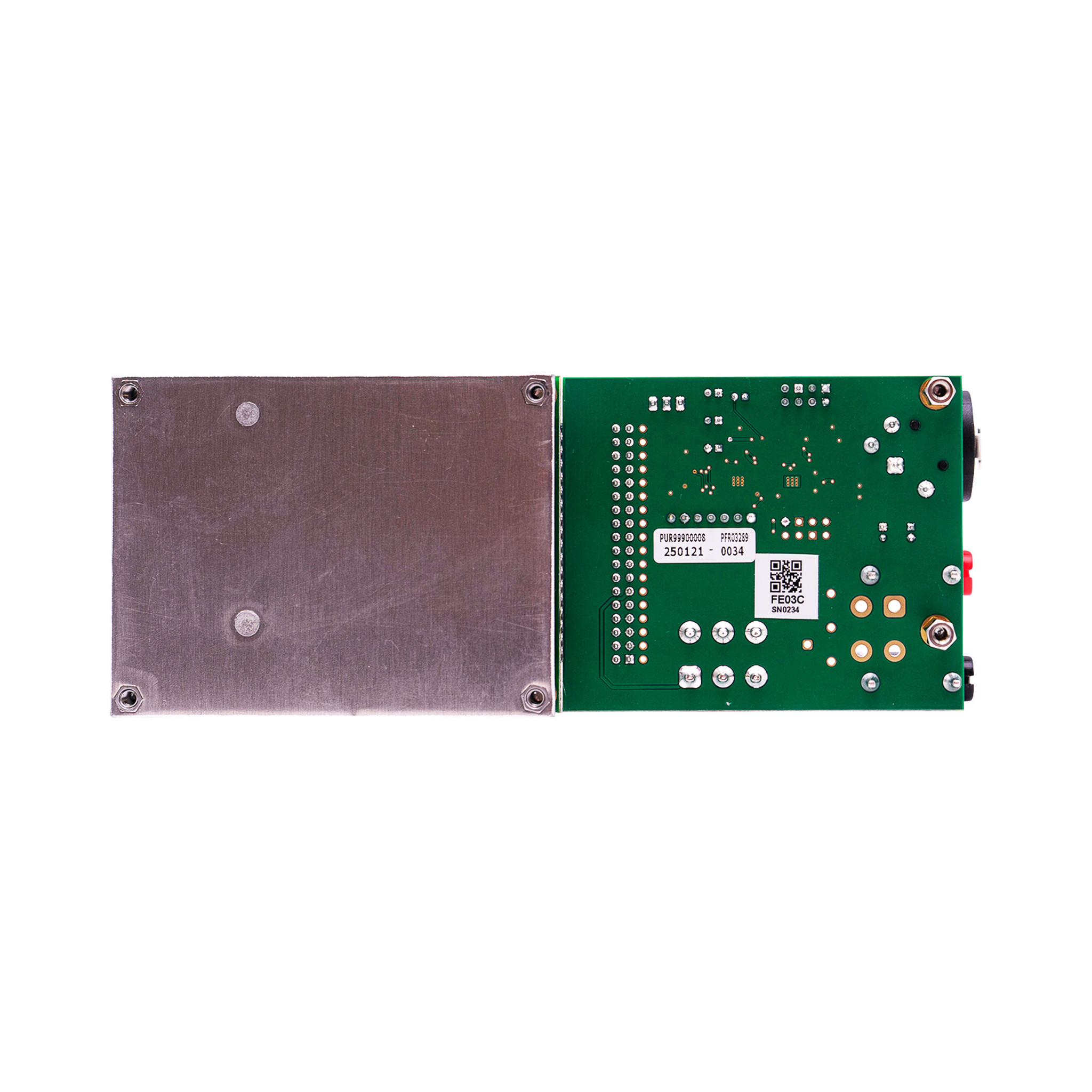

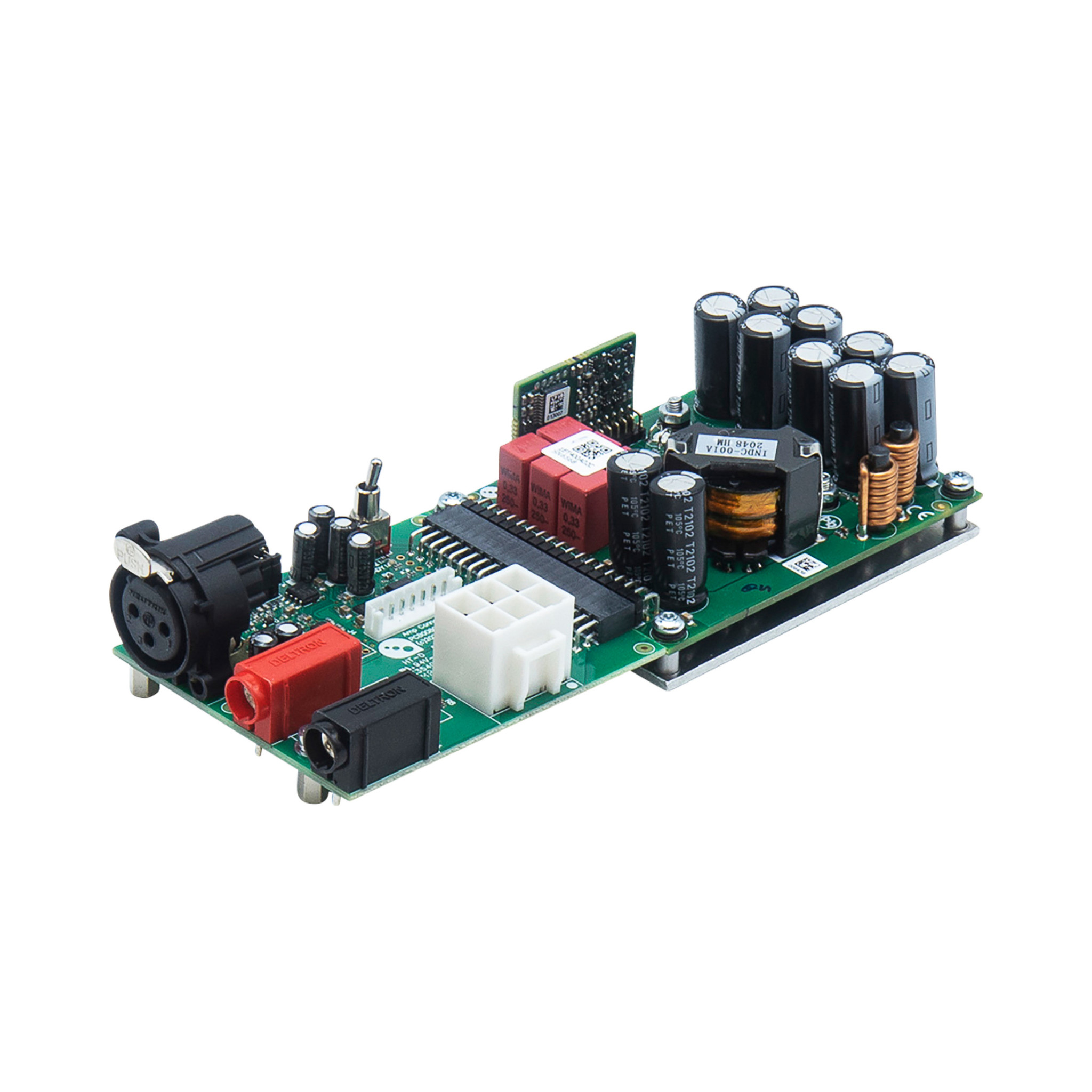

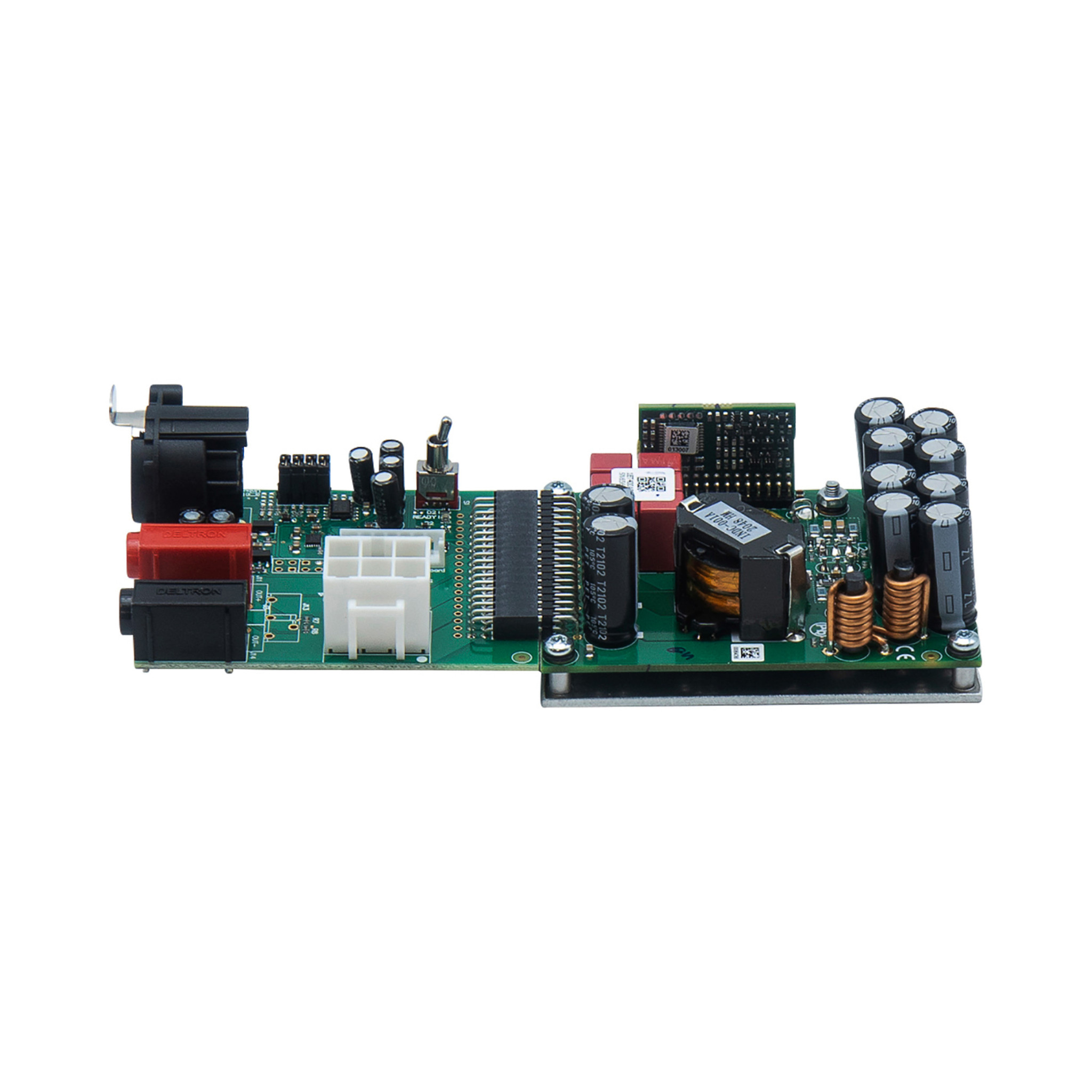

The 1ET400A amplifier module yields an audio quality level that sets the standard for power amplifiers of any operating class. The power supply and signal connections, available at the pin header on the1ET400A module, require special attention. This EVAL2 provides a buffered input signal and handles the power supply connections for a 1ET400A module in a convenient way.



The kit is supplied with a 1ET400A amplifier module, one FE01 stereo front-end module and a power supply cable set. The FE01 front-end module allows you to easily connect a compatible power supply with the supplied cable set. The signal input is connected through XLR. A set of banana speaker connectors make connecting a speaker easy.



The FE01 front-end module uses the OPA1612 opamp as pre-gain stage and buffer. The total gain for the EVAL2 (FE01 and 1ET400A) is 27 dB, but can set for a total gain of 14 dB. The opamp receive their supply voltage through a pair of onboard low noise discrete voltage regulators.

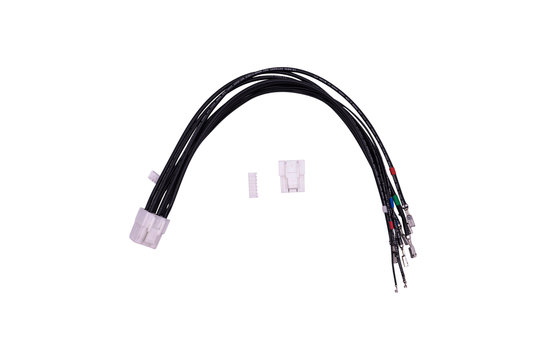

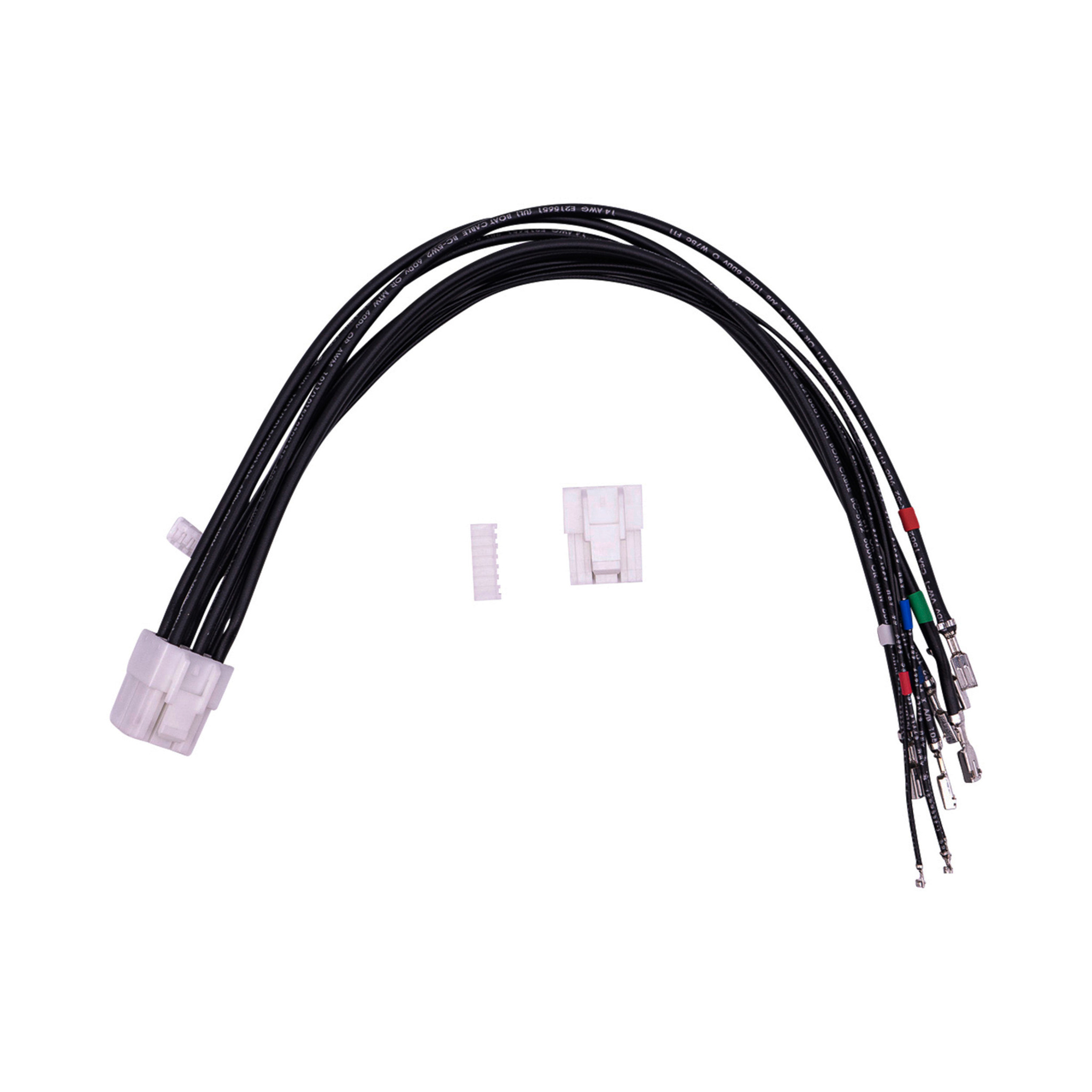

The EVAL2 is compatible with the Hypex SMPS600N400 switch mode power supply. The supplied cable set has pre-attached connector housings for the FE01 on one end. The other end has pre-crimped terminals with separate connector housings. This creates the possibility to connect the EVAL2 with any compatible power supply. The pre-crimped terminals and supplied JST housings are compatible with the SMPS600N400.



Looking for a Eigentakt stereo kit? Checkout this PURIFI EVAL1 Stereo Amplifier Kit.



What’s In The Box?

Eigenschaften

Artikelnummer:
EVAL2
Rated power output
<p/>425 watts at 4 ohms </br> 227 watts at 8 ohms </br> 450 watts at 2 ohms</p>
Minimum load
2 ohms
Efficiency
> 94%
Signal-to-noise ratio (SNR)
131 dB
Distortion
0.00017 % THD+N at 20-20,000 Hz, 4 ohms, 100 watts
Frequency Response
0 - 60,000 Hz
Gain
14 dB / 27dB
Input sensitivity
-
Input impedance
4.4k ohms (14 dB) / 10.2k ohms (27 dB)
Amplifier Classification
Class D
Circuit Topology
Eigentakt
Speaker output channels
1
Input connection type
XLR
Speaker output connection type
Banana
DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
25 - 70 VDC (symmetric supply +/-)
Power inlet connector
PCB connector
Current limit
25 A
Under/over voltage protection
check
Dimensions (L x W x H)
167 x 53 x 35 mm
Mounting hole spacing
-
Mounting hole diameter
-
