miniDSP miniDSP C-DSP 8x12 DL in-car digital audio processor

Momentan nicht vorrätig. Lieferzeit beträgt 1 Woche

  • Artikelnummer: C-DSP 8x12 DL
  • Nicht auf Lager

miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution a

€ 1.199,95

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

miniDSP miniDSP C-DSP 8x12 DL in-car digital audio processor

miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment. Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs. On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration.



Hightlights

  • 400MHz 32bit Sharc Floating point processor
  • Dirac Live technology helps tune your cabin environment
  • 32bit DAC/ADC chipsets
  • THD+N 0.0007%, 115dB SNR
  • Digital and analog inputs (Low/High levels), 12 analog outputs
  • Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
  • Fully differential balanced inputs
  • Windows/Mac compatible GUI
  • Remote control or preset/master & sub volume control



Product Specifications

miniDSP C-DSP 8x12 DL in-car digital audio processor



miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment. Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs. On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration.



Also included is miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete configurations are stored in flash memory for recall with a wired or infrared remote. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting and a microSD card slot for offline configuration.



Product Downloads

C-DSP 8x12 DL - Datasheet

C-DSP 8x12 DL - User Manual (Preliminary)



What's in the box?

  • 1 x C-DSP 8x12 DL processor
  • 1 x Dirac Live license
  • 1 x 1m USB cable
  • 1 x UMIK-1 (if option selected in shopping cart)
  • 1 x Control GUI plugin provided automatically under UserDownloads section on purchase

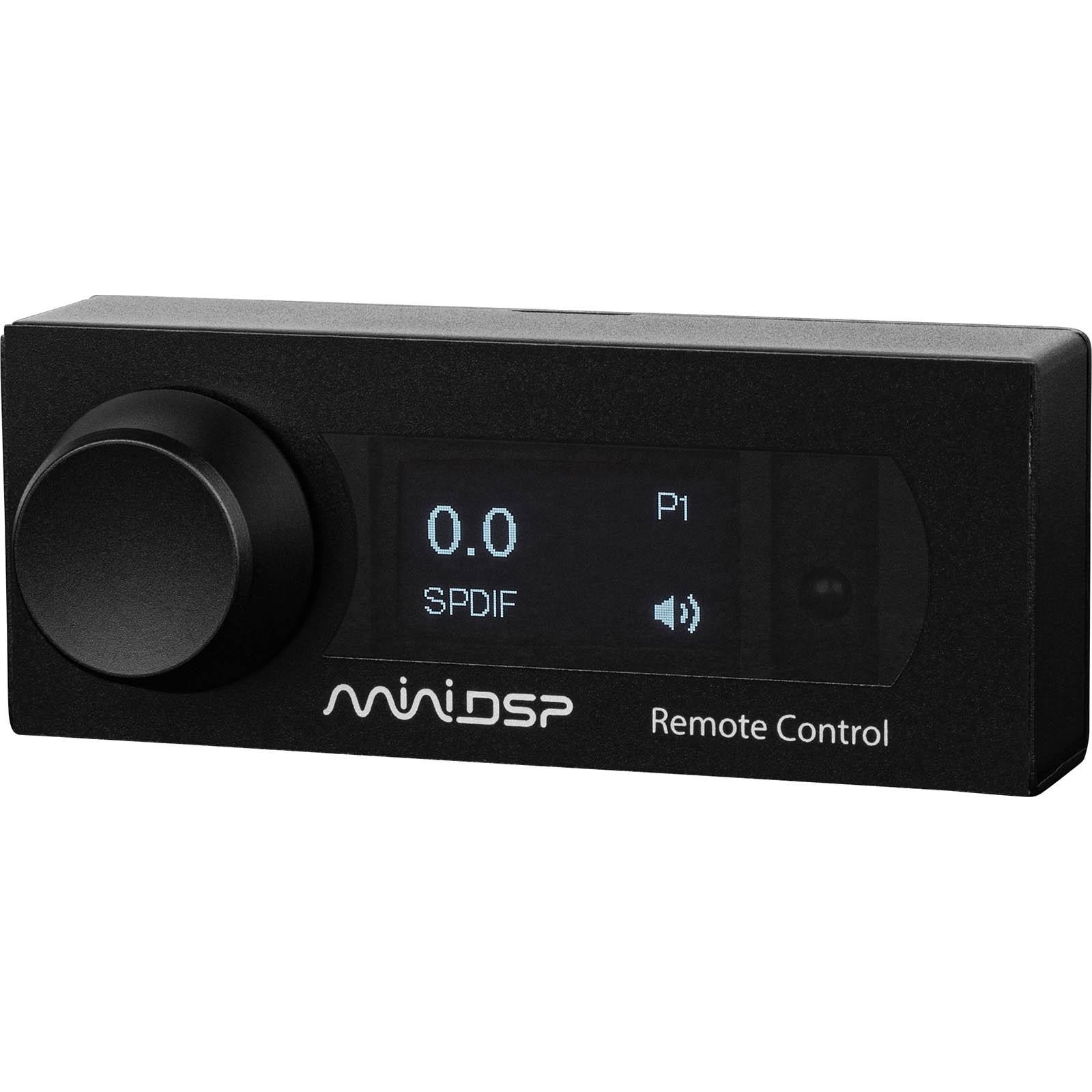

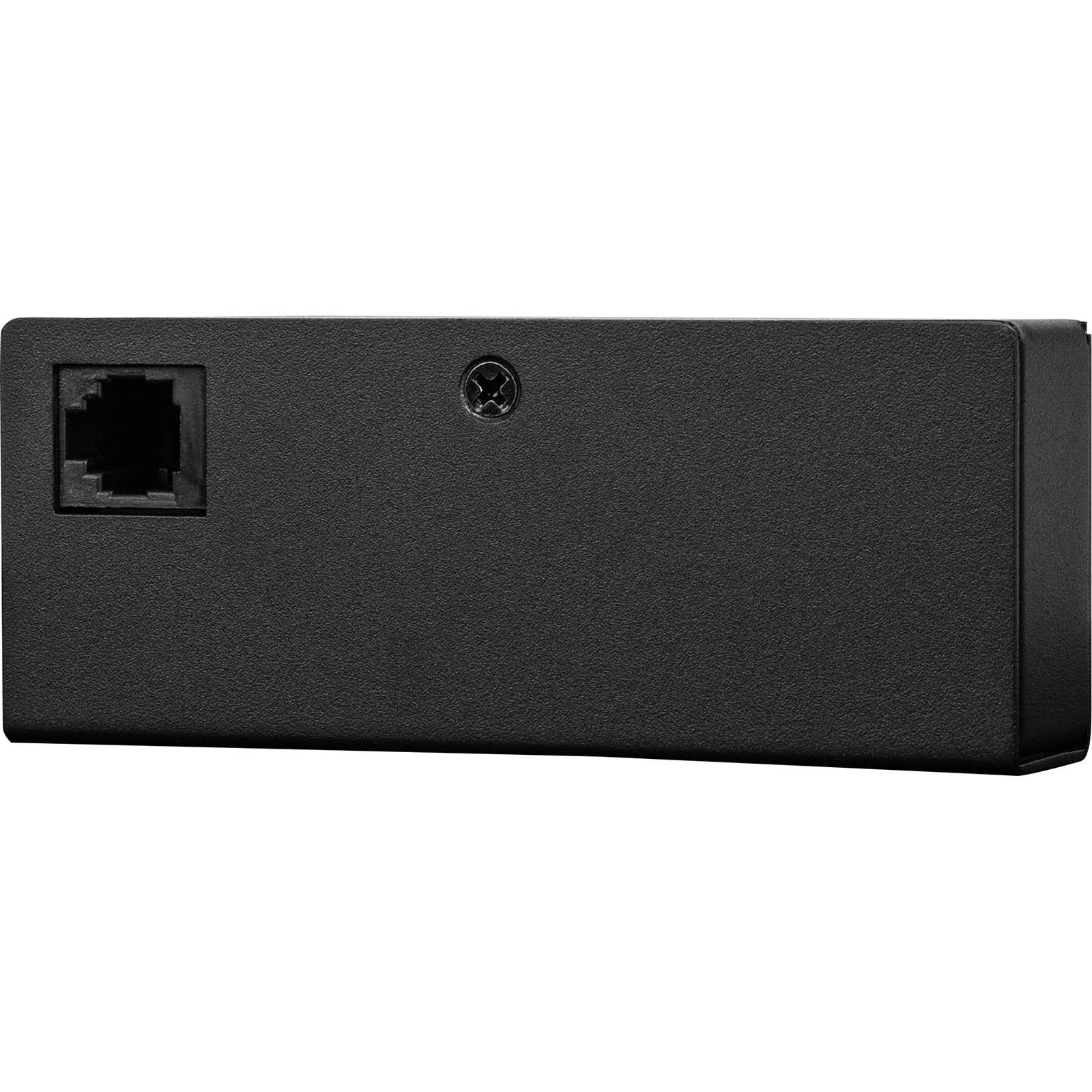

  • 1 x 5m remote cable + Remote control module
  • 1 x C-DSP 8x12 DL plugin license
  • harness for I2S In/Out interfacing



Digital Signal Processor Engine

Analog Devices ADSP21489 floating point DSP

Converters

32bit AK4456(DAC), 32bit AK5556(ADC)

Internal Processing resolution
& Sample rate

32 bit / 48 kHz with Dirac live processing

Input/Ouput Configuration

8 in / 12 out

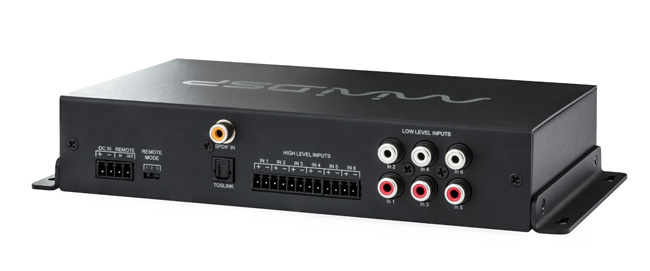

Audio Input Connectivity

High level (6 terminal block), Low level unbalanced (6 RCA)
Stereo Digital Inputs: SPDIF (RCA), Toslink (optical)
Supported ASRC: 44.1~192kHz

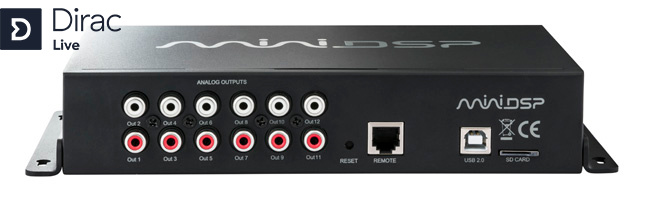

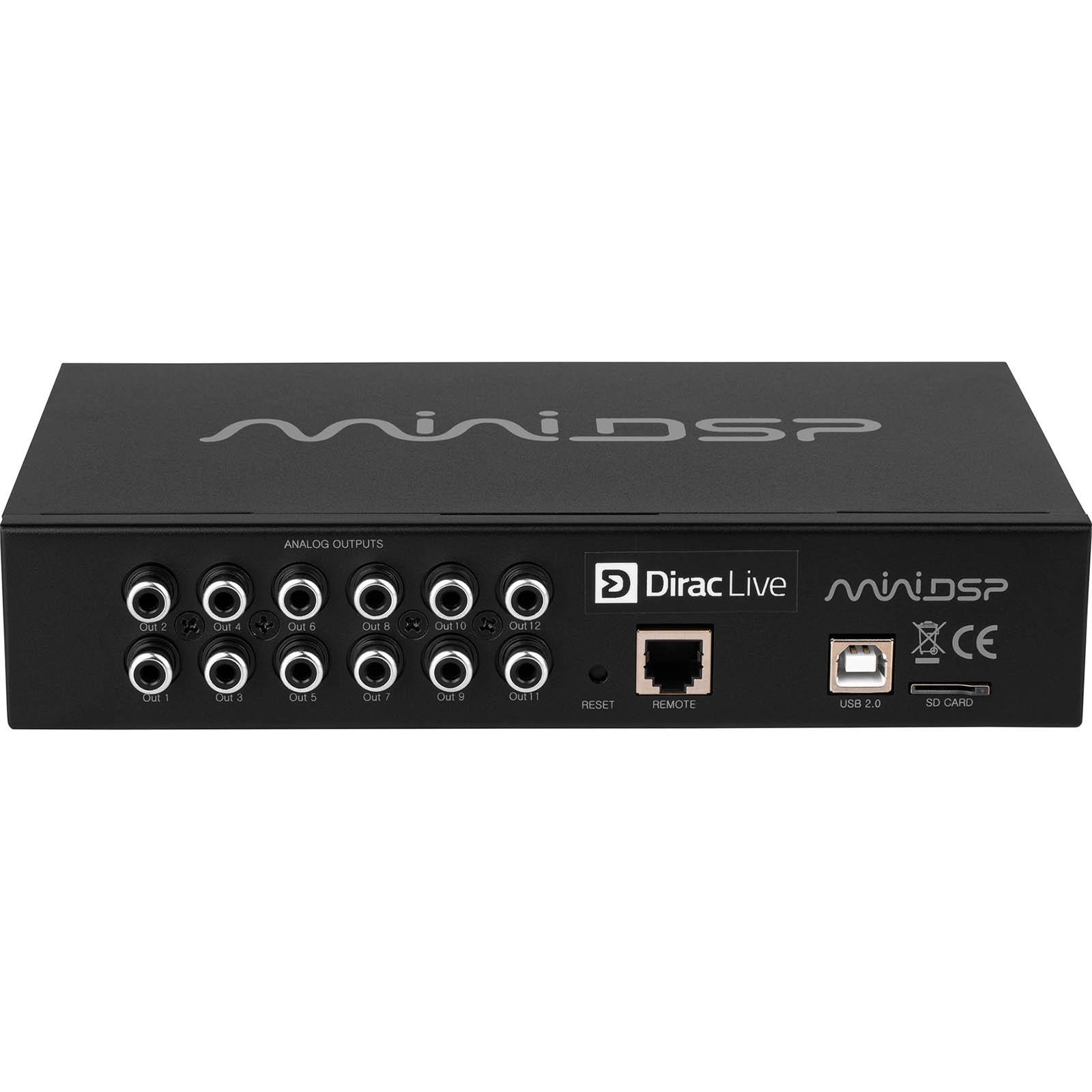

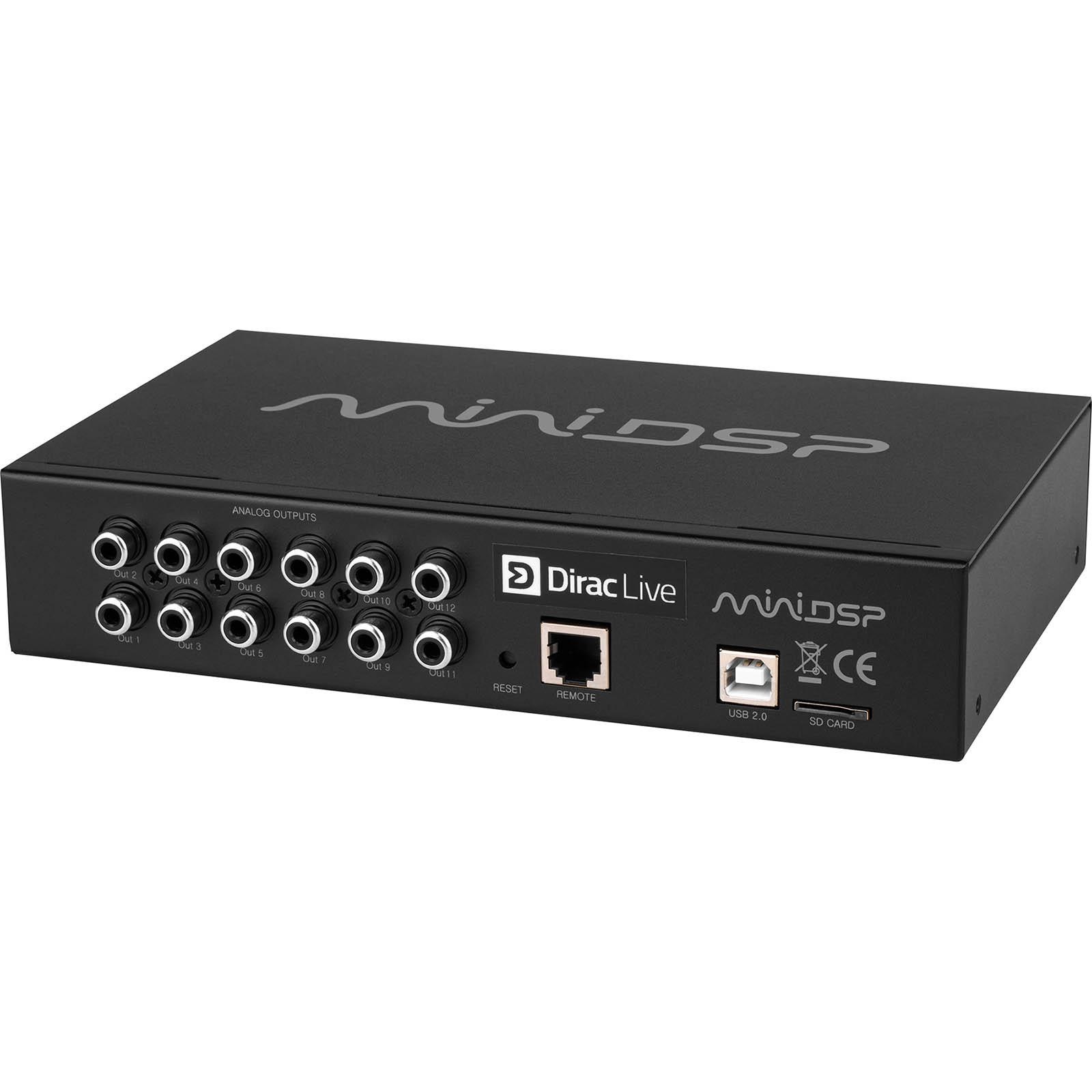

Audio Output Connectivity

12 x RCA connector
115dB SNR, THD+N 0.0007%

Input / Output Max Levels

IN: 8 or 12 Vrms on high level / 4 or 2Vrms on low level input
OUT: 6Vrms

Input Impedance

High level: 68Ω / Low level: 10 kΩ

Output Impedance

560 Ω

Calibration Software

C-DSP 8x12 plug-in

Filtering Technology

IIR/FIR depending on plugin

DSP Presets

Up to 4 presets

Dimensions

41 x 205 x 122 mm

Power

Isolated DC-DC conversion for Car Audio environment

Impulse Response Correction

Infrared Remote Learning

Win/Mac Compatible

UMIK-1 Included

Bass Management

Room EQ Wizard Support
