C-Note Center | DIY Components Pack
Ideal for completing your budget DIY home theater system, the C-note center channel speaker features natural vocal reproduction with the output capability and dynamics needed to meet the demands of today's movie soundtracks. Nearly everything is included to complete this DIY speaker building project: drivers, port tubes, and crossover components.
- Designed to provide lifelike vocal response with smooth high frequency response
- High output capability to deliver the dynamics necessary for movie sound tracks
- Simple instruction manual makes anybody a speaker builder instantly
- Customize the C-Note to your personal tastes -- finishing options are limitless
C-Note Center DIY Components Pack
Designed to be teamed up with the popular C-note bookshelf speaker, the C-note MTM center channel speaker kit makes it simple to build your own high quality home theater system for an unbeatable value. Voiced to match the sound of the C-note bookshelf speaker, this center channel has improved output capability and dynamics that are necessary to meet the demands of today's movie soundtracks. In addition, special attention was taken with the crossover design to keep any sibilance under control, ensuring no listener fatigue after long sessions at high output. This easy to assemble center channel give you the opportunity to complete your own home theater system with a finish that matches your own personal tastes and decor.
Dayton Audio's DSA135-8 5" Designer Series woofer is used for the midrange and low frequencies. With an aluminum cone and a powerful motor designed for low distortion, this woofer produces bass with authority while remaining smooth through the midrange frequencies. The high frequencies are handled by the ND25FW-4 1" soft dome tweeter , also from Dayton Audio. This waveguide-loaded tweeter controls high frequency dispersion for smooth off axis response and natural sound. Another advantage of the waveguide design is that it allows the voice coil to set further back from the baffle for an almost perfect time alignment with the woofer.

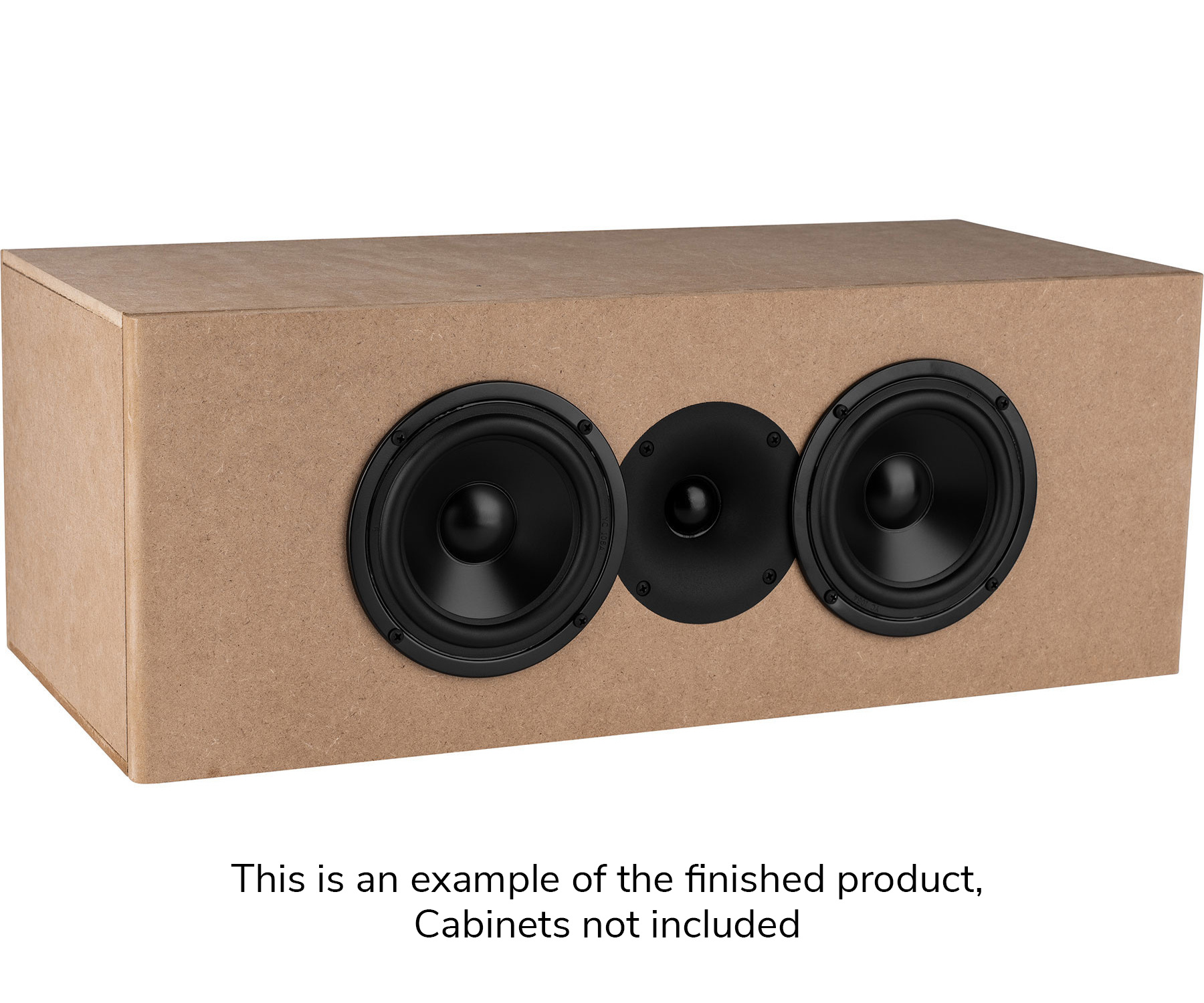

The solid MDF enclosure's 1/2" panels are all CNC milled to tight tolerances, ensuring easy assembly. The surface mounted woofer is easy to install, while the flush mounted tweeter provides a sleek appearance.

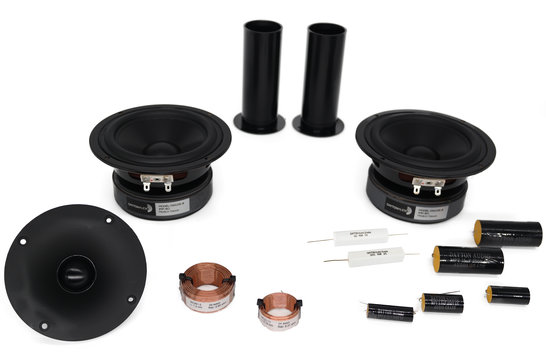

This kit includes nearly everything you need to build a pair of top-notch speakers in no time flat, including: drivers, port tubes and crossover components.
- Power handling: 80 watts RMS/160 watts max
- Frequency response: ±3 dB from 43-20,000 Hz
- Impedance: 4 ohms
- Sensitivity: 87 dB 1W/1m
- Dimensions: 8" H x 21.5" W x 9.5" D
