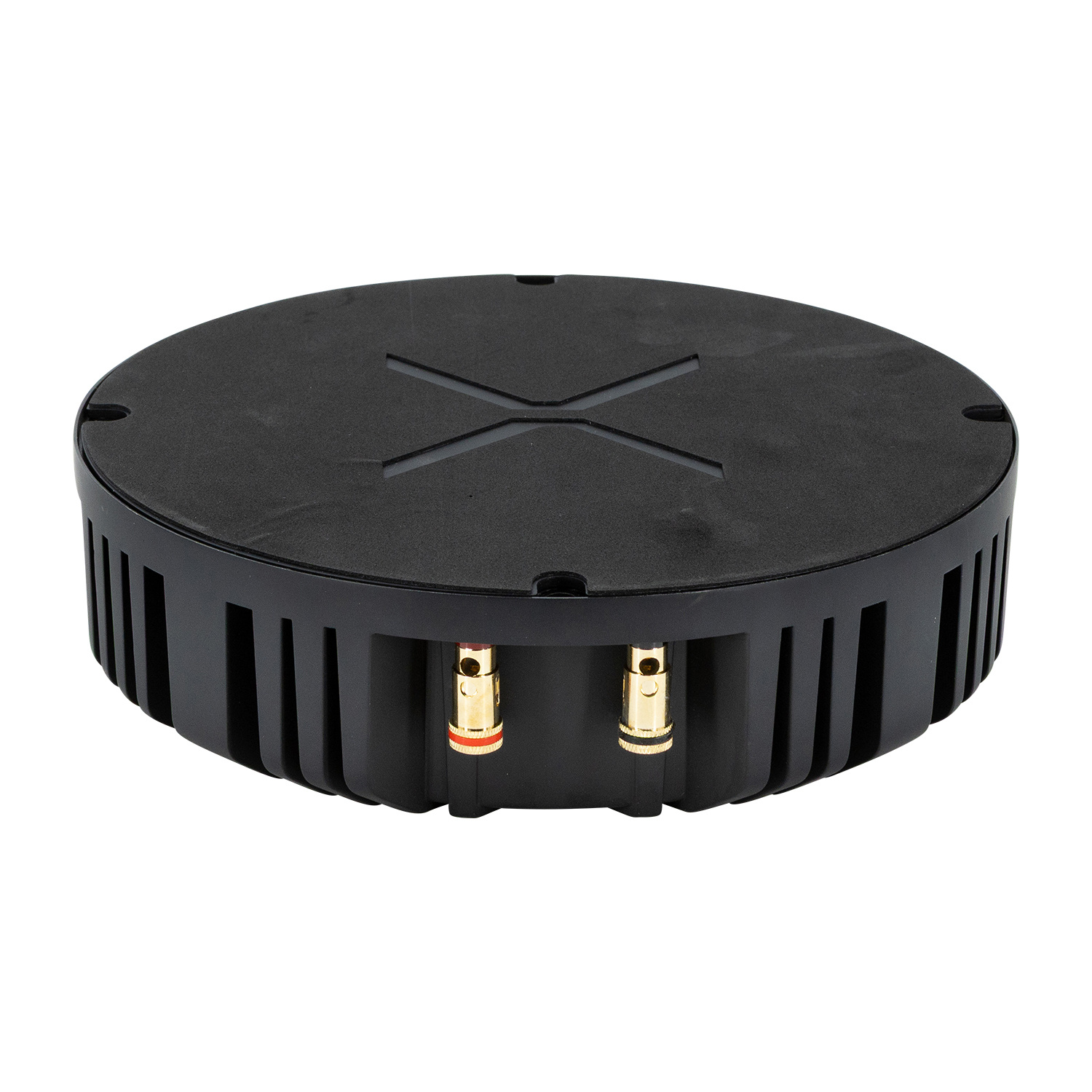

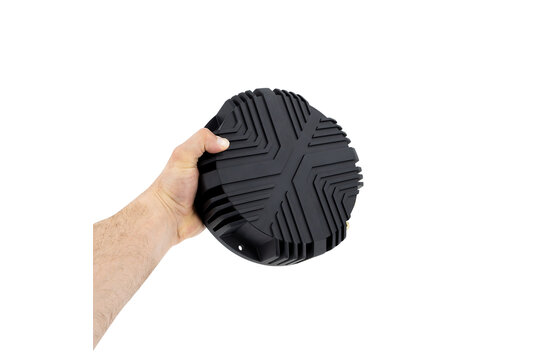

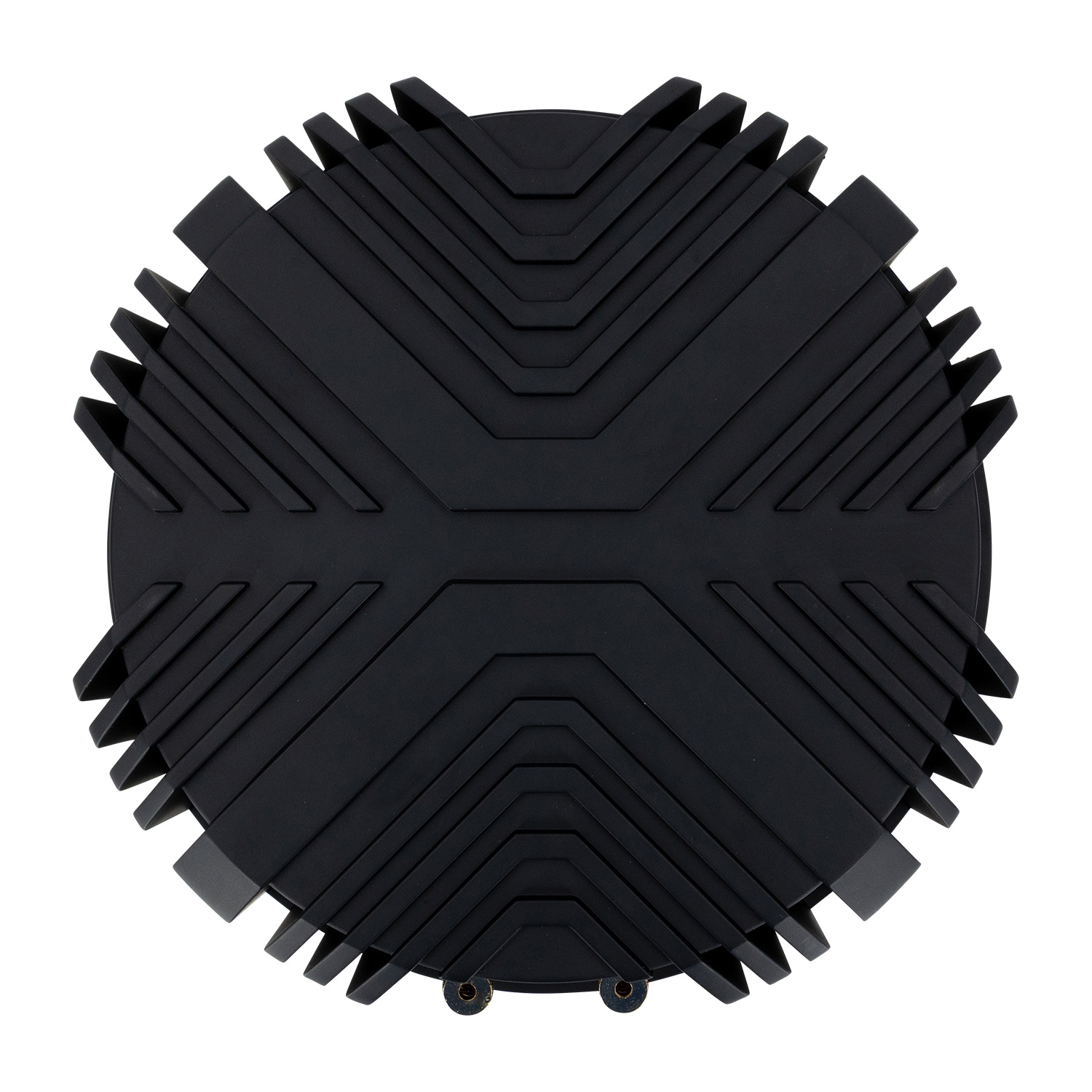

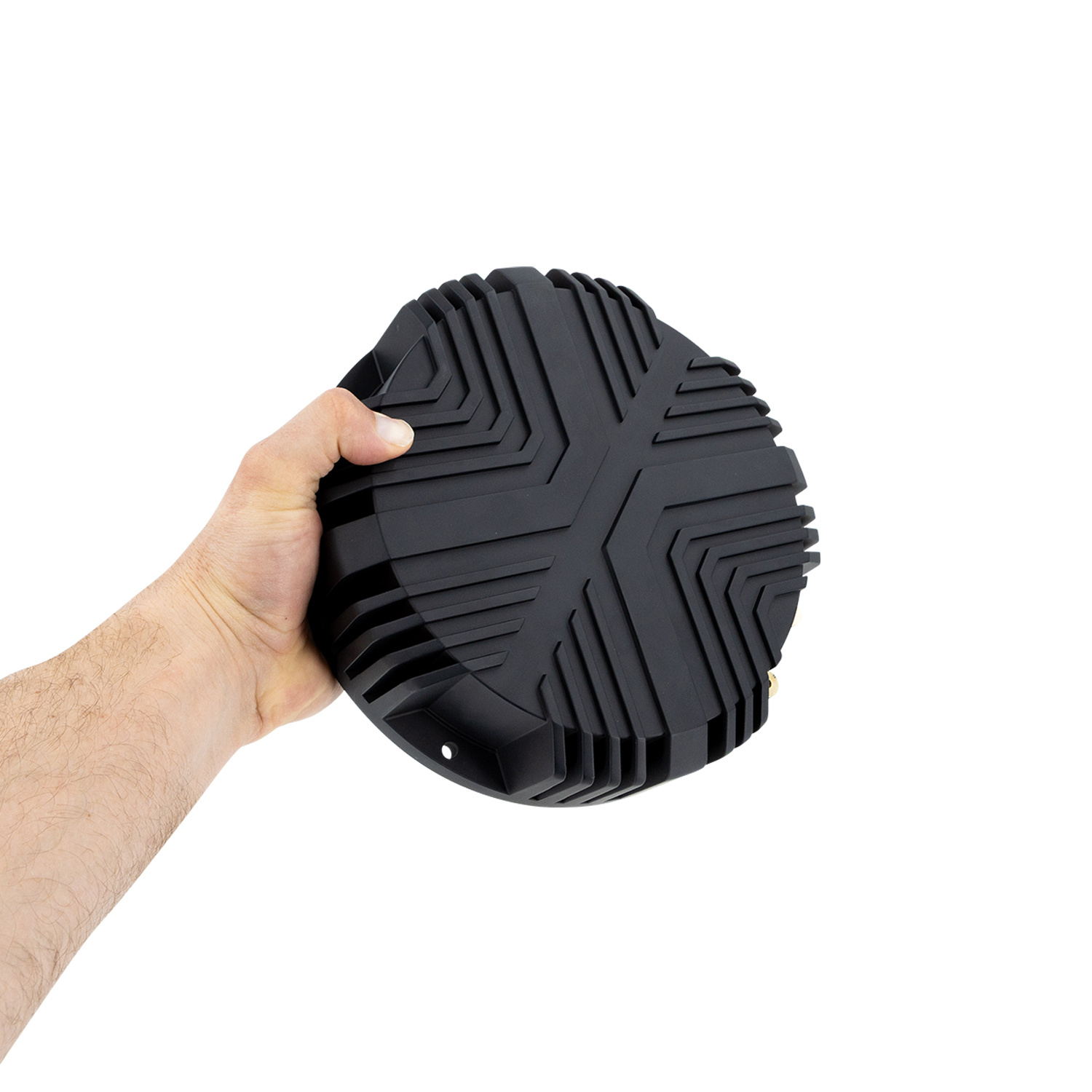

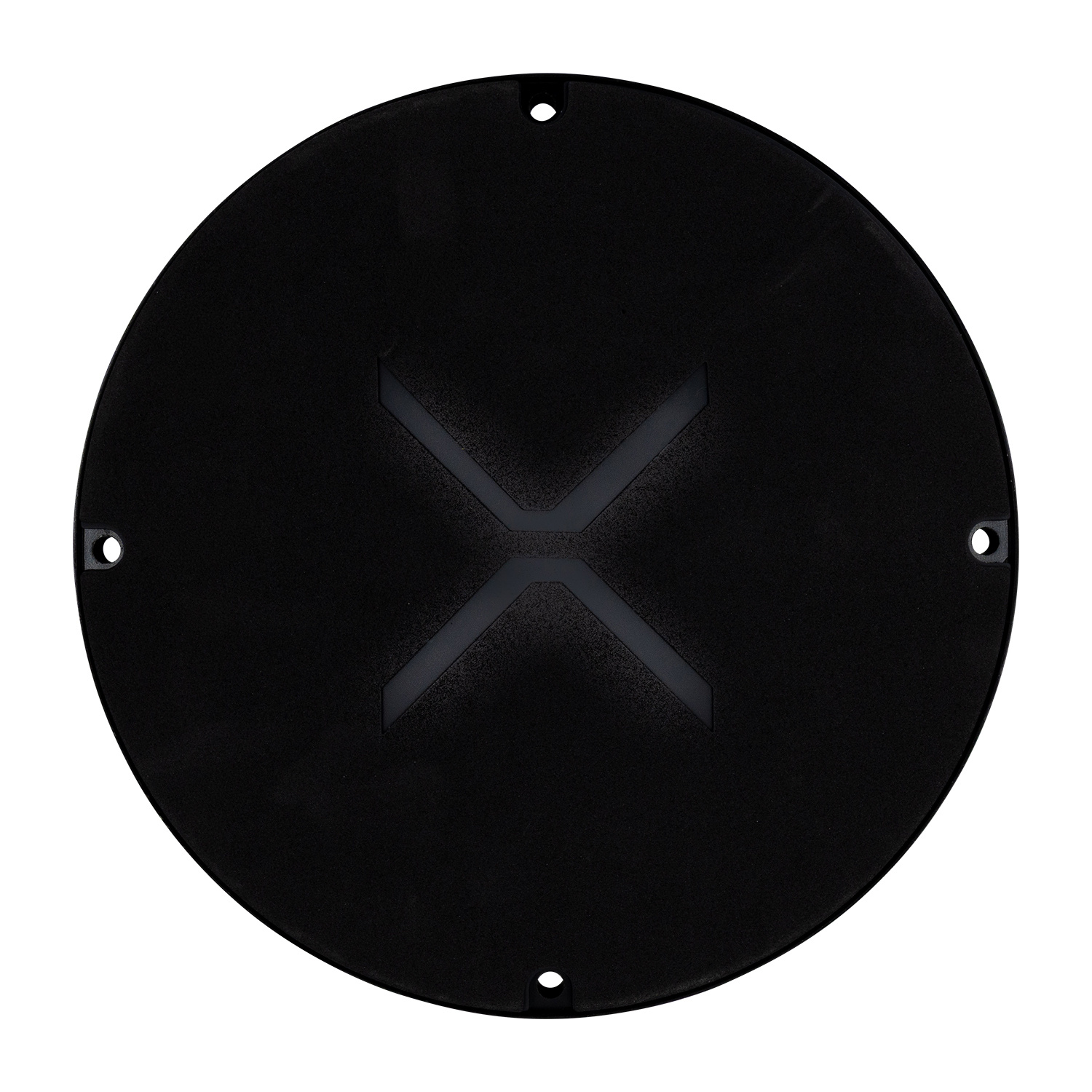

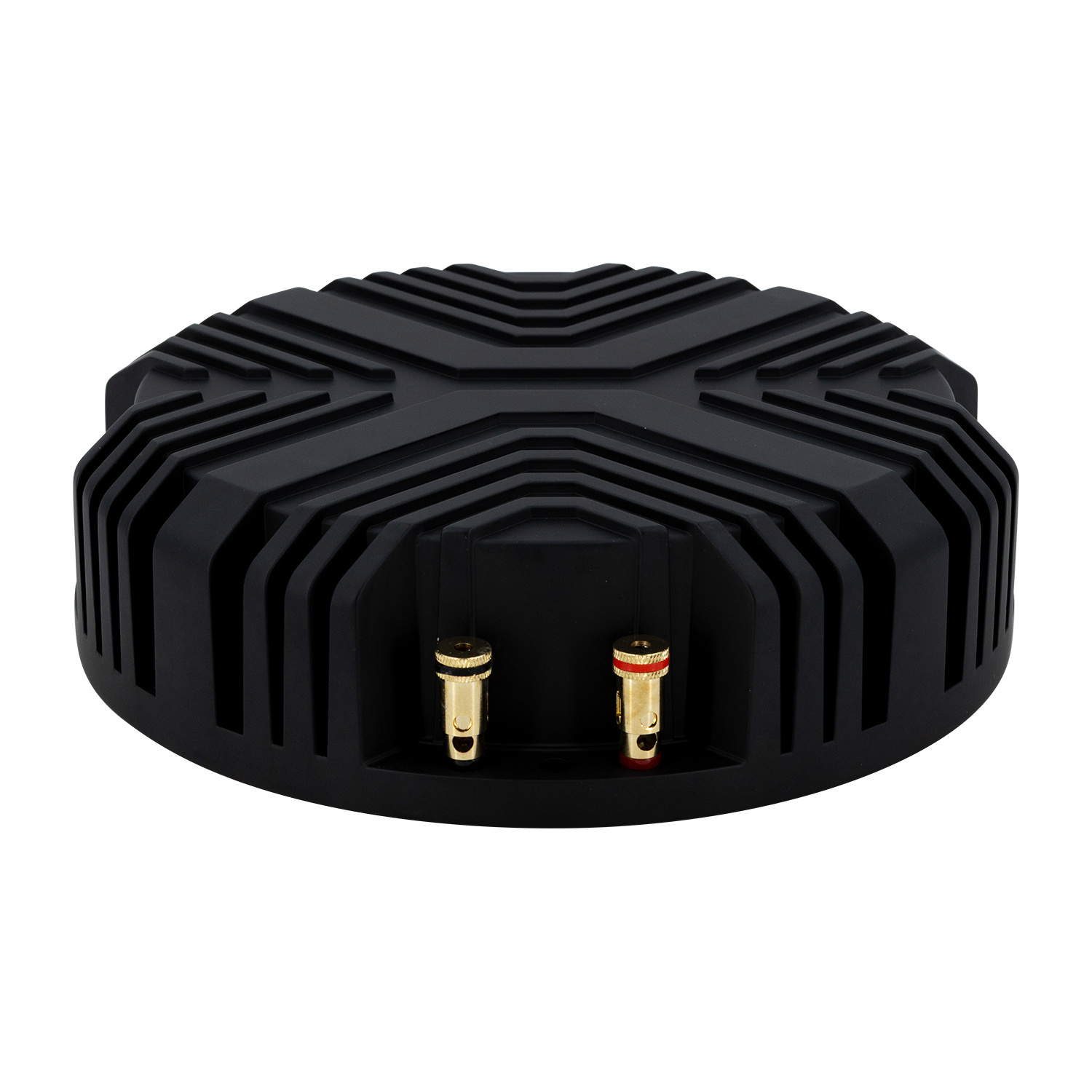

      XBS200-4 Bass shaker

      Xcite XBS200-4 Bass shaker

      €499,95

      1 Auf Lager10+ erwartet auf 30-04-2026

      Zum Warenkorb hinzufügen

      Xcite XBS200-4 Bass shaker

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Xcite
      Zeige alle Neue Produkte
      200 W
      XBS200-4 Bass shaker
      XBS200-4 Bass shaker
      XBS200-4 Bass shaker
      XBS200-4 Bass shaker
      XBS200-4 Bass shaker
      XBS200-4 Bass shaker
      413,18 €499,95 € 1 Auf Lager10+ erwartet auf 30-04-2026
      • -5% Bestelle 4 für nur 474,95 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Jetzt bestellt, heute versendet
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      XBS200-4 Bass shaker
      XBS200-4 Bass shaker
      XBS200-4 Bass shaker
      XBS200-4 Bass shaker
      XBS200-4 Bass shaker
      XBS200-4 Bass shaker

      Vor-und Nachteile

      Laut unserer Spezialisten
      • Extremely high peak force of 920 N
      • Compact: only 62mm high and 4.8 kg
      • High sensitivity: 16.1 N/W delivers strong output even with smaller amps
      • 1000W peak requires a powerful amplifier to unlock full performance

      Produktbeschreibung Xcite XBS200-4 Bass shaker

      The New Standard in High-Definition Tactile Feedback



      Extreme force. Ultra-slim. Built for professional tactile systems.



      The Xcite XBS200 is the foundation for high-power installations, engineered for large-scale systems where maximum force and slim integration are critical. With 920 N peak force, ±15 mm excursion, and 16.1 N/W sensitivity, it delivers massive, efficient output with deep infrasonic impact and precise tactile separation across 10 Hz to 1 kHz.



      Optimized for structure—not furniture—the XBS200 injects controlled energy into platforms, risers, and heavy seating without sacrificing detail. Its high-flux neodymium motor ensures ultra-fast transient response, keeping signals clean and distinct even under extreme loads. 100% steel and aluminum construction. Double steel suspension. IP66-rated. Built for demanding environments.



      Designed in Germany.



      Highlights of the Xcite XBS200-4 Bass Shaker



      • Flat Force Frequency Response | Clear differentiation under multi-signal load — no more "signal mush".
      • 1000W Peak Power (IEC 60268-5) | Engineered for sustained high loads without thermal compression.
      • ±15 mm Xmax | Xtreme displacement for realistic, long-stroke structural movement.
      • 920 N Peak Force | Built to command heavy-duty installations and professional rigs.
      • 21 Hz Resonance Frequency | Extended infrasonic authority for impact you feel in your core.
      • Neodymium Motor + Oversized Coils | Instant, responsive impact with unmatched 16.1 N/W efficiency.
      • Double Steel Suspension | Industrial-grade durability; zero plastic fatigue.
      • Ultra-slim 62 mm Profile | Massive power that fits where other high-output units can’t.
      • IP66-rated | Ready for dust, moisture, and harsh professional environments.

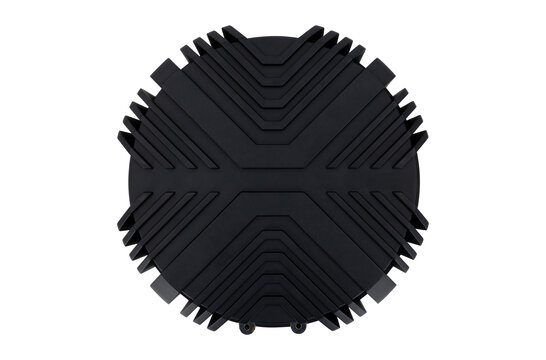

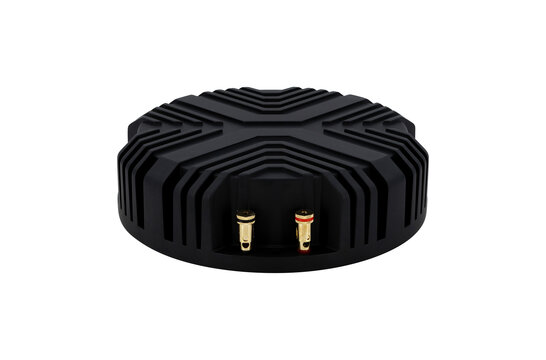

      • High-Grade Aluminum Housing | Functions as a massive heat sink for consistent performance.

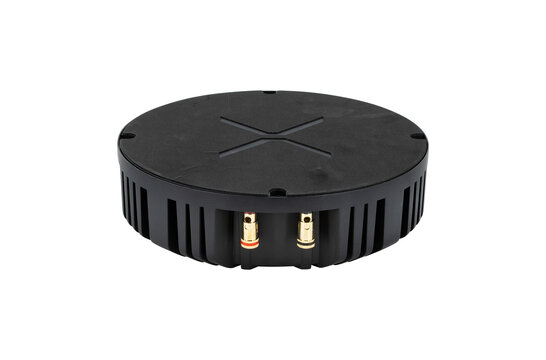

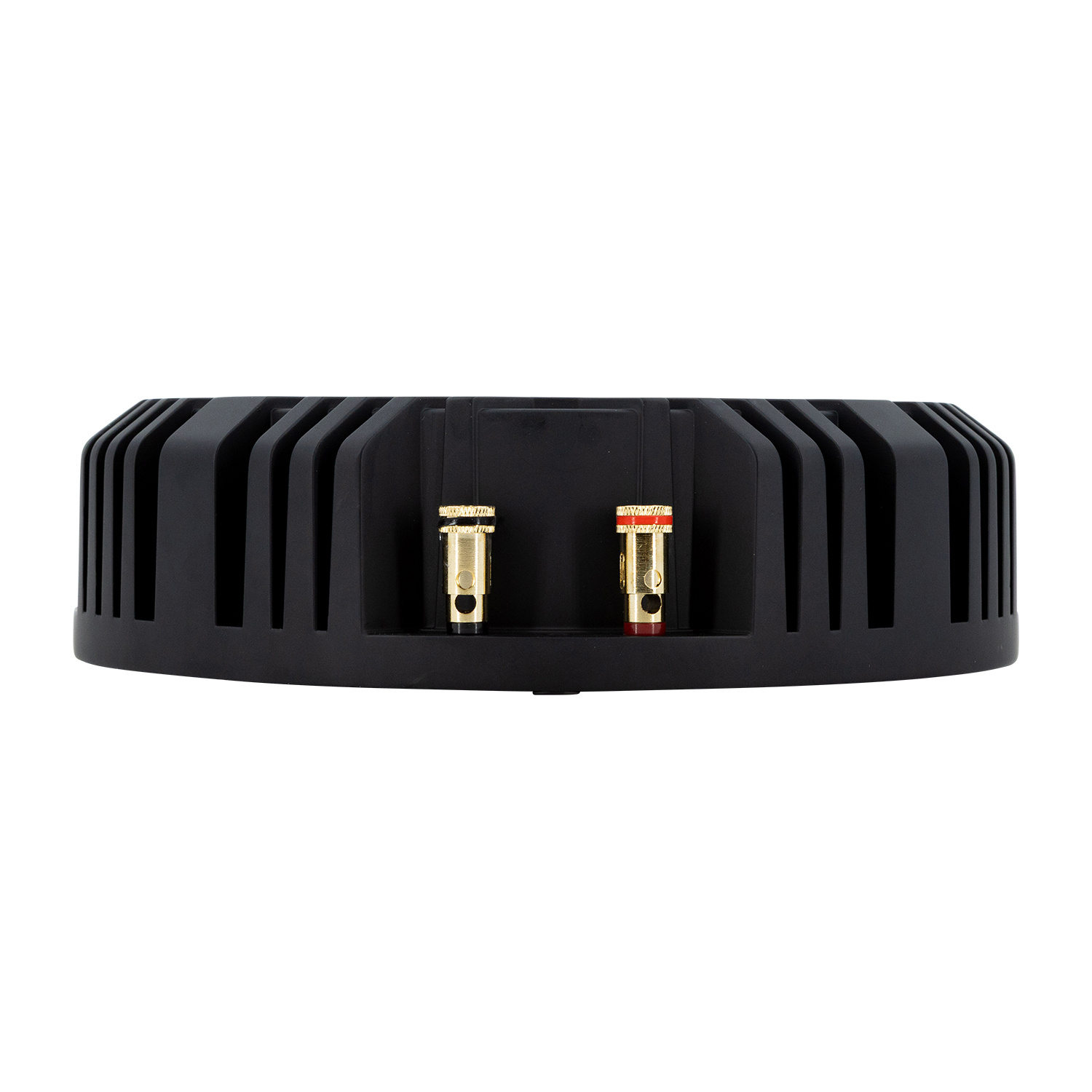

      • Minimal-footprint Terminals | Clean installation with zero added height or width.



      Product details Xcite XBS200-4 Bass Shaker



      Ready to Xcite you

      When a single unit is no longer the limit. The Xcite XBS200 is designed for installations where entire platforms, risers, or multi-seat structures become part of the tactile system. Its large moving mass (2590 g motor assembly) and extreme motor strength allow it to move heavy constructions with absolute precision.



      • Feel the foundation flex: True structural feedback for high-end simulators and VR-Training.
      • Synchronized Impact: Uniform energy distribution across platforms up to 15 m².
      • Subsonic Energy: Massive low-end rumble without distortion or mechanical noise.



      This is the Xcite XBS Series at maximum scale.



      SpiderCore Motor Architecture

      Here’s the Xcite advantage:



      Most transducers stack the suspension on top of the motor, increasing height and reducing maximum displacement. The XBS Series integrates the suspension directly into the motor core. The SpiderCore design makes the XBS up to 45% shorter than industry standards — enabling a truly ultra-slim profile without the typical loss of excursion or "bottoming out" common in flat designs.



      Even the terminals are engineered for minimal footprint, adding no unnecessary height or width. Ultra-slim engineering — with full excursion, extreme output, and durability.



      Installation Recommendation

      • Industrial-Grade Install: Secure with 4 high-tensile screws to a rigid frame or platform.
      • Recommended Amp: 200–1000 W @ 4 Ohm. The extreme 16.1 N/W sensitivity ensures massive output even on mid-range amplifiers.
      • Suggested Low-Pass: 100 Hz (Impact focus) up to 150 Hz (Detail focus).
      • Versatile Mounting: Symmetric internal suspension allows mounting in any orientation (vertical, inverted, or sideways).





      System Configuration Guidance

      • Home Cinema: 1–2x per heavy seat | 1–4x per large couch or riser.
      • Platform Installation: 1x unit for platforms from 0.5 m² up to 15 m².
      • Sim Racing Pro: The ultimate engine for full rig excitation.



      Is the XBS200 right for you?

      • You want maximum output in minimal space
      • You want true immersive bass — not just a shake
      • You want full-range tactile feedback — not a single rumble note
      • You care about long-term reliability — only steel and aluminum, no plastic
      • You demand precision — the ultra-light motor responds instantly
      • You need hardware that thrives in harsh environments



      If your installation requires uncompromising force and High-Definition tactile feedback in a compact profile, the XBS200 is your foundation engine.



      A basic guide to creating invisible sound with exciters

      Curious about how bass shakers work and why they are so popular? In this blog, we share in-depth knowledge, give hardware/software recommendations and share the most important information about using bass shakers within the most popular applications. An indispensable resource for the passionate DIY audio enthusiast.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      XBS200-4
      EAN
      9504546768468
      Belastbarkeit (QMW)
      200 Watts
      Belastbarkeit (max)
      1.000 Watts
      Impedanz
      4 Ω
      Frequenzgang
      10 - 100 Hz
      Resonanzfrequenz (Fs)
      21.1 Hz
      Gleichstromwiderstand (Re)
      4.08 Ω
      Schwingspuleninduktion (Le)
      0.83 mH
      Gesamt Q (Qts)
      1.41
      Bewegte Masse (Mms)
      2590 G
      Kraftfaktor
      29.1 N/A
      Schwingspulendurchmesser
      178 mm
      Außendurchmesser
      230 mm
      Gesamthöhe
      62 mm
      # Befestigungsbohrungen
      4
      Bestätigungstyp
      Screws 6.3 mm
