Visaton WS 17 E 6.5" HiFi Woofer 8 Ohm

€ 21,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
17 cm (6.5") HiFi woofer with coated paper cone, elastic rubber surround and inverse dust-cap.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €20,38 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

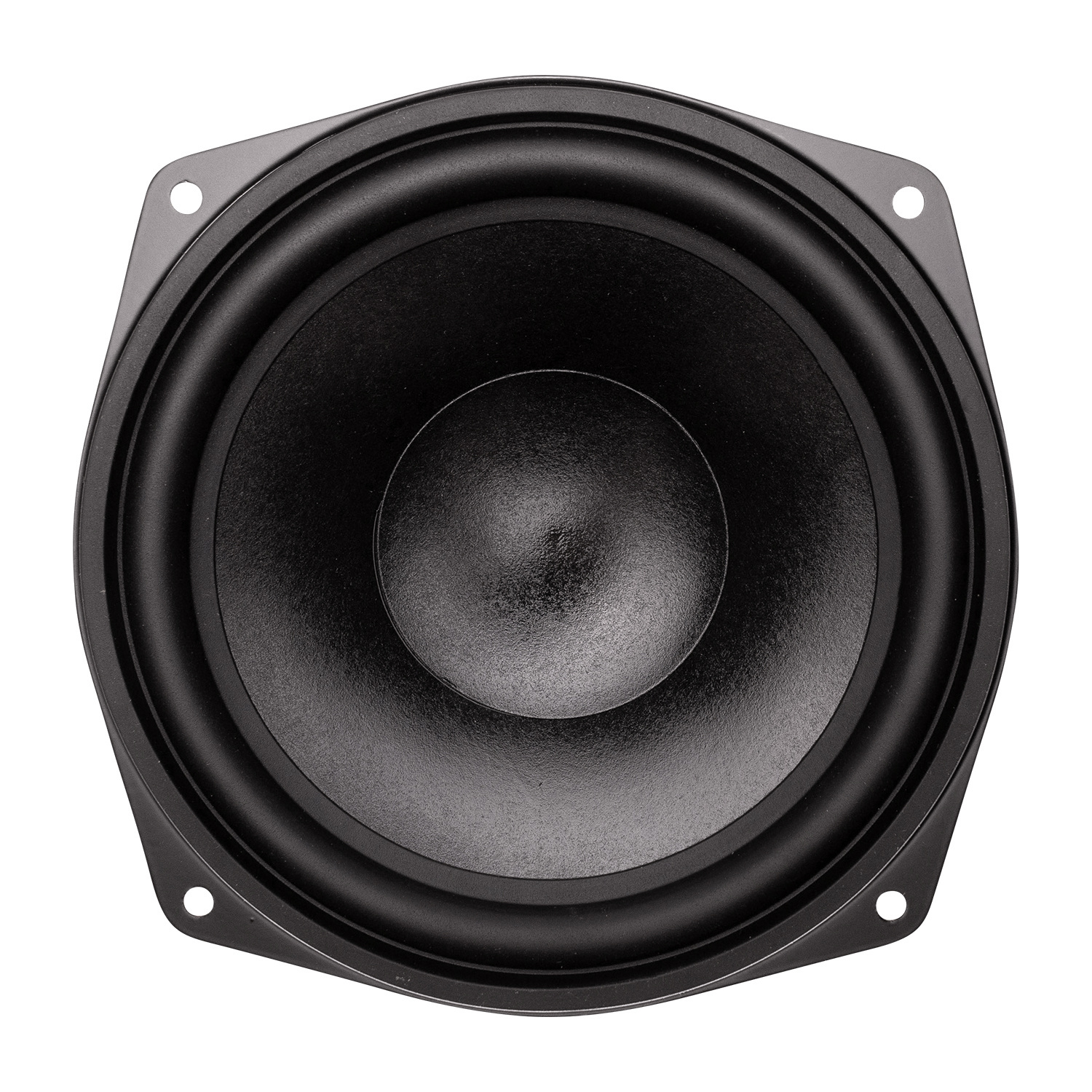

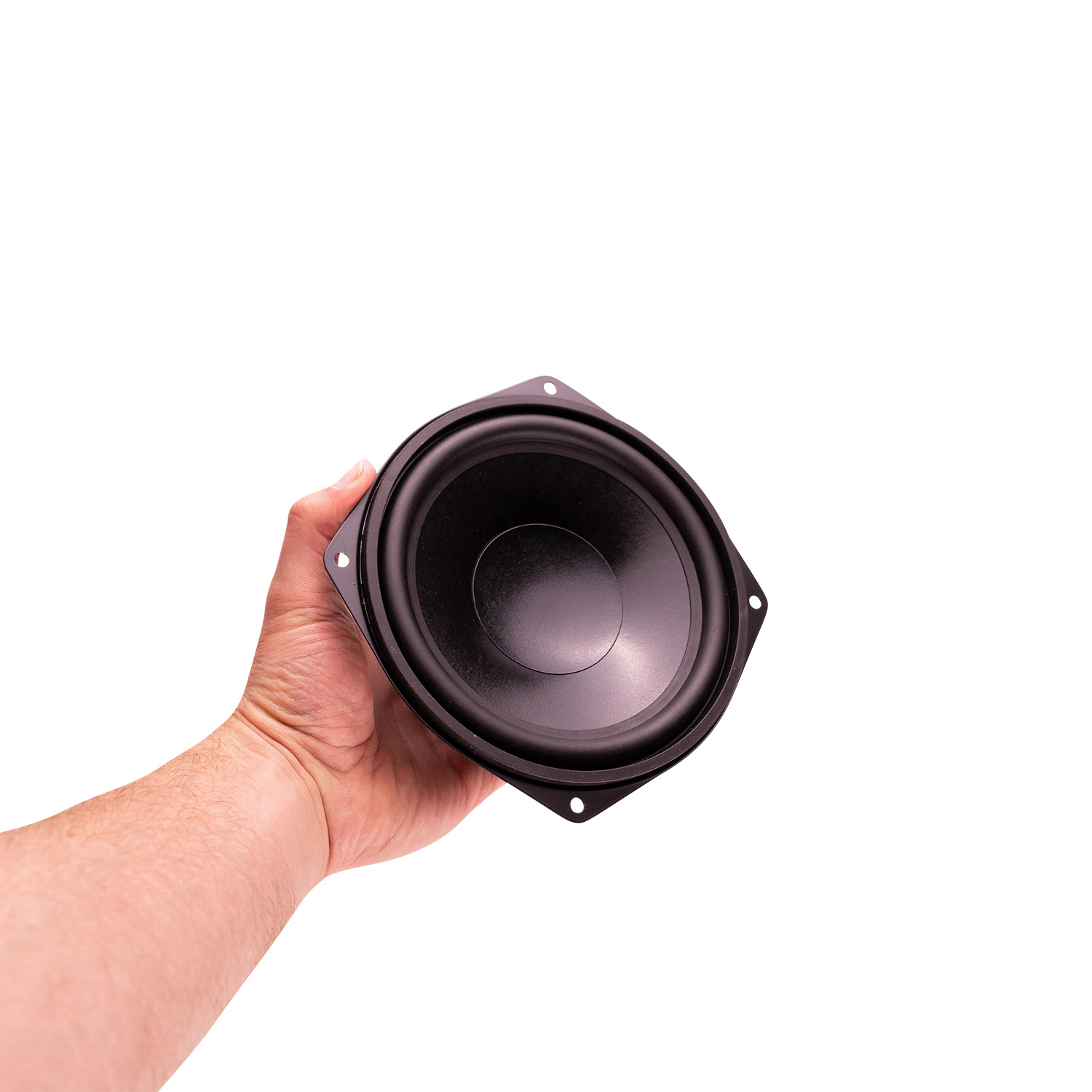

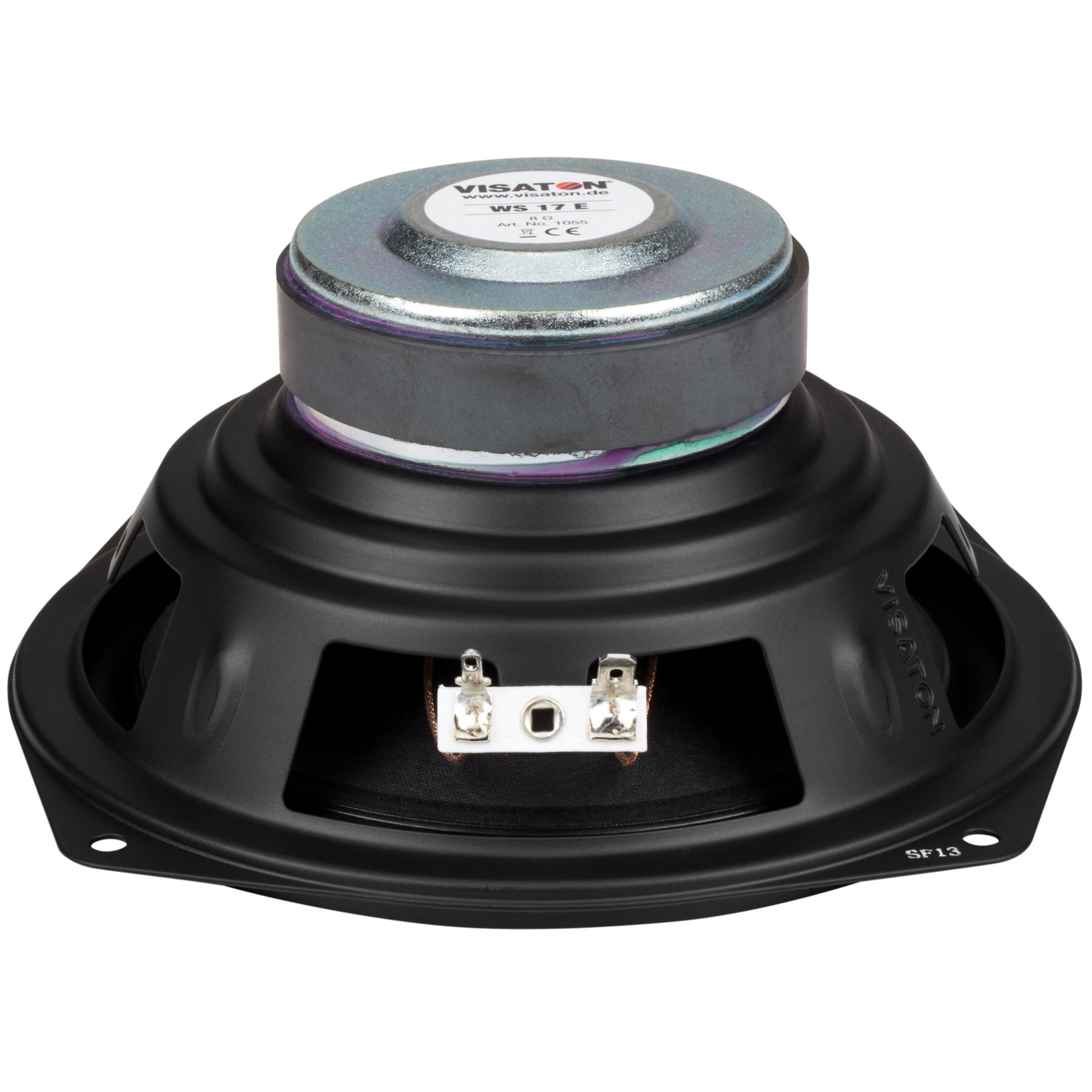

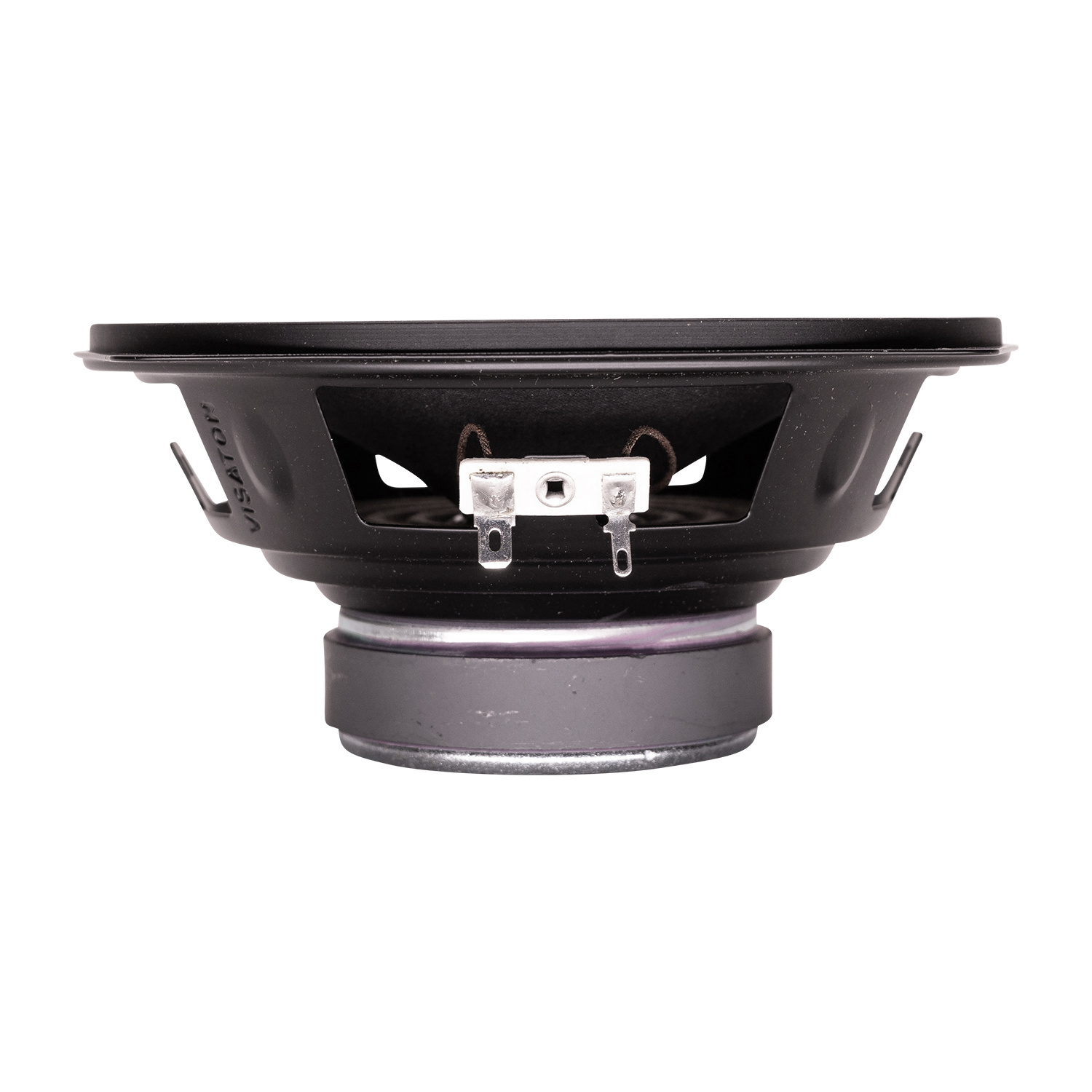

17 cm (6.5") HiFi woofer with coated paper cone, elastic rubber surround and inverse dust-cap.



Highlights

  • Flat frequency response for easy system integration
  • Great replacement driver
  • Special basket design



Product details

Visaton WS 17 E 6.5" HiFi Woofer 8 Ohm



This woofer has a balanced frequency response and is suitable as low-midrange driver for 4-way speaker systems. Due to the special basket design especially suitable as replacement driver for many HiFi speakers.



Choose the HiFi Visaton WS 17 E 6.5" driver for use as a woofer in small two and three-way speaker designs, as a midrange or midbass in large multi-way systems, or even as a small format personal computer subwoofer. The rubber surround and treated paper cone resist fatigue and create a warm, natural sound that matches that of the golden age of audio in the 1970s. A low Fs allows this 6.5" speaker to play all the way down into the 40 Hz region, while its upper response extends out to 7,000 Hz.

Eigenschaften

Artikelnummer:
WS 17 E - 8
Woofer Series
HiFi Series
Woofer Type
Midwoofer
Nominal Diameter
6.5"
Power Handling (RMS)
60 Watts
Power Handling (max)
90 Watts
Impedance
8 ohms
Sensitivity
88 dB (1 W/1 m)
Frequency Response
45 - 7,000 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
5.8 ohms
Voice Coil Inductance (Le)
0.9 mH
Resonant Frequency (Fs)
45 Hz
Mechanical Q (Qms)
2.2
Electromagnetic Q (Qes)
1.28
Total Q (Qts)
0.81
Diaphragm Mass Inc. Airload (Mms)
16g
Surface Area of Cone (Sd)
143 cm2
BL Product (BL)
3.9 Tm
Compliance Equivalent Volume (Vas)
22 liters
Maximum Linear Excursion (Xmax)
3.5 mm
Cone / Diaphragm Material
Treated Paper
Surround Material
Rubber
Overall Outside Diameter
165 mm
Overall Depth
79 mm
Baffle Cutout Diameter
150 mm
Bolt Circle Diameter
175 mm
# Mounting Holes
4
Mounting Hole Diameter
5 mm

Bewertungen

3 from 5Based on 3 reviews
Produkt bewerten
2 van 5
So - so.
Durch Tomaz G. on 12 Januar 2021
4 van 5
na 25 jaar de speaker vervangen
goede kwaliteit/prijs
Durch Arthur B. on 1 Dezember 2020
