- Artikelnummer:

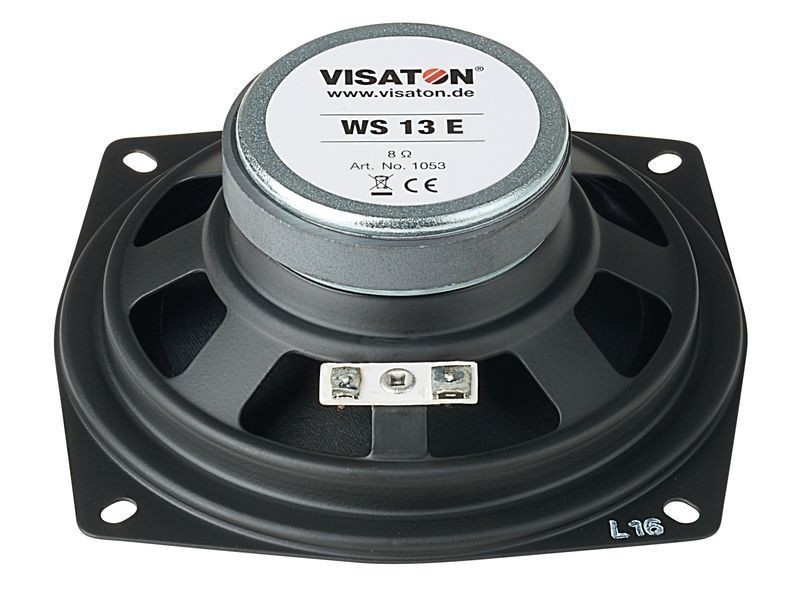

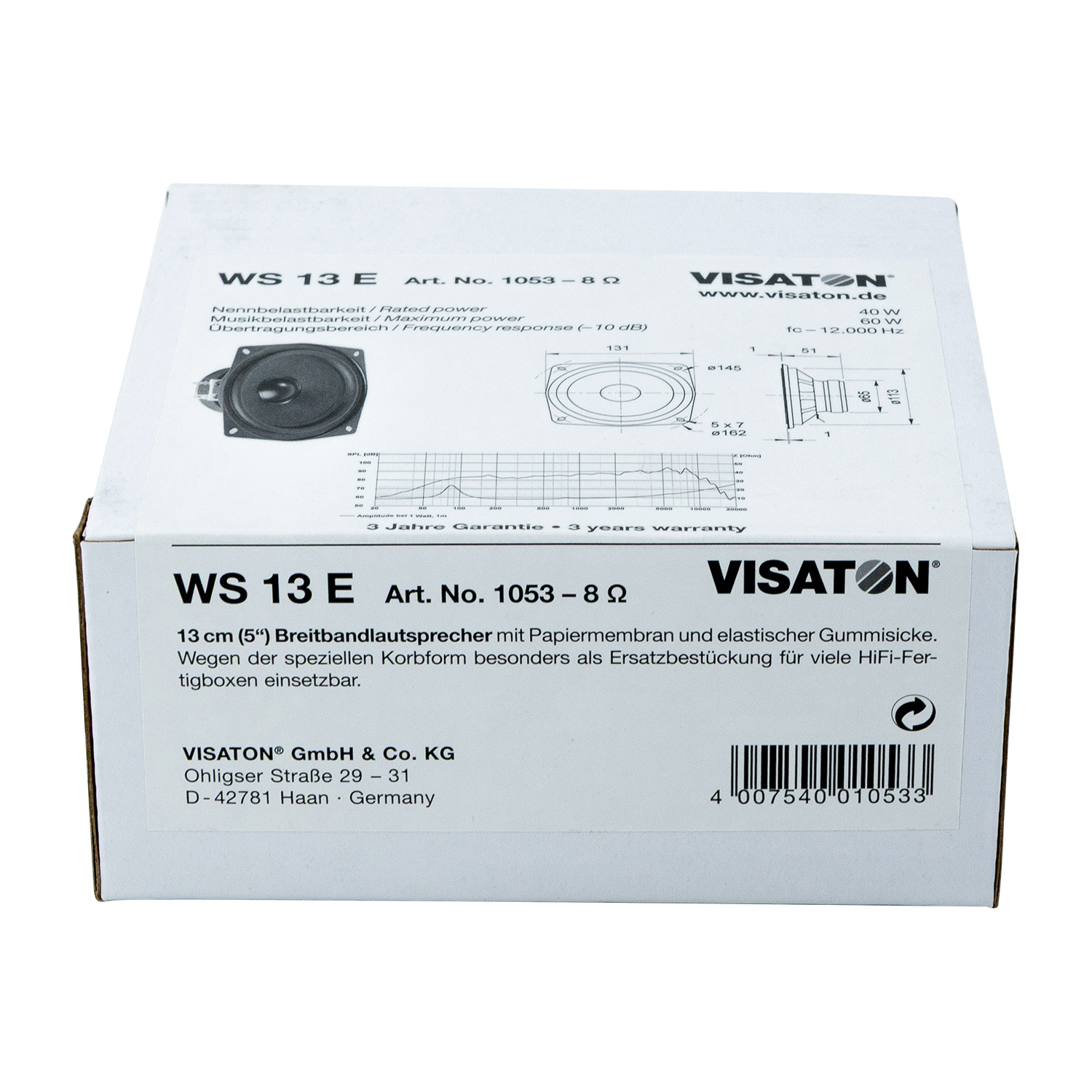

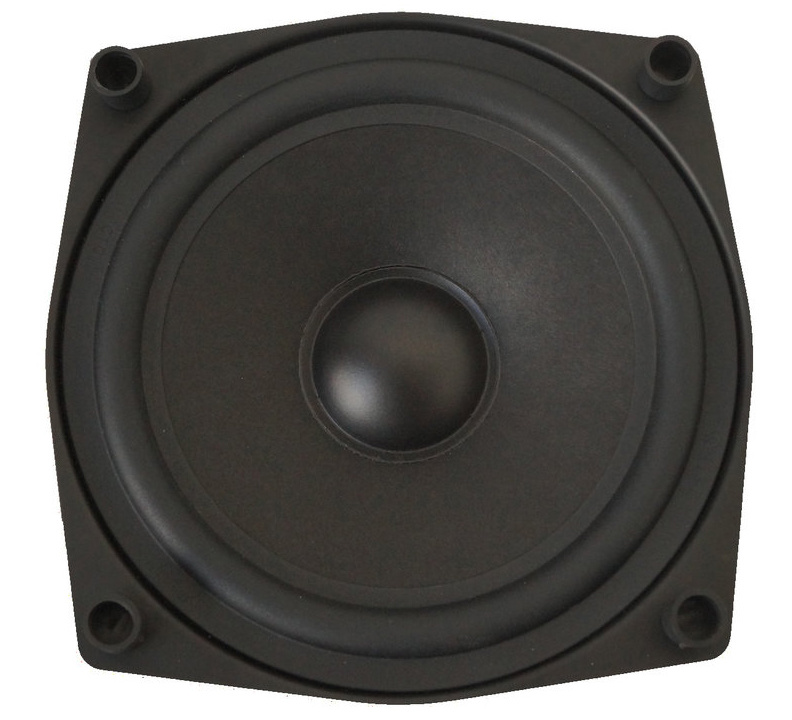

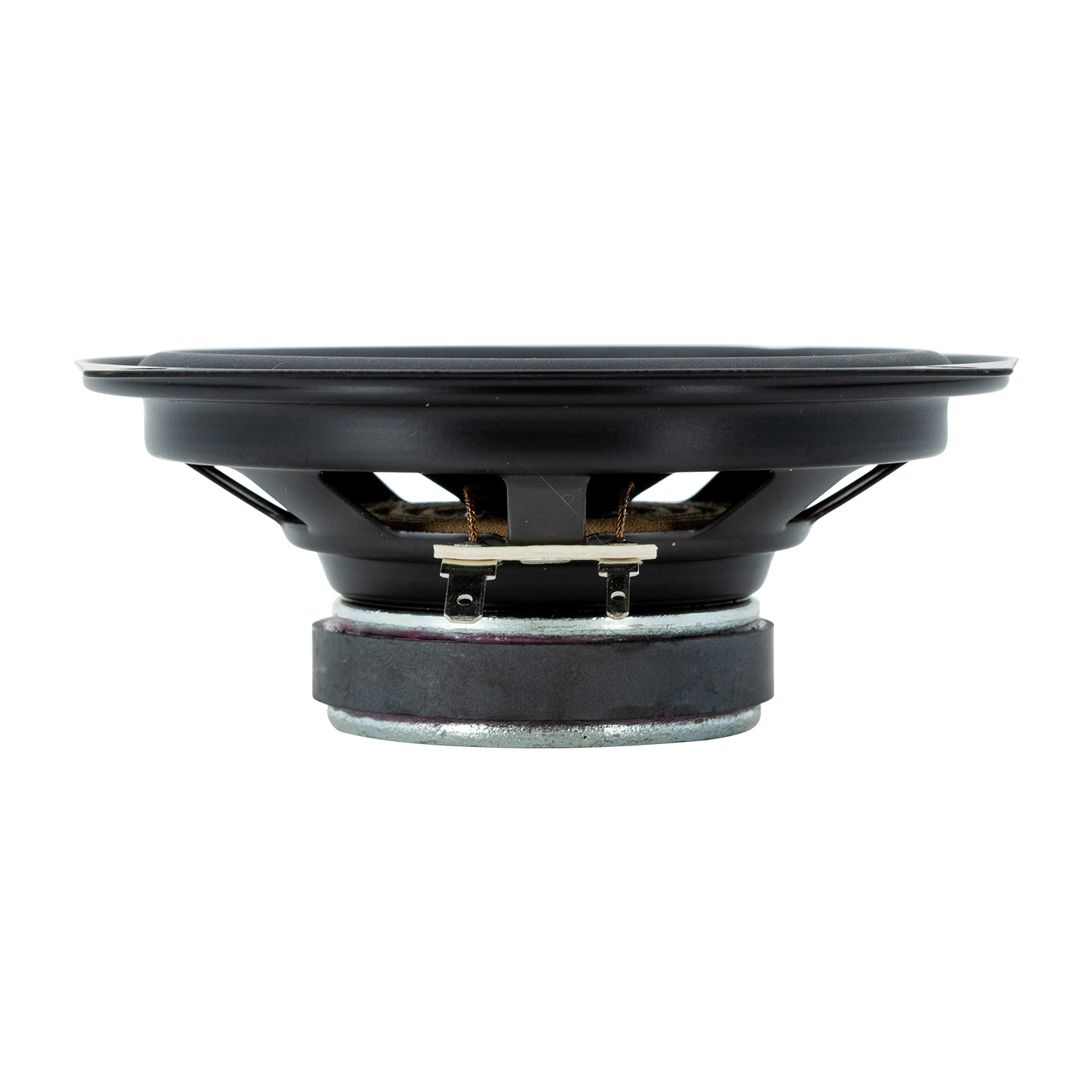

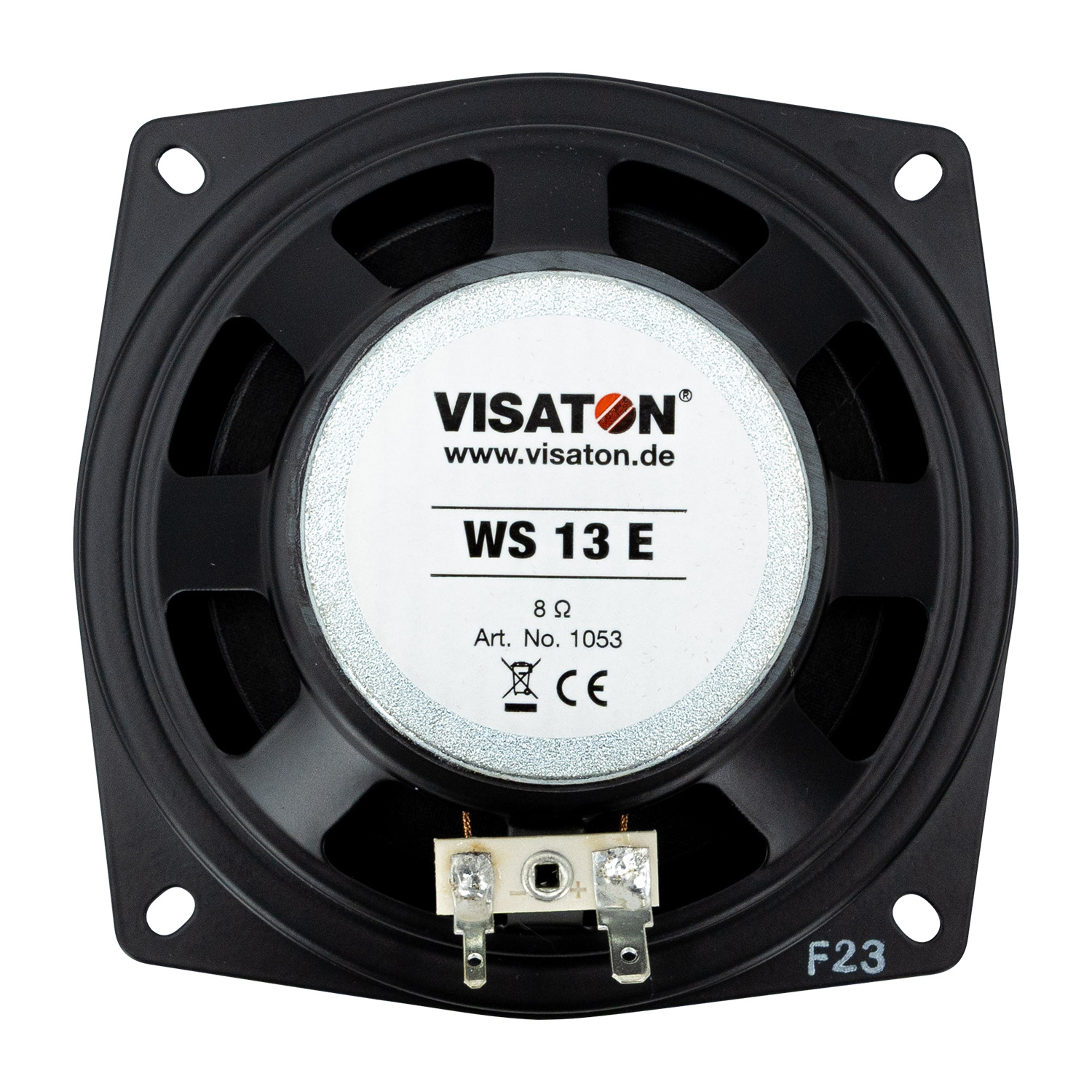

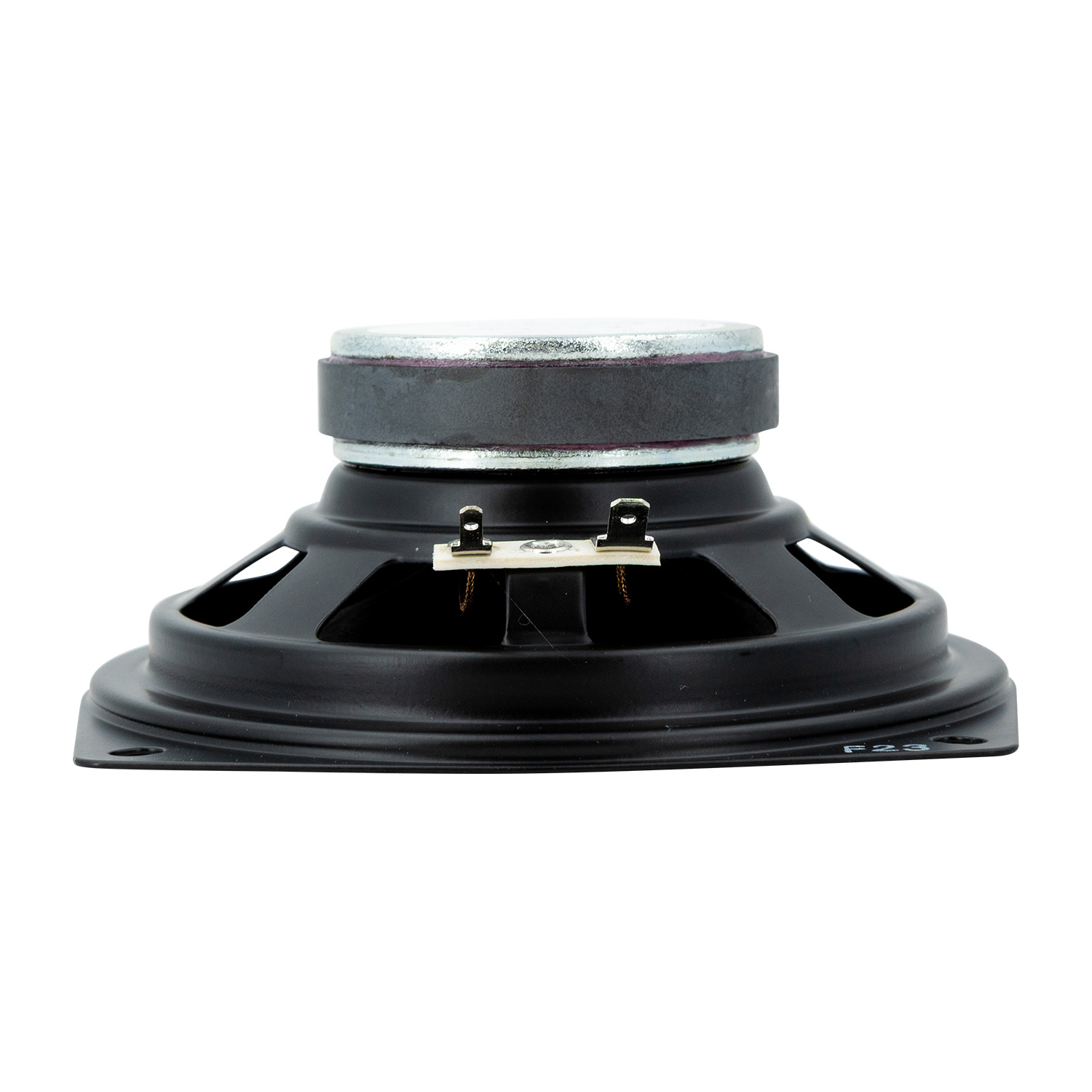

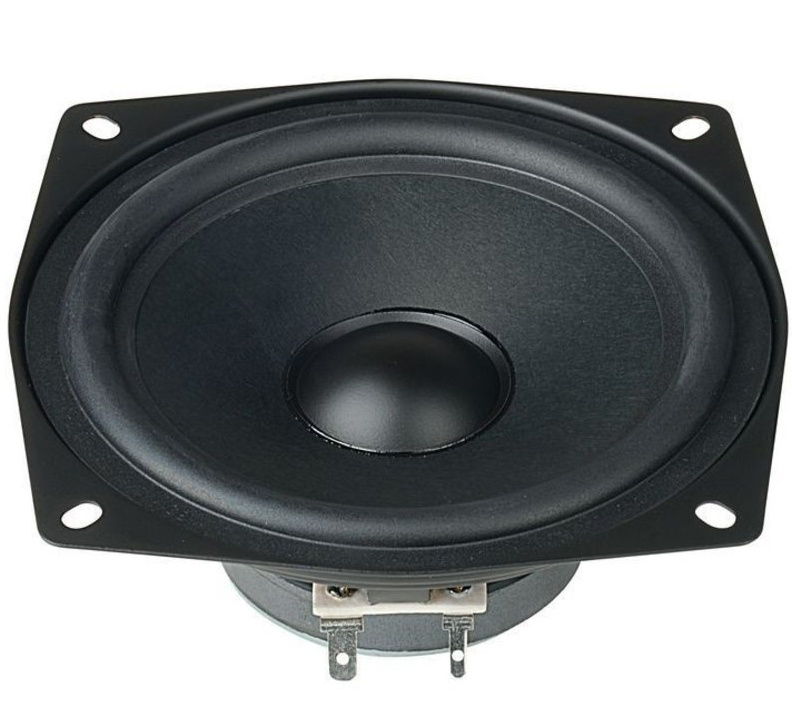

- WS 13 E
- Woofer Series
- HiFi Series
- Woofer Type
- Full-Range
- Nominal Diameter
- 5"
- Power Handling (RMS)
- 40 Watts
- Power Handling (max)
- 60 Watts
- Impedance
- 8 ohms
- Sensitivity
- 86 dB (1 W/1 m)
- Frequency Response
- 83 - 12,000 Hz
- Voice Coil Diameter
- 20 mm
- DC Resistance (Re)
- 7.7 ohms
- Voice Coil Inductance (Le)
- 0.8 mH
- Resonant Frequency (Fs)
- 83 Hz
- Mechanical Q (Qms)
- 3.52
- Electromagnetic Q (Qes)
- 1.56
- Total Q (Qts)
- 1.08
- Diaphragm Mass Inc. Airload (Mms)
- 5.1g
- Surface Area of Cone (Sd)
- 86.5 cm2
- BL Product (BL)
- 3.6 mH
- Maximum Linear Excursion (Xmax)
- 0.75 mm
- Cone / Diaphragm Material
- Paper
- Surround Material
- Rubber
- Overall Outside Diameter
- 162 mm (diagonal)
- Overall Depth
- 52 mm
- Baffle Cutout Diameter
- 113 mm
- Bolt Circle Diameter
- 145 mm
- # Mounting Holes
- 4
- Mounting Hole Diameter
- 5 mm
