- Artikelnummer:

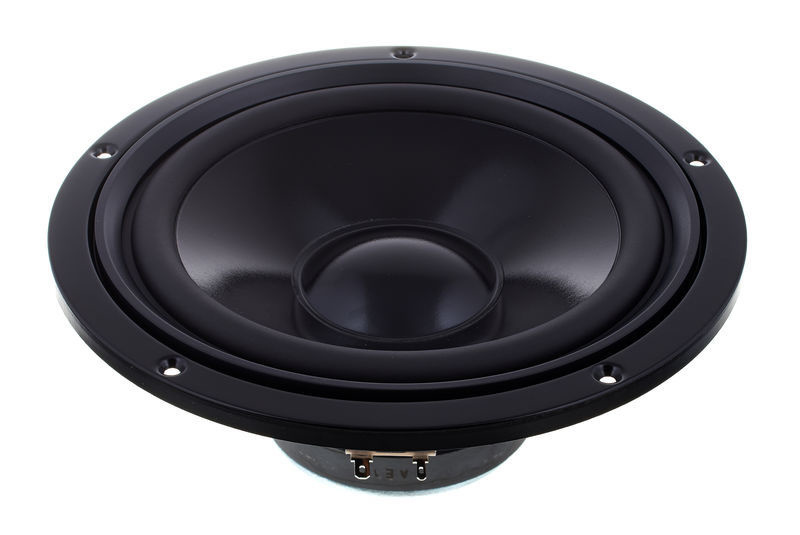

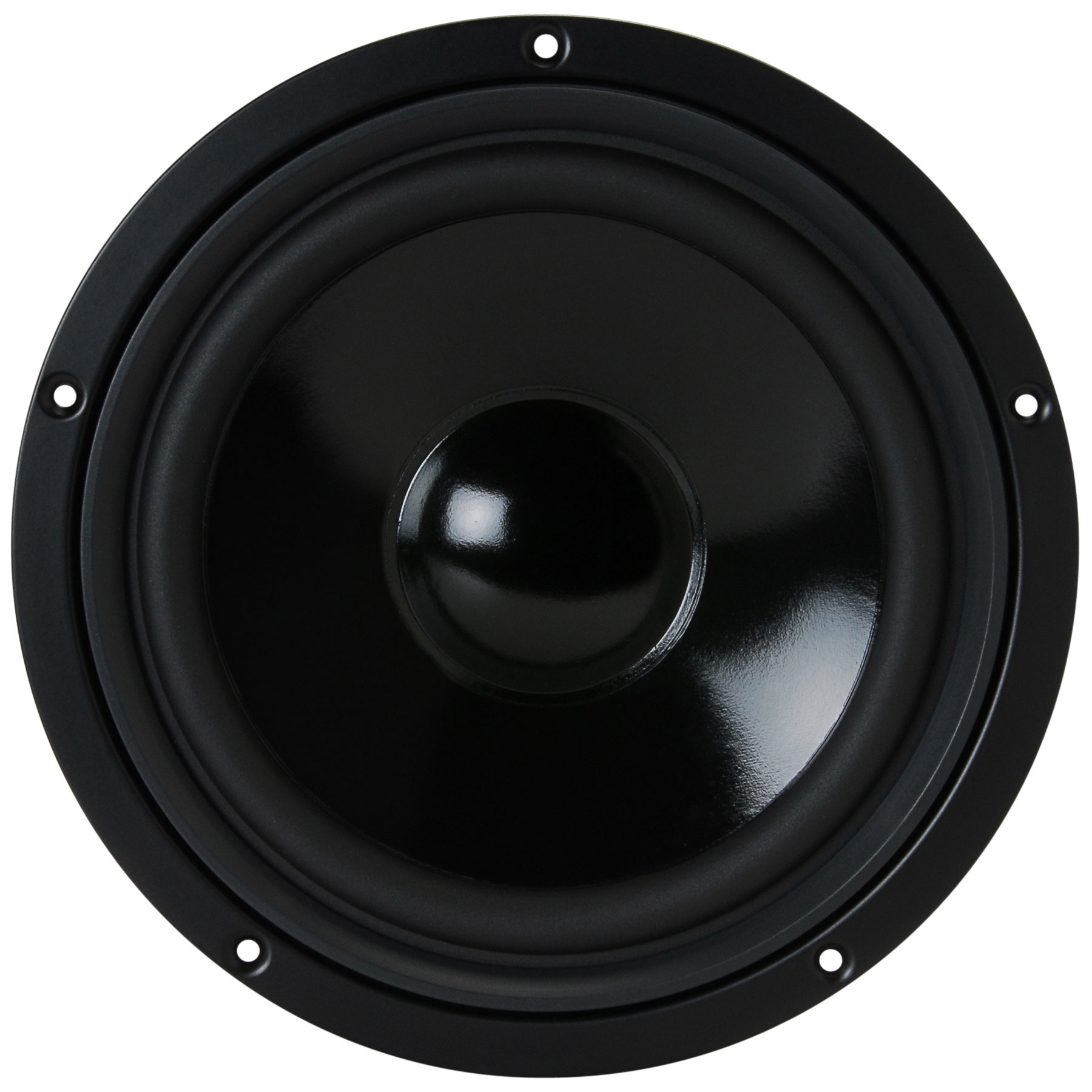

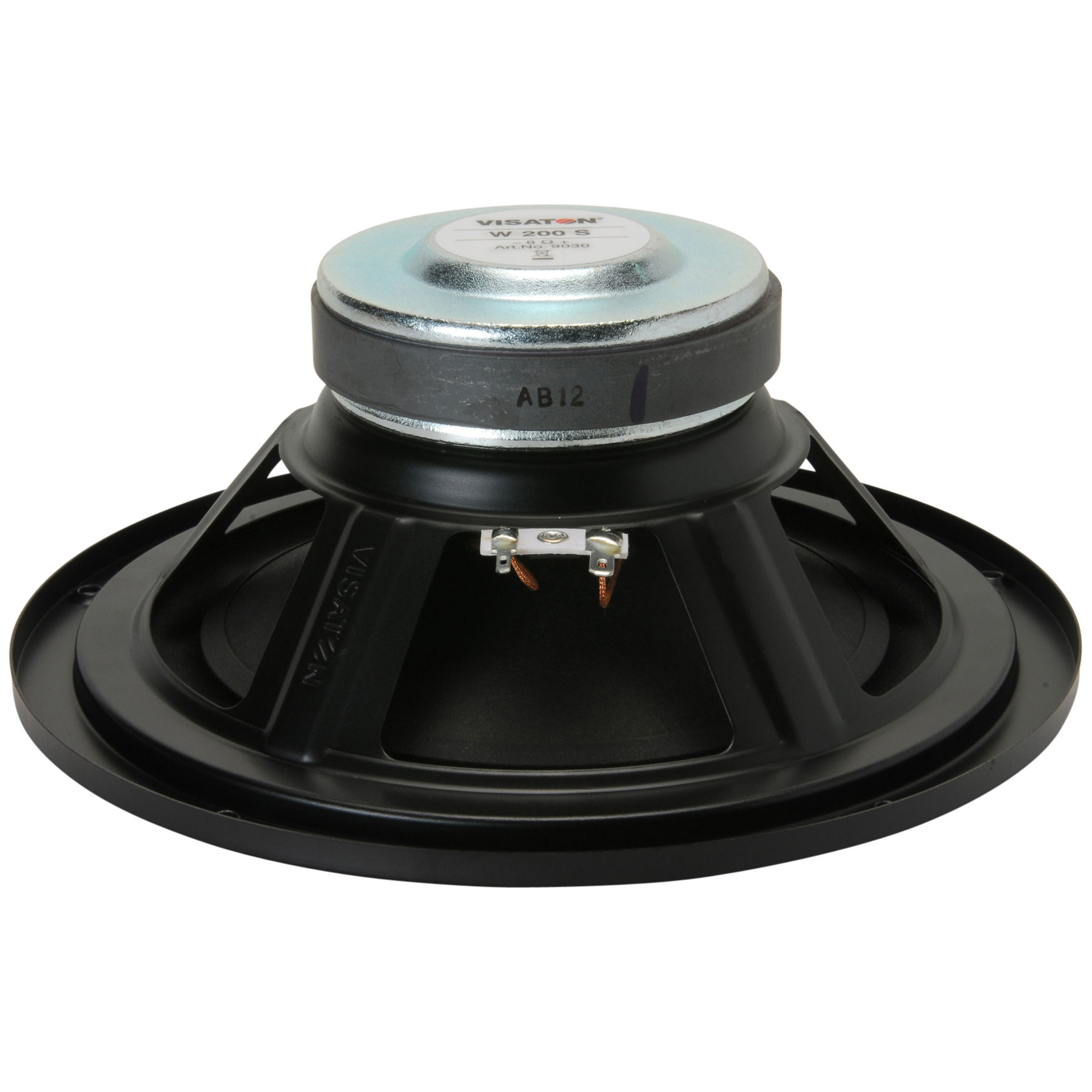

- W 200 S - 8
- Woofer Series
- HiFi Series
- Woofer Type
- Midwoofer
- Nominal Diameter
- 8"
- Power Handling (RMS)
- 75 Watts
- Power Handling (max)
- 115 Watts
- Impedance
- 8 ohms
- Sensitivity
- 88 dB (1 W/1 m)
- Frequency Response
- 30 - 6,000 Hz
- Voice Coil Diameter
- 35 mm
- DC Resistance (Re)
- 6 ohms
- Voice Coil Inductance (Le)
- 2.2 mH
- Resonant Frequency (Fs)
- 30 Hz
- Mechanical Q (Qms)
- 3.59
- Electromagnetic Q (Qes)
- 0.36
- Total Q (Qts)
- 0.33
- Diaphragm Mass Inc. Airload (Mms)
- 26g
- Surface Area of Cone (Sd)
- 214 cm2
- BL Product (BL)
- 9.0 Tm
- Compliance Equivalent Volume (Vas)
- 70 liters
- Maximum Linear Excursion (Xmax)
- 3.5 mm
- Cone / Diaphragm Material
- Treated Paper
- Surround Material
- Rubber
- Overall Outside Diameter
- 232 mm
- Overall Depth
- 94 mm
- Baffle Cutout Diameter
- 184 mm
- Bolt Circle Diameter
- 218 mm
- # Mounting Holes
- 5
- Mounting Hole Diameter
- 5 mm
- Sealed Volume
- 13.6 liters
- Sealed F3
- 73 Hz
- Vented Volume
- 28.3 liters
- Vented F3
- 44 Hz
