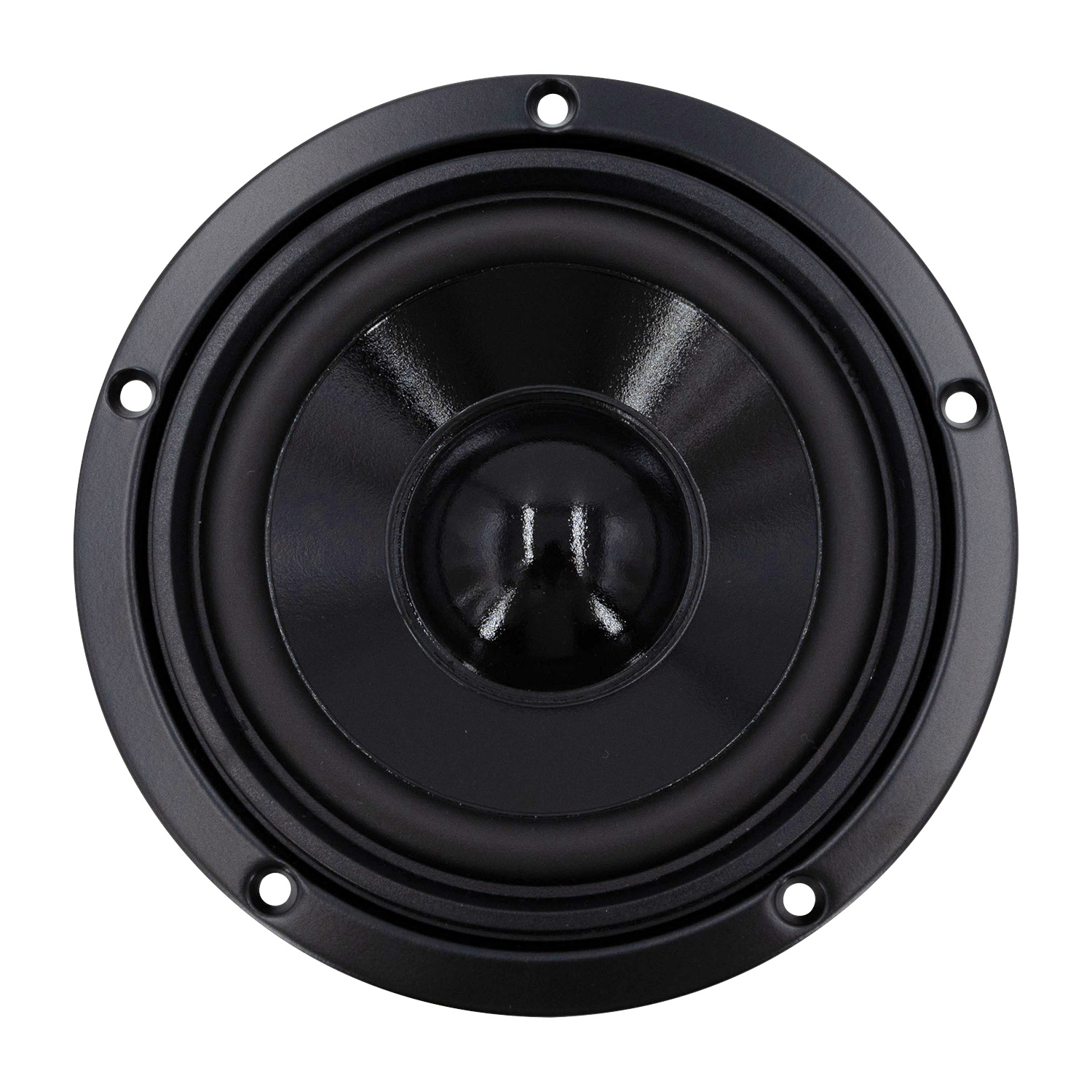

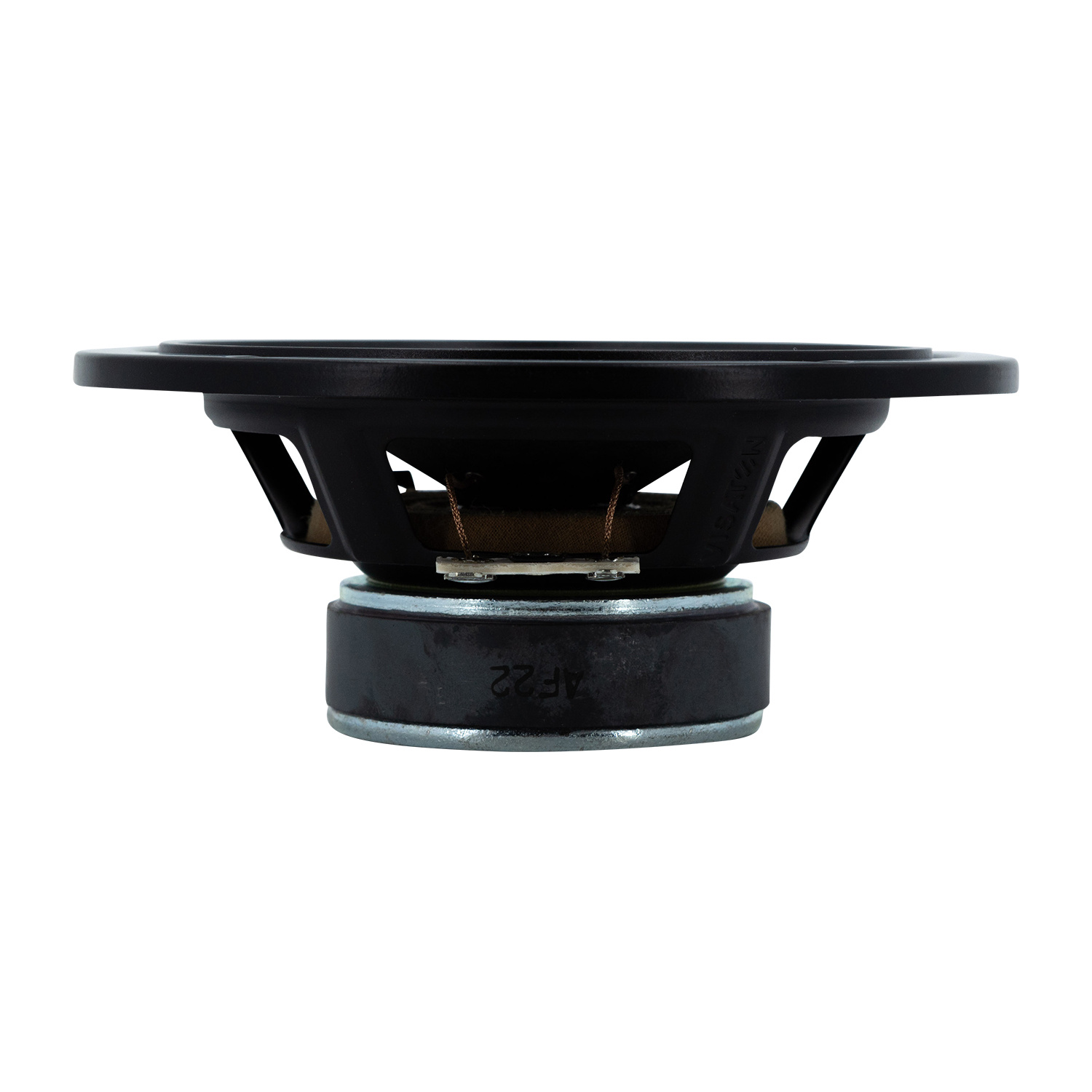

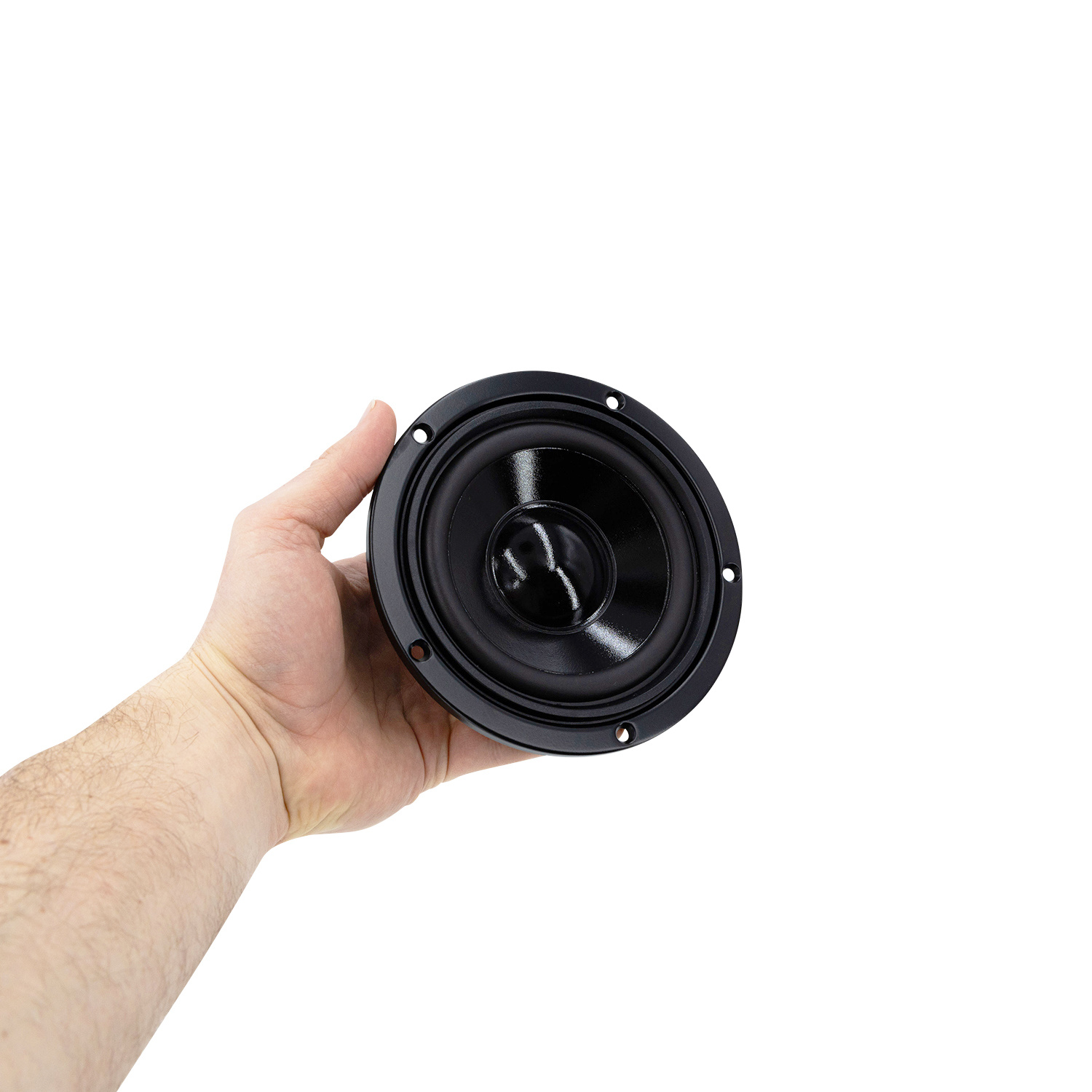

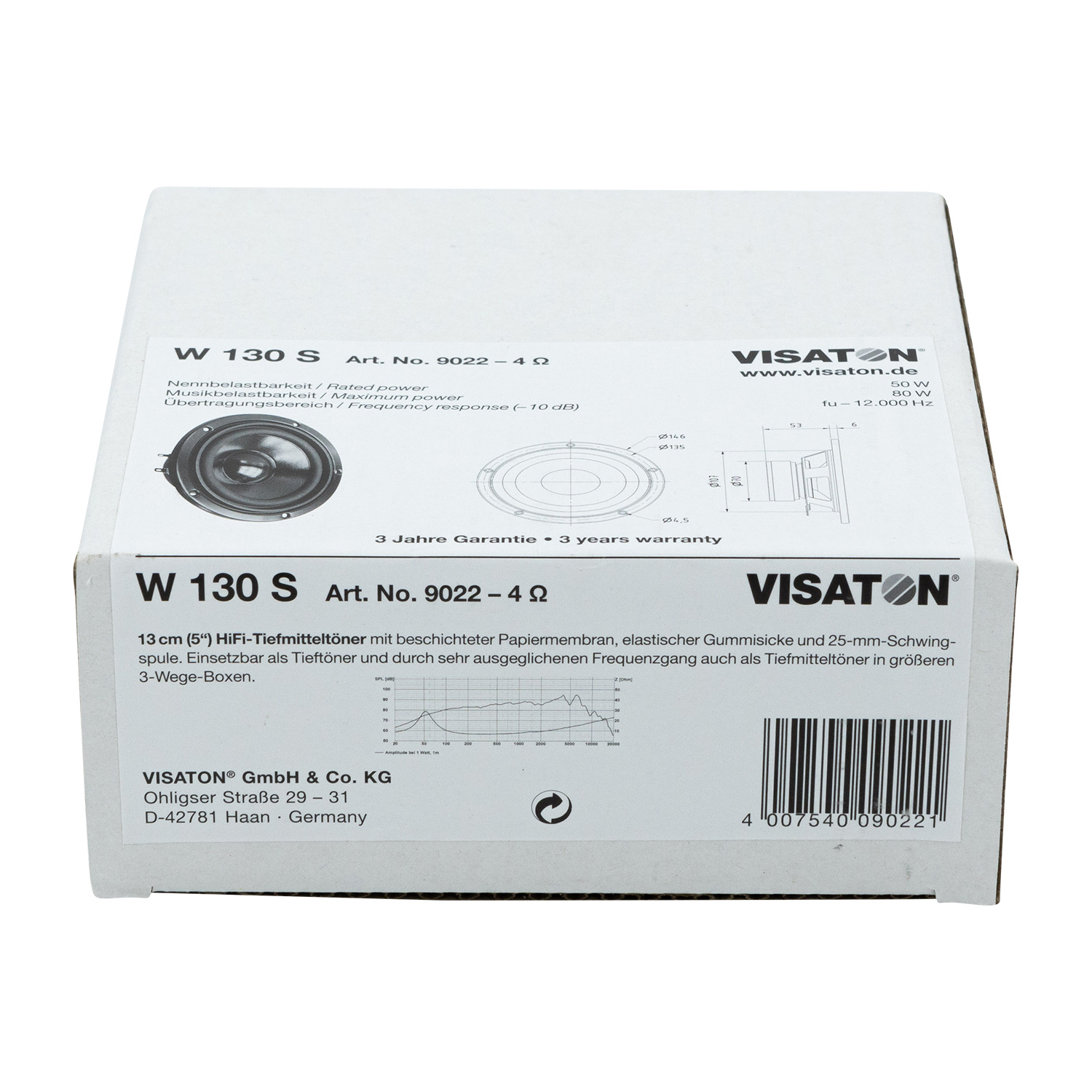

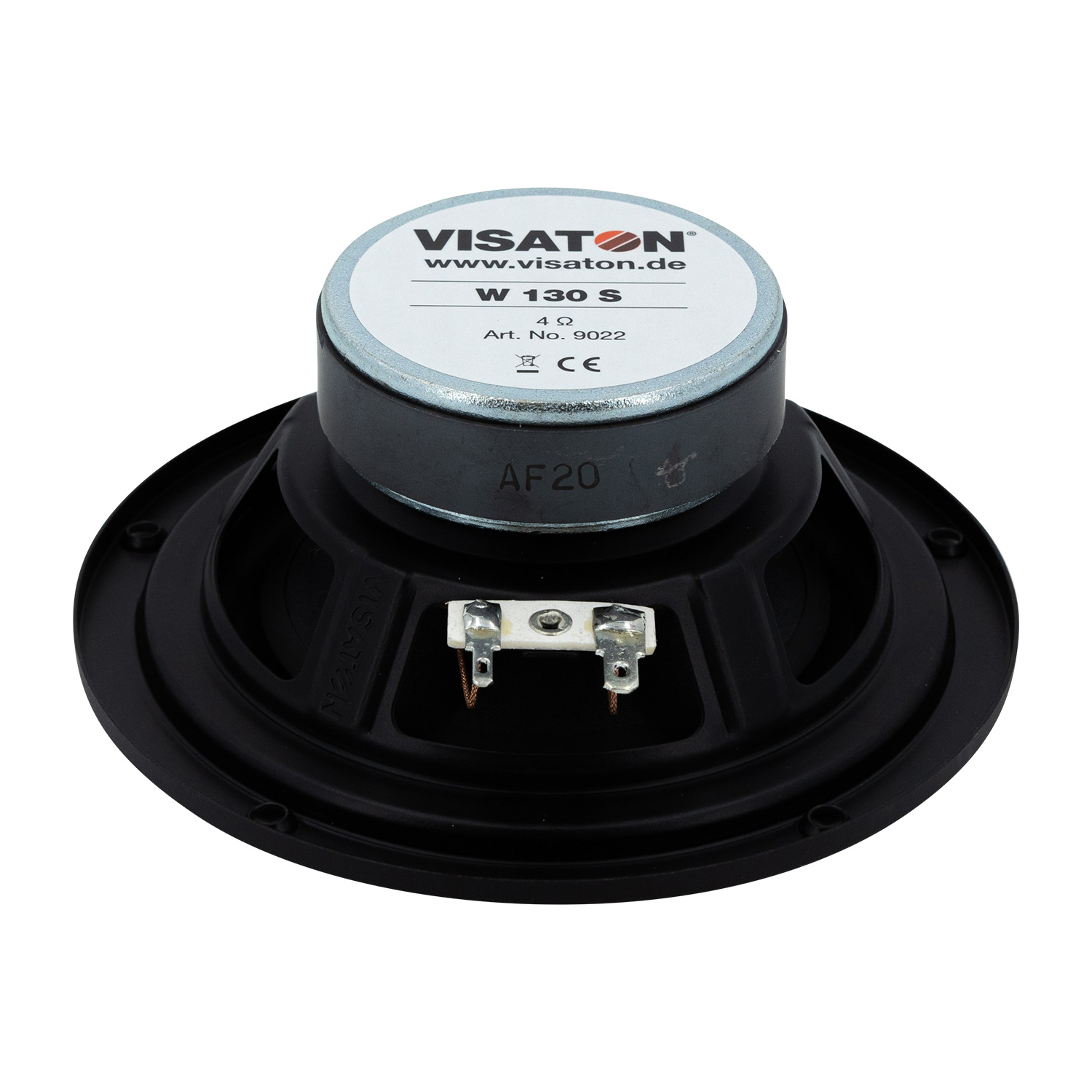

Visaton W 130 S - 4 5" Woofer 4 Ohm

€ 29,95 2 Auf Lager: Lieferzeit 1-3 Werktage
The W 130 S 5" woofer from Visaton delivers amazing bass, Xmax, and midrange performance not normally found in drivers at its price point. The 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €28,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The 9022 W130S 5" woofer from Visaton delivers amazing bass, Xmax, and midrange performance not normally found in drivers at its price point. The 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers.



Highlights

  • Relatively flat frequency response from 80 to 4,000 Hz
  • Able to play below 40 Hz in a proper vented cabinet
  • Great power handling and Xmax
  • 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers



Product details

Visaton W 130 S - 4 5" Woofer 4 Ohm



Visaton's 9022 W130S 5" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W130S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 4,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers. The 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers.



For best bass performance, install the W130S into one of the following cabinets: • A 0.25 cubic foot sealed cabinet (F3 is 86 Hz with a Qtc of 0.75) • A 0.71 cubic foot cabinet tuned to 44 Hz with a 1-1/4" diameter port that is 1-9/16" long • A 1.06 cubic foot cabinet tuned to 39 Hz with a 2-3/8" diameter port that is 4-3/4" long.

Eigenschaften

Artikelnummer:
W 130 S - 4
Woofer Series
HiFi Series
Woofer Type
Bass-mid woofer
Nominal Diameter
5"
Power Handling (RMS)
50 watts
Power Handling (max)
80 watts
Impedance
4 ohms
Sensitivity
86 dB 1W/1m
Frequency Response
50 - 12.000 Hz
Voice Coil Diameter
1"
DC Resistance (Re)
3.5 ohms
Voice Coil Inductance (Le)
0.6 mH
Resonant Frequency (Fs)
50 Hz
Mechanical Q (Qms)
2.54
Electromagnetic Q (Qes)
0.55
Total Q (Qts)
0.45
Compliance Equivalent Volume (Vas)
13.87 liters
Maximum Linear Excursion (Xmax)
2.25 mm
Cone / Diaphragm Material
Treated Paper
Surround Material
Rubber
Overall Outside Diameter
146.1 mm
Overall Depth
53.1 mm
Baffle Cutout Diameter
107 mm
# Mounting Holes
5
Sealed Volume
6.23 liters
Sealed F3
88 Hz
Vented Volume
16.71 liters
Vented F3
44 Hz

Bewertungen

4 from 5Based on 1 reviews
Produkt bewerten
4 van 5
Opmerkelijke prestaties voor een 'lilliputter' woofer !
Durch Joost W. on 6 Juni 2020
