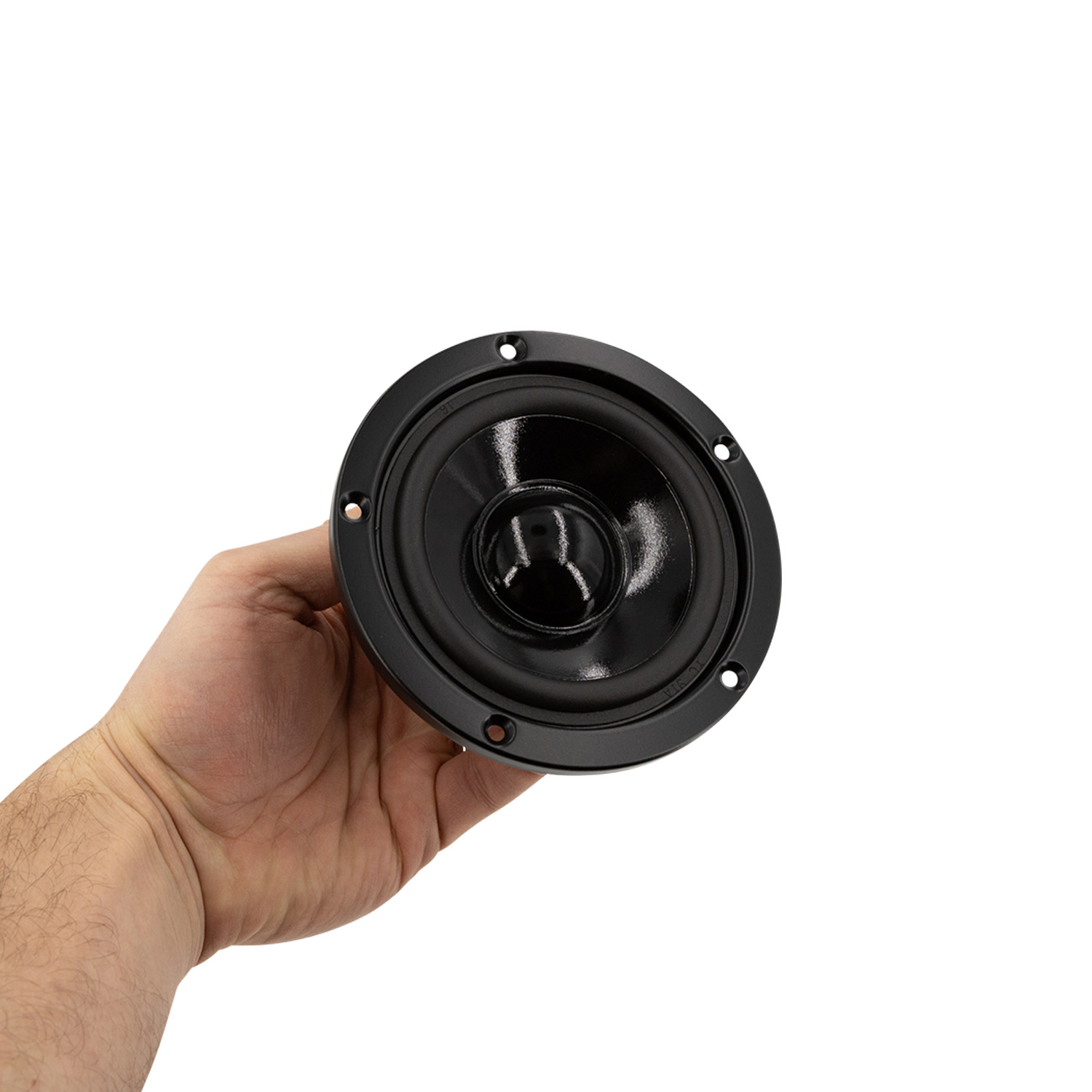

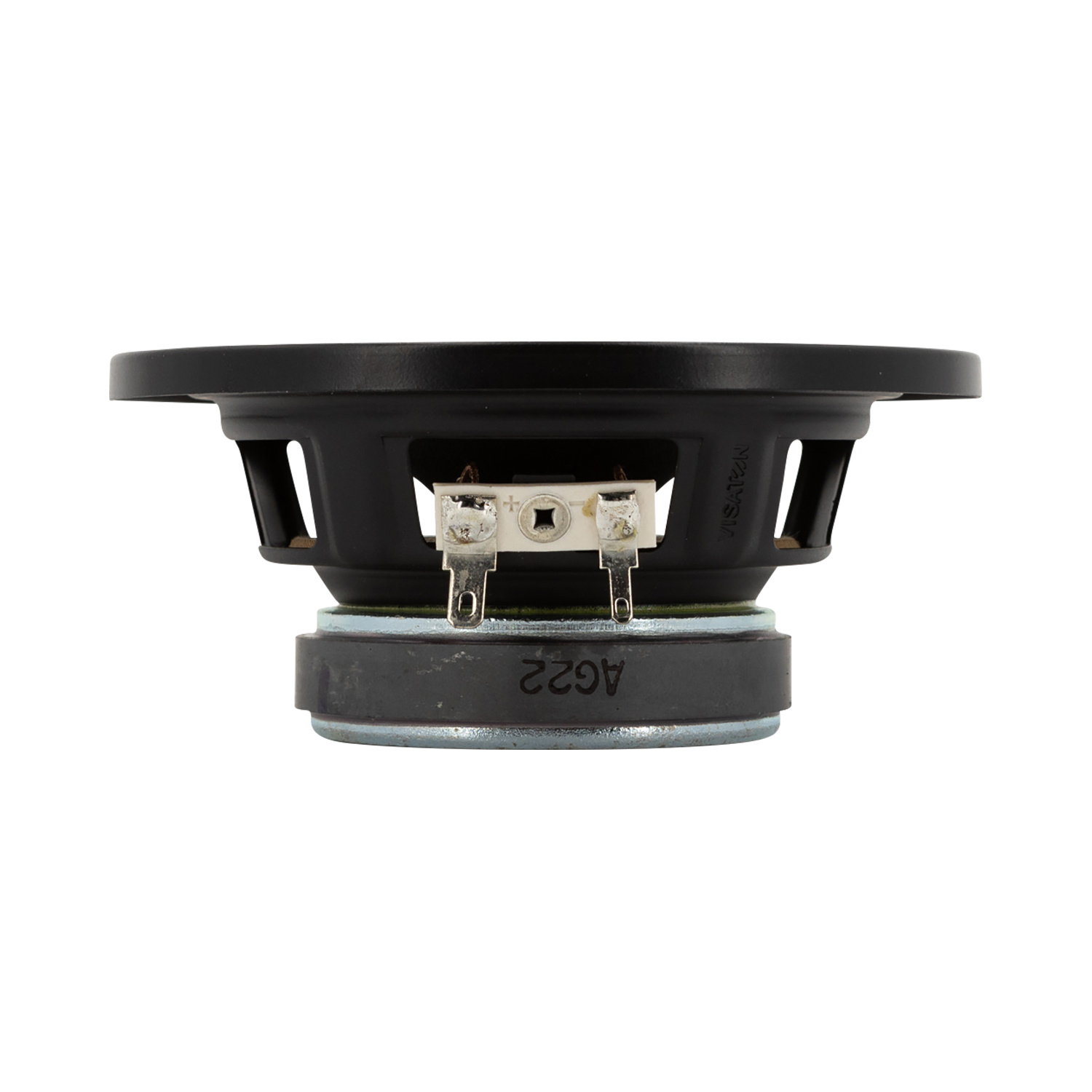

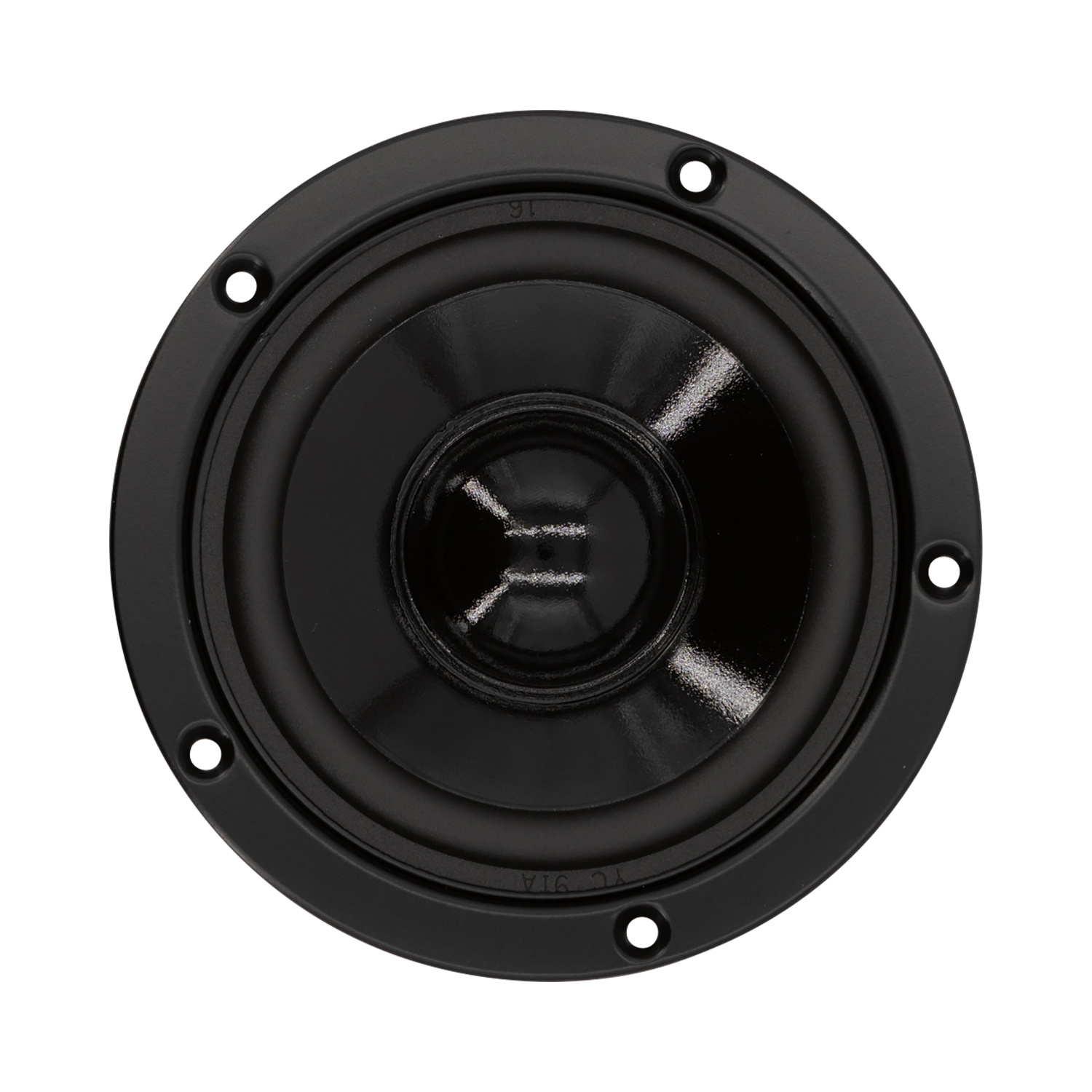

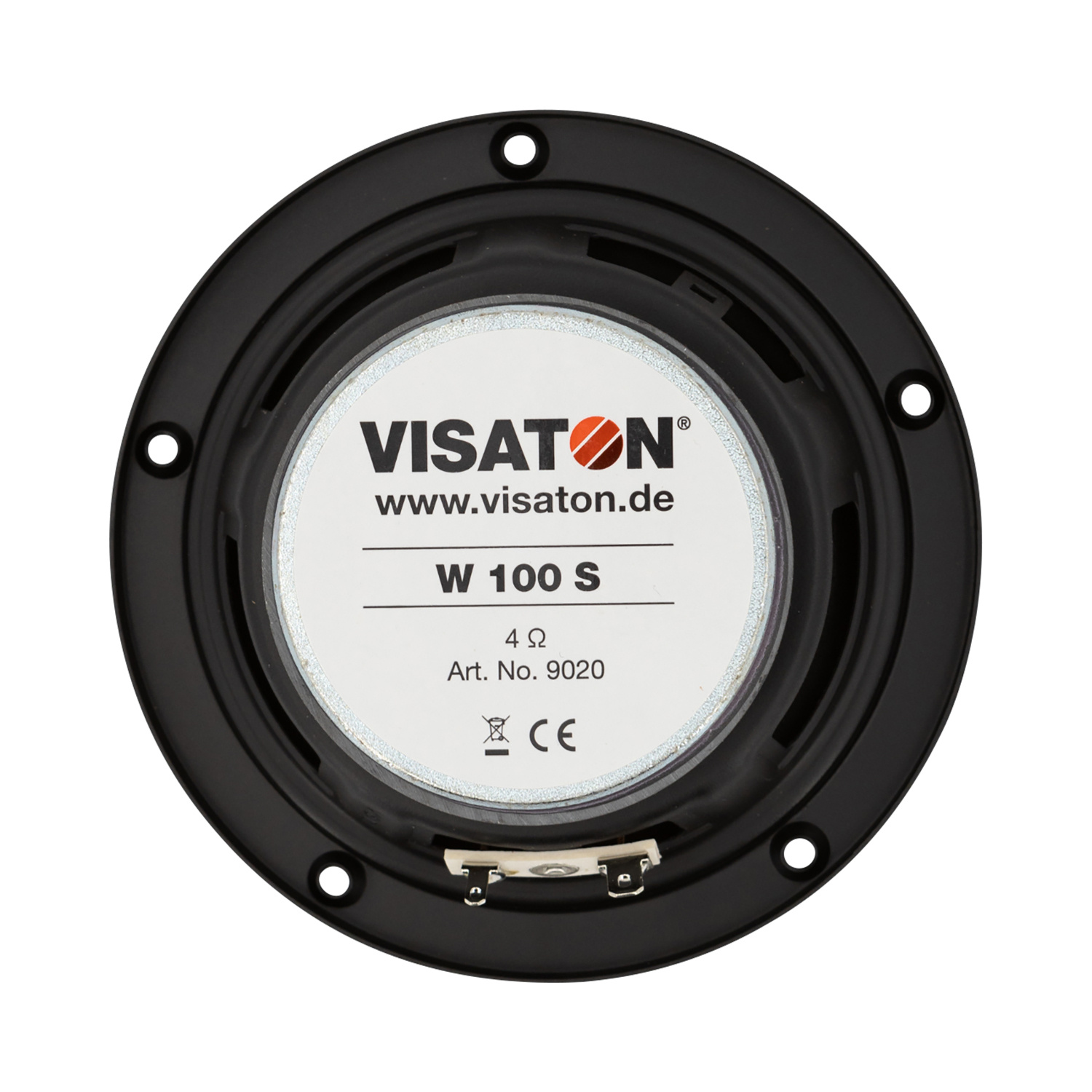

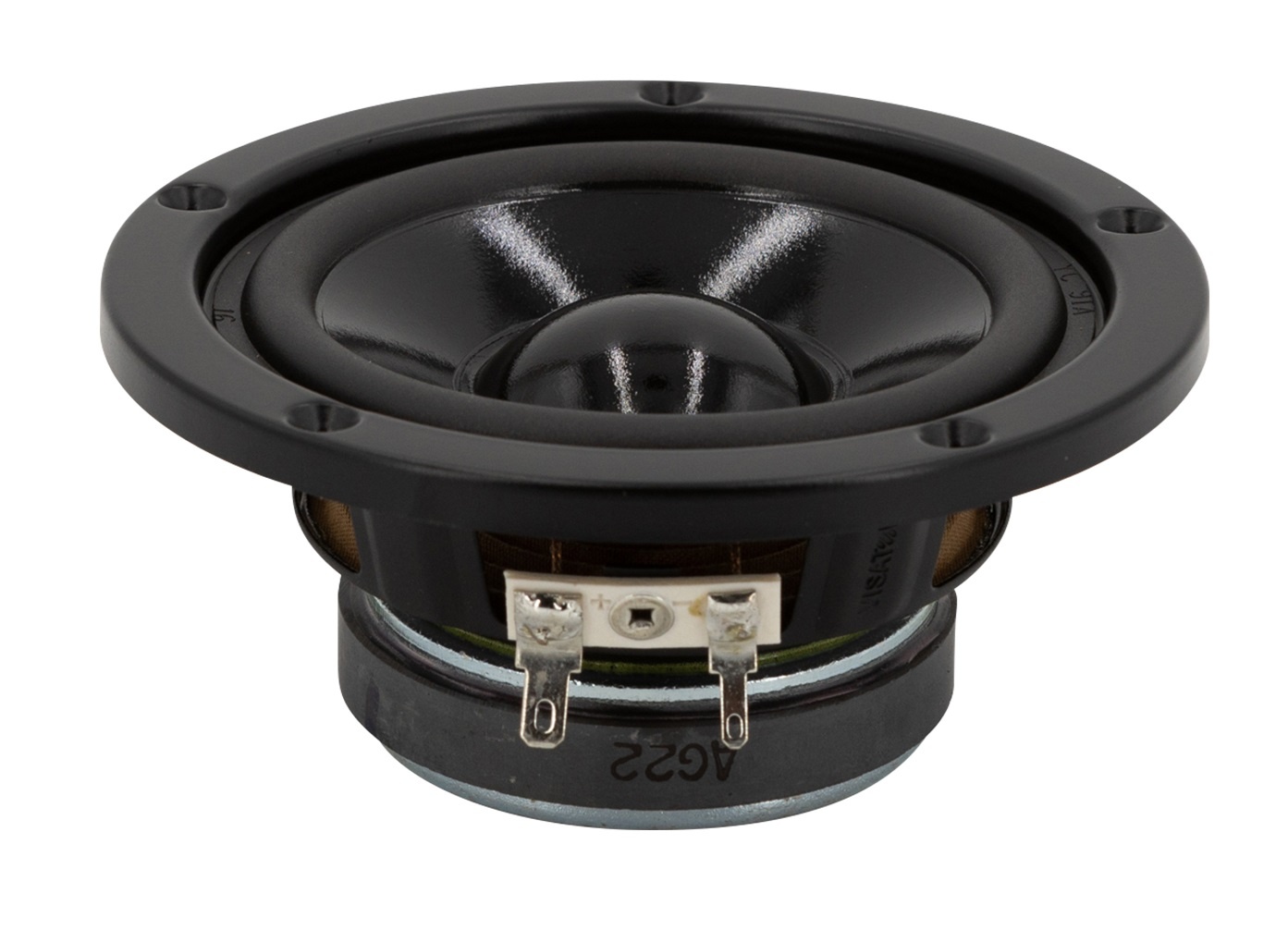

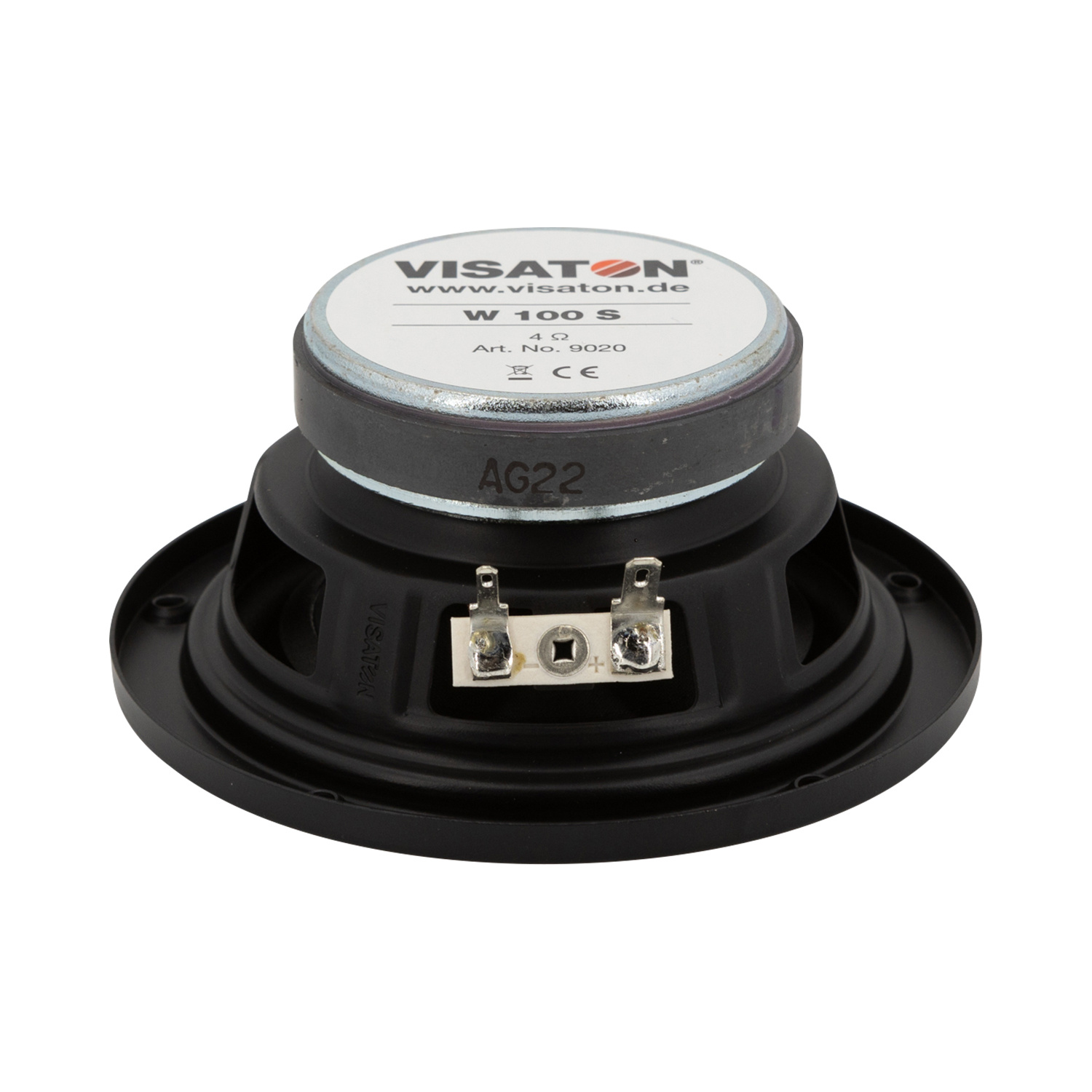

Visaton W 100 S - 4 4" Woofer 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: W 100 S - 4
  • Vorrat: 4 Auf Lager

The 10 cm (4") woofer with coated paper cone, elastic rubber surround and 20 mm voice-coil from Visaton delivers amazing bass and midrange performance not normally found in drivers at its price point. This 4-ohm version is great for use in series pairs f

€ 27,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €26,08 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Visaton W 100 S - 4 4" Woofer 4 Ohm

The 10 cm (4") woofer with coated paper cone, elastic rubber surround and 20 mm voice-coil from Visaton delivers amazing bass and midrange performance not normally found in drivers at its price point. This 4-ohm version is great for use in series pairs for MTMs and center-channels.



Highlights

  • Relatively flat frequency response from 100 to 5,000 Hz
  • Able to play below 60 Hz in a proper vented cabinet
  • Great power handling and decent Xmax
  • 4-ohm impedance for series pair use in MTM and center-channel speakers



Product Details

Visaton W 100 S 4" woofer 4 Ohm



Visaton's W 100 S 4" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W 100 S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 5,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers. 4-ohm impedance for use in series pairs, which is great for MTM and center-channel speakers.



Note: For best bass performance, install the W130S into one of the following cabinets:


• A 3.96 liters sealed cabinet (F3 is 100 Hz with a Qtc of 0.7).
• A 5 liters cabinet tuned to 70 Hz with a 31.75 mm diameter port that is 6 cm long.
• A 10 liters cabinet tuned to 56 Hz with a 31.75 mm diameter port that is 5.8 cm long.

Eigenschaften

Spezifikationen für: W 100 S - 4 4" Woofer 4 Ohm

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. HiFi Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Bass-mid woofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 4"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 30 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 50 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 86 dB (1 W/1 m)
  • Frequency Response 65 - 15000 Hz
  • Voice Coil Diameter 20 mm
  • Magnet Weight
  • DC Resistance (Re) 3.4 ohms
  • Voice Coil Inductance (Le) 0.5 mH
  • Resonant Frequency (Fs) 65 Hz
  • Mechanical Q (Qms) 3.04
  • Electromagnetic Q (Qes) 0.54
  • Total Q (Qts) 0.46
  • Diaphragm Mass Inc. Airload (Mms) 5.3 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms)
  • Surface Area of Cone (Sd) 53 cm2
  • Volume of Displacement (Vd)
  • BL Product (BL) 3.7 Tm
  • Compliance Equivalent Volume (Vas) 4.49 L
  • Maximum Linear Excursion (Xmax) 2 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 122 mm
  • Overall Depth 54 mm
  • Baffle Cutout Diameter 94 mm
  • Bolt Circle Diameter 111 mm
  • # Mounting Holes 5
  • Mounting Hole Diameter 3.7 mm
  • Sealed Volume 2,27 liters
  • Sealed F3 111 Hz
  • Vented Volume 5,95 liters
  • Vented F3 55 Hz
