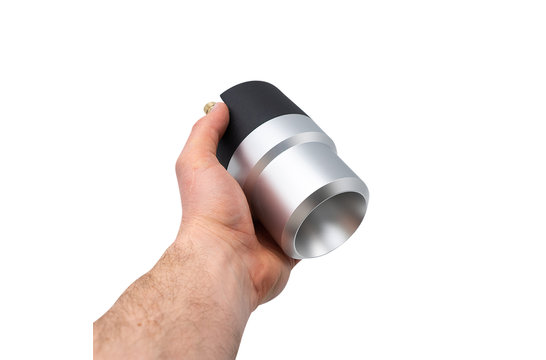

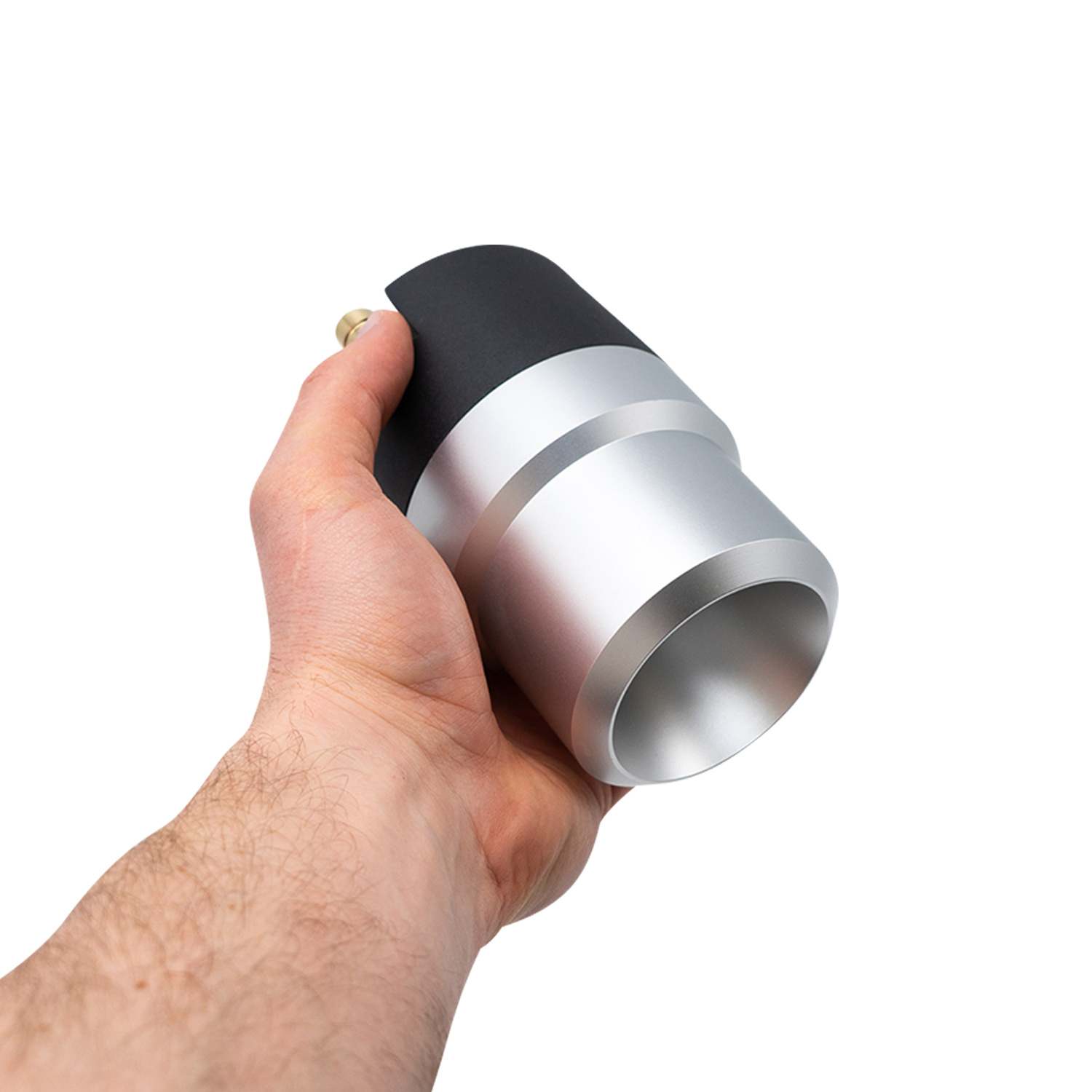

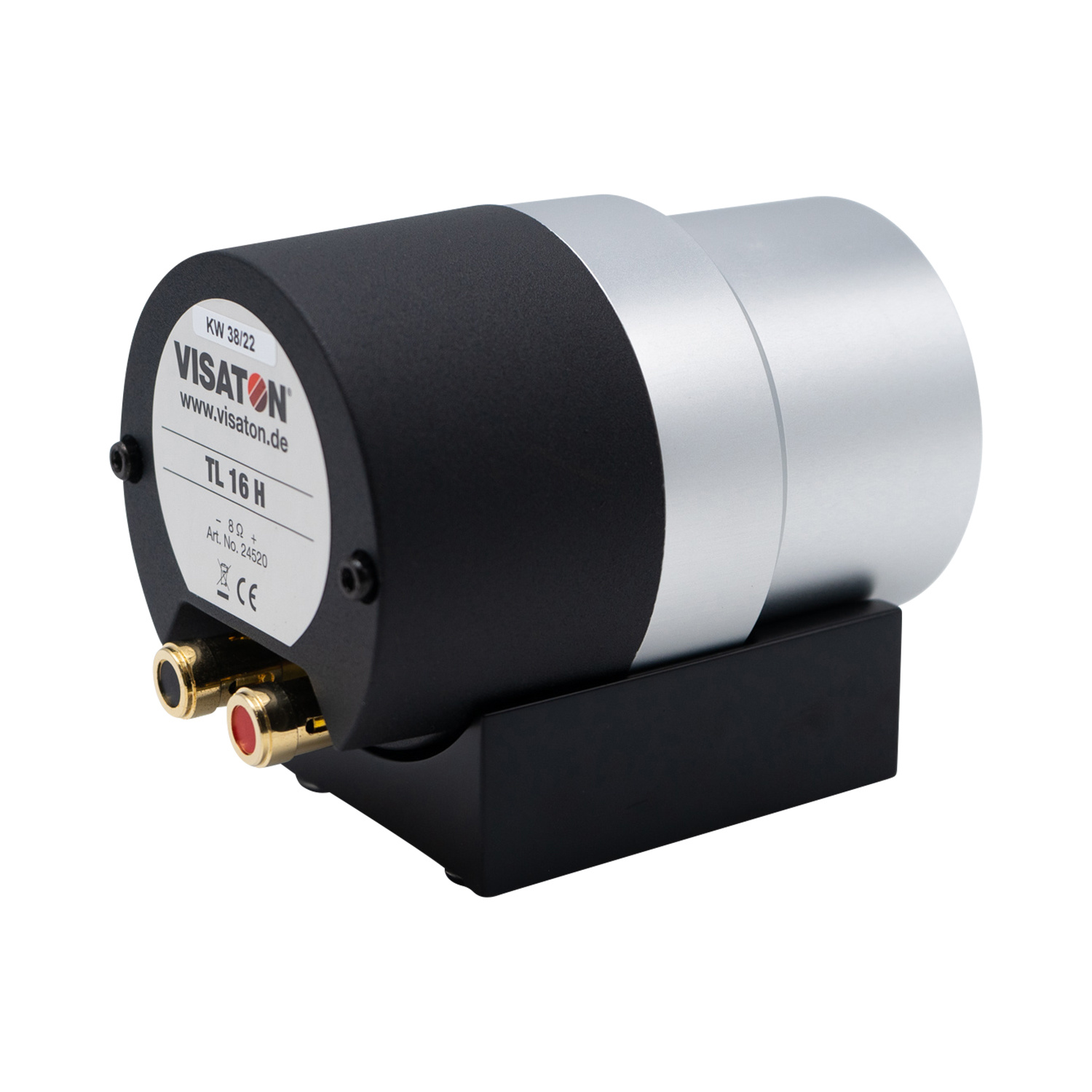

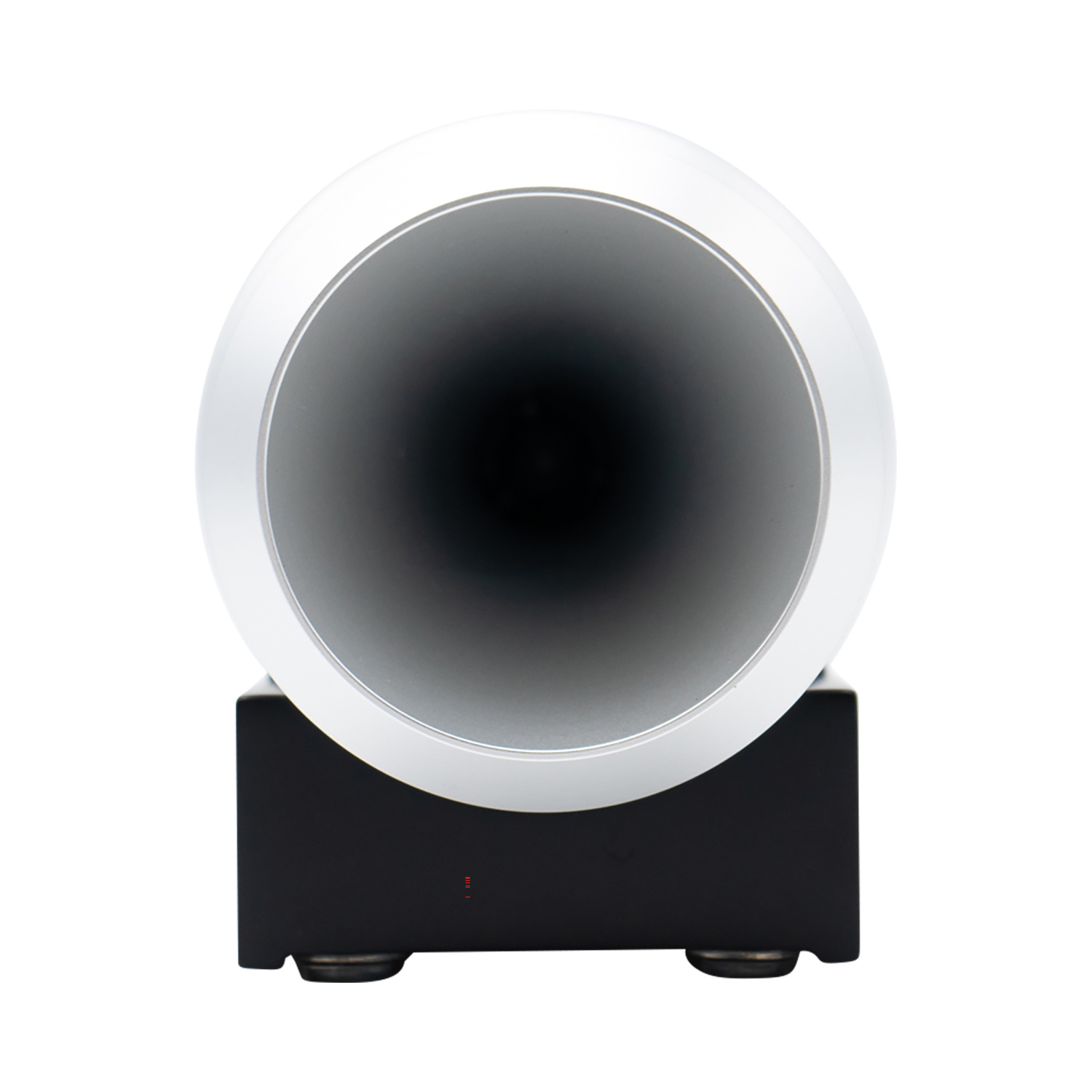

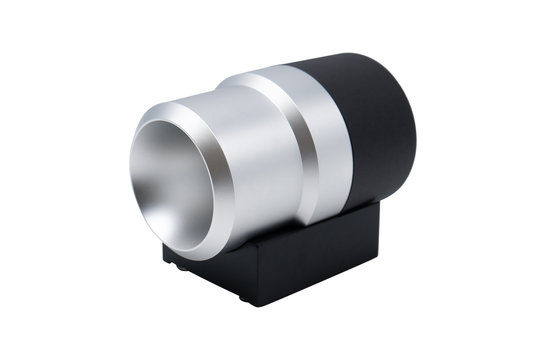

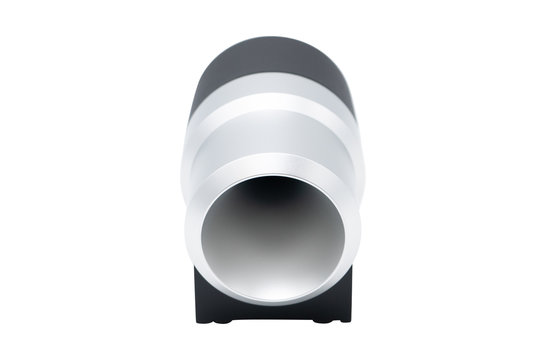

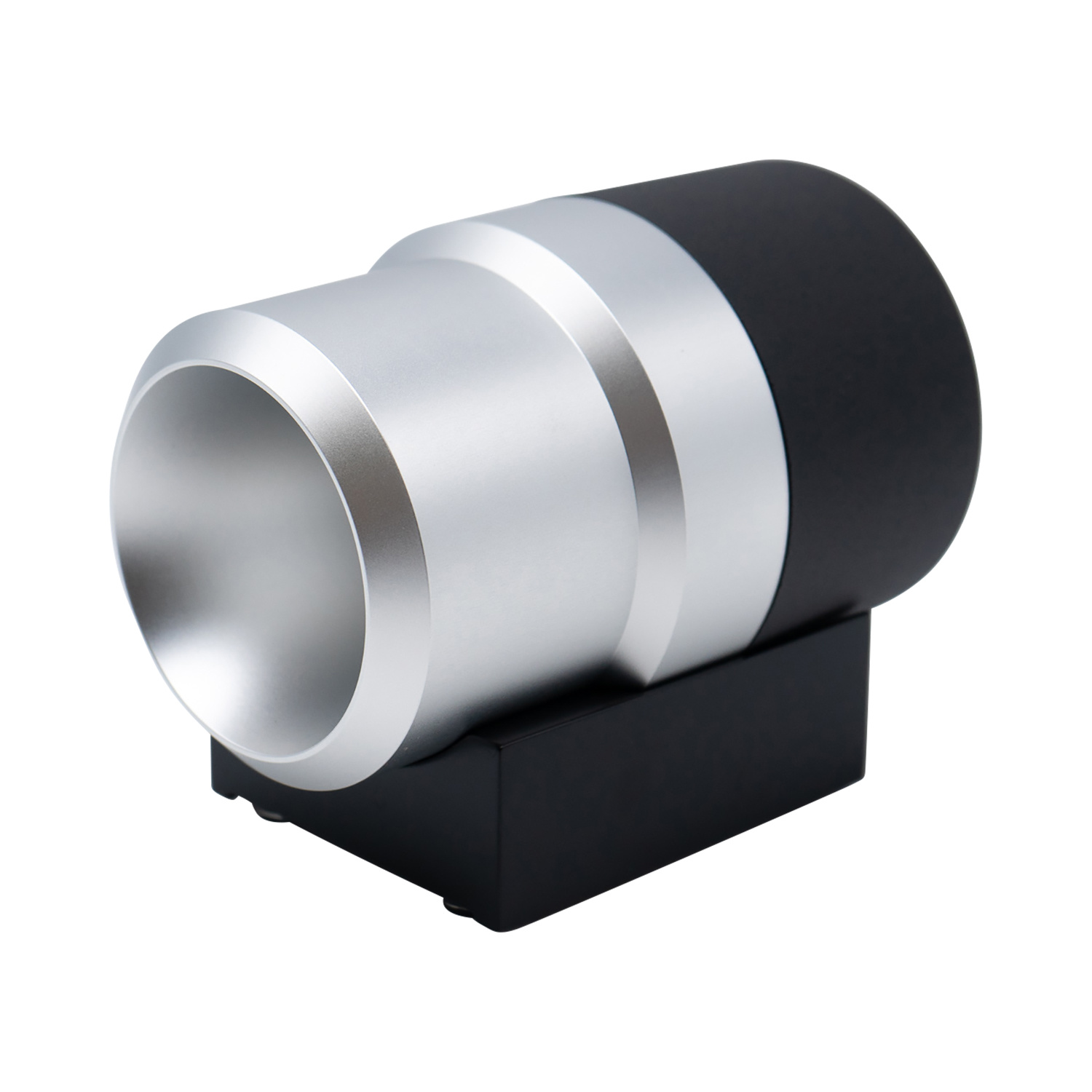

    Visaton TL 16 H High-End-Hochtonhorn 8 Ohm

    235,50 €284,95 € 8 Auf Lager
    • -5% Bestellung 4 für nur € 270,70 pro stück

    Buy now, pay later

    • Kostenloser Versand (DE & A)
    • Jetzt bestellt, heute versendet
    • Hausinterner technischer Support
    • 45 Tage Widerrufsrecht
    Angebot anfordern
    Haben Sie eine Frage zu diesem Produkt?

    Haben Sie eine Frage zu diesem Produkt?

    Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

    Produktbeschreibung

    High-End-Hochtonhorn für den Hochtonbereich ab 5000 Hz



    Highlights

    • Diaphragma aus Aluminium-Titan-Legierung
    • Sehr dynamische Impulsantwort
    • Hohe Empfindlichkeit



    Product details

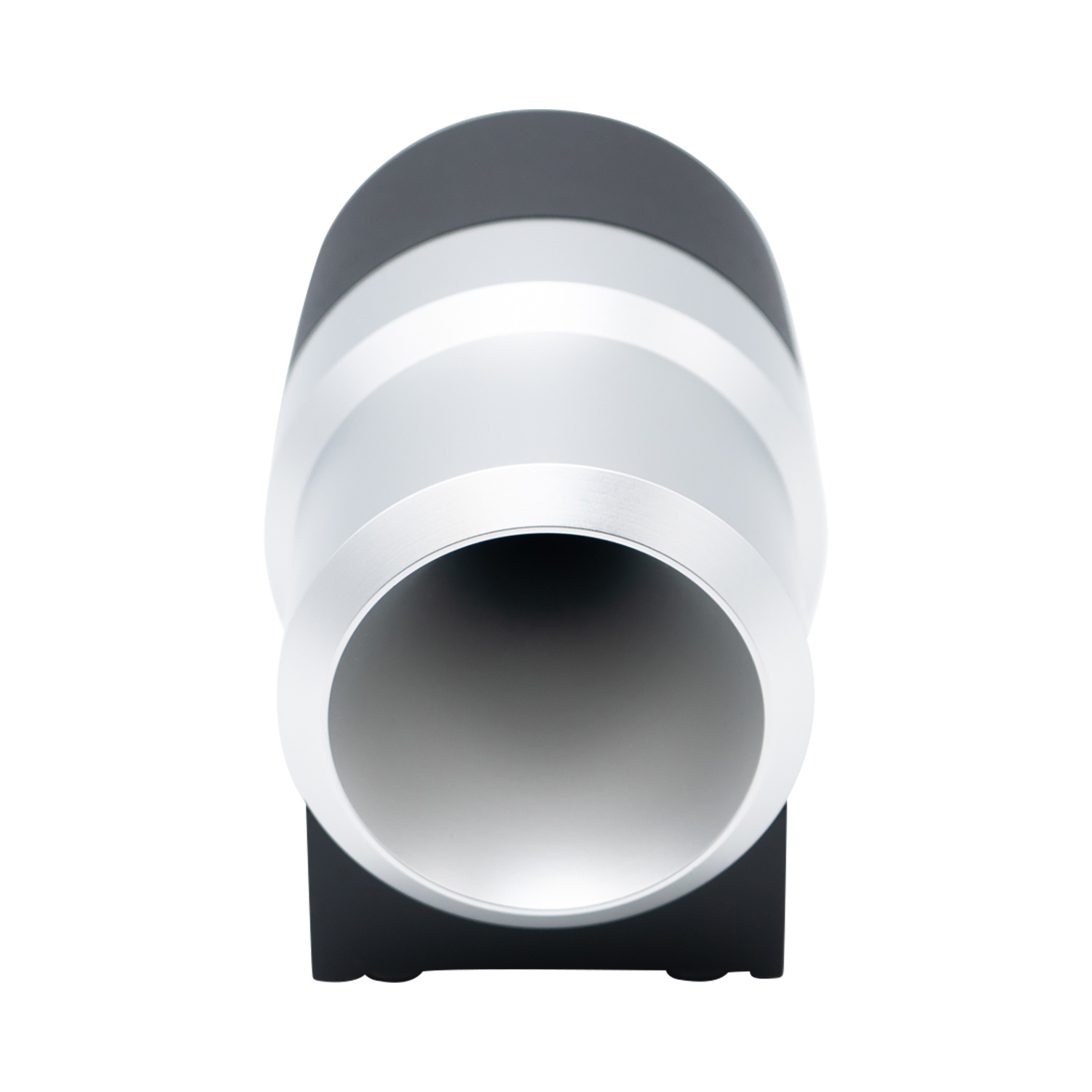

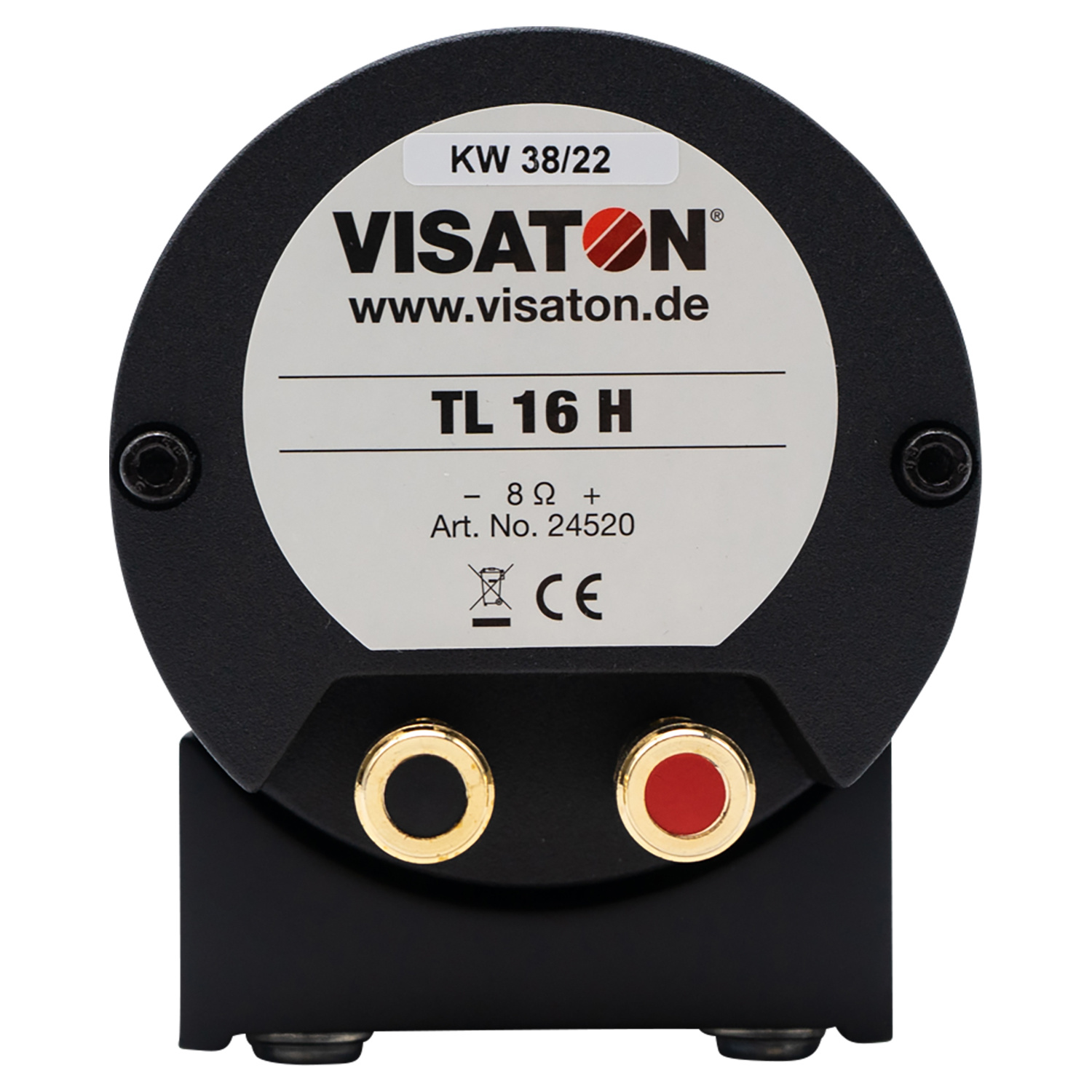

    Visaton TL 16 H High-End-Hochtonhorn



    Das extrem leichte Diaphragma aus einer Titan-Aluminiumlegierung weist neben einem extrem dynamischen Impulsverhalten einen sehr linearen Frequenzgang auf. Der kräftige Strontium-Ferrit-Magnet garantiert zusammen mit der 16-mm-Schwingspule einen enormen Wirkungsgrad.

    Mehr anzeigen

    Eigenschaften

    Artikelnummer:
    TL 16 H
    Hochtönertyp
    Horn
    Hochtöner-Serie
    High-End
    Belastbarkeit (QMW)
    150 Watts
    Power Handling (max)
    200 Watts
    Impedanz (Z)
    8 Ω
    Empfindlichkeit
    100 dB (1 W/1 m)
    Resonanzfrequenz (Fs)
    6,000 Hz
    Gleichstromwiderstand (Re)
    6.9 ohms
    Voice Coil Inductance (Le)
    0.17 mH
    Außendurchmesser
    84 mm
    Tiefe
    135 mm
    Empfohlene Übergangsfrequenz
    >5,000 Hz

    Mehr anzeigen

    Bewertungen

    4 from 5Based on 4 reviews
    Produkt bewerten
    5 von 5
    These are not intended for "putting vocals through"..Not sure why some people are so clueless!! This is a fantastic high efficiency super tweeter. The 19mm diaphram and solid ali cast horn provide very flat response to 35kHz with a very clean impulse. Response plots show little or no break up in the operational range to well above 20kHz and the cumulative spectral display and burst decay ARTA plots confirm this. Super clean. If I have one criticism, the dispersion is relatively narrow so not for "nearfield" unless you angle them in. Their impedance graph is very flat with only a very small peak at Fs, around 6kHz..so a 4th order LR crossover anywhere between 6k8 and 8kHz would be optimal. If you are using DSP, time alignment will ensure minimum phase and minimal ripple response through the crossover point. I find it hard to believe, except for brand name and folk law that the "other" bullet tweeters, at much higher price points, will perform audibly better. If you believe in science that is..the plots don't lie!!
    Durch David Purton on 8 August 2022
    5 von 5
    Bought a pair of it. Sounds excellent. Using a selfmade Crossover Linkwitz Riley with 24dB/Octave at 7050 Hz reproduces the highest of the highest frequencies. It´s a high tweeter, not usable for midrange application!! So don´t expect high SPL in the mid range area!! Highly recommended with the correct filter :-)
    Durch VISATON TL16H Fine Art High Tweeter :-) on 23 Januar 2021
    Mehr anzeigen
