      PORTRAIT DIY-Komponentenpaket

      Visaton PORTRAIT DIY-Komponentenpaket

      €179,95

      Nicht auf Lager

      Visaton PORTRAIT DIY-Komponentenpaket

      0 klantbeoordelingen
      0 von 5
      0 klantbeoordelingen
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Visaton
      148,72 €179,95 € Nicht auf Lager
      • -5% Bestelle 4 für nur 170,95 € je Stück

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Bald wieder auf Lager
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung Visaton PORTRAIT DIY-Komponentenpaket

      Many lovers of music have one problem in common: they want to listen to good music at a high quality of reproduction but they do not have the room to place the loudspeakers they would like to buy or they cannot find the right speakers to blend in with their furnishings and taste. What they need is loudspeakers that do not look like loudspeakers.



      Highlights of the Visaton PORTRAIT DIY

      • Slim and Stylish Design
      • High-Fidelity Sound
      • Expandable and Customizable
      • DIY Project (Requires Planning)
      • Subwoofer Pairing Option



      Product details Visaton PORTRAIT DIY

      Visaton PORTRAIT DIY components pack

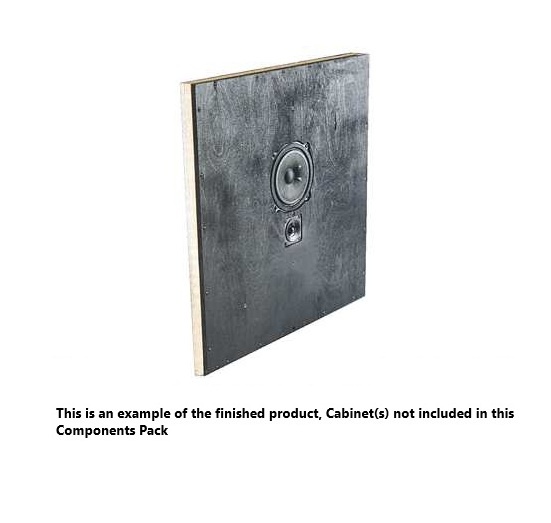

      And so, Visaton developed the PORTRAIT design, which can be hung on the wall and looks like a picture. The objective was to keep the cabinet as flat as possible. The PORTRAIT will be satisfied with only 40 mm in depth. If you take the time to make some more complex cut-outs, you can even reduce this to 34 mm. This is made possible by the use of particularly slim 13 cm FR 12 - 8 Ohmloudspeakers as woofers. Combined with the SC 5 - 8 Ohm tweeter and the specially designed crossover, this produces a sophisticated satellite speaker unit. Due to the small cabinet, low bass cannot be produced by the PORTRAIT. As a result, the bass range below 100 Hz is best covered by a subwoofer (e.g. SUB-W 20.39 ).



      This combination with a powerful subwoofer means that the PORTRAITset-up is a visually appealing and acoustically highly effective system which can, if required, be extended. If the wall space in front of and behind the listening position are free, additional PORTRAIT speakers can be hung to produce a multi-channel system for home theatre and music.



      The point about the PORTRAIT is the option of fitting a fabric front to the cabinet which can vary, depending on the surroundings, e.g. single-coloured or brightly coloured silk. Of course, one can always put one's creative skills to work and make one's own silk covers adorned with favourite motifs. There are no limits to your imagination.

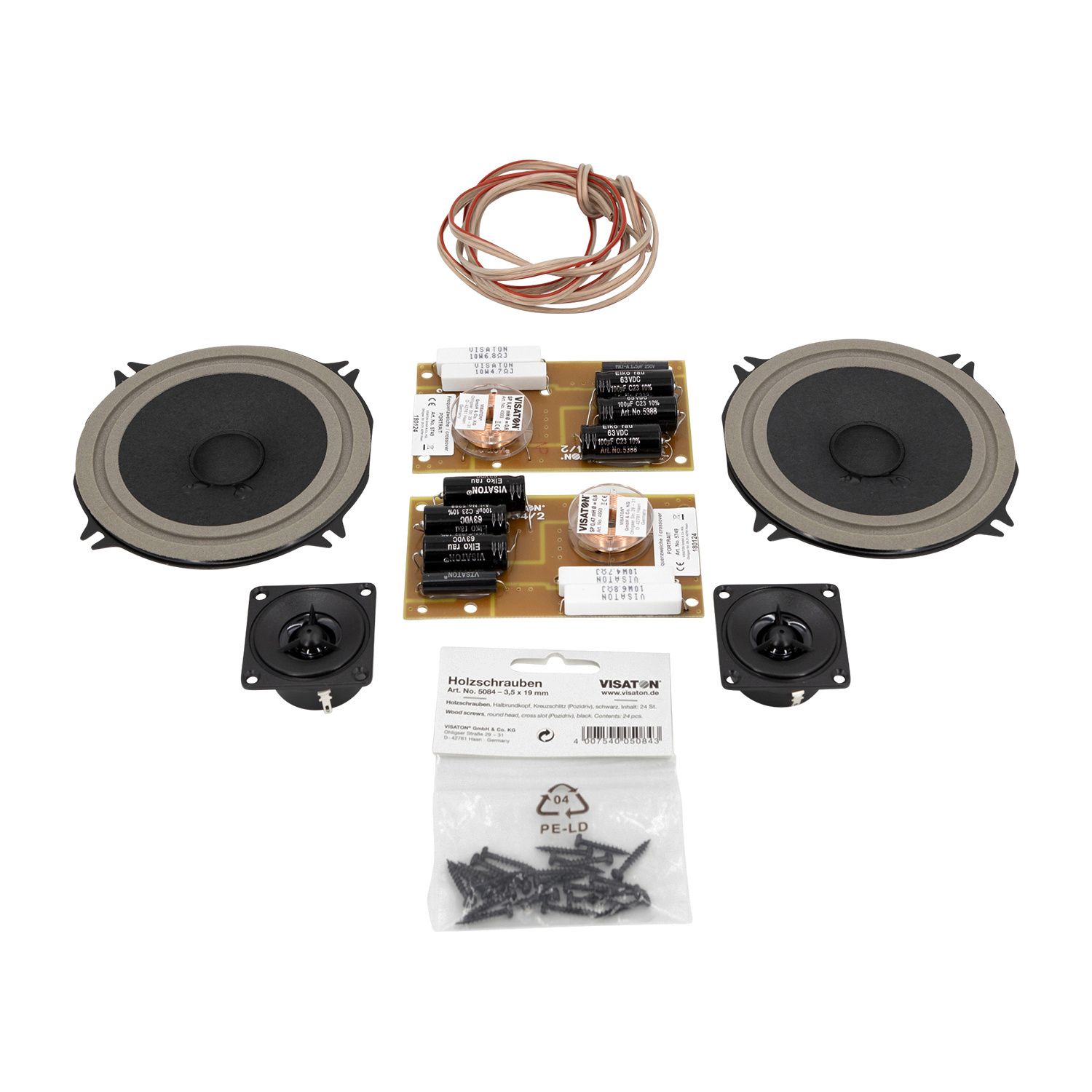

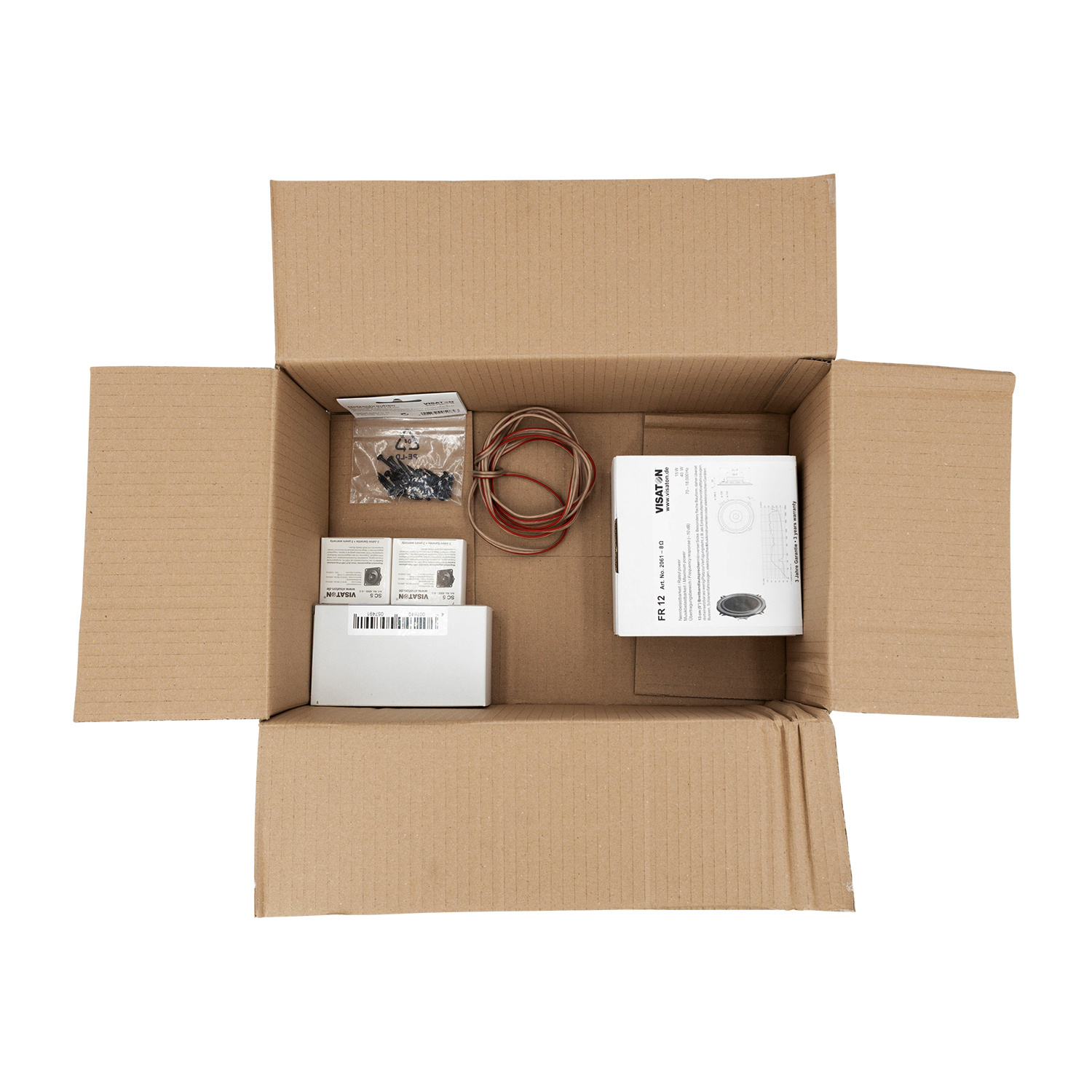

      What's in the box?

      • 1x SC 5 - 8 Ohm tweeter
      • 1x FR 12 - 8 Ohm woofer
      • 0.5 bag polyester wool
      • Assembled crossover
      • 8x 3.5 x 19 mm wood screws
      • 1m 2 x 1.5 mm² cable

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      PORTRAIT
      EAN
      4007540059518
      Tieftönertyp
      Midwoofer
      Belastbarkeit (QMW)
      30 Watt
      Belastbarkeit (max)
      80 Watt
      Impedanz (Z)
      4 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      84 dB
      Frequenzgang
      80 - 22.000 Hz
      Schwingspulendurchmesser
      30 mm
      Gleichstromwiderstand (Re)
      3.3 Ω
      Schwingspuleninduktion (Le)
      0.70 mH
      Resonanzfrequenz (Fs)
      47 Hz
      Mechanische Güte (Qms)
      5.56
      Gesamtgüte (Qts)
      1.14
      Bewegliche Masse (Mms)
      23 g
      Cone / Diaphragm Material
      Polypropylene
      Sicke-Material
      Rubber
      Außendurchmesser
      207 mm
      Ausschnittdurchmesser
      186 mm
      Durchmesser Befestigungslochs
      5.0 mm
      Geschlossenes Volumen
      4 L
