- Artikelnummer:

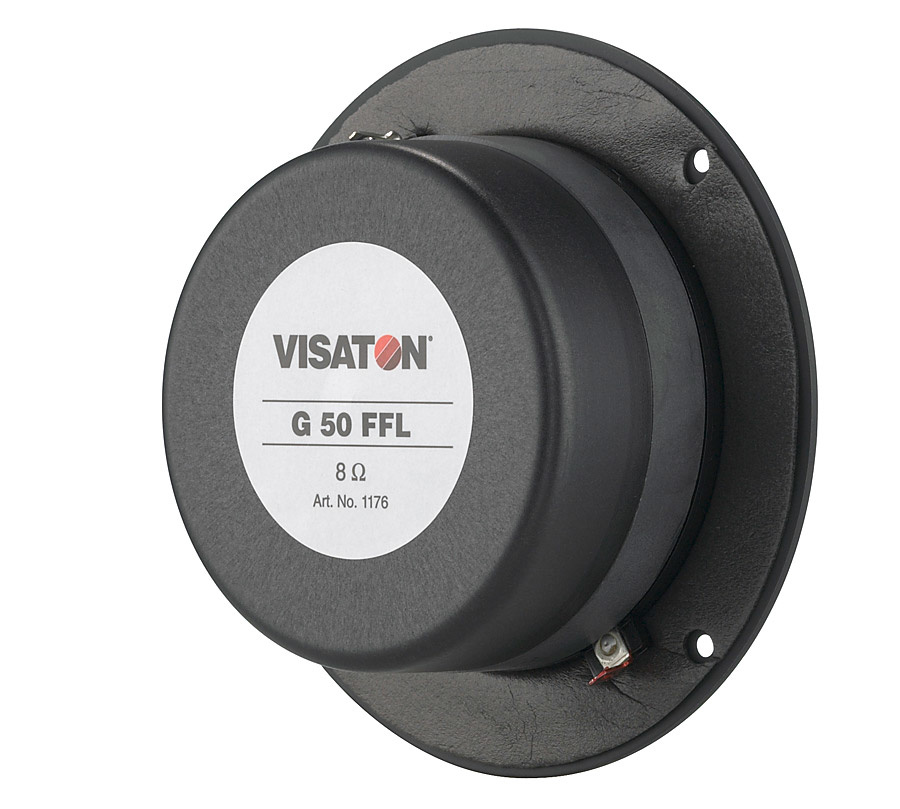

- G 50 FFL
- Woofer Series
- High-End
- Woofer Type
- Mid-dome
- Nominal Diameter
- 2"
- Power Handling (RMS)
- 120 Watts
- Power Handling (max)
- 180 Watts
- Impedance
- 8 ohms
- Sensitivity
- 90 dB (1 W/1 m)
- Frequency Response
- 300 - 12,000 Hz
- Voice Coil Diameter
- 50 mm
- DC Resistance (Re)
- 6.4 ohms
- Voice Coil Inductance (Le)
- 0.16 mH
- Resonant Frequency (Fs)
- 455 Hz
- Mechanical Q (Qms)
- 0.48
- Electromagnetic Q (Qes)
- 0.67
- Total Q (Qts)
- 0.28
- Diaphragm Mass Inc. Airload (Mms)
- 1.2g
- Surface Area of Cone (Sd)
- 20 cm2
- Compliance Equivalent Volume (Vas)
- 0.037 liters
- Cone / Diaphragm Material
- Fabric
- Overall Outside Diameter
- 140 mm
- Overall Depth
- 50.2
- Baffle Cutout Diameter
- 106 mm
- Bolt Circle Diameter
- 126 mm
- # Mounting Holes
- 4
- Mounting Hole Diameter
- 4.2 mm
