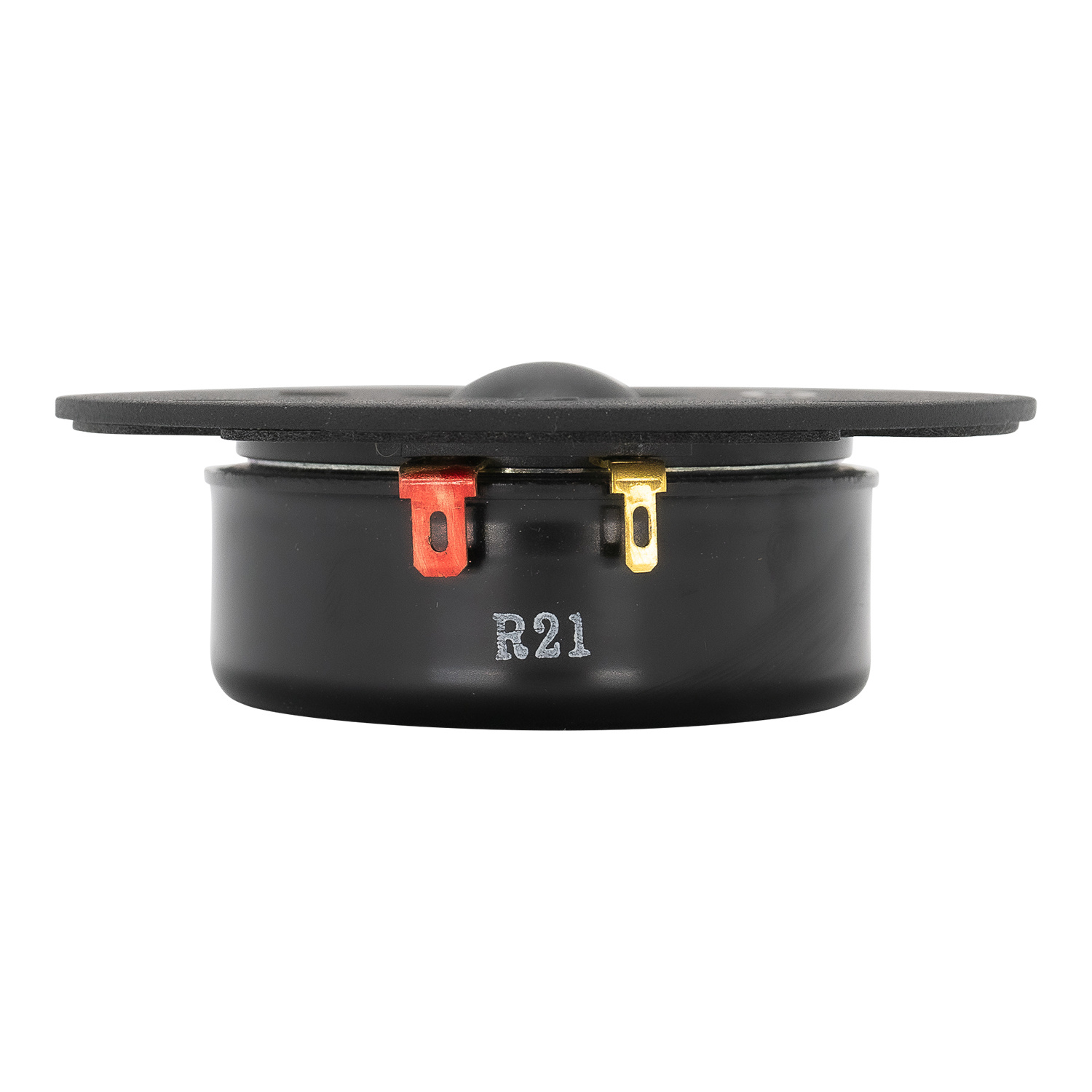

Visaton G 20 SC 0.8" High-End Textile Tweeter 8 Ohm

3 reviews

Marke: Visaton

Alle anzeigen Audio-Komponenten

Vergleichen

0.8" | 8 Ω

G 20 SC 0.8" High-End Textile Tweeter 8 Ohm

€ 38,80€ 46,95 5 Auf Lager: Lieferzeit 1-3 Werktage

14 mm (0.6") polycarbonate dome driver for the highrange above 4000 Hz.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

20 mm (0.8") High-end textile dome unit for use at tweeter frequencies of 3,000 Hz and above.

Highlights

Optimised dome shape for balanced frequency response
Ferrofluid-cooled 8 ohm voice coil
88 dB sensitivity

Product details

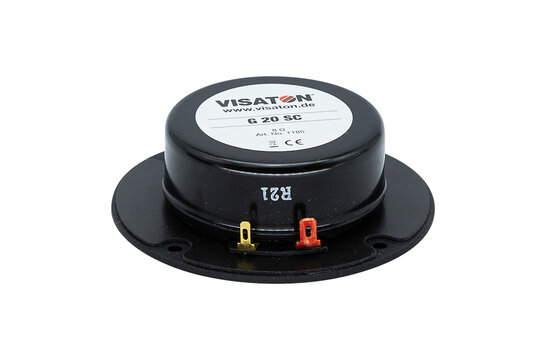

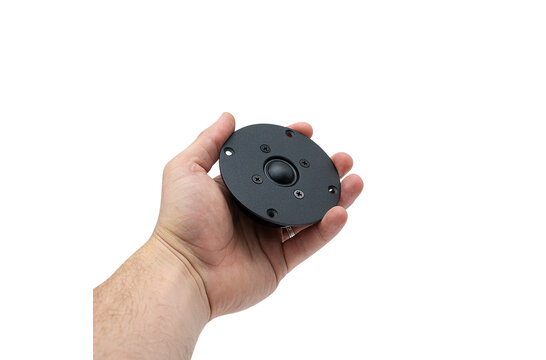

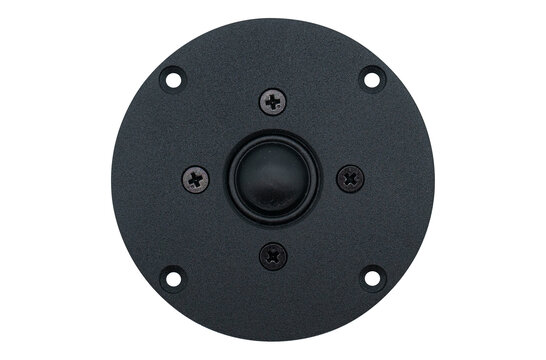

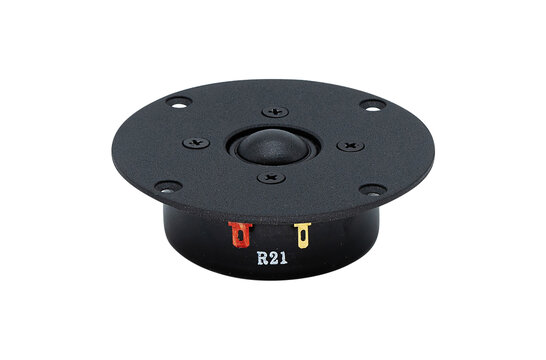

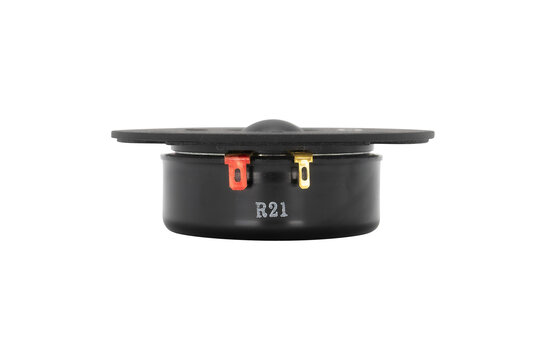

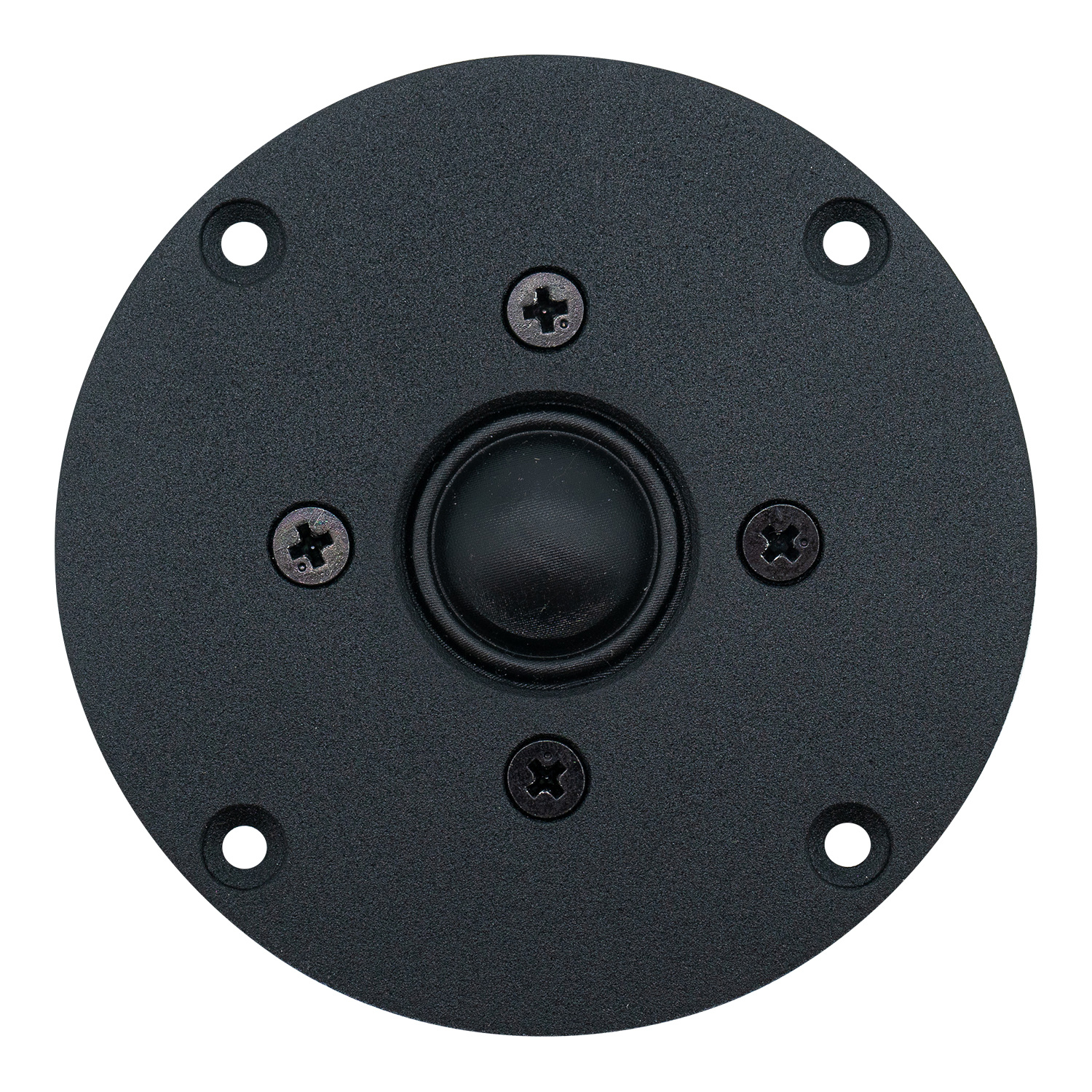

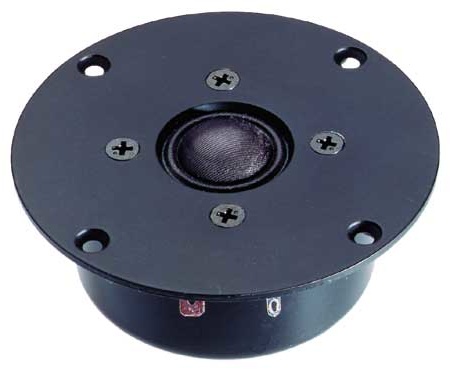

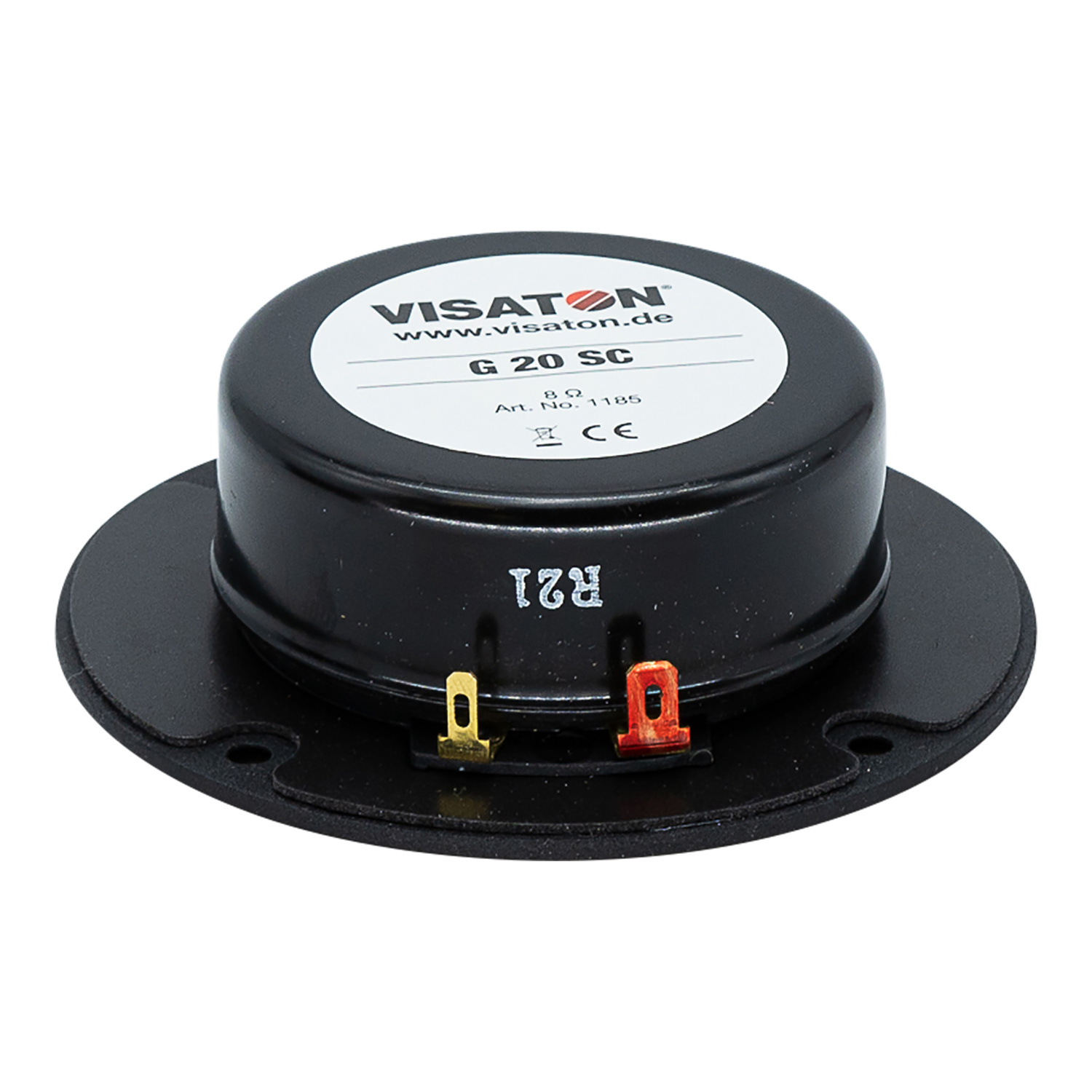

Visaton G 20 SC 0.8" High-End Textile Tweeter

The optimized dome shape and damping felt on the pole piece ensures a very balanced frequency response without resonance and excellent omnidirectional sound distribution. The powerful magnet drive and ferro-fluid cooled voice coil guarantee both high efficiency and excellent power handling capabilities.

Eigenschaften

Artikelnummer:: G 20 SC
Tweeter Type: Dome
Tweeter Series: High-End
Cone / Dome Diameter: 0.6"
Power Handling (RMS): 80 Watts
Power Handling (max): 140 Watts
Impedance: 8 ohms
Sensitivity: 88 dB (1 W/1 m)
Frequency Response: 1,200 Hz - 30,000 Hz
Resonant Frequency (Fs): 1,890 Hz
DC Resistance (Re): 4.8 ohms
Voice Coil Inductance (Le): 0.02 mH
Overall Outside Diameter: 94 mm
Cutout Diameter: 66 mm
Depth: 29 mm
Diaphragm Material: Fabric
Recommended cut frequency: 3,000 Hz

Data sheet
